Network pressure float valve tap for Polyfast and Polyspring II NC drinkers
Network pressure float valve tap for Polyfast and Polyspring II NC drinkers
Network pressure float valve tap for Polyfast and Polyspring II NC drinkers
Network pressure float valve tap for Polyfast and Polyspring II NC drinkers
Feature-Benefits : Seven models can be used in all types of configurations.
170_PRESSION_3_4_BARS-P1.svg 440_PRODUIT_MAG-P1.svg
> More details

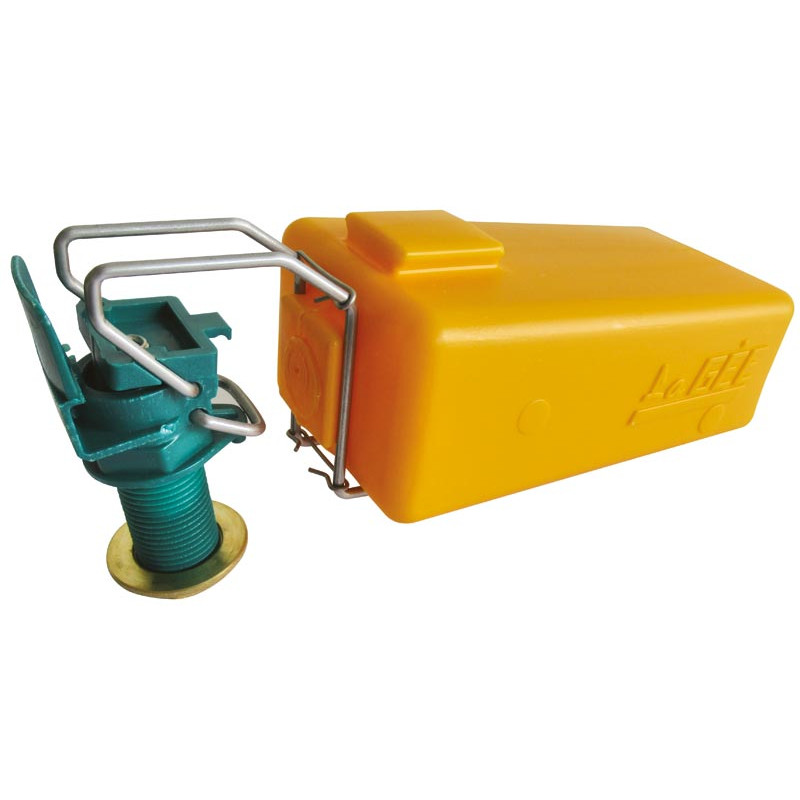

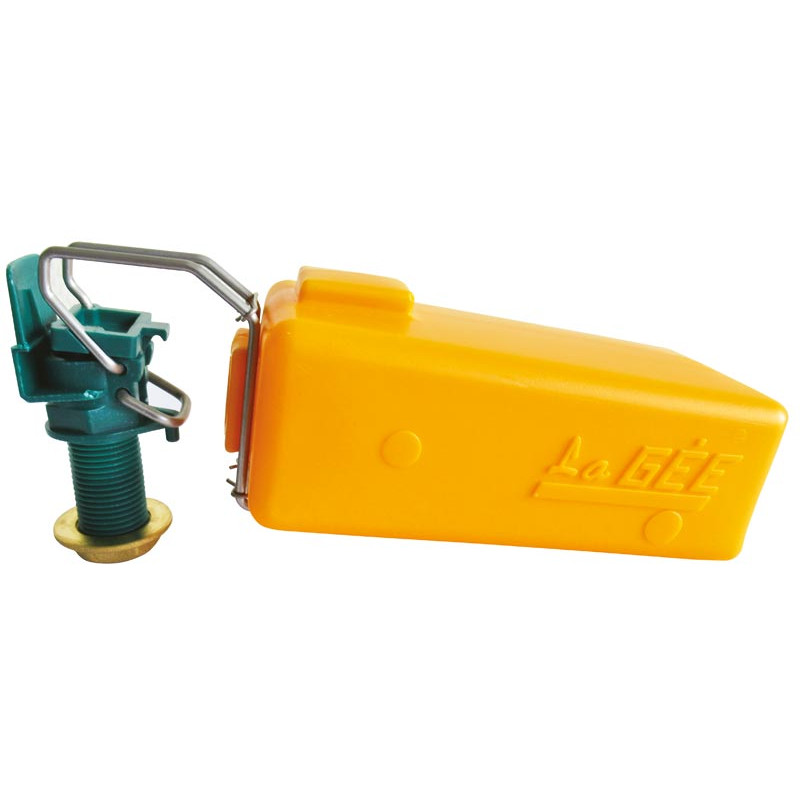

The float valve tap, adjustable in height and length, adapts to the force needed to shut off the flow depending on the water pressure and desired water height.
Network pressure and low pressure mechanisms fitted with an indexer, anti-splash, and water stop to halt the flow in the system at any time.
- 15 liters/minute flow rate with green polypropylene float valve.

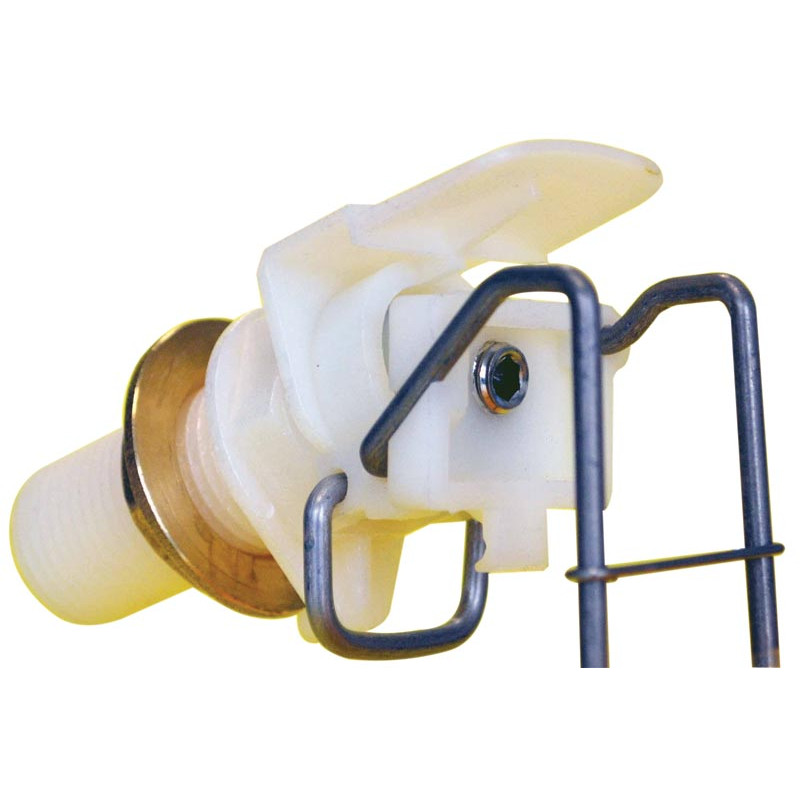

- 32 liters/min flow rate, white translucent polypropylene float valve.
- 32 liters/min flow rate, white polypropylene float valve with height/flow adjuster screw.
Ideal for height regulation in small containers.
- Low pressure flow rate, black polypropylene float valve.
- High 42 liters/minute flow, brass body float valve with two factory fitted float valves.

Possible to adjust height and flow rate via its adjuster screw.


Colours
green
Model
Network pressure
Drinker
PF5, PF6 and Polyspring NC
Connection diameter
1/2" (15/21 mm) - male
Packaging
Pack
Flow rate
15 l/min
Adjustable
yes
Sales unit
Unit
