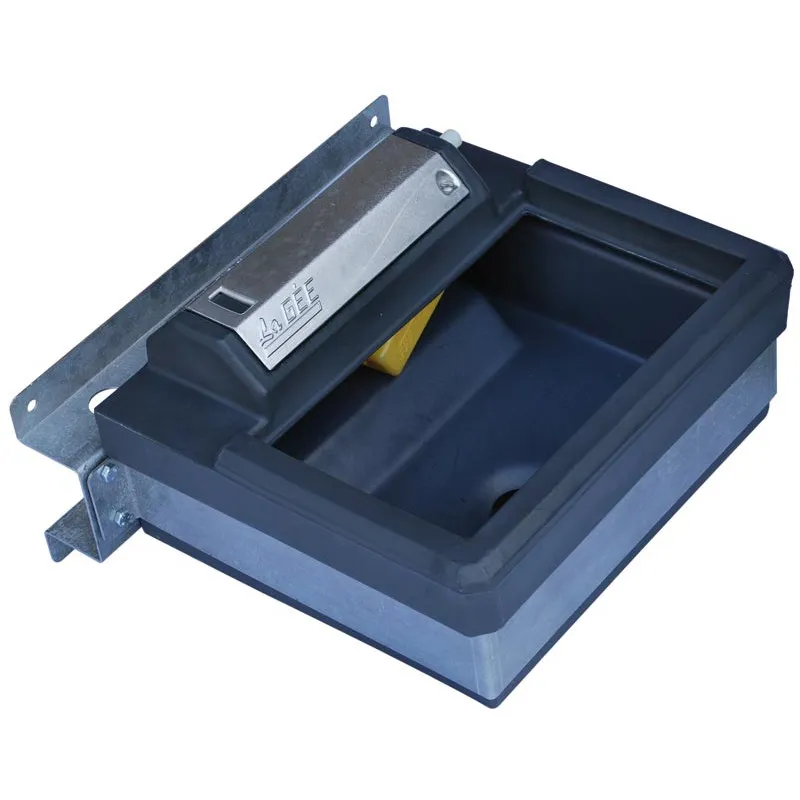

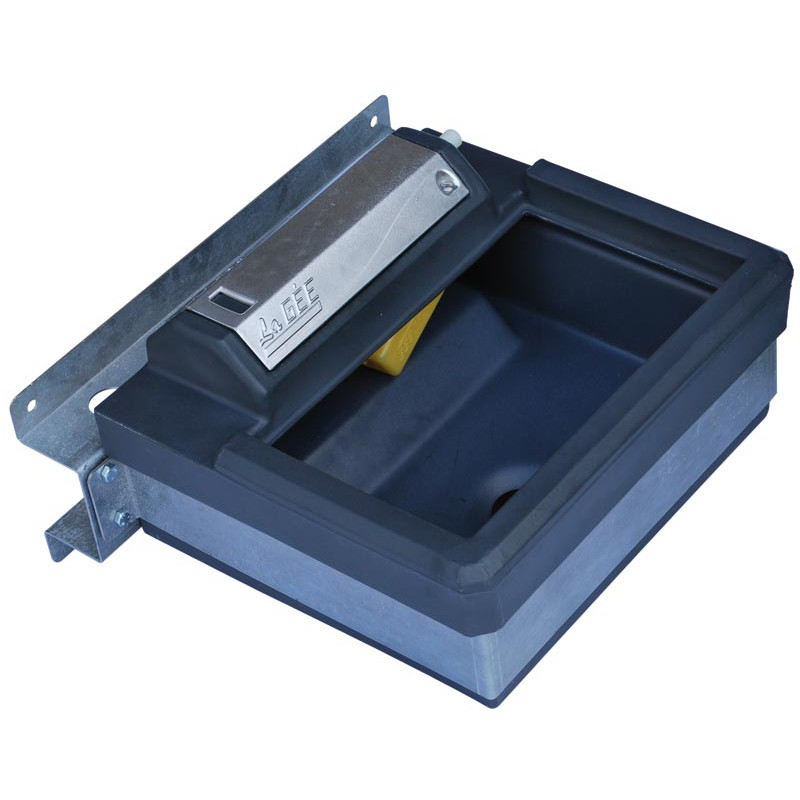

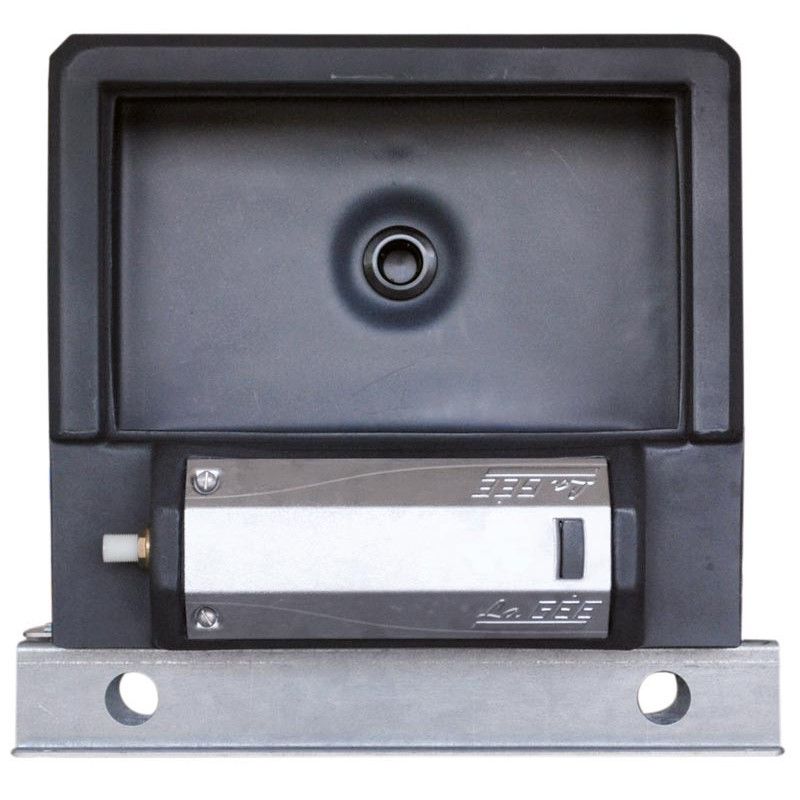

Single Polybac 25 M drinker with interior rim and fastening support
Feature-Benefits :
POLYBAC M are simple and economical
Multi-purpose drinker with anti-spill rim.
Large capacity.
Made from rot-proof rotomolded polyethylene, these large capacity drinkers are fitted with the La Gée float valve 32 l/mn and a 33/42 through wall plug for quick cleaning and emptying.

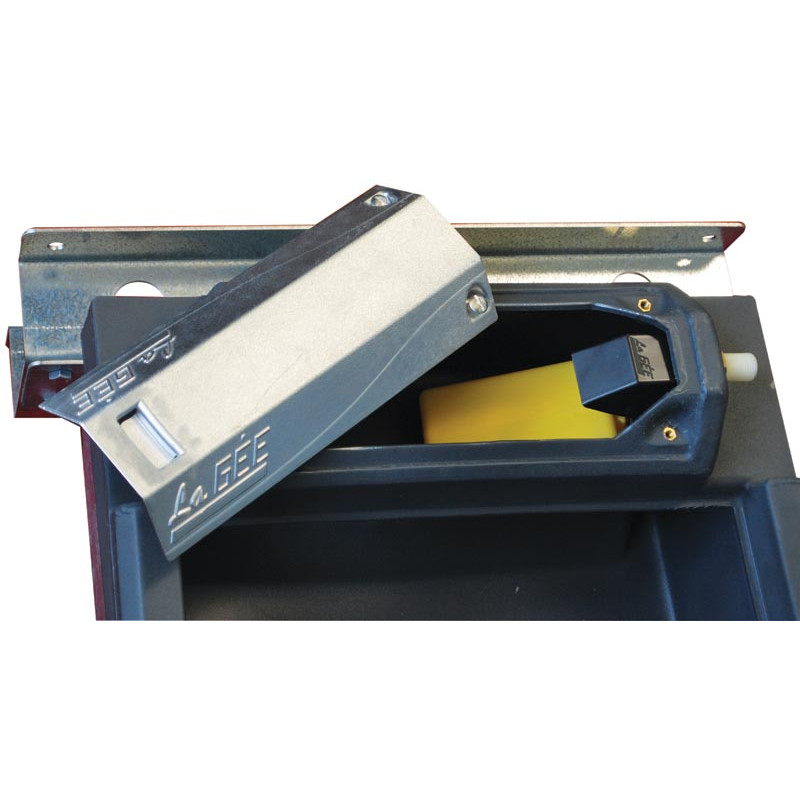

The mechanism is protected by a cast aluminium or stainless steel sheet housing. Wall trough supports are factory fitted with a water inlet on the wall side. Ideally operates on pressure range from 3 to 4 bars.

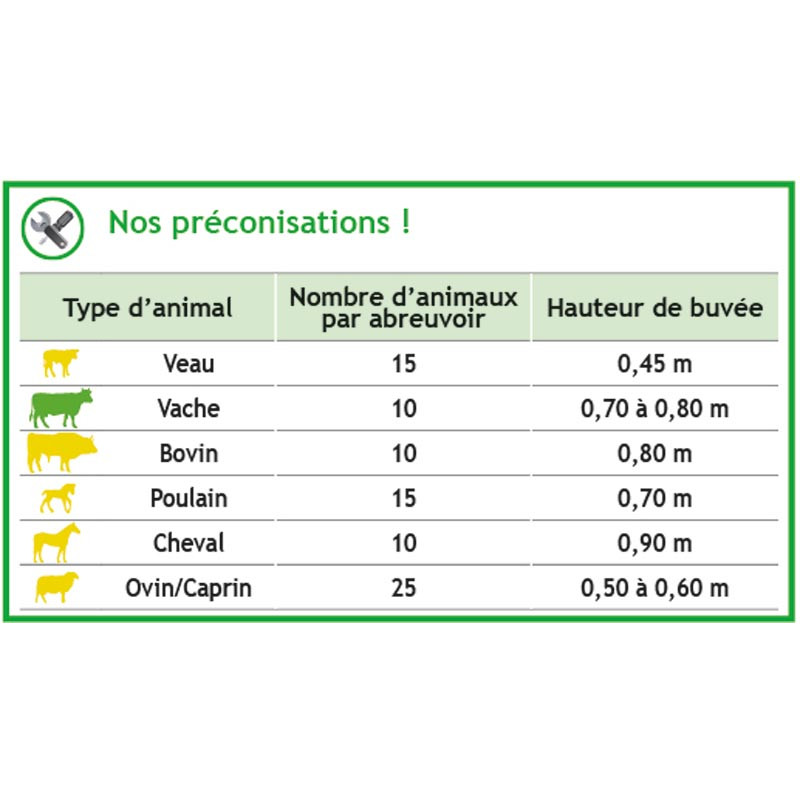

They are designed with a wide heavy-duty bowl suited to animal morphology (cattle, horses, goats).
Available in 2 versions : 25 M and 72 M. Designed with a wide heavy-duty pan with an anti-spill interior rim.

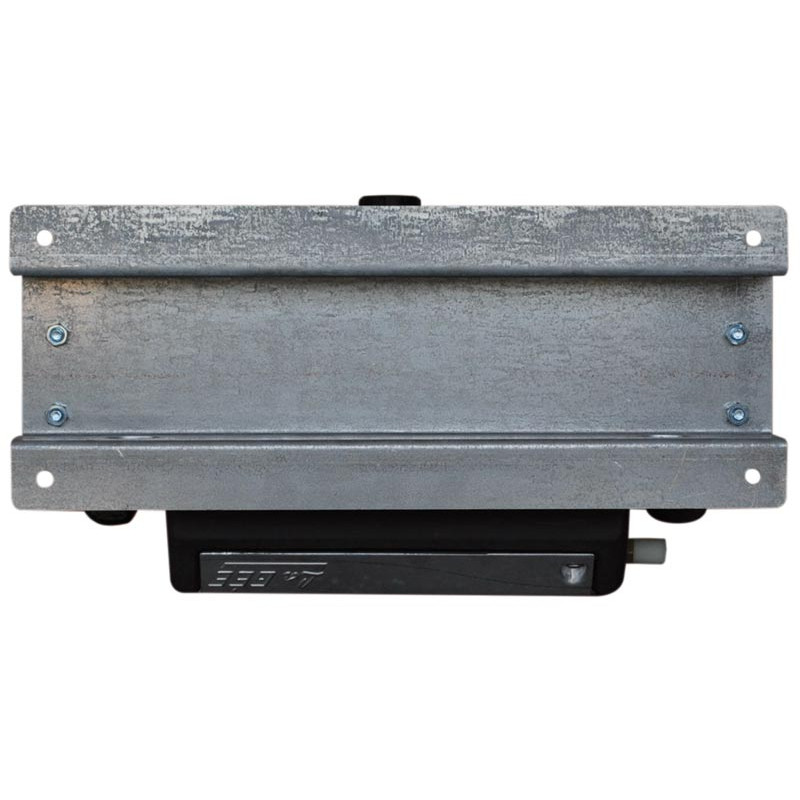

Can be wall-mounted using the galvanised steel fastening support.
Delivered with a galvanised frame. Aluminium housing to protect the float valve.
25 M model fitted with a through-wall drain plug 33/42 mm.
72 M model fitted with two through-wall drain plug 33/42 mm
Delivered without fastening support. Delivered with fastening support.
- Material
- rotomolded polyethylene resin

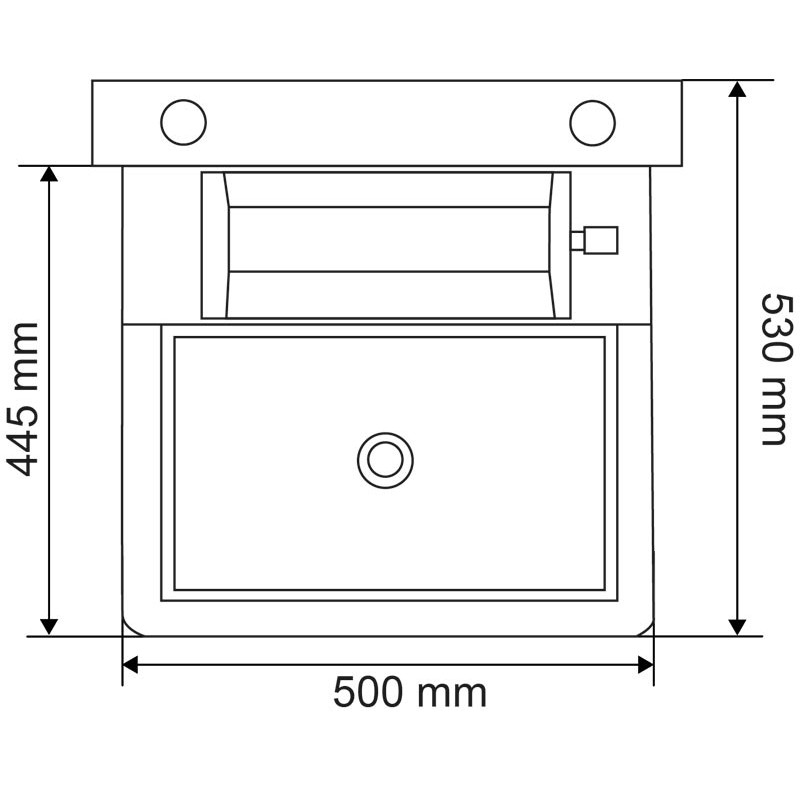

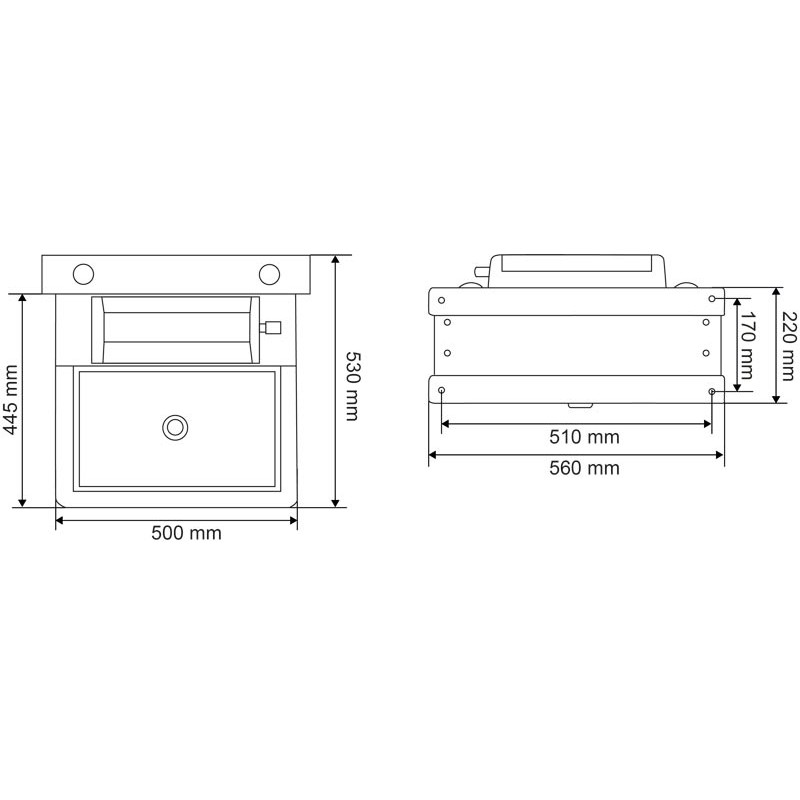

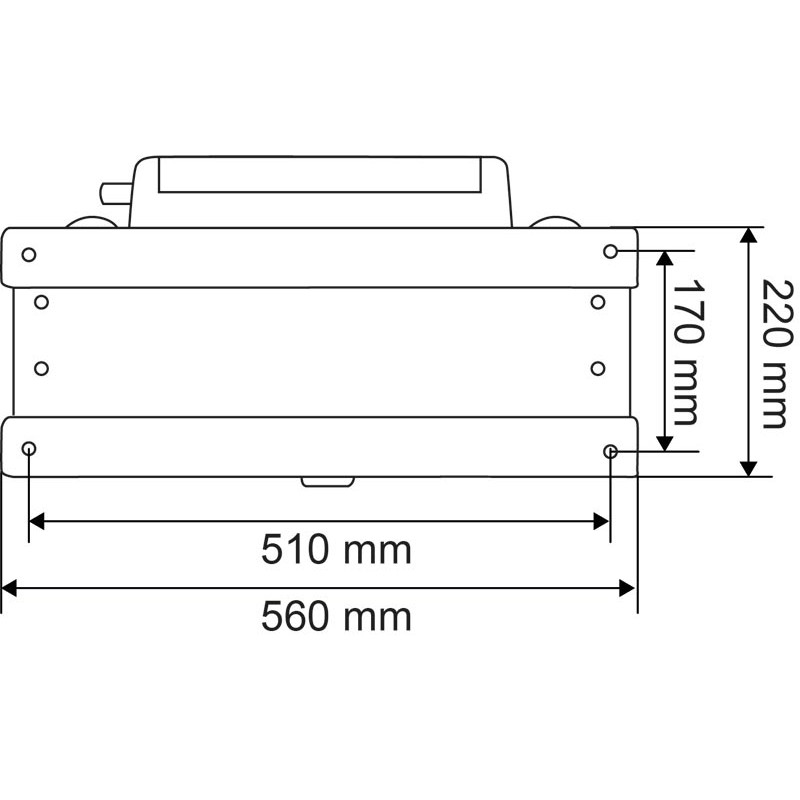

- Length
- 560 mm
- Width
- 530 mm
- Height
- 305 mm
- Capacity
- 25 l
- Model
- 25 M
- Type
- interior rim
- Pressure
- network
- Drinker
- Polybac M
- System
- constant level
- Mechanism
- float valve tap
- Fastening
- wall
- Device
- non-heating
- Connection diameter
- 1/2" (15/21 mm) - male (25M on the side et 72M at the rear)
- Packaging
- Paddle
- Flow rate
- 32 l/min
- Sales unit
- Unit
- Float valve
- Pressure network in polyamide white (P1138310)
- Drain plug
- Through-wall drain plug 33/42 mm
