Network pressure float valve tap (15 l/min)
Non-heating tilting POLYNOX M 155
Feature-Benefits :
Reliable and multi-purpose.
High quality.
Very high flow, factory fitted with three float valves.
High quality.
Very high flow, factory fitted with three float valves.

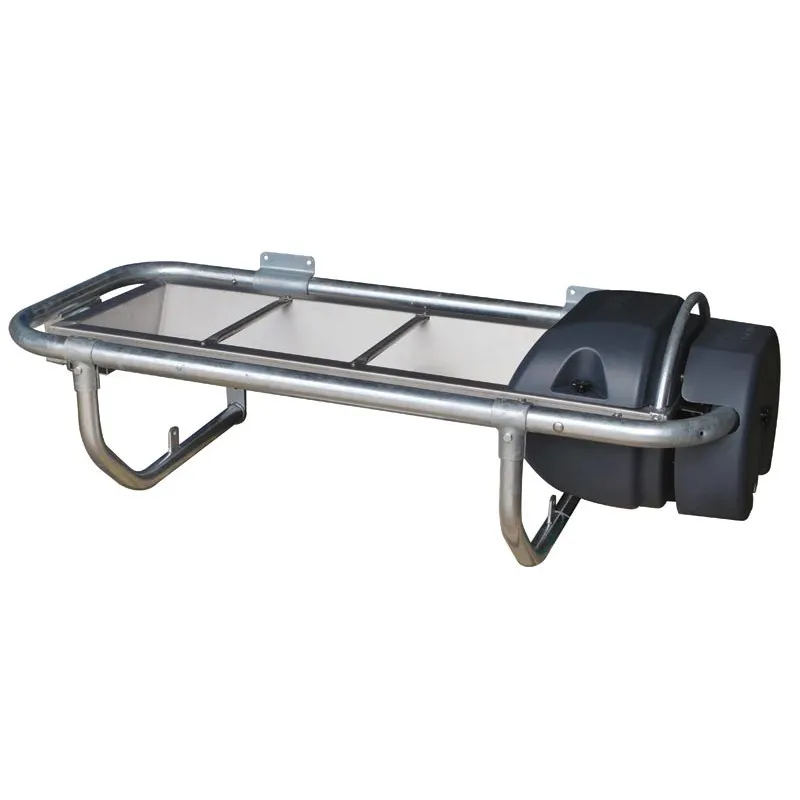

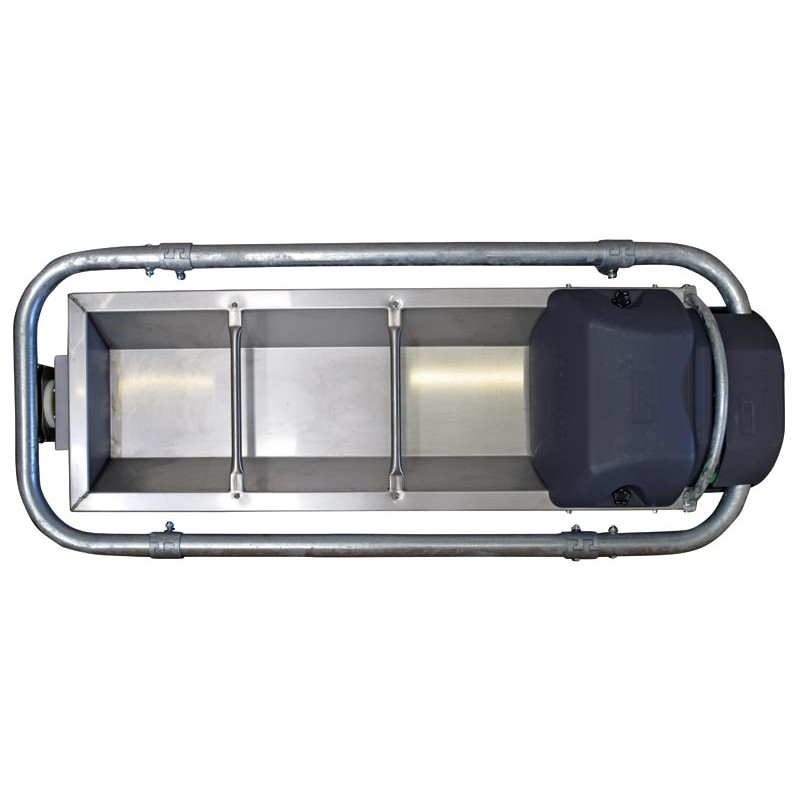

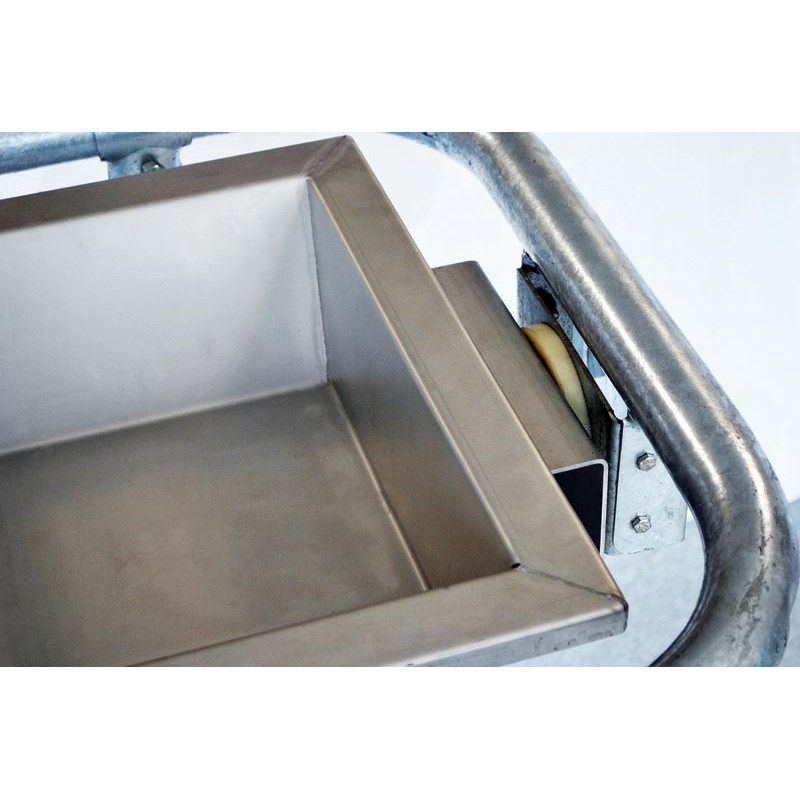

These tilting drinkers are designed with a shallow, narrow, and heavy-duty AISI 304 stainless steel sheet trough. A removable rotomoulded polyethylene housing protects the supply system fitted with three La Gée constant level float valves and the tilting mechanism. Easy to handle, a rounded handed allows you to accompany the tilting movement of the trough. The locking bolt is automatically indexed by quarter turn preventing inappropriate return of the trough. The wide tilting mechanism is fitted with 80 mm diameter Ertalon flanges for great comfort of use and long-term silence during handling.
Non-heating models can be fitted with a heating element as an option to convert them into a heating model, at any time.
Option: 24 V 80 W heating polyresistance - 3 A (P1130780)
- Material
- stainless steel

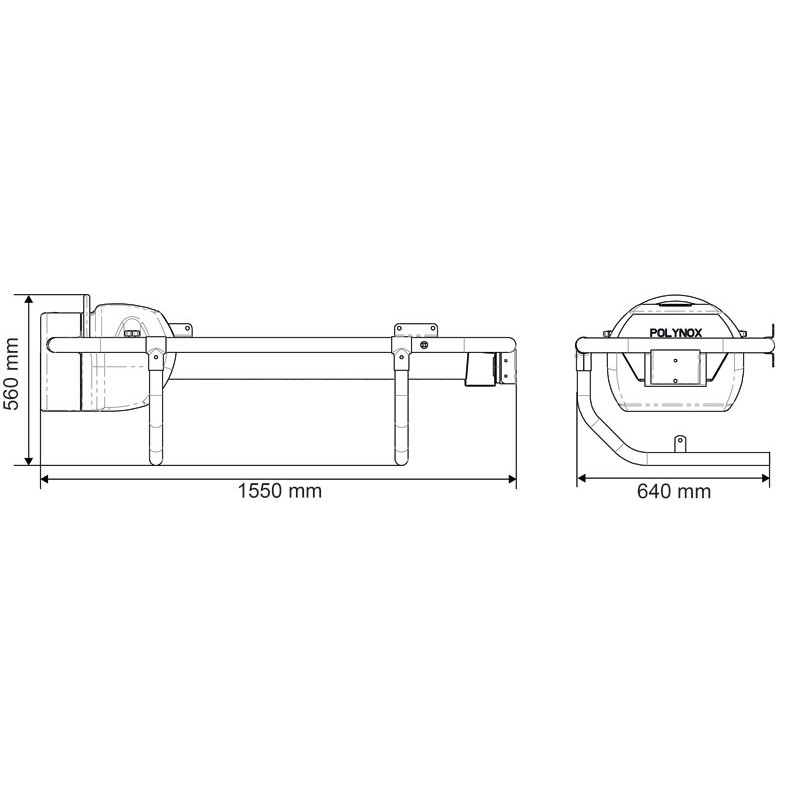

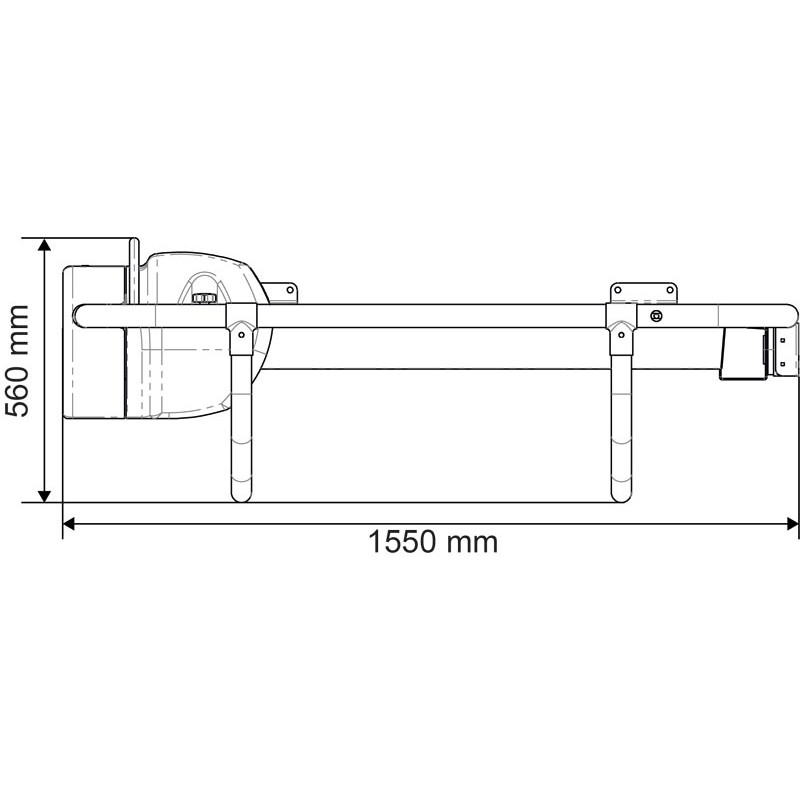

- Length
- 1.55 m

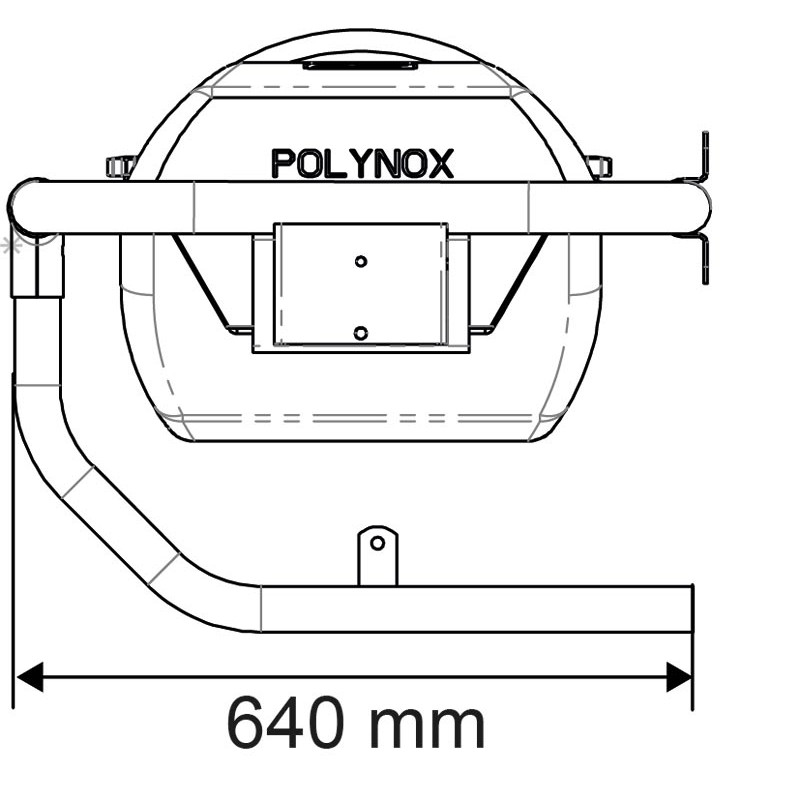

- Width
- 0.64 m
- Height
- 0.56 m
- Capacity
- 28 l
- Model
- 155
- Pressure
- network
- Drinker
- Non-heating tilting Polynox M
- System
- constant level
- Mechanism
- float valve tap
- Fastening
- wall
- Device
- non-heating
- Connection diameter
- 1/2" (15/21 mm) - female
- Packaging
- No packaging
- Flow rate
- 1 to 15 L/min
- Sales unit
- Unit
- Float valve
- pressure network en polyamide vert (P1138309)
