Feature-Benefits :

Tip-over drinking trough for easy cleaning.

090_DEBIT_15_L-P1.svg 170_PRESSION_3_4_BARS-P1.svg 440_PRODUIT_MAG-P1.svg
> More details

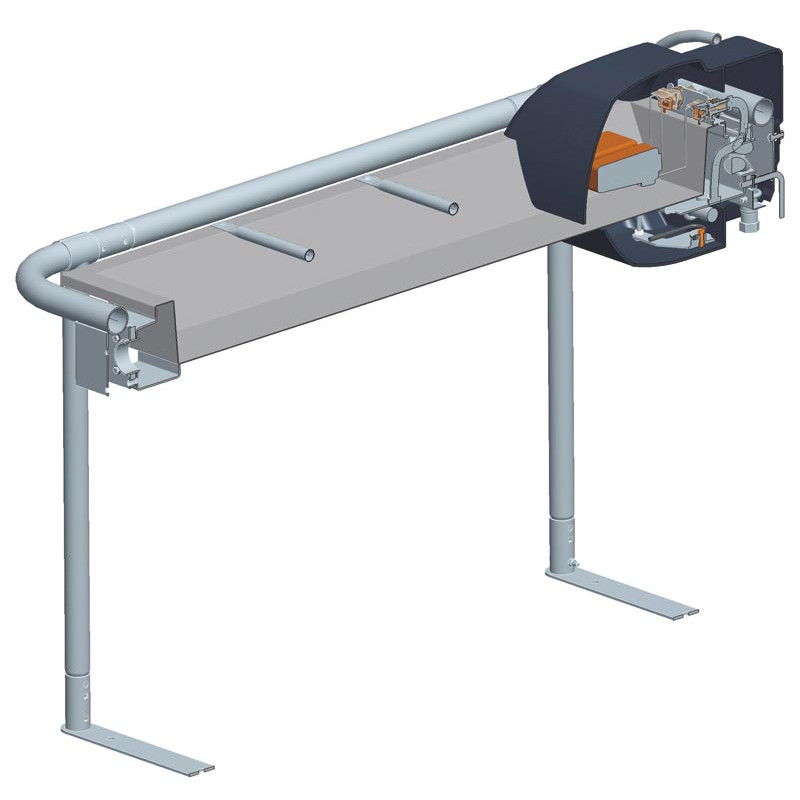

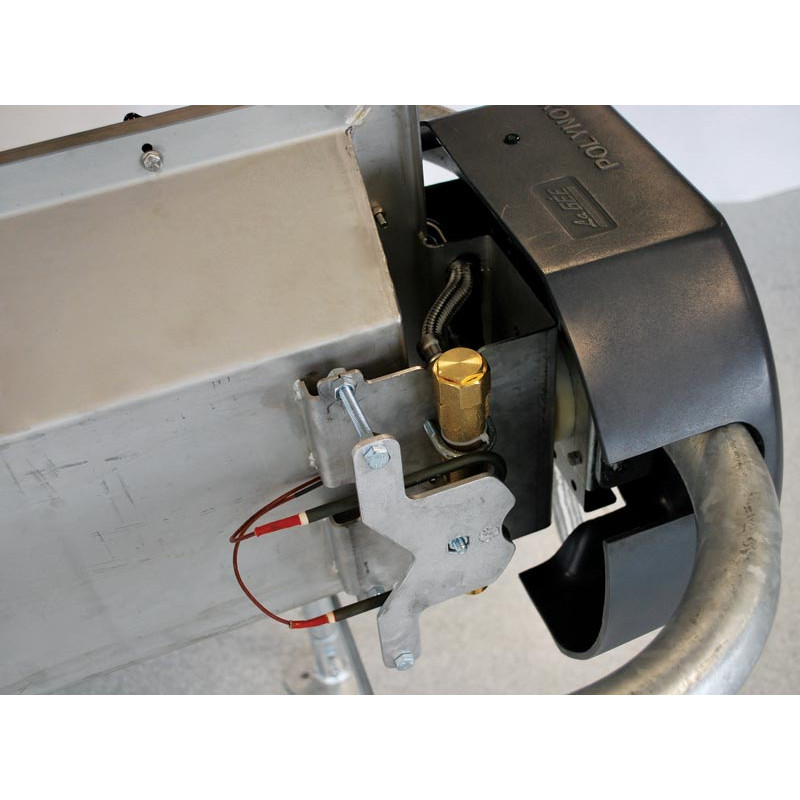

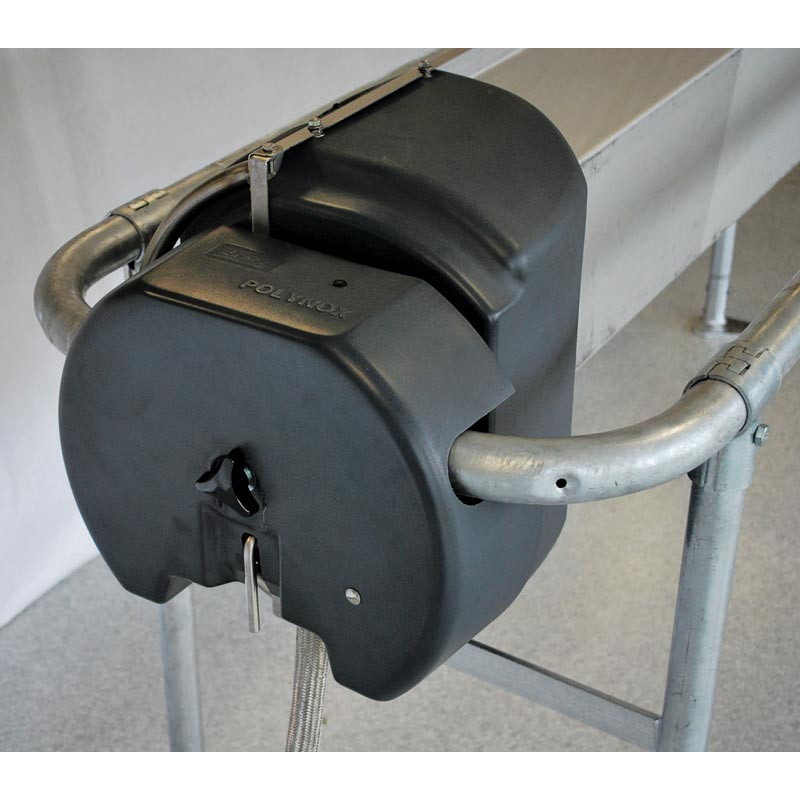

These tip-over drinkers are designed with a shallow, narrow, and heavy-duty stainless steel sheet trough. A removable rotomolded polyethylene housing protects the supply systemfitted with three La Gée level float valves and the tilting mechanism. Easy to handle, a rounded handed allows you to accompany the tilting movement of the trough. The locking bolt is automatically indexed by quarter turn preventing inappropriate return of the trough. The wide tilting mechanism is fitted with 80 mm diameter Ertalon flanges for great comfort of use and long-term silence during handling. Non-heating models can be fitted with a heating element as an option to convert them into a heating model, at any time.

This Polynox drinker is fitted with:
- 1 24 V – 80 W heating polyresistance, ready to be connected to a transformer (essential) and a thermostat to prevent the water inlet from freezing.
- 1 wall mount.
- 1 set of feet for mounting on the ground.
It is recommended to order the thermostat and the right transformer suited to your facility and the number of heated drinkers.



Option: transformer and thermostat

Material
stainless steel
Length
1.55 m
Width
0.64 m
Height
0.56 m
Capacity
28 l
Model
155
Pressure
network
Drinker
Tilting Polynox MSC
System
constant level
Mechanism
float valve tap
Fastening
wall and ground
Device
heating
Connection diameter
1/2" (15/21 mm) - female
Packaging
No packaging
Voltage
24 V
Rating
80 W
Flow rate
1 to 15 L/min
Sales unit
Unit
Float valve
Pressure network in polyamide green (P1138309)
