Capsule plug for Autodrink drinker
Water flow rate adjustable up to 14 liters per minute by cutting the plastic cone located inside the mechanism under the filter.

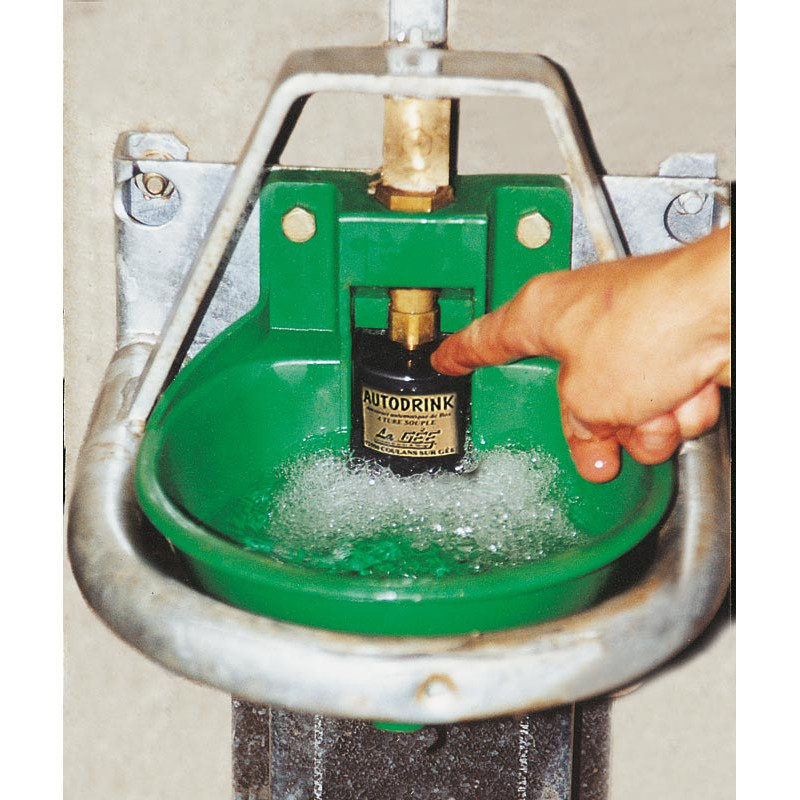

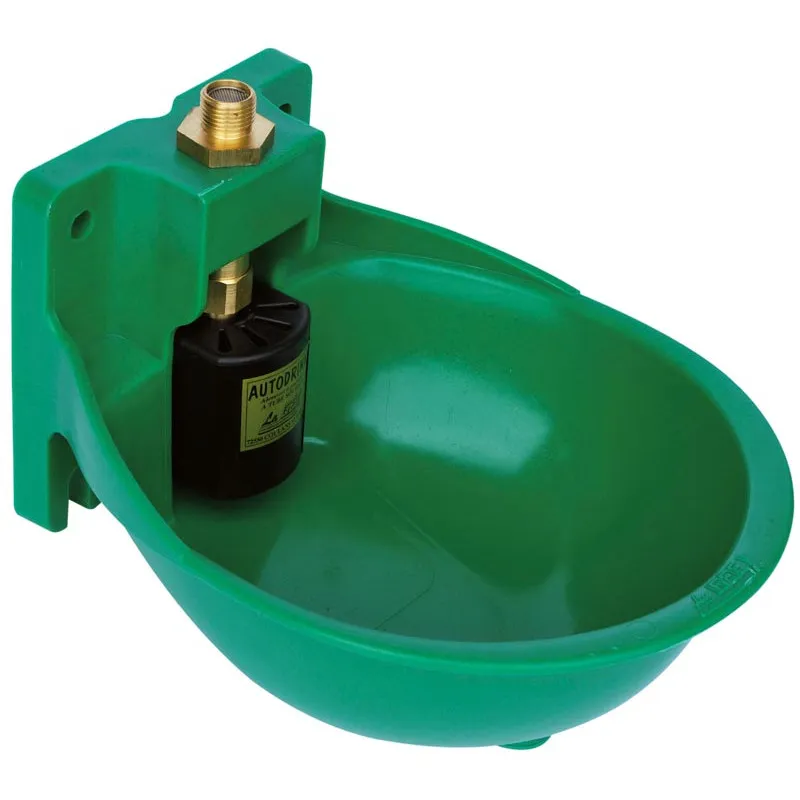

Gentle push paddle mechanism with an anti-splash tube-type nozzle.

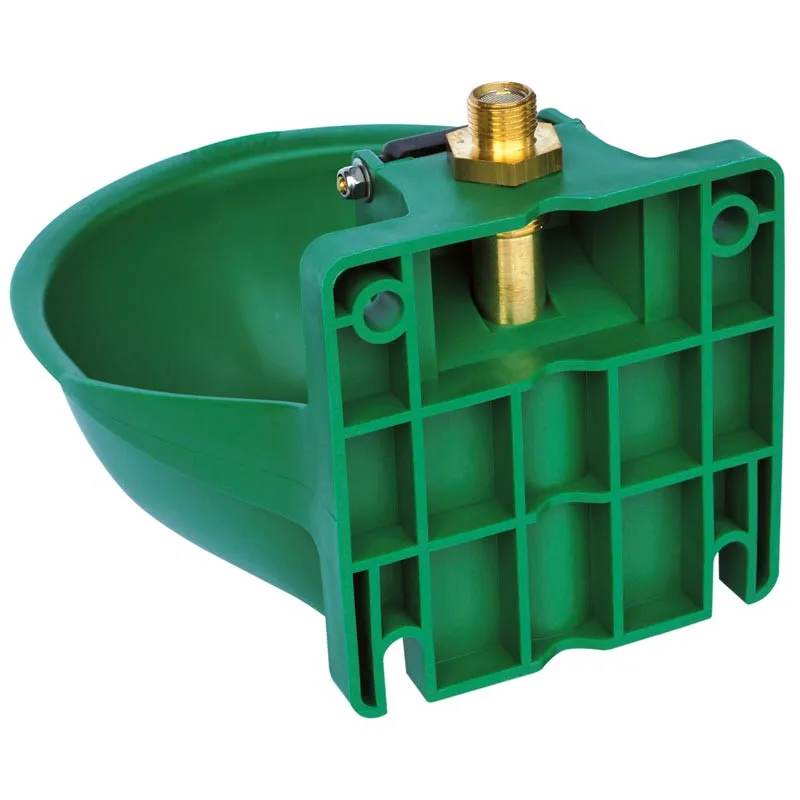

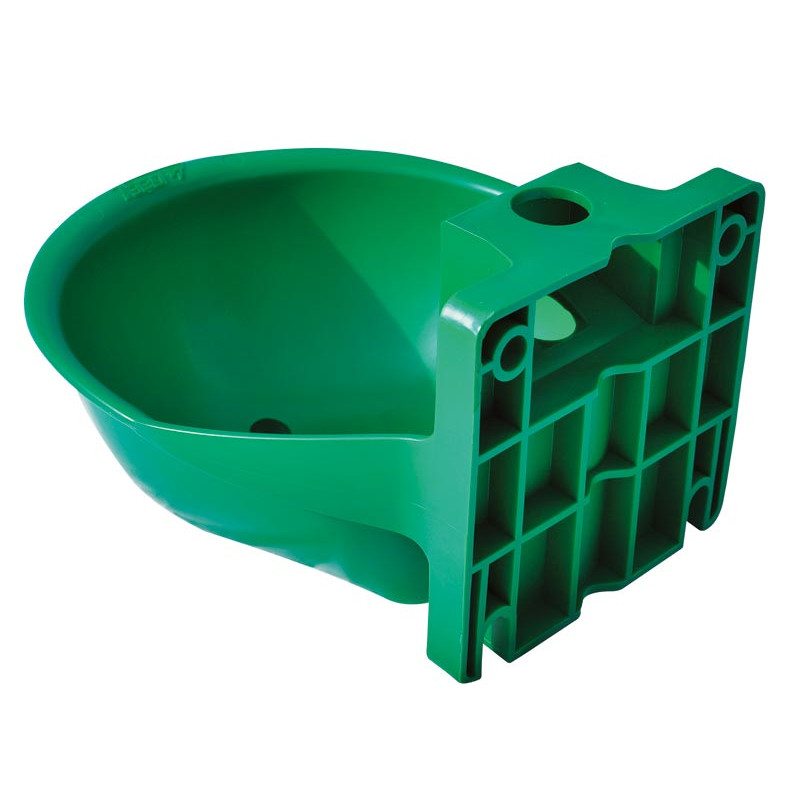

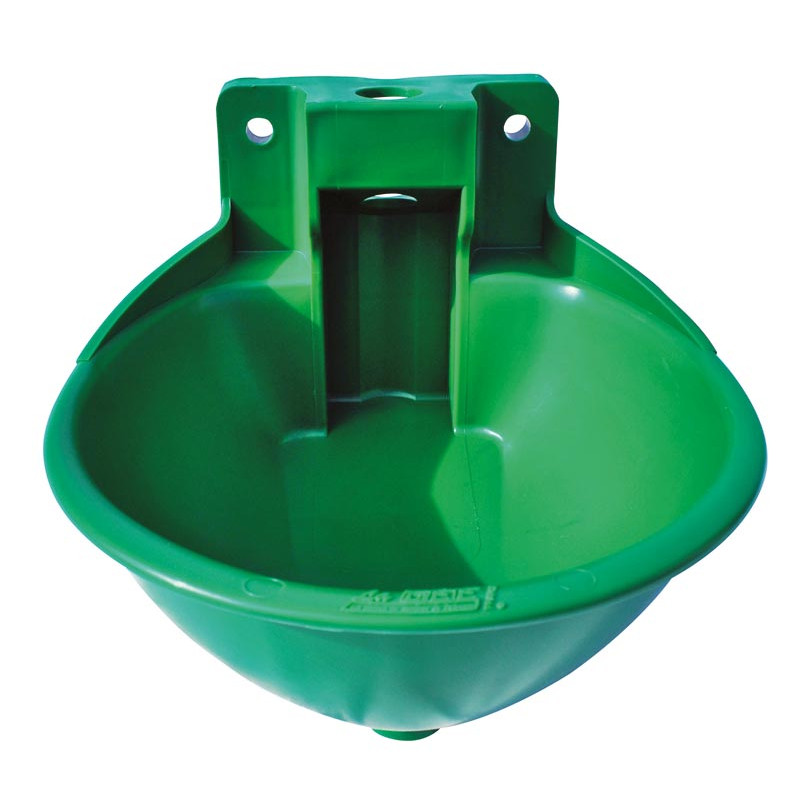

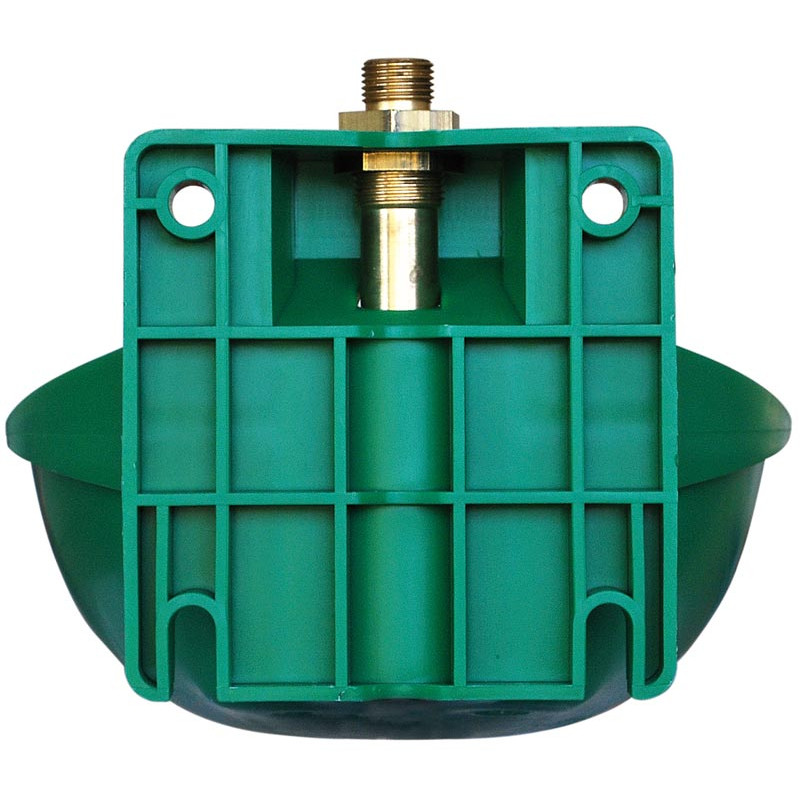

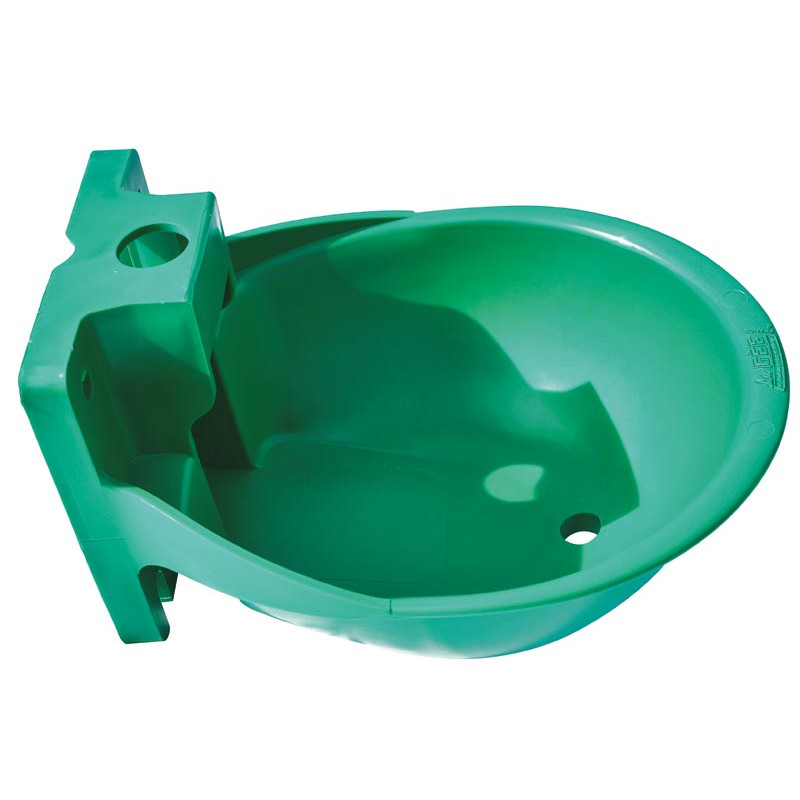

Fitted with a sturdy mounting plate and two openings at the bottom for easier installation. Cleaning plug (Ø 19 mm).

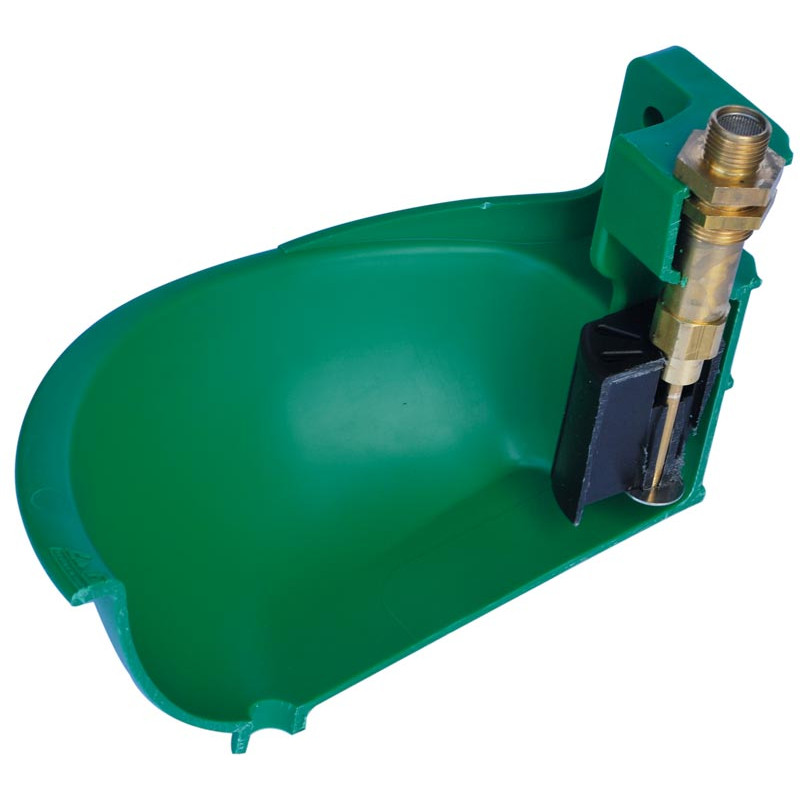

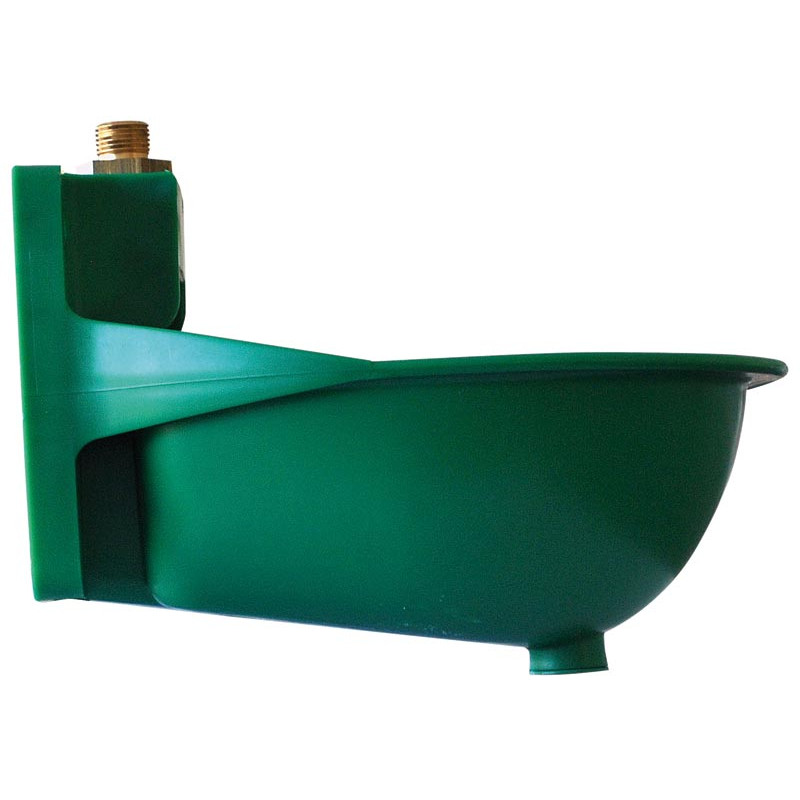

Brass valve mechanism with a 1/2" (15/21 mm) valve outlet on top and fitted with a filter.

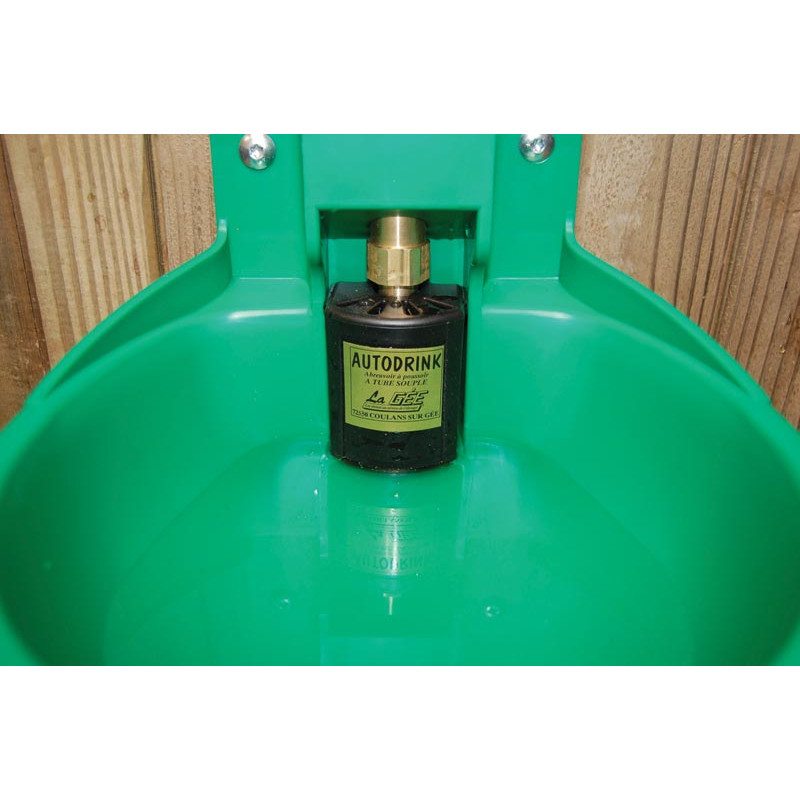

Tube and vertical paddle models facilitate access to the bowl for cleaning.
Options: flange for post mounting, metallic protection, and corner bracket.
- Material
- injected polythene resin

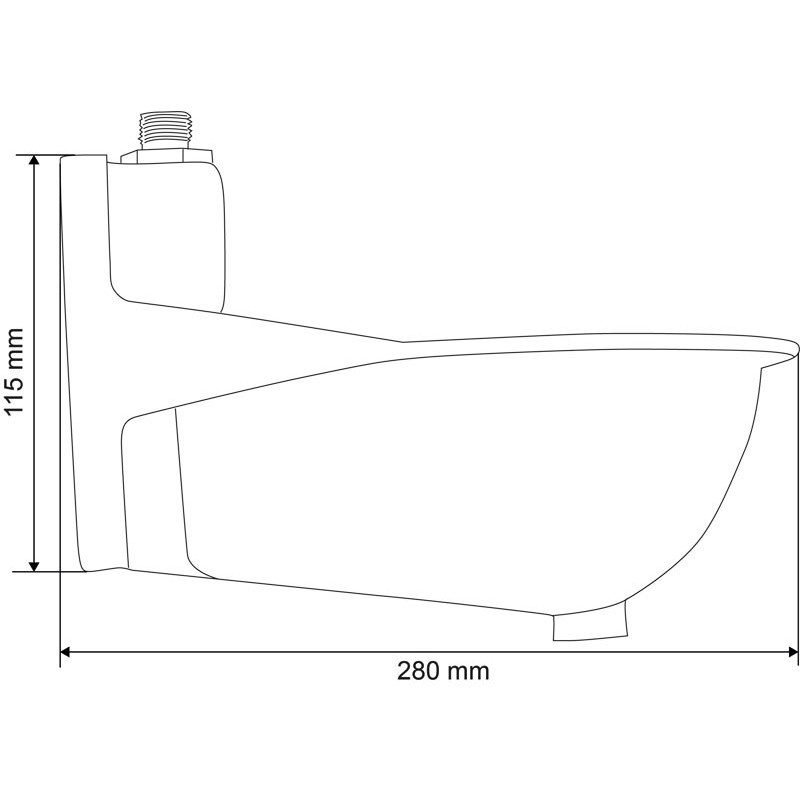

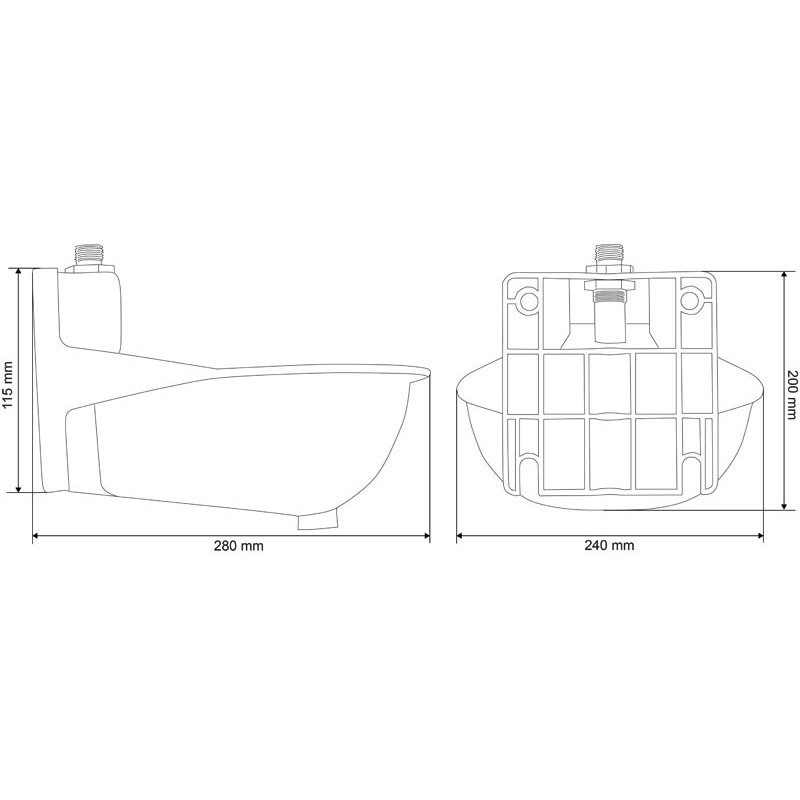

- Length
- 280 mm

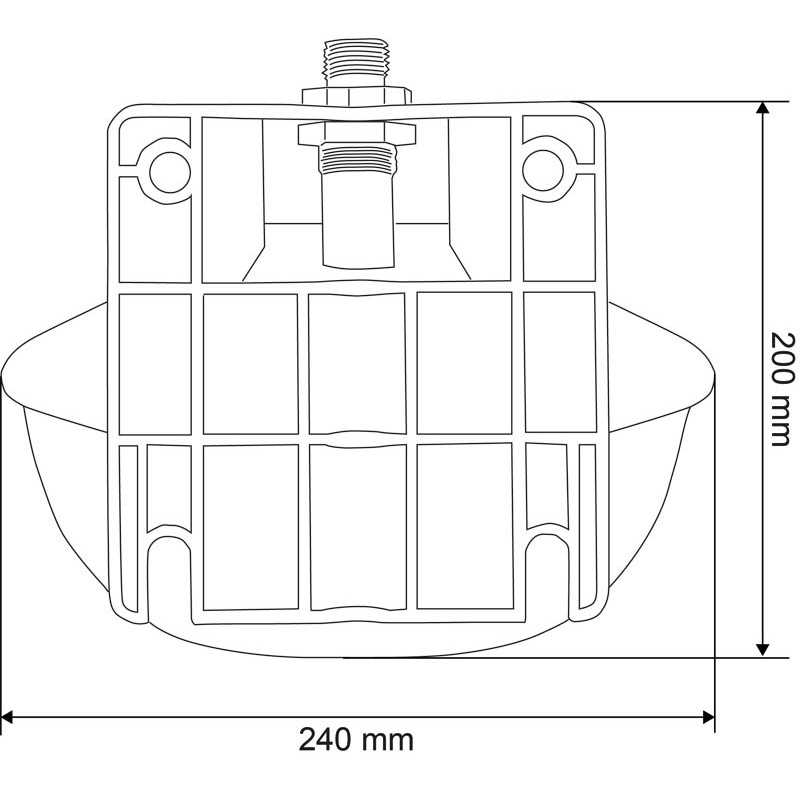

- Width
- 240 mm
- Height
- 115 mm
- Pressure
- network
- Drinker
- Autodrink
- System
- push-type
- Mechanism
- single
- Fastening
- wall
- Device
- non-heating
- Flowrate
- 1 à 14 l/min
- Connection diameter
- 1/2" (15/21 mm) - male
- Packaging
- boxed
- Pusher
- tube
- Valve
- brass
- Sales unit
- Unit
- Sales packaging unit
- Boxed.
- Drain plug diameter
- 19 mm
