Installation advice:
- Position the MAXI filter on the selected boss on the top of the tank depending on its orientation in relation to the building. Hole saw drilling ø 100 mm.
- Connect the filter to its inlet by diverting the gutter. To do this, cut the filter at the ø relevant to the installation.
- Connect the filter to its outlet by connecting it to the mains. To do this, cut the filter at the ø relevant to the installation.
- Seal all joints with PVC adhesive, adding silicone gaskets for watertightness.
- Check the connections, alignment and levels, and the stability of the assembly before putting it in the water.

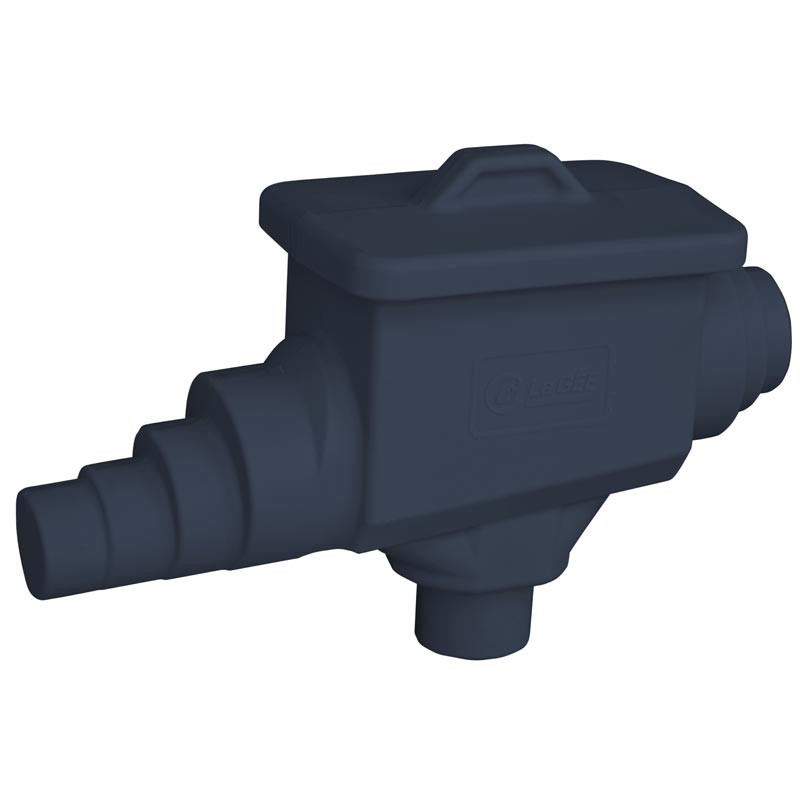

Made from rotomoulded PE resin, the MAXI filter is rot-proof and UV-resistant.

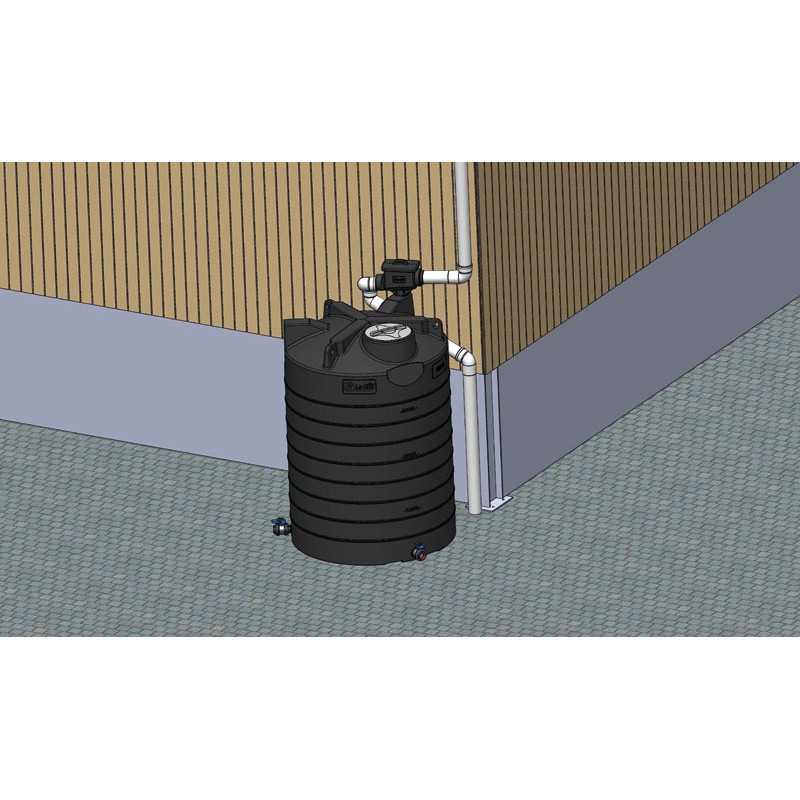

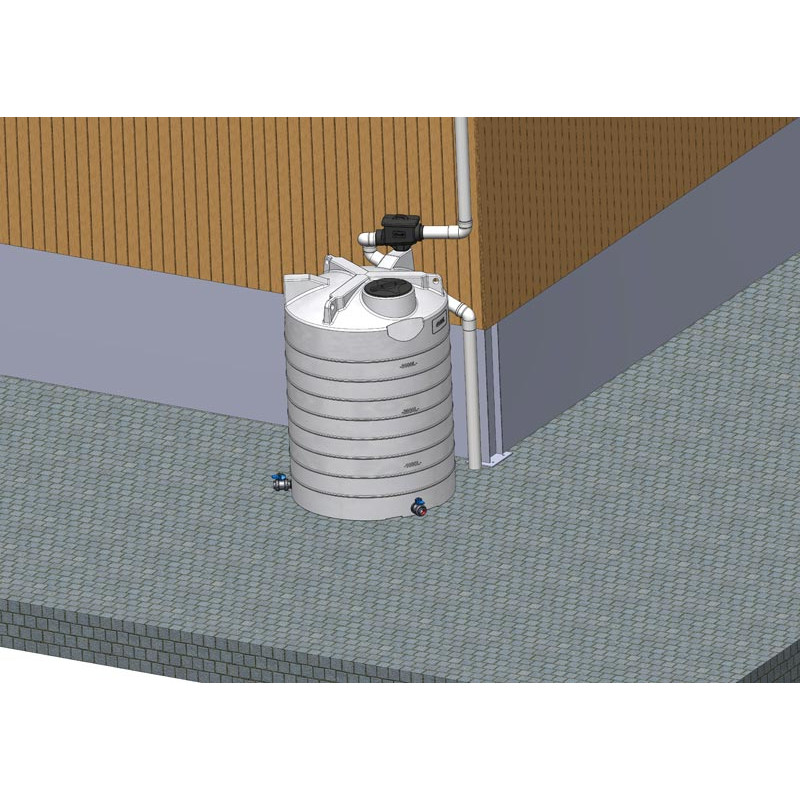

This multi-purpose MAXI filter is fitted directly on one of the bosses on top of the tank,
using the flat part on its bottom. It is designed to be connected directly via its inlet to the building's downspout, with a choice of several diameters (to be cut by the installer).
This MAXI filter will then allow residues to collect in its reservoir to avoid polluting the water stored in the tanks.

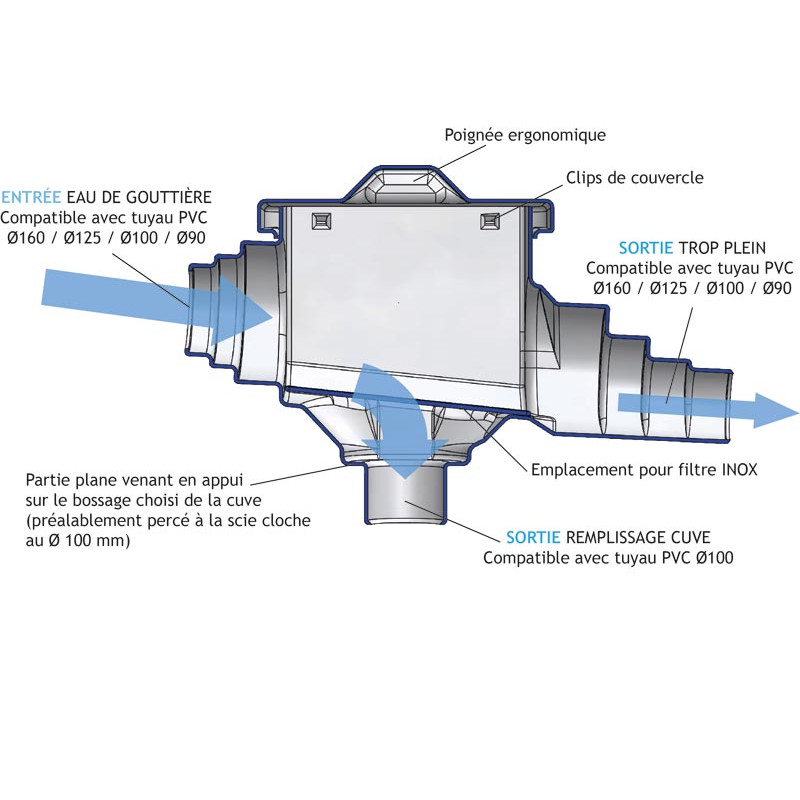

It has 2 outlets, the first is vertical 2 for directing stored fluids to the tank and the second 3 for return to the network via an overflow when the tank(s) is (are) full.
The multi-purpose MAXI filter is equipped with:

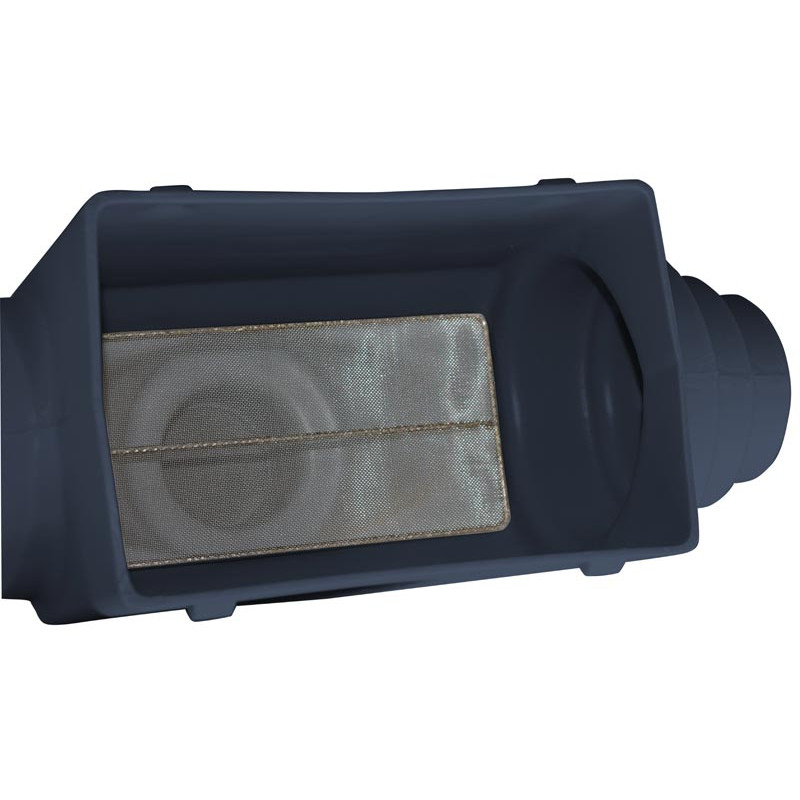

- a reservoir containing a stainless steel filtration grid,
- 2 factory-fitted stainless steel filtration grids, 1 grid with 0.8 mm mesh for fine sieving and 1 grid with 5 mm mesh for coarser sieving, depending on the user's needs. This grid is positioned at the bottom of the reservoir,

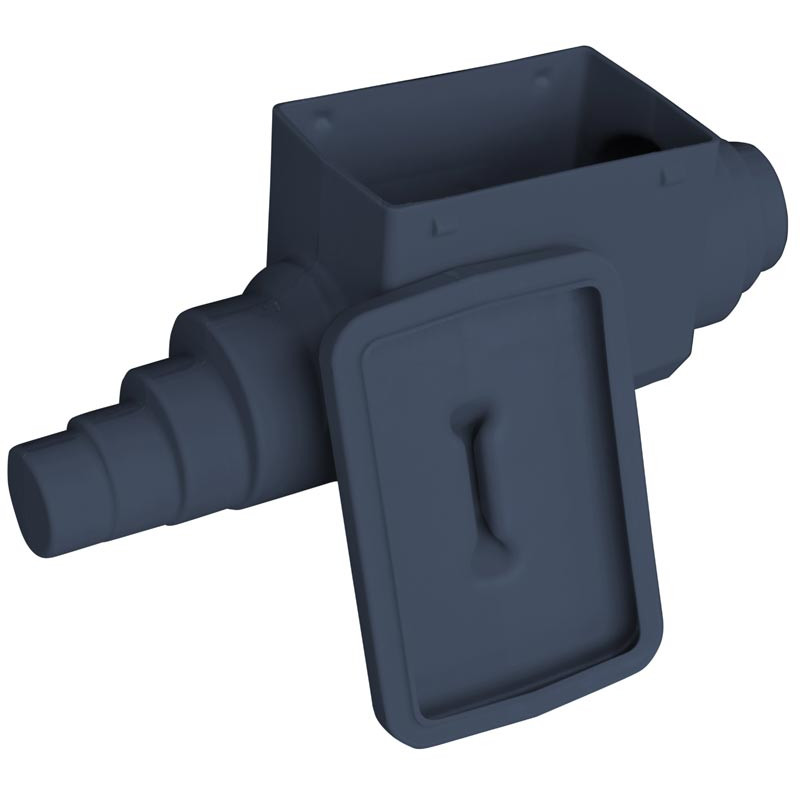

- a secure lid that clips onto the top of the tank, providing easy access to the filter grid for cleaning.
