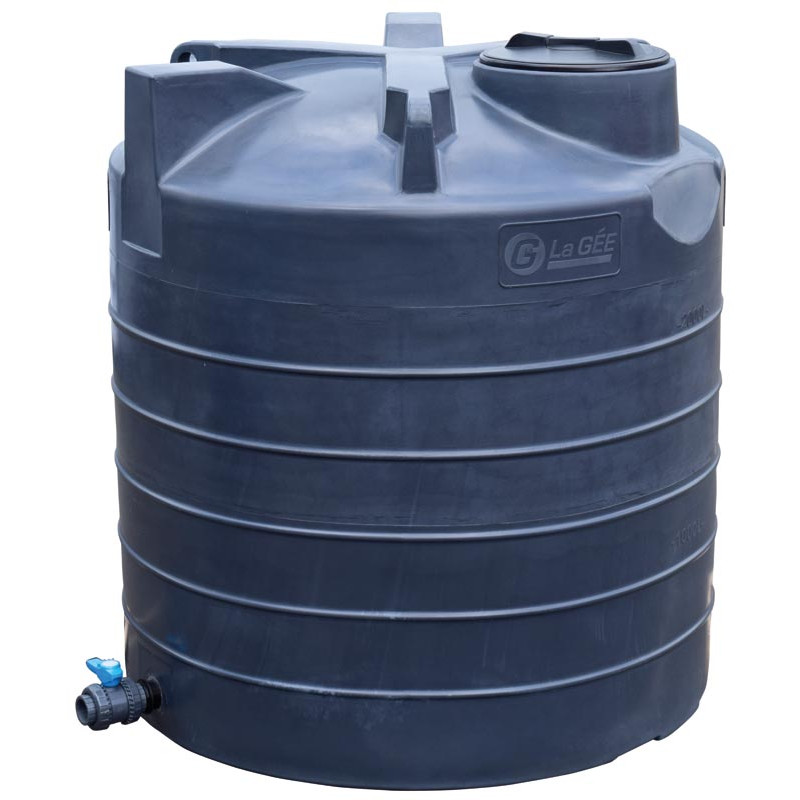

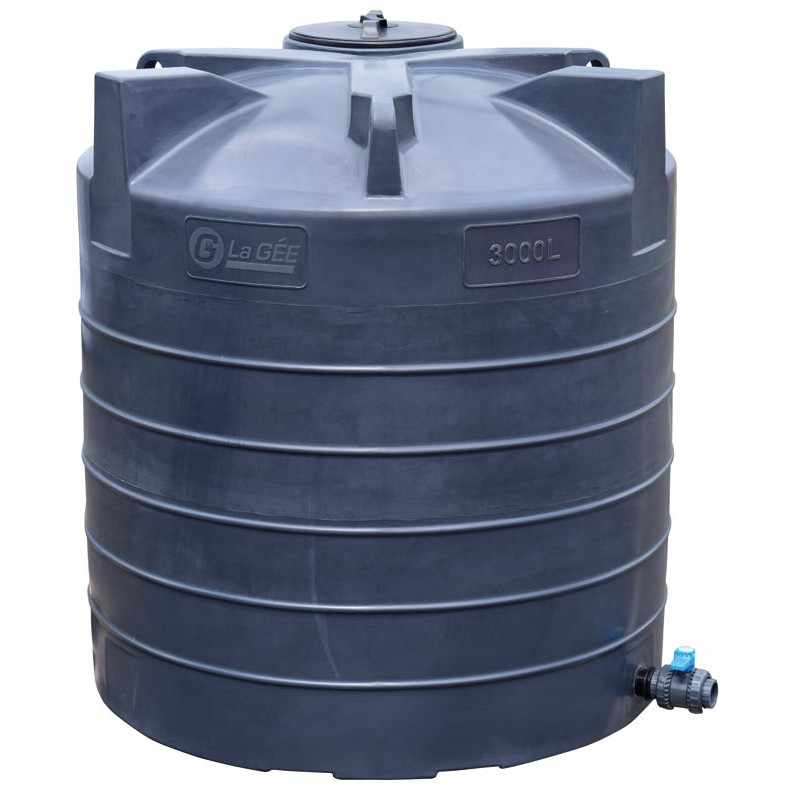

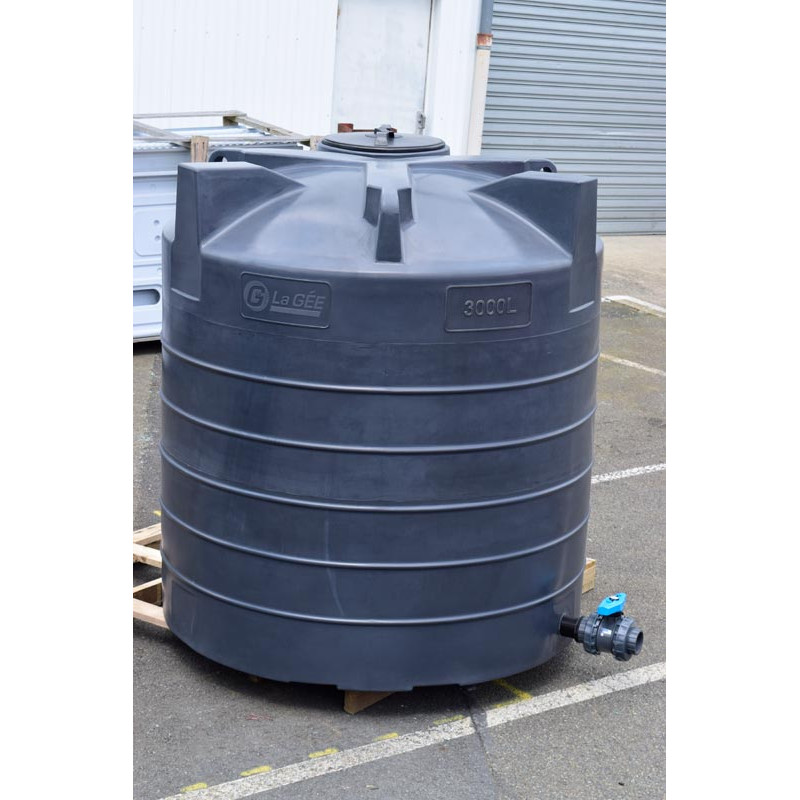

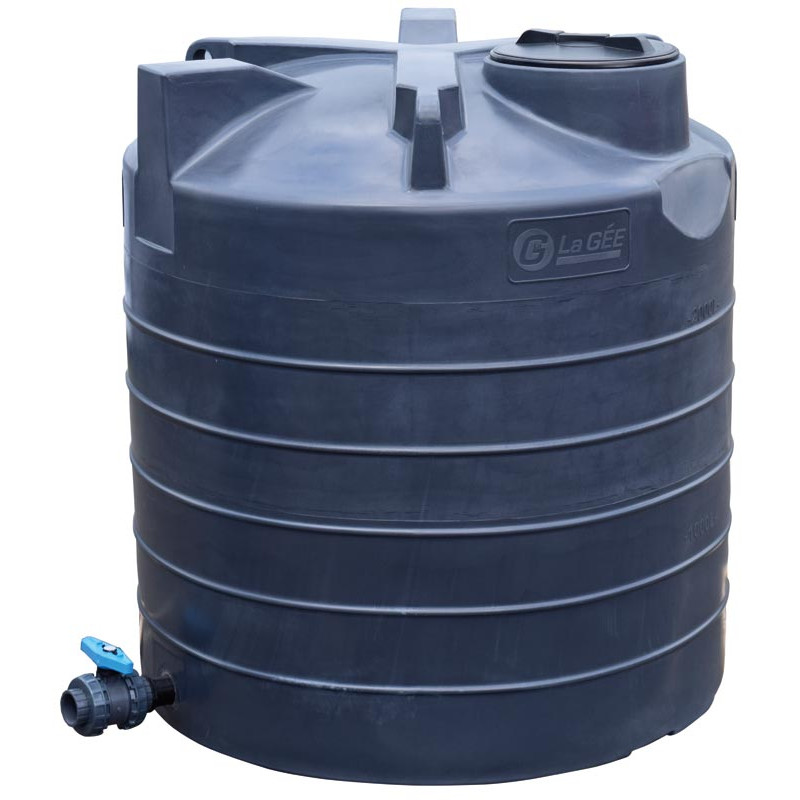

Vertical above-ground storage tank ø 1.60 m - 3000 L

A range of vertical freestanding above-ground tanks designed for rainwater harvesting or liquid storage with a maximum density of 1.2. These tanks are rotomoulded in high-density polyethylene, and are also UV-treated and frost-resistant. They are rot-proof and resistant to disinfectants and detergents. Their opaque colour limits the impact of UV rays on the temperature of stored liquids, preventing the formation of algae.
They are made in one piece and have a ventilation system at the top inserted into the lid. They are fitted with a ¼-turn drain valve, the diameter of which varies according to the model, and with a provision for an optional second valve (unopened). They can be fitted with a range of options, such as a gutter water intake filter and a ladder for 13000 and 15000 litre models over 3 m high.

Tank equipment:

- Tank fitted with 2 or 3 bosses at the top, depending on the model, to allow water inlets to pass through, a float to be fitted, gutter water to fill the tank, an overflow outlet or to fit the "La Gée Maxi Filter". Inlet and outlet to be created on the bosses by drilling with a hole saw of suitable diameter, either on the front or sides, or above for the installation of the "La Gée Maxi Filter".
- Tank designed with 2 or 3 flat surfaces, depending on the model, distributed around the periphery. Places reserved for accessories, valves, grommets, etc.

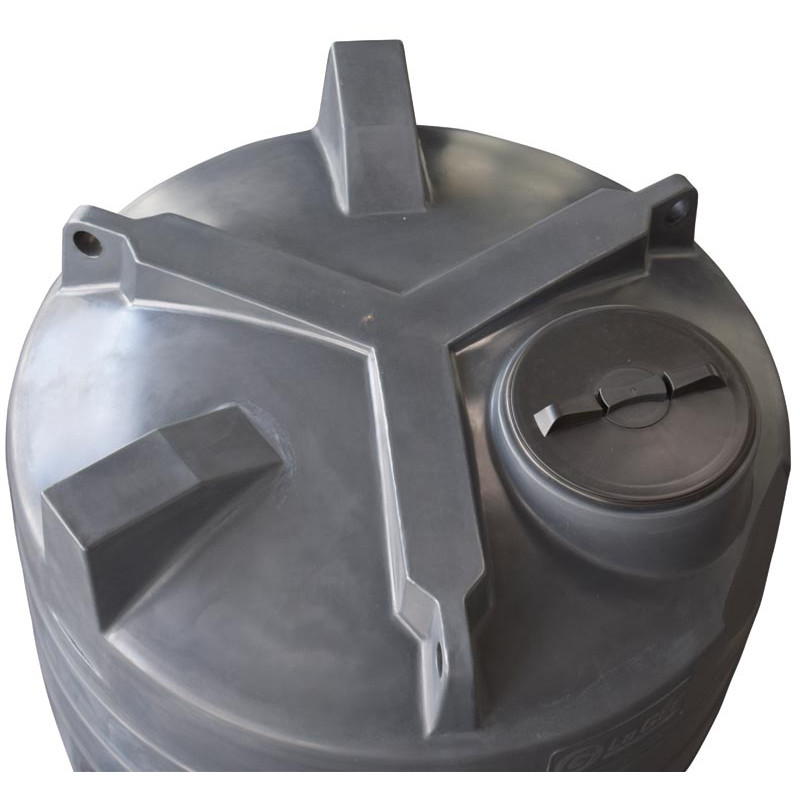

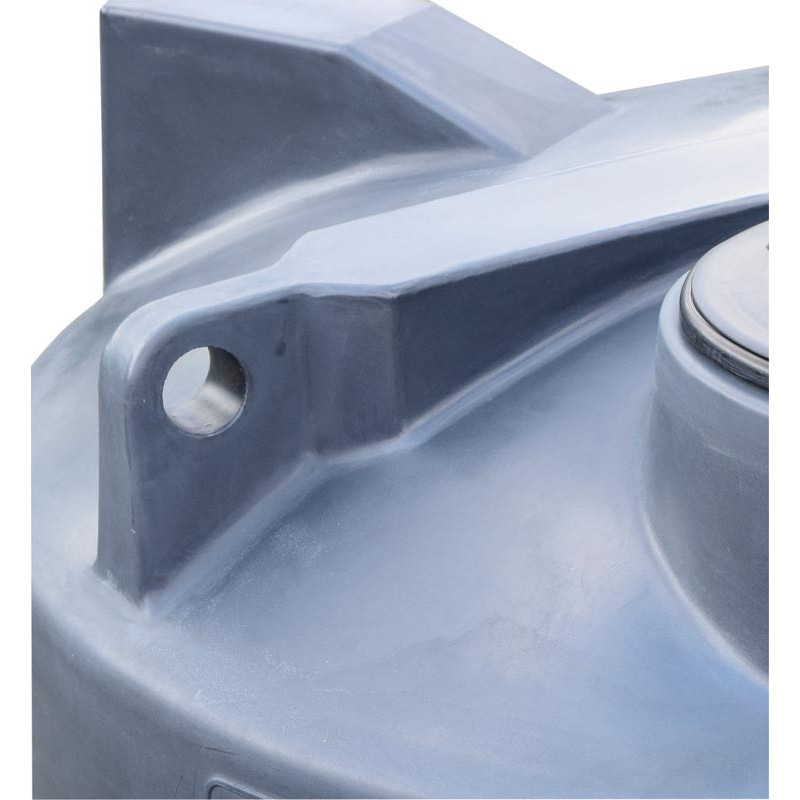

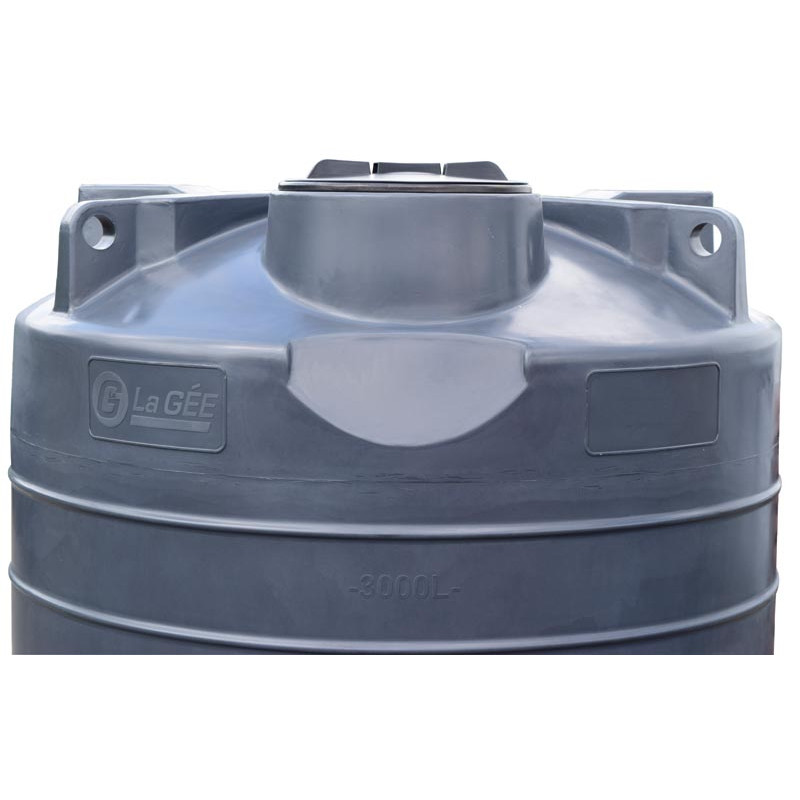

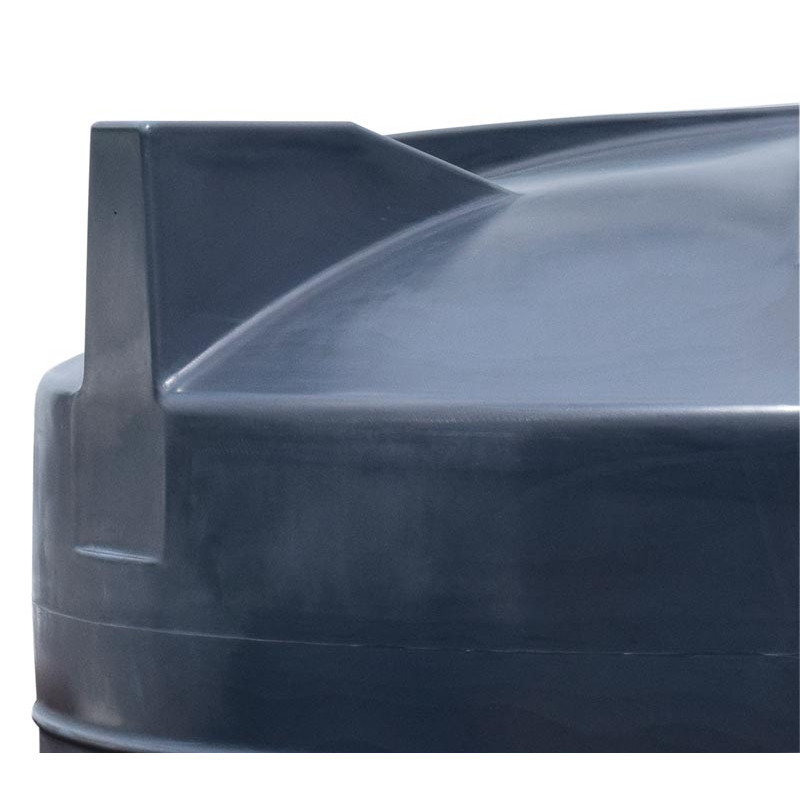

- Tank top with 3 rotational-moulded reinforcements fitted at each end with a Ø 60 mm lifting ring that is rotationalmoulded as part of the tank. (For moving empty tanks).

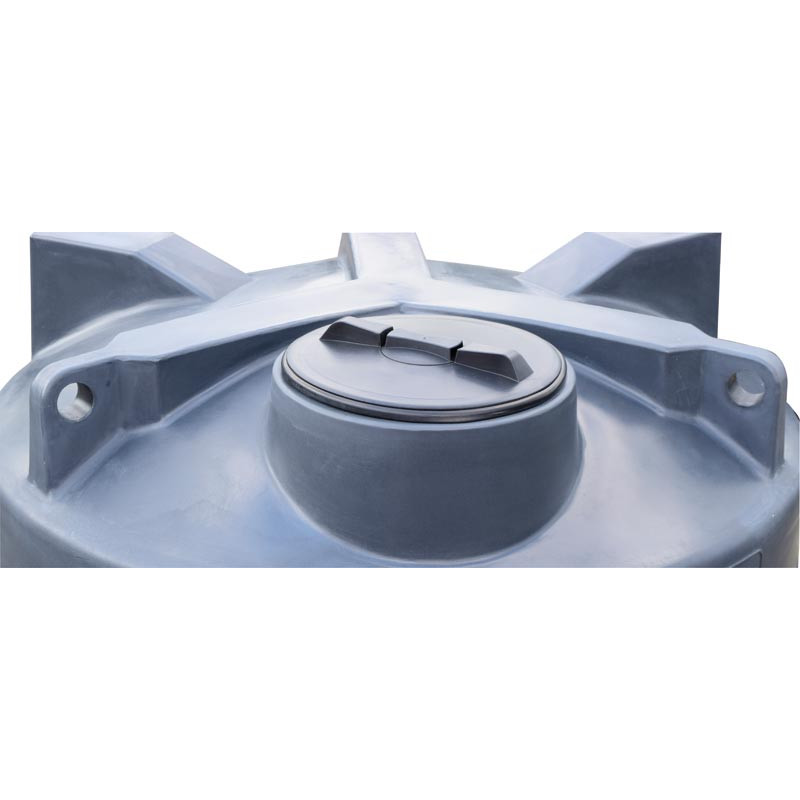

- Wide manhole cover with a diameter of 455 mm for tanks with diameters of 1.60 and 1.95 m and 611 mm for tanks with a diameter of 2.39 m, allowing easy access for cleaning and maintenance. Gasketed cover with central or remote vent.
- Tank top designed as standard with a 400 mm wide flat spot at the lid protrusion. A flat surface allows the positioning of a removable ladder for tanks under 3 m in height, and the positioning of the stepladder option for 13000 and 15000 litre tanks above 3 m.

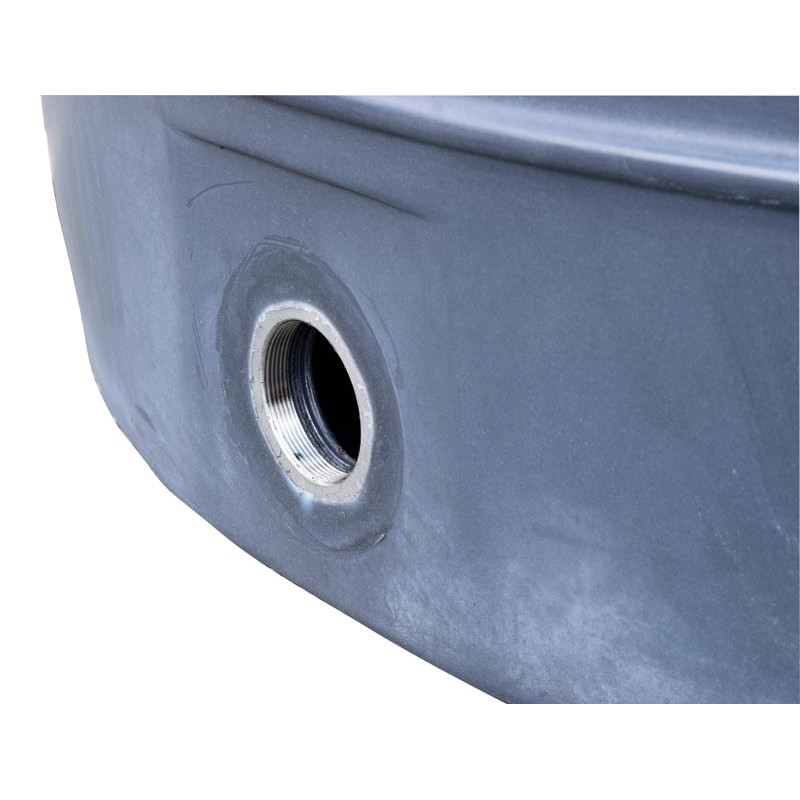

- All our tanks are fitted as standard with a non-through stainless steel insert on one of their flat surfaces. This can be drilled using a hole saw, so that a second optional 1 1/2" (40/49 mm) 1/4-turn valve can be screwed in. This insert is located above sedimentation height.

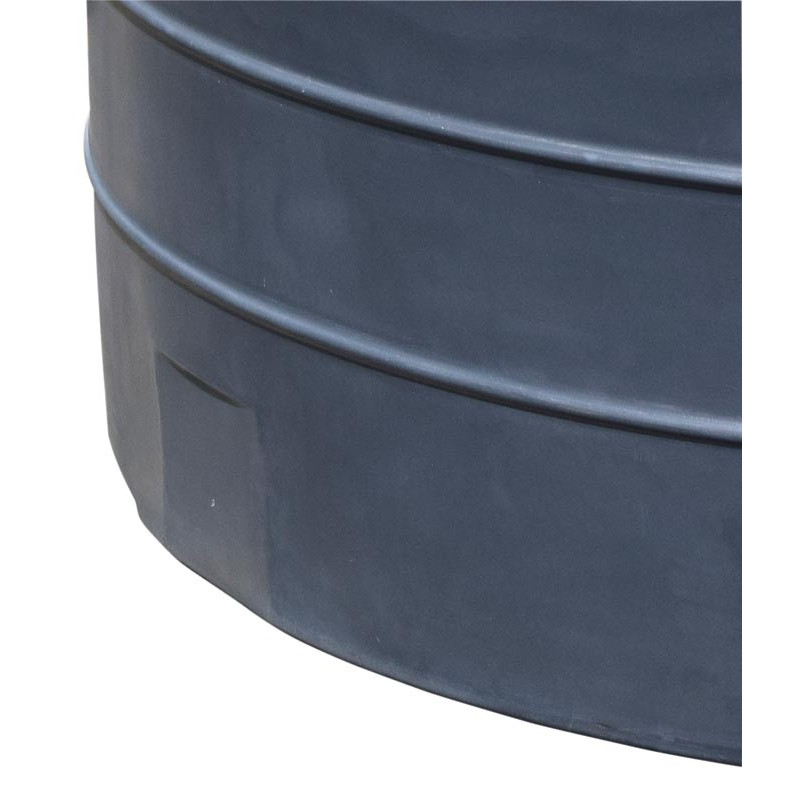

- Easy to move thanks to a dual inlet at the bottom of the tank to accommodate the forks of a pallet carrier.

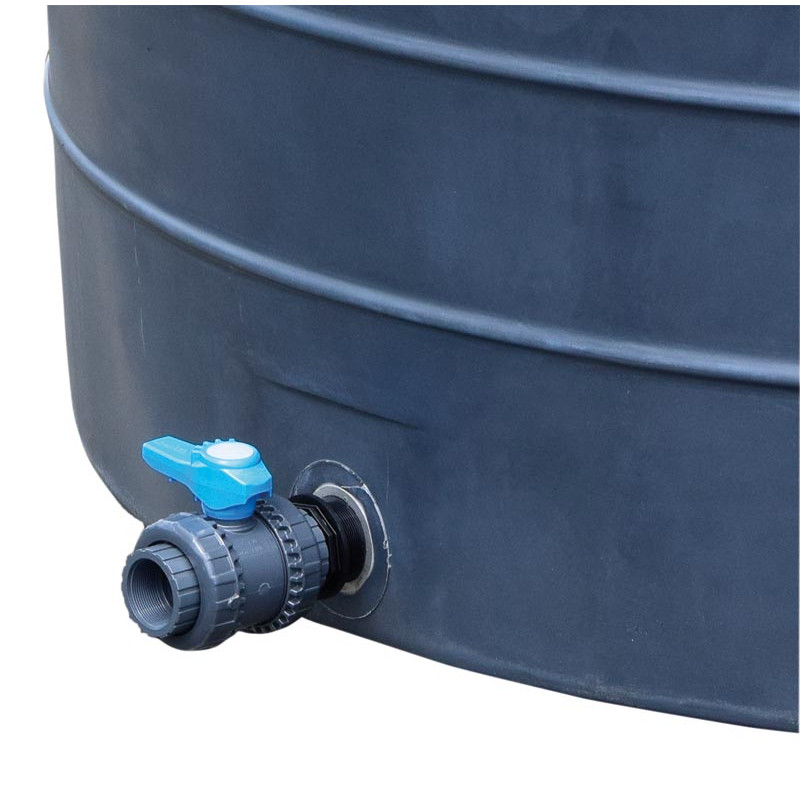

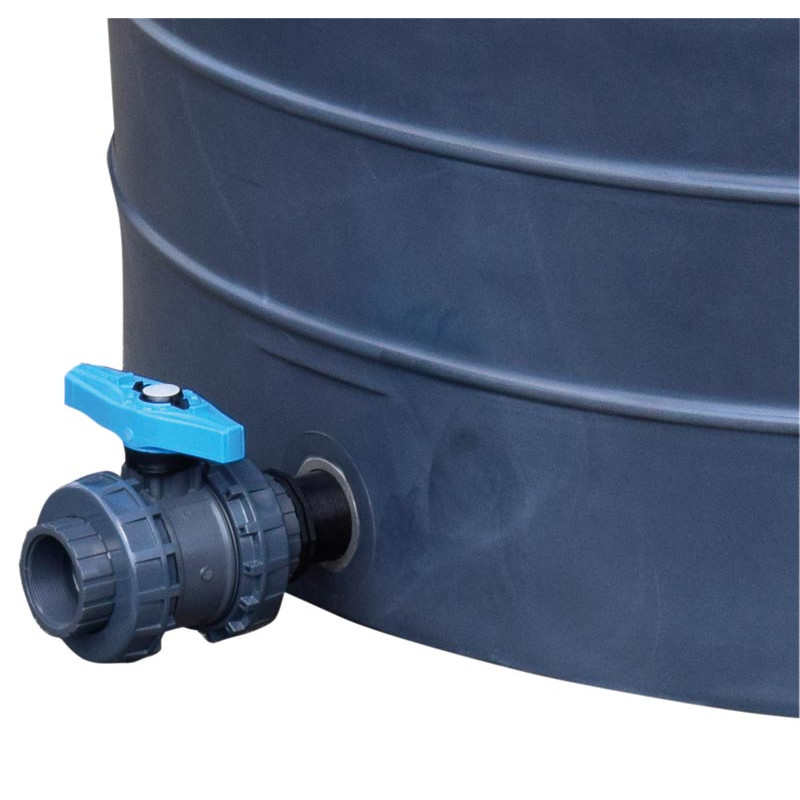

- Tank fitted with 2", 2 1/2" or 3" female/female valves, depending on the model. Valve screwed into a moulded stainless steel insert.

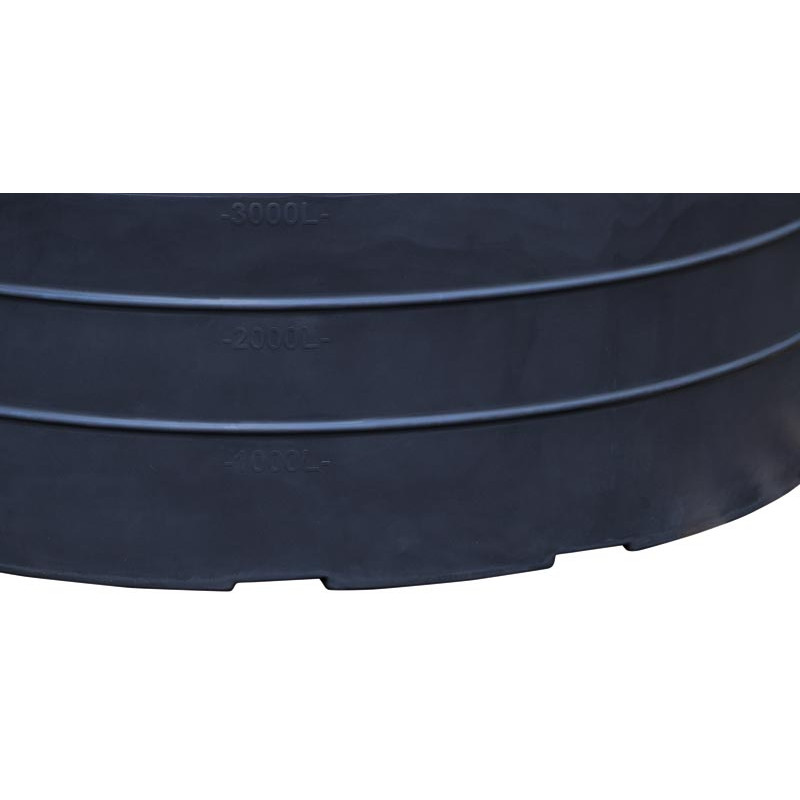

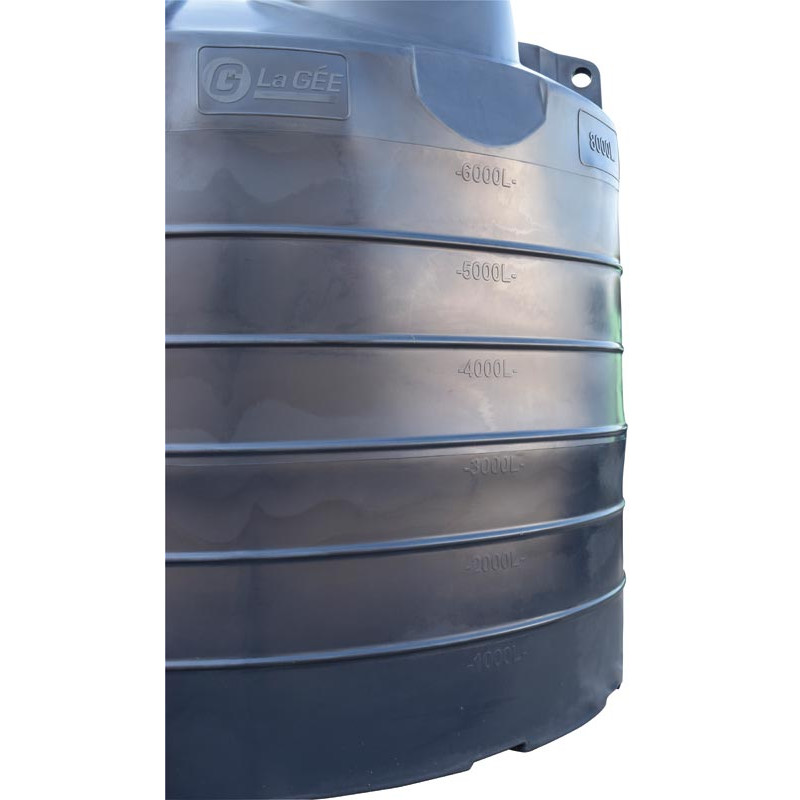

- Tank graduated every 1000 L.

The original equipment and options available on our tanks make it easy to fit different accessories, such as a water return hose, motor pump kit, booster feed, etc.

Small-capacity tanks, easy to use in small spaces with their compact 1.60 m diameter.
Factory-fitted equipment:
- Gasketed cover and central vent
- Choice of 2" (50/60 mm) or 2 1/2" (66/76 mm) valve

Options: Gutter water filter, second 1 1/2” (40/49 mm) drain valve, mains pressure float fill valve
