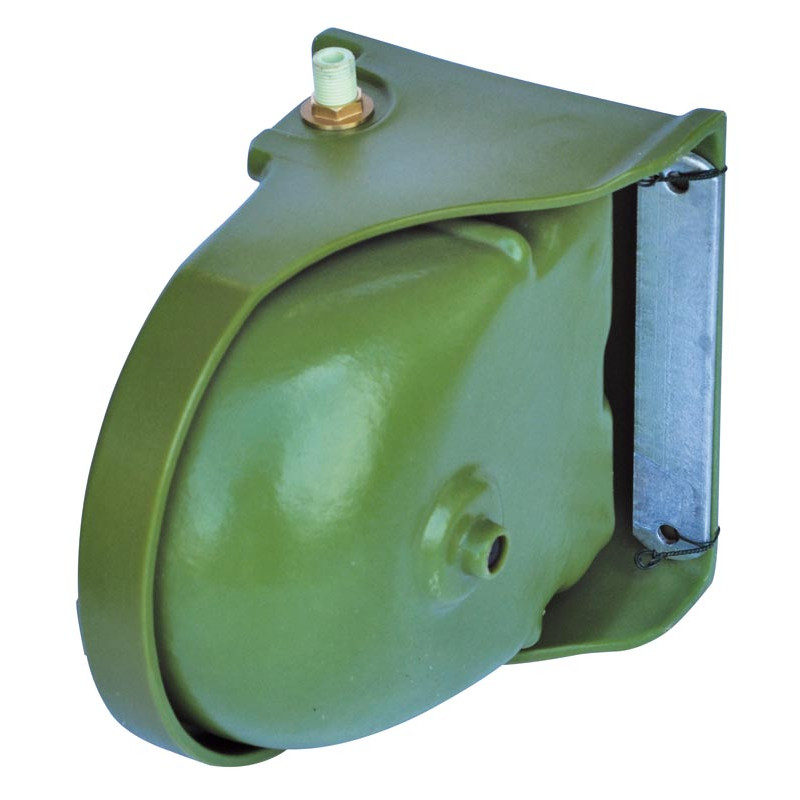

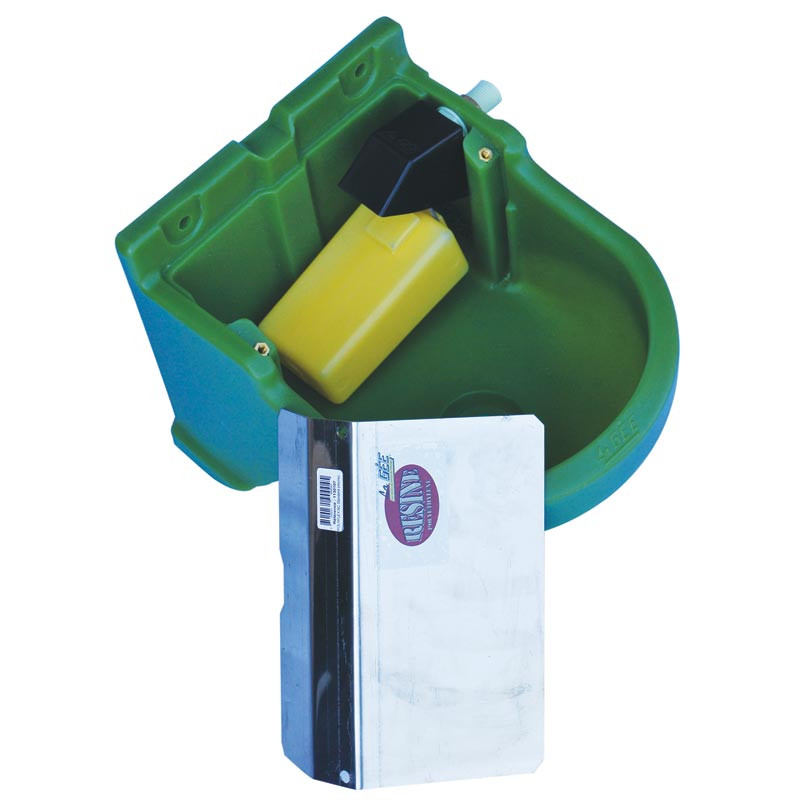

It is fitted with a sturdy mounting plate with four holes. The bottom two holes are reinforced with a galvanised mounting plate on the standard model.

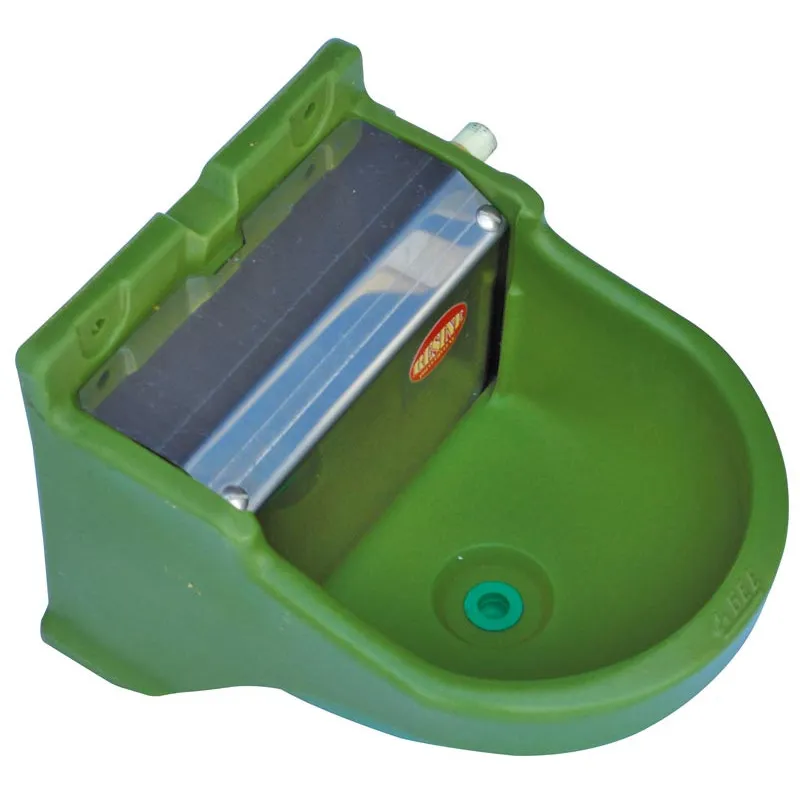

The bowl is equipped with a flexible cleaning plug (20 mm diameter). These drinkers are extremely reliable and multi-purpose.

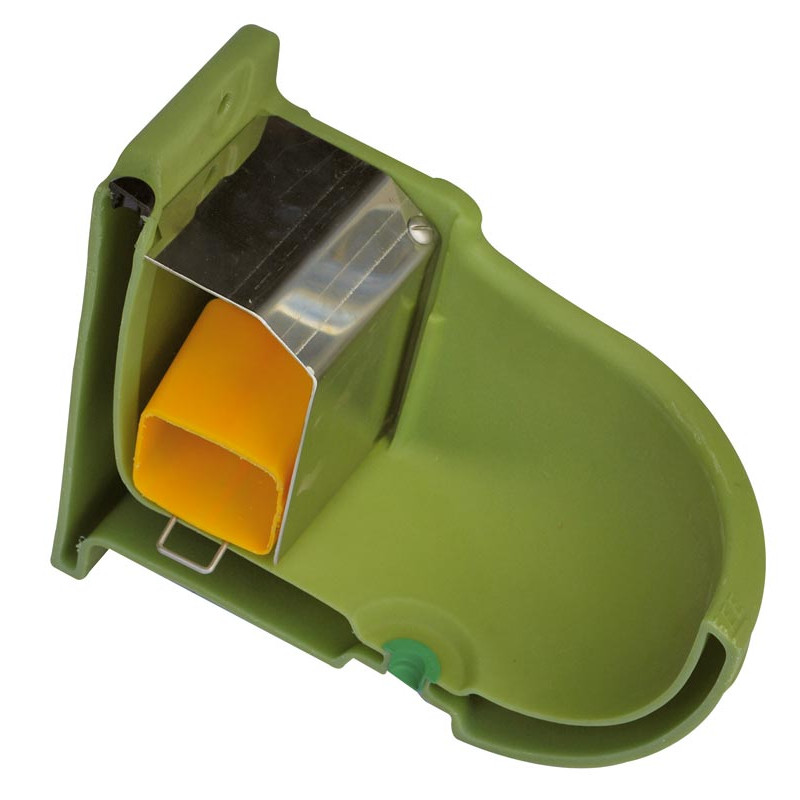

They feature the La Gée 15 litres/minute green float valve tap with adjuster screw for water height and a 1/2" male water stop system on the right. Operates with a pressure of 3 to 4 bars maximum.
For use on a network with higher pressure, a pressure limiter and filters need to be installed upstream.Bowl volume: 3 liters.
There are two types of constant level Polyflex: standard Polyflex NC and reinforced Polyflex NC for small animals.

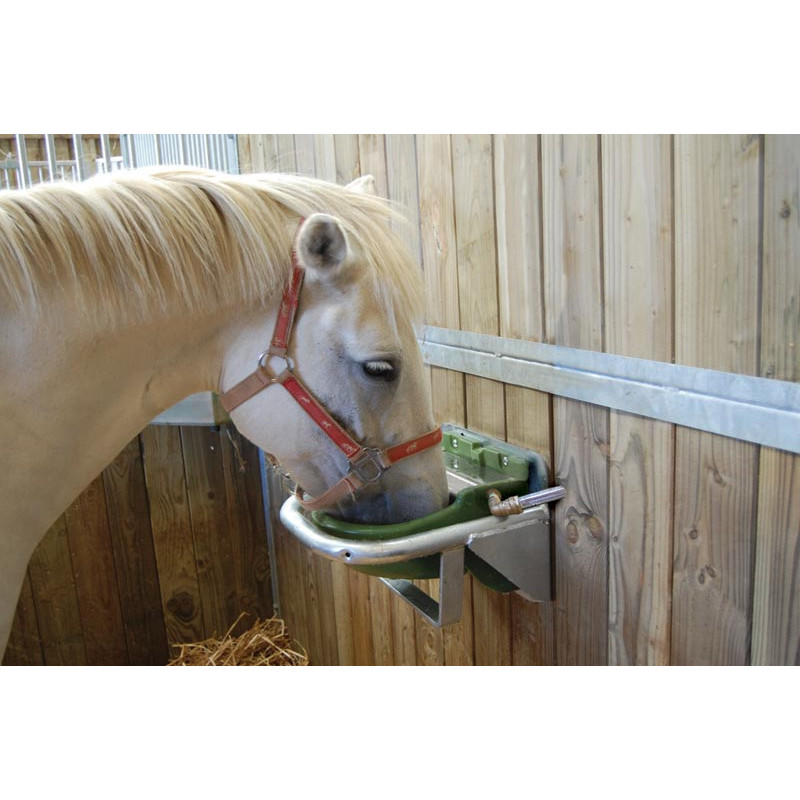

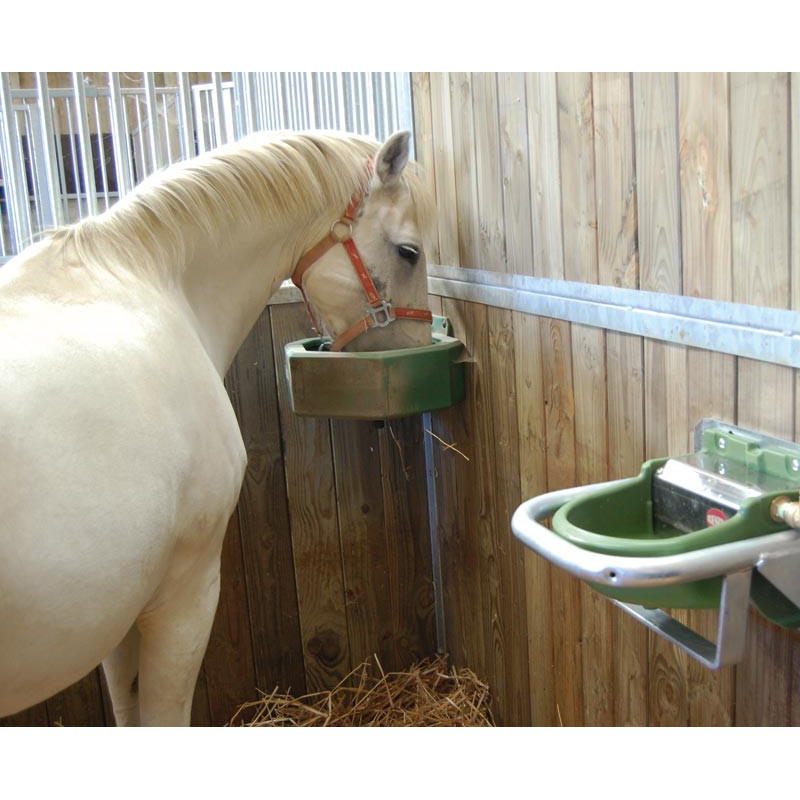

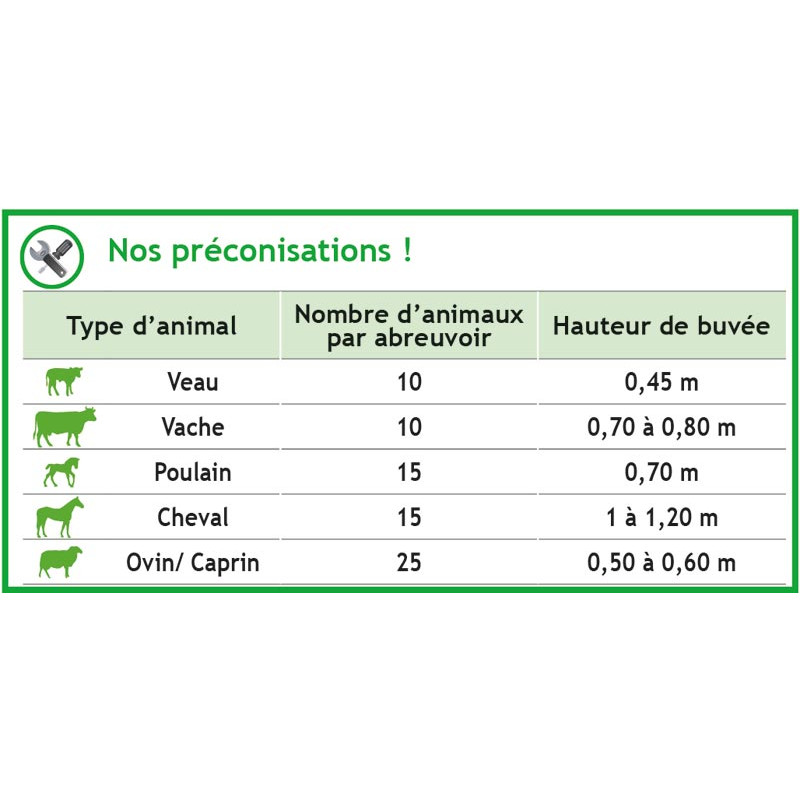

Recommended mounting: between 1 m and 1.20 m depending on the size of the animal.
Compatible with the network pressure float valve tap.
- Material
- rotomolded polyethylene resin

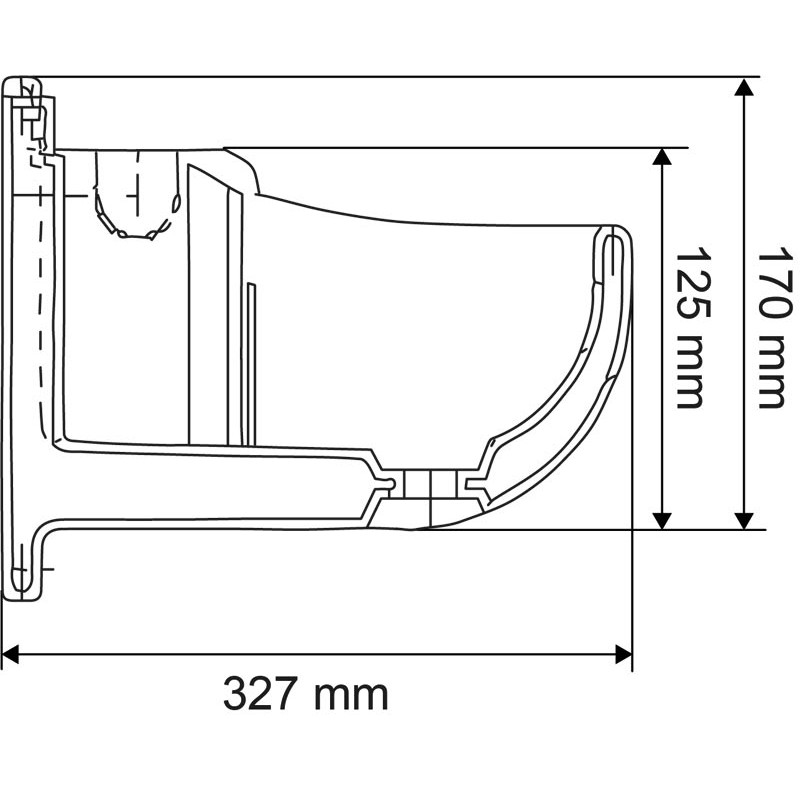

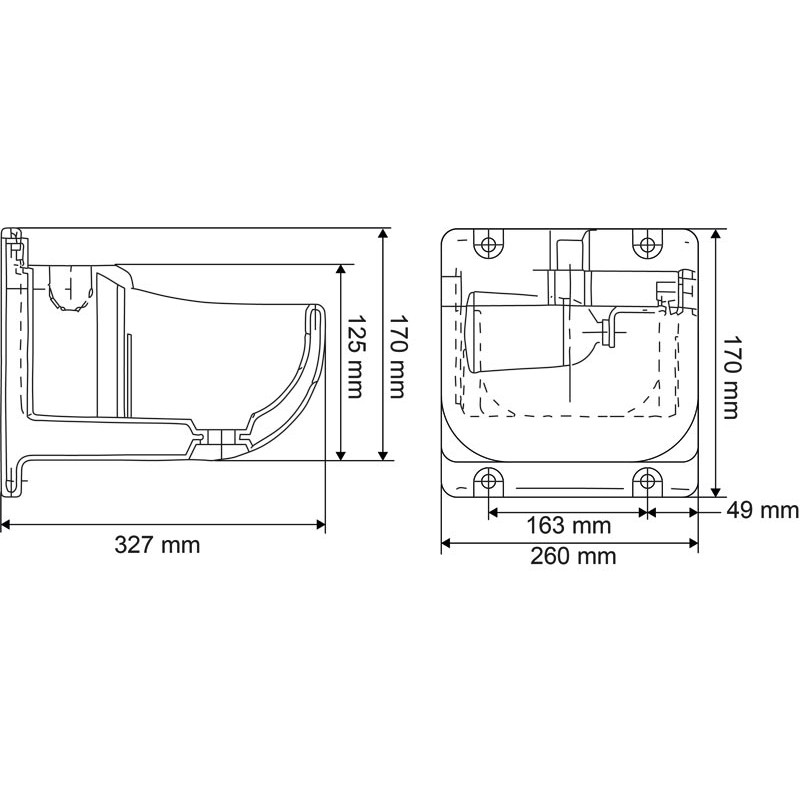

- Length
- 327 mm

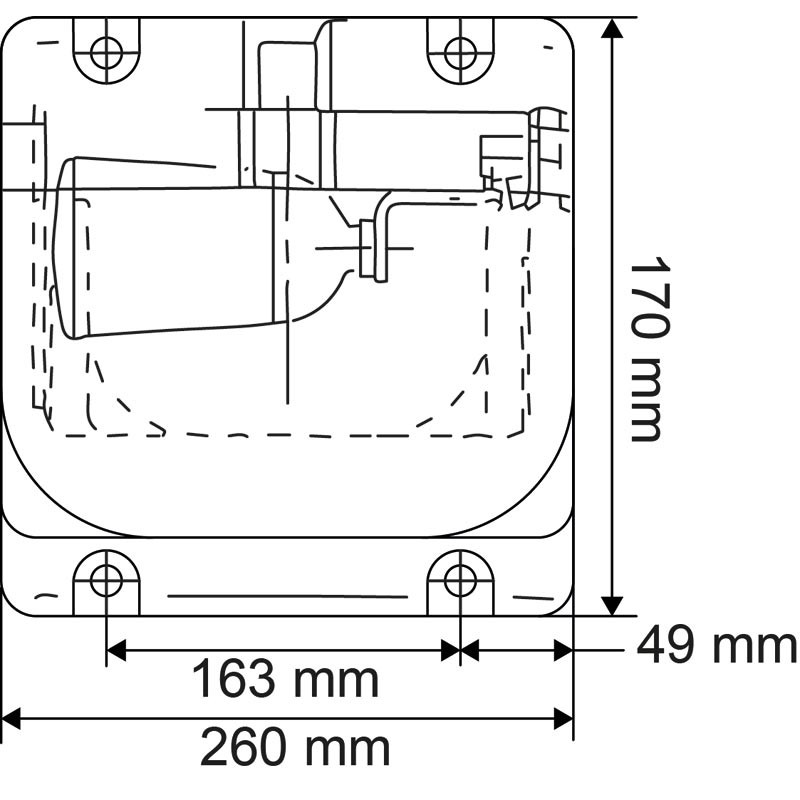

- Width
- 260 mm
- Height
- 230 mm
- Type
- Standard
- Pressure
- network
- Drinker
- Polyflex NC
- System
- constant level
- Mechanism
- float valve tap
- Fastening
- wall
- Device
- non-heating
- Flowrate
- 1 to 15 l/min
- Connection diameter
- 1/2'' (15/21 mm) - male
- Packaging
- boxed
- Sales unit
- Unit
- Sales packaging unit
- Boxed.
- Float valve
- pressure network en polyamide vert (P1138309)
- Drain plug diameter
- 20 mm
