Short offset channel
These foodstuffs silos are manufactured in a single block of polyethylene resin, rot free, UV stabilised, and frost resistant. They resist detergents, disinfectants, and high pressure washing.
They are positioned on a steel chassis with four feet.

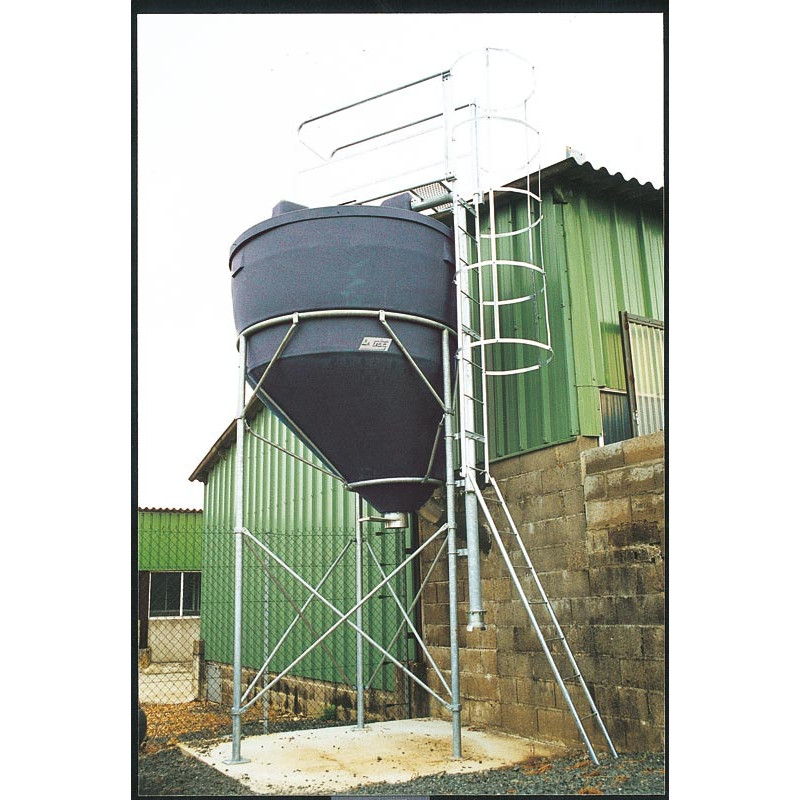

The concrete bases are reinforced and very stable thanks to the four feet of the monoblock chassis of large cross section mechanically welded steel tubing.
- silo 5.70 m³: Ø 60.3 mm x Thickness : 2.9 mm.
- silo 9.70 m³: Ø 70 mm x Thickness : 2.9 mm.

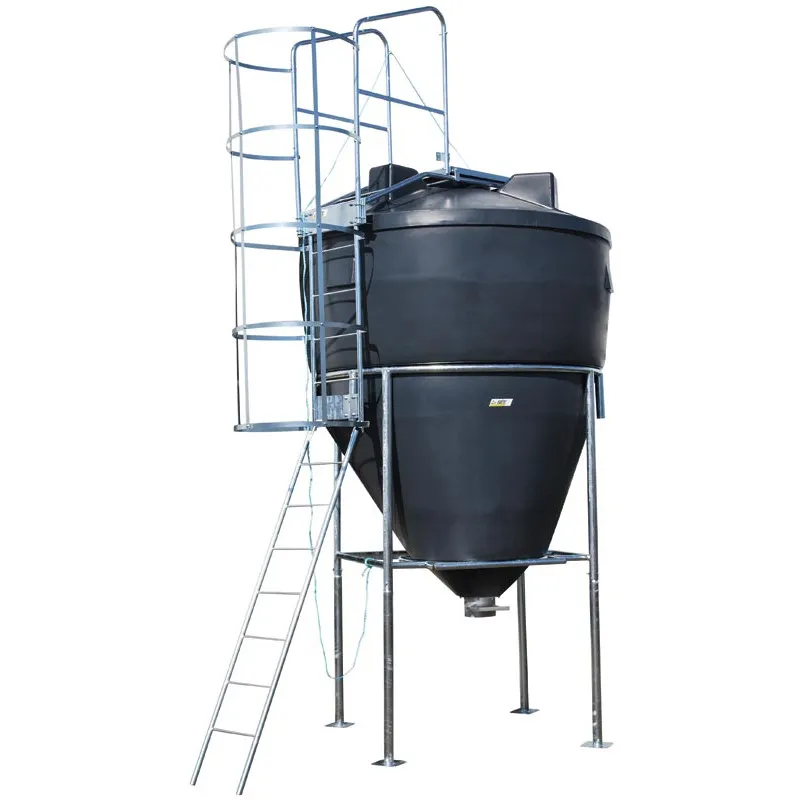

The large capacity foodstuff silo is fitted with:
- monoblock tank with offset cone.
Reinforced shell available for grain on request (option)
- smooth non-porous walls, guarantees water tightness and easy cleaning.
- mechanically welded chassis for stability and longevity. This avoids the play often found in bolted constructions.

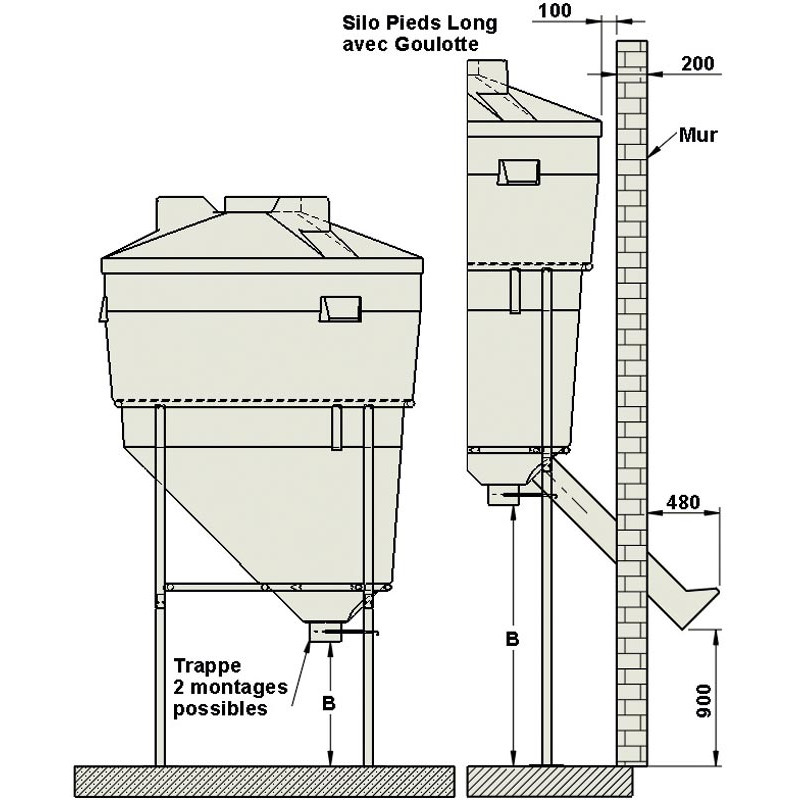

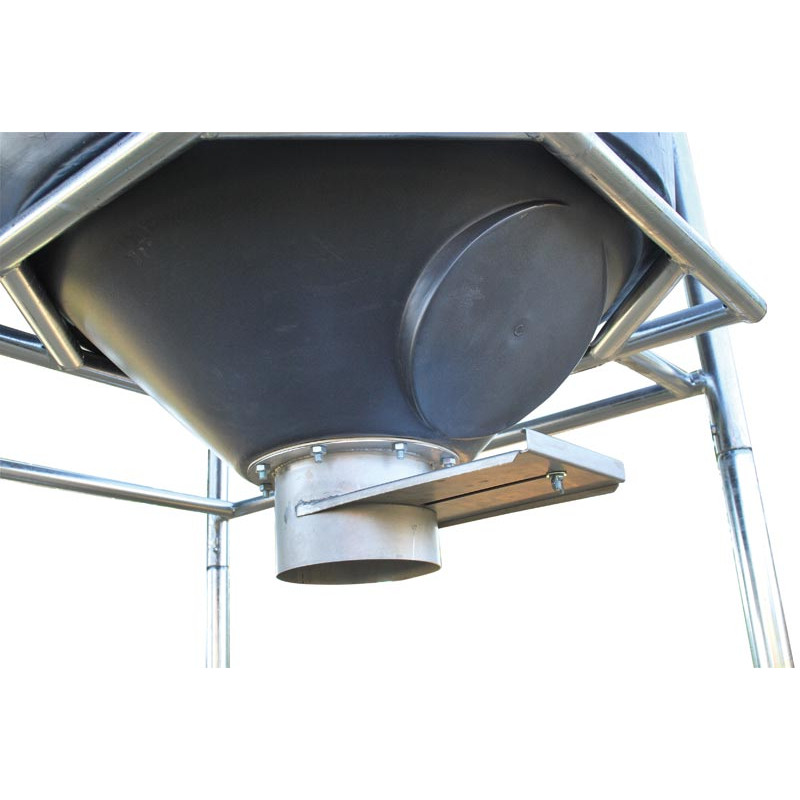

- a stainless steel Ø 200 mm trapdoor, fitted as standard on the offset cone, allows loading of foodstuffs directly in a tractor bucket from the front of the silo, or via a feed trolley.
It can be placed on the offset part of the cone using the closure kit.

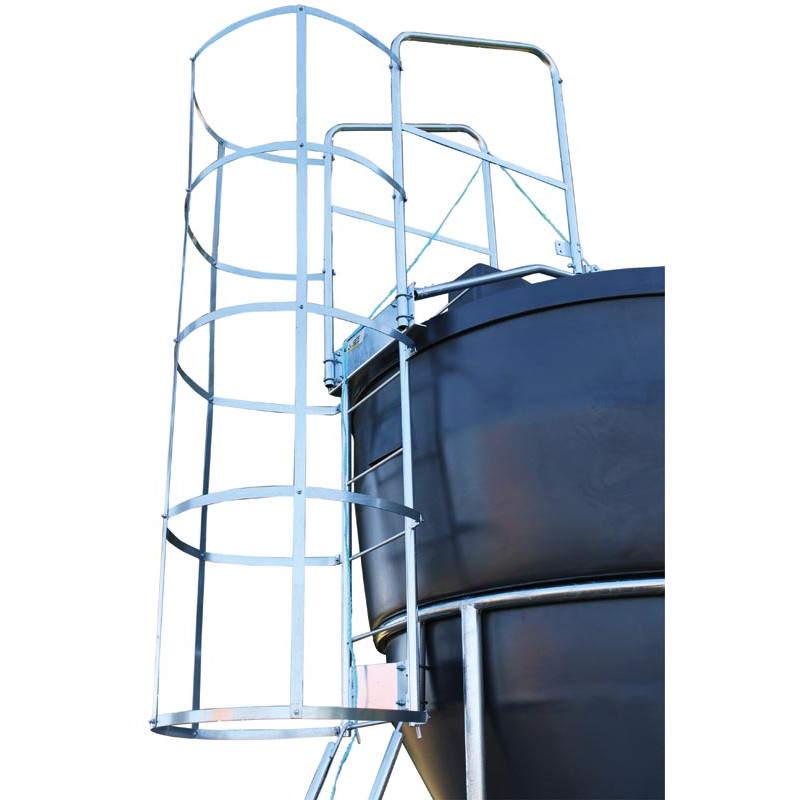

- a caged ladder 2 m from ground complete with bridge and handrails, accessible from the mobile ladder.

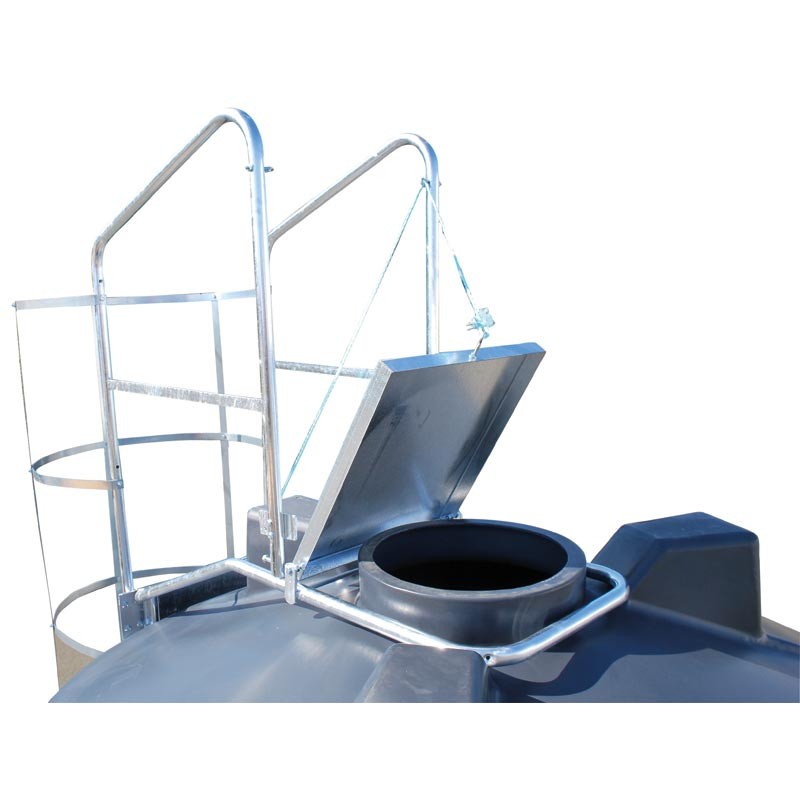

- the filler cover can be opened and closed from ground level for greater safety.
Optional: raising extensions and filler pipe.
The silo is delivered pre-assembled, the monoblock tank fitted in the chassis, all that remains to fit are kit items: four feet sleeves, handrail, ladder cage, and the Ø 200 mm stainless steel hatch. This facilitates installation and ensures compliance with the standards in force. Delivered without silo raising extensions and without filler pipe.
Compatible with the closure kit.
- Height
- 4.83 m
- Capacity
- 3,700 kg
- Diameter
- 2.10 m
- Tank body material
- rotomoulded resin
- Chassis material
- galvanised steel
- Volume
- 5.70 mᵌ

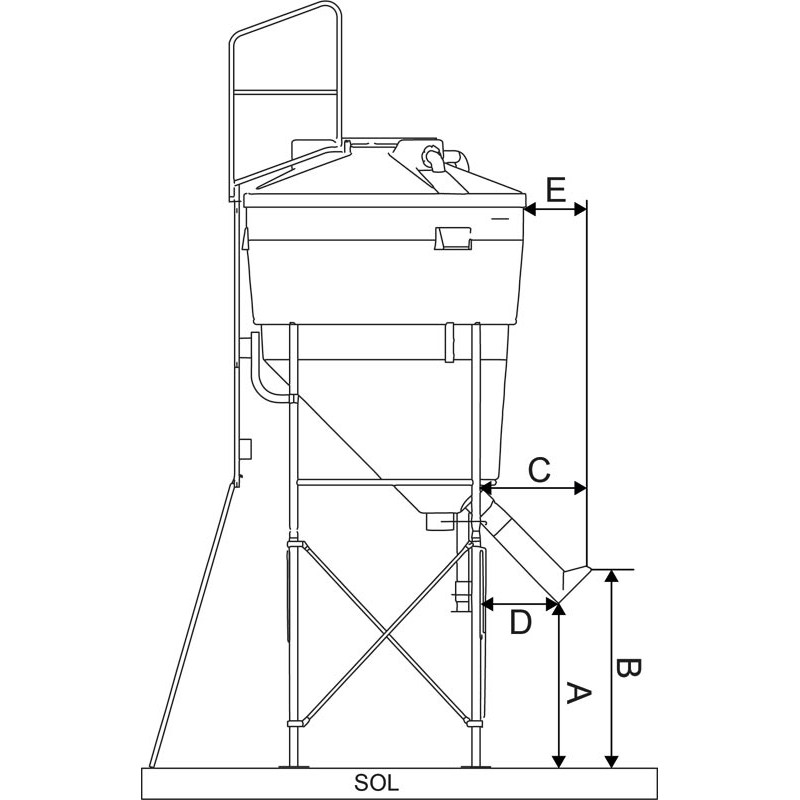

- Height with raised feet
- 5.73 m

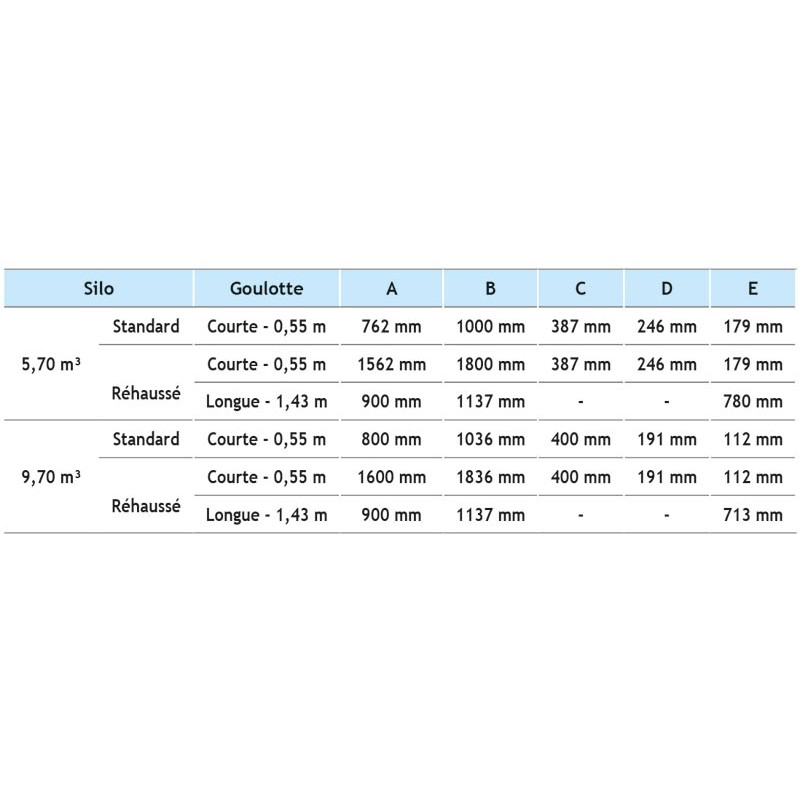

- Height beneath hatch (standard)
- 0.90 m
- Height beneath hatch (raised)
- 1.70 m
- Space between legs
- 1.30 m
- Packaging
- No packaging
- Sales unit
- Unit
Accessories and options
