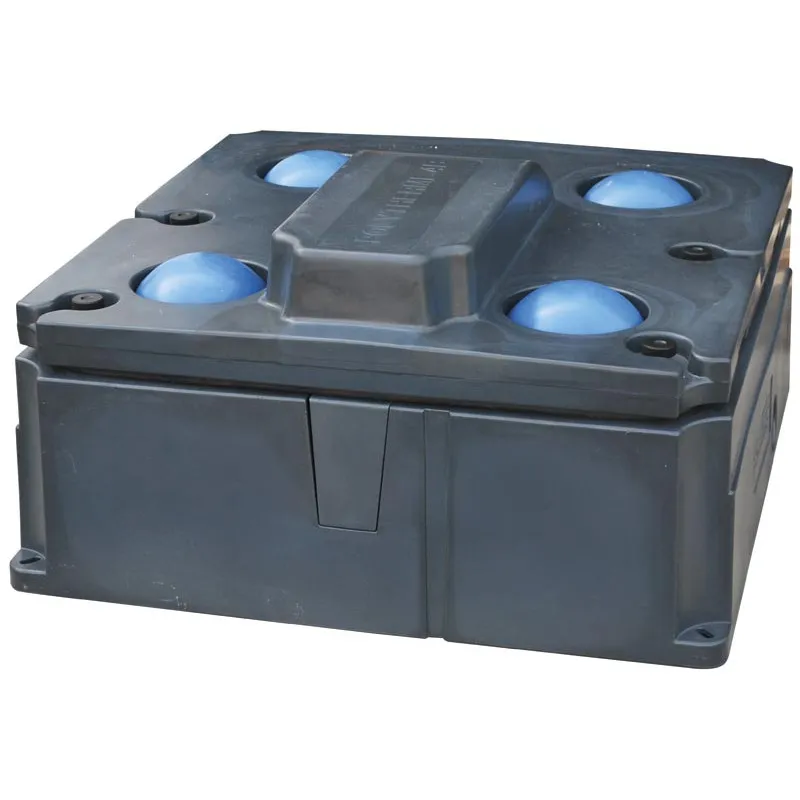

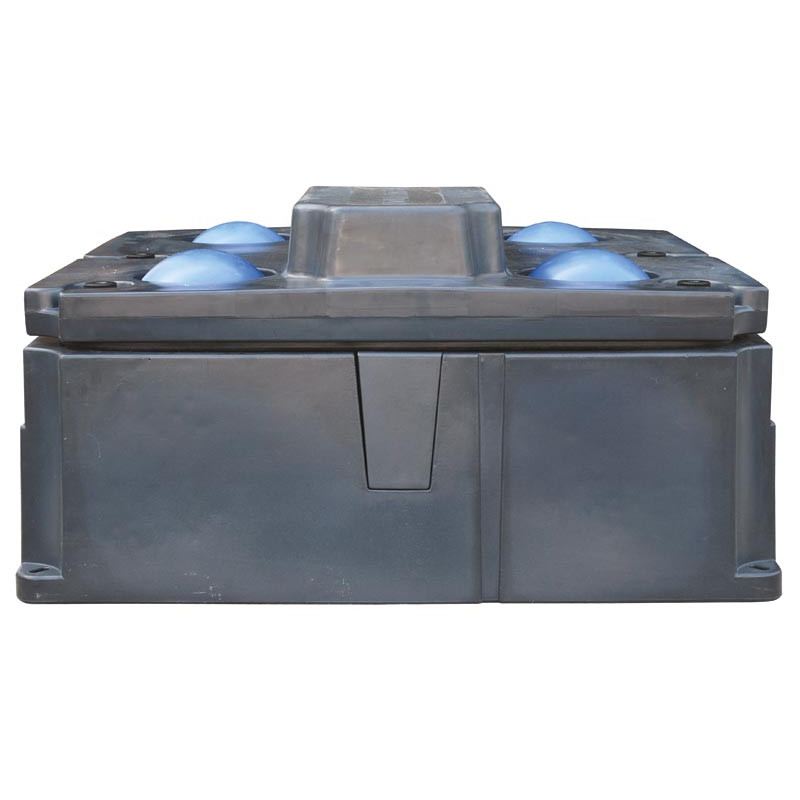

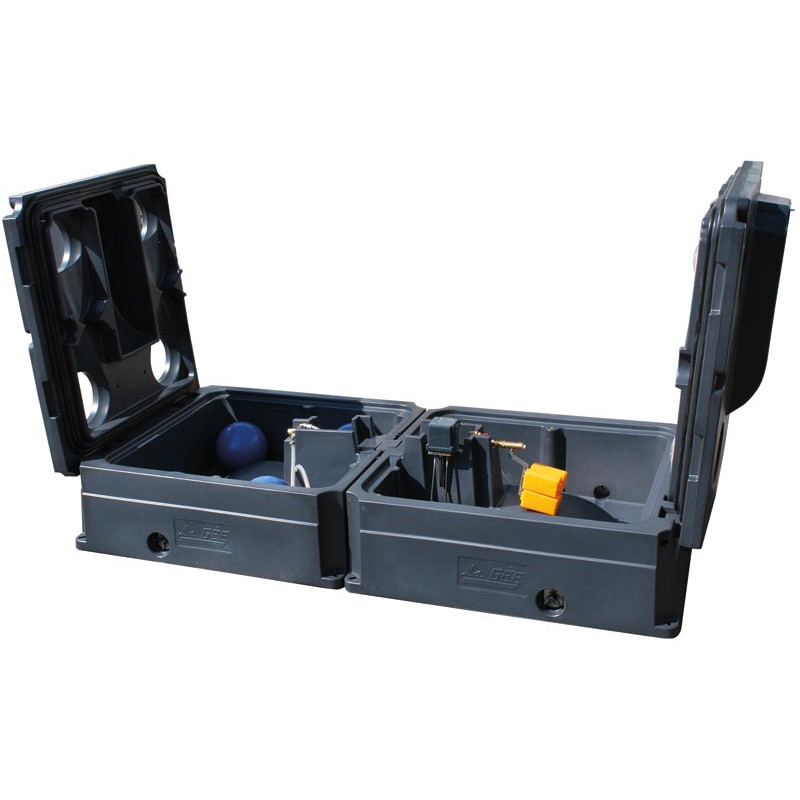

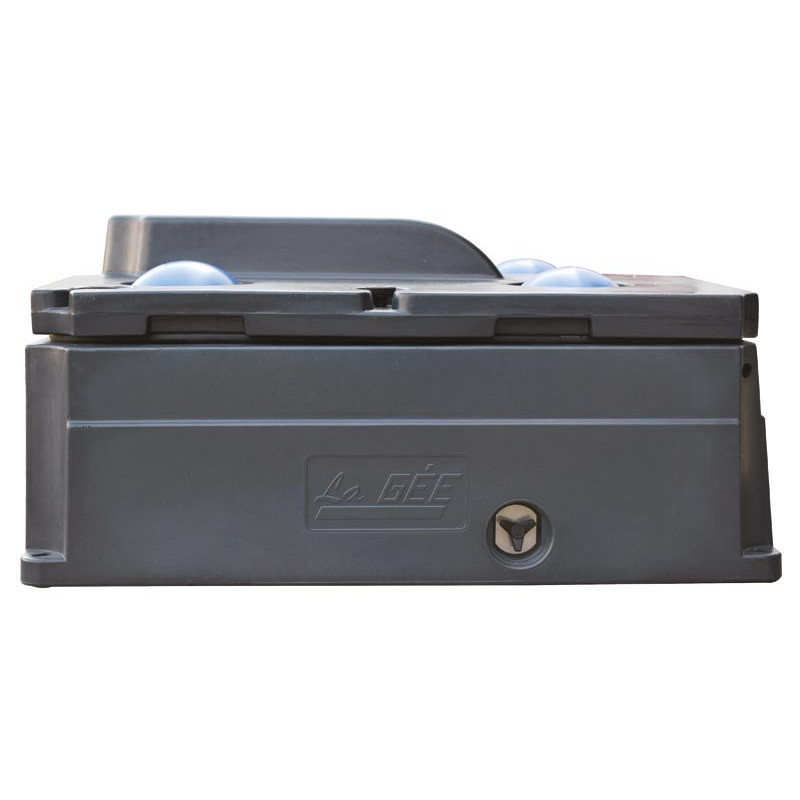

POLYTHERME large capacity drinker 4 balls
Feature-Benefits :
Reliable, multi-purpose, and economical to avoid freezing.
Integrated cleaning system.
Patented opening system.
Integrated cleaning system.
Patented opening system.
Large capacity isothermal drinker designed with a double-wall rotomoulded polyethylene trough insulated with polyurethane foam, an isothermal cover with double seal, and an insulated ball or bowl.
Fitted with:
1 constant level mechanism

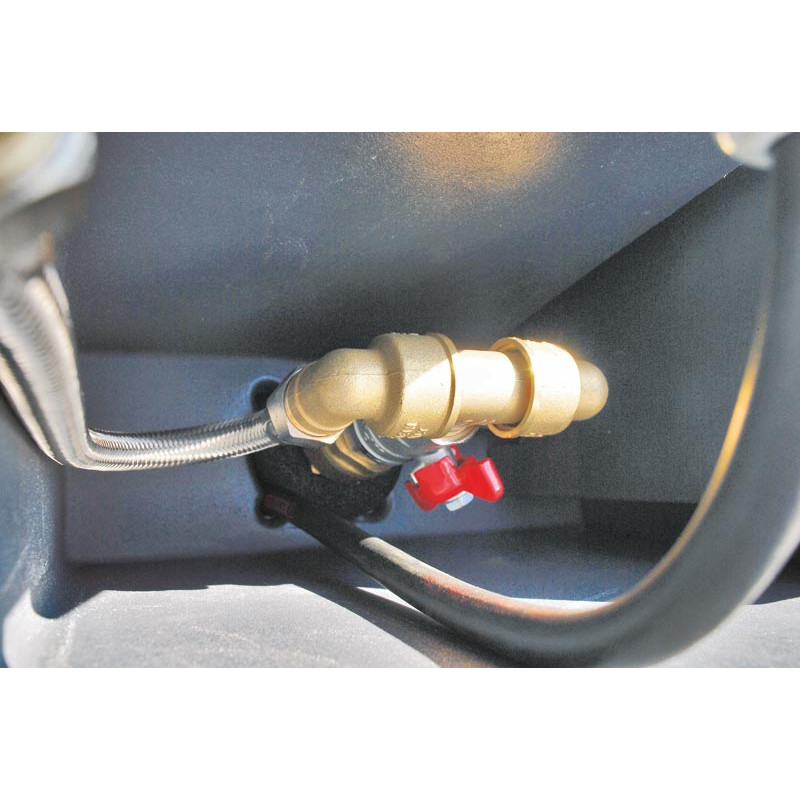

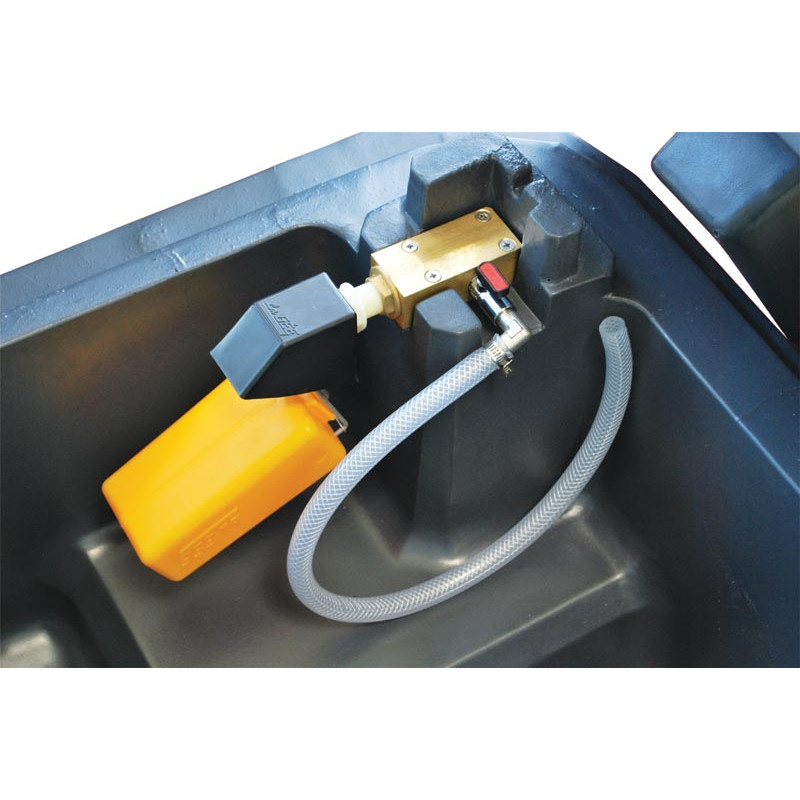

- 1 integrated cleaning system (by water junction on a pipe linked to a brass body fitted with a selection valve)

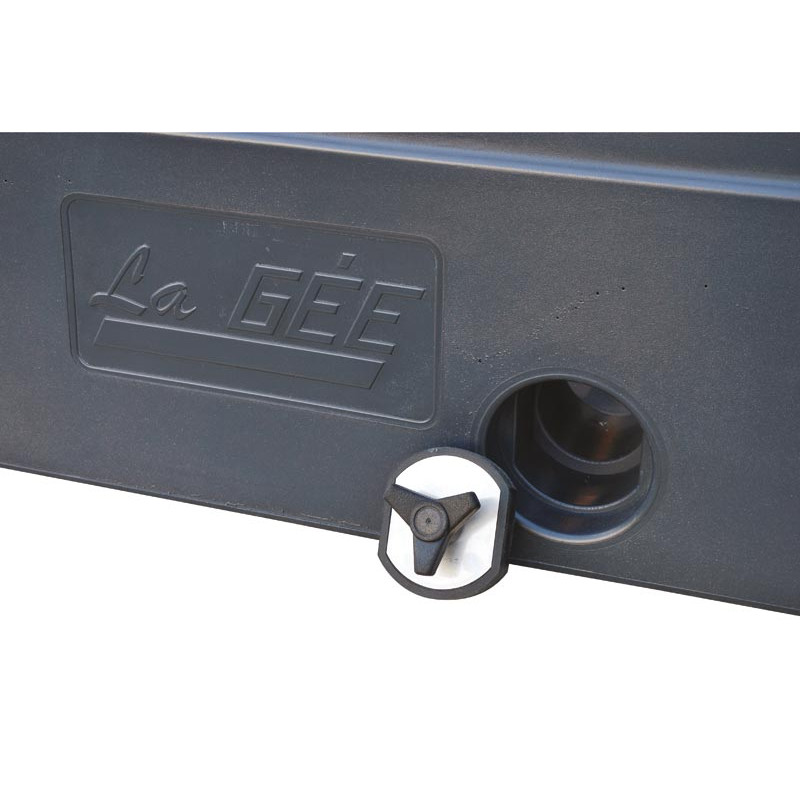

- 1 drain plug (Ø 90 mm).
It keeps the water at a positive temperature down to - 30°C by absorbing the natural calories in the soil and provides cool water in the event of high temperatures.

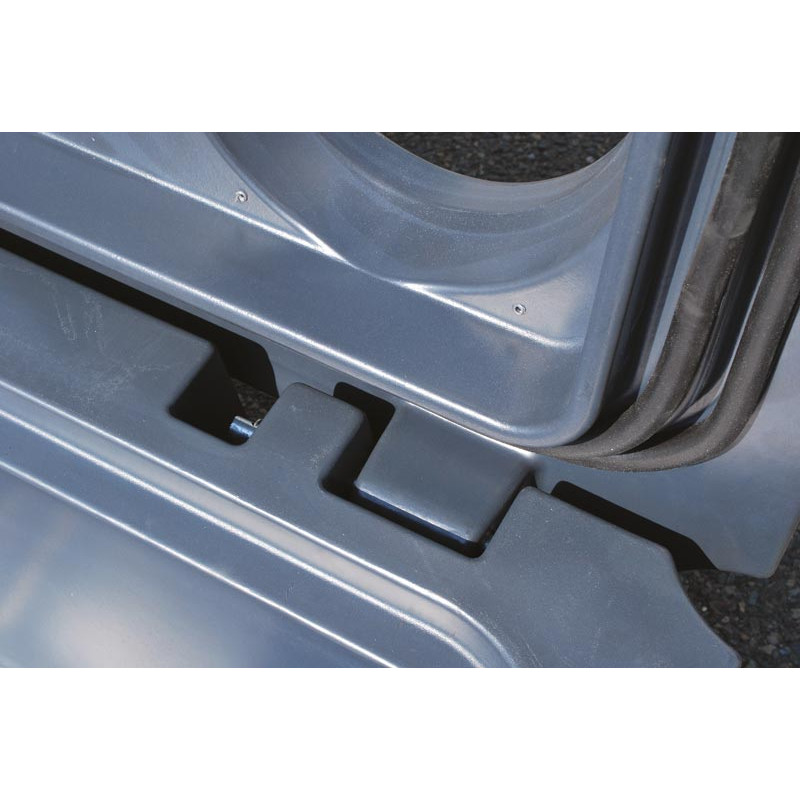

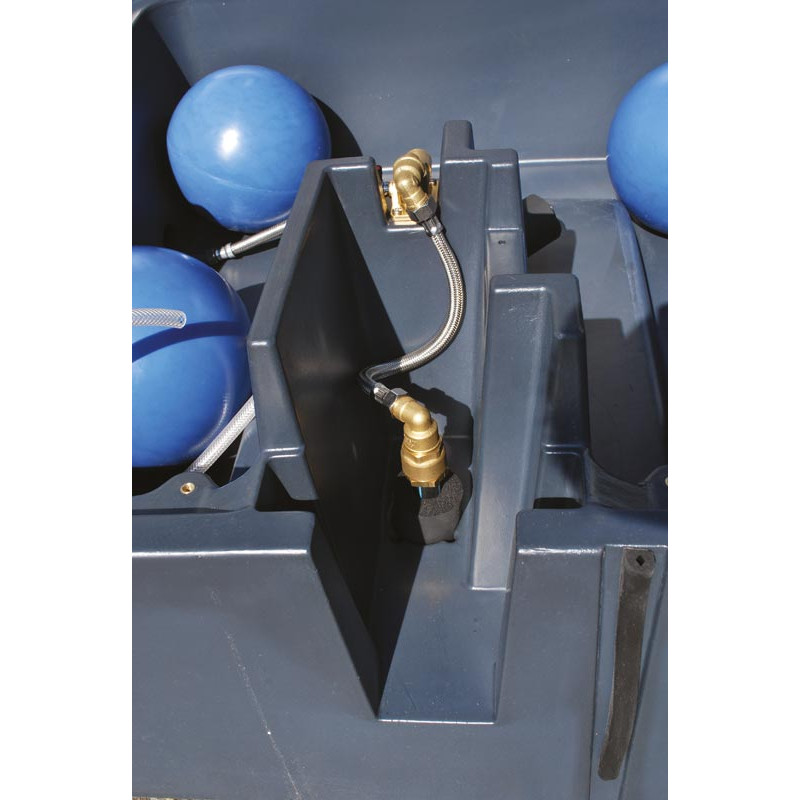

The patented opening system is based on the tenon-mortice principle at the rear and captive screws at the front.Water is connected directly under the trough pre-fitted with a hydraulic connection pipe or a stainless steel braided hose (large capacity version) protected by an insulating sleeve (included). The lid can be modified at any time by adding an option to convert a "ball" model to a "bowl" model and vice versa.

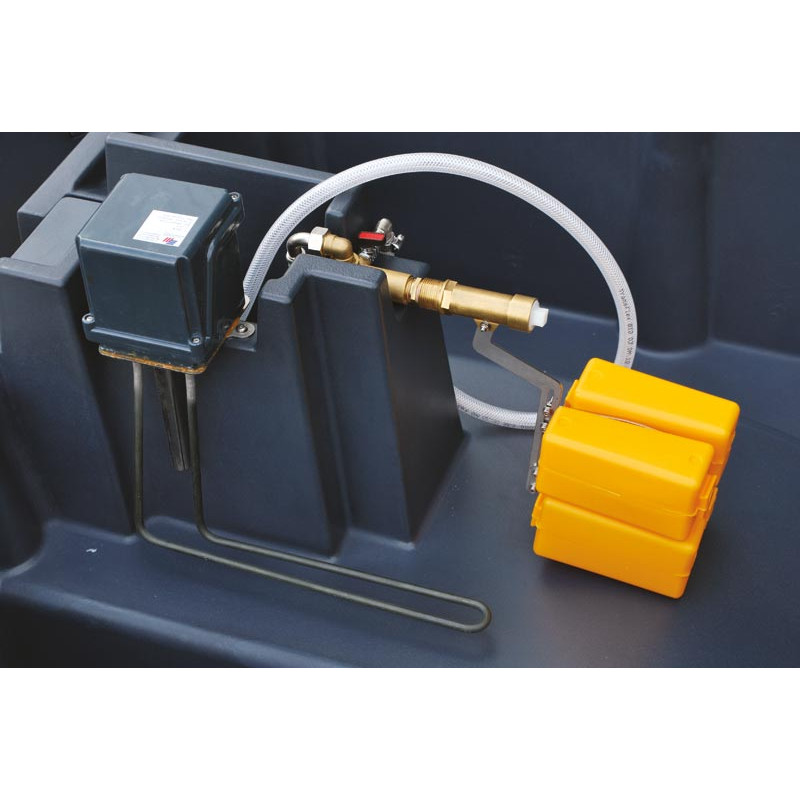

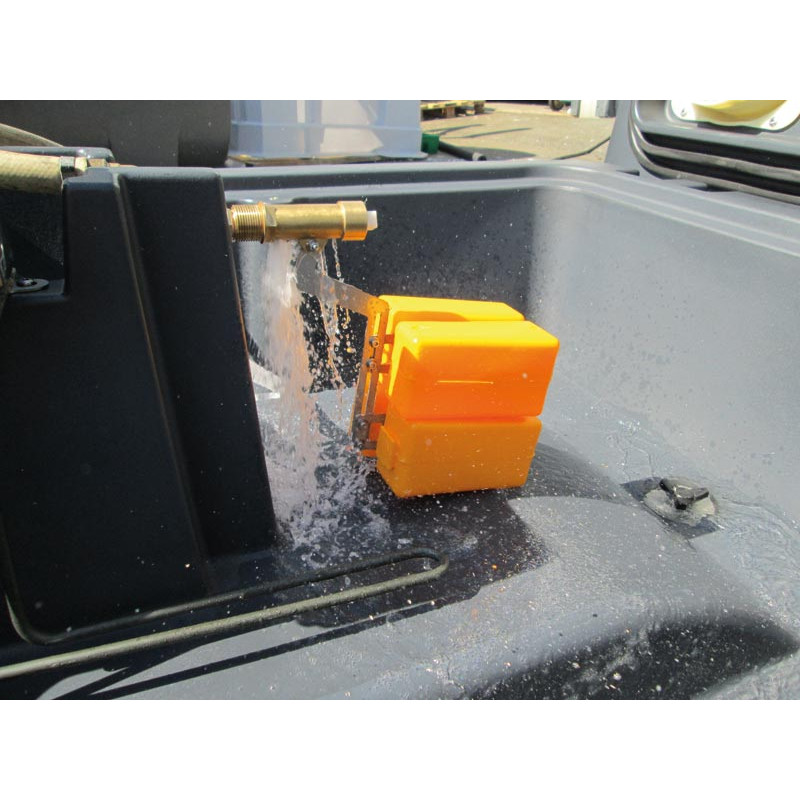

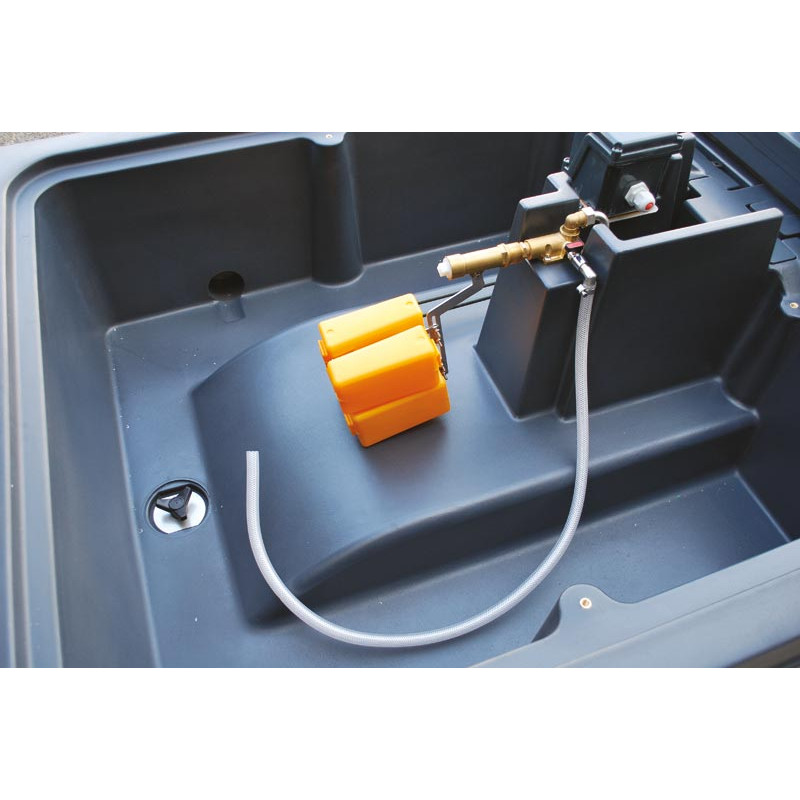

The Polytherme large capacity drinker is available in isothermal ball and cast aluminium bowl versions which are interchangeable. It is fitted with a 53 l / mn (5 bars) high flow brass constant level mechanism fitted with three float valves.

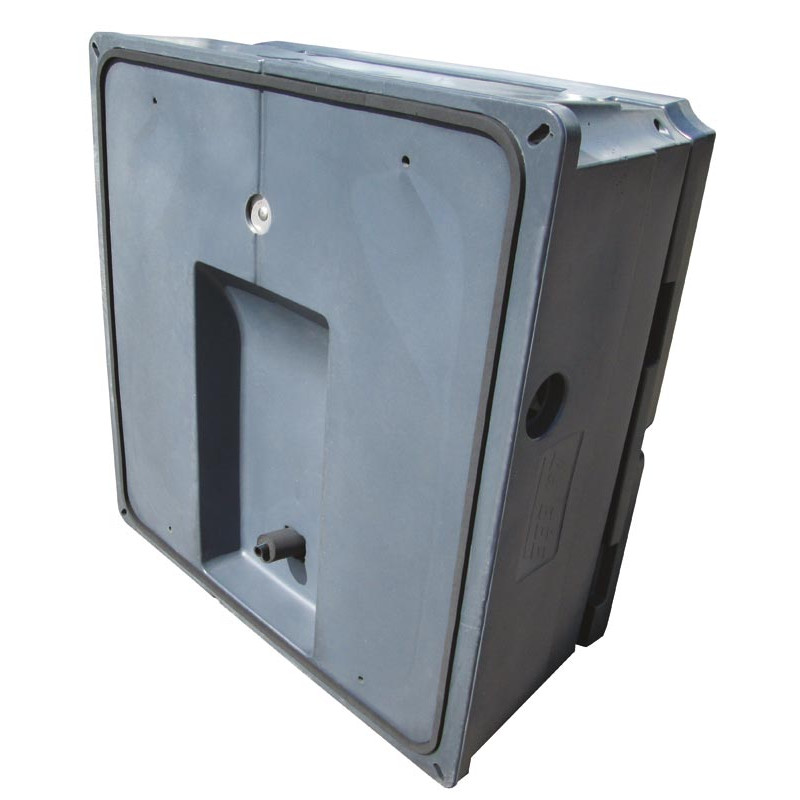

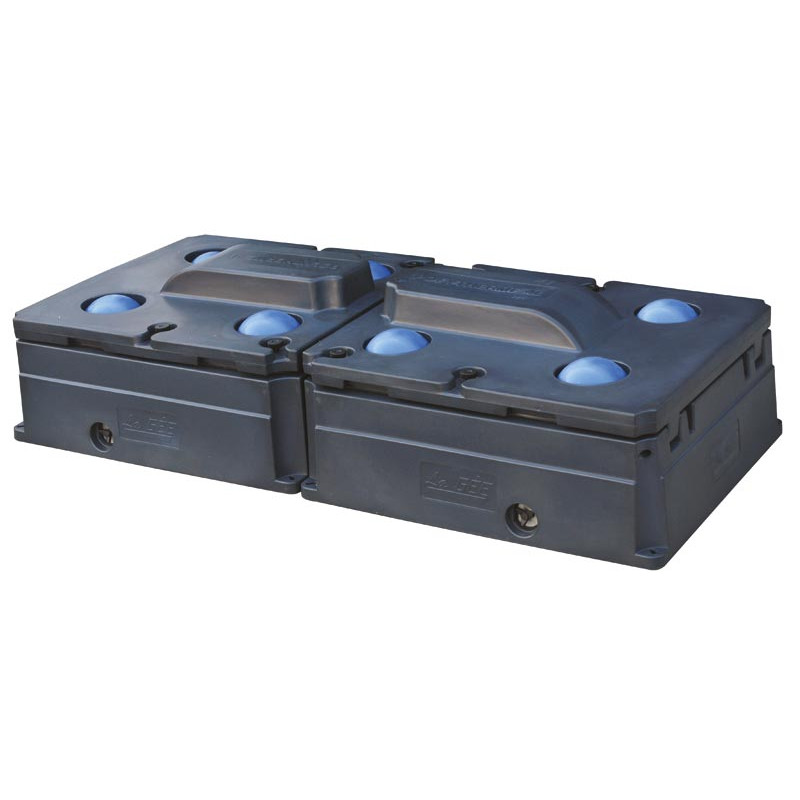

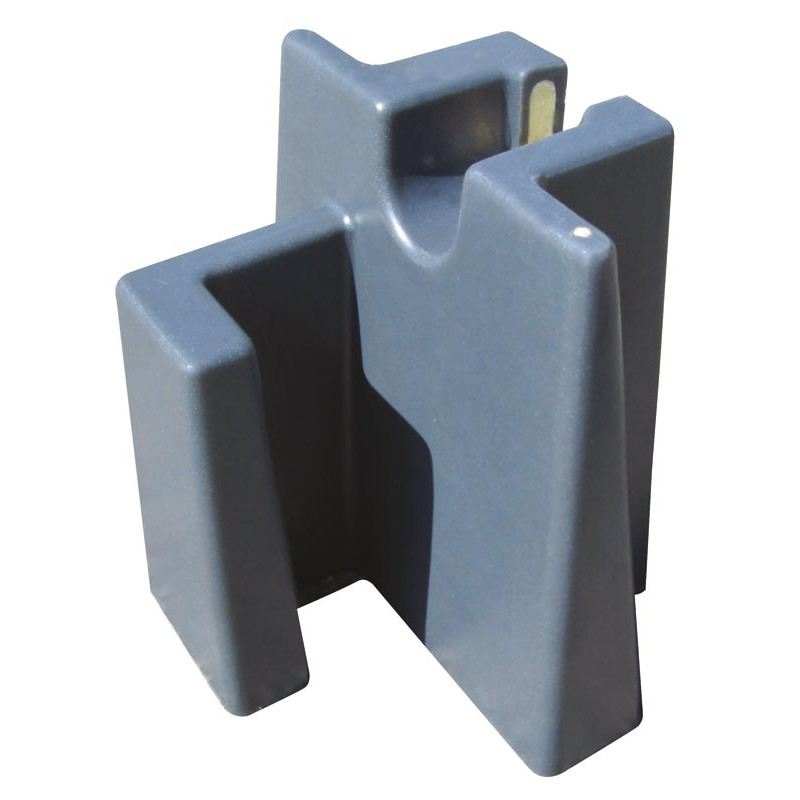

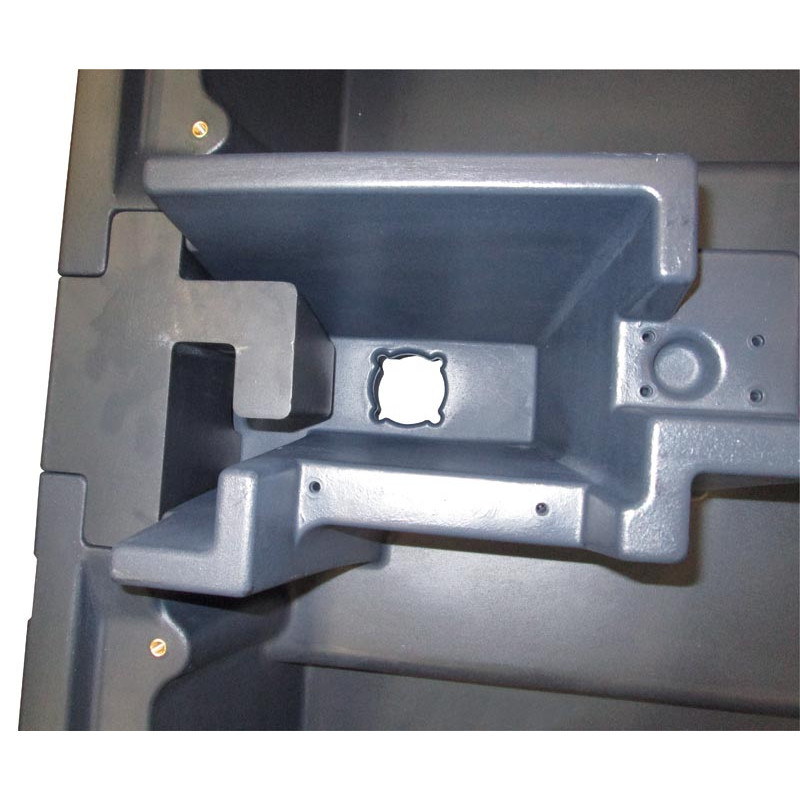

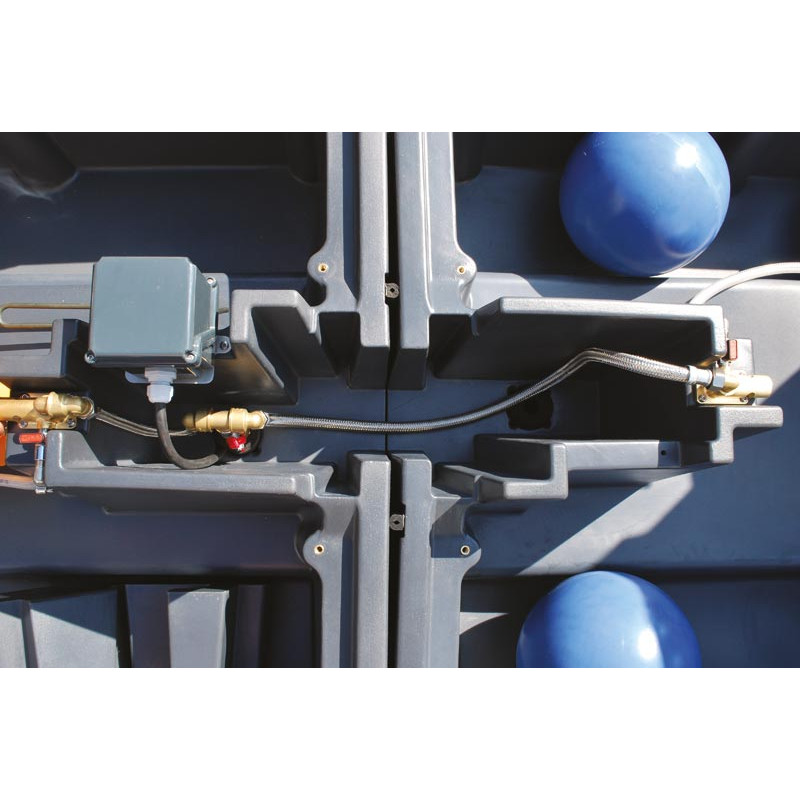

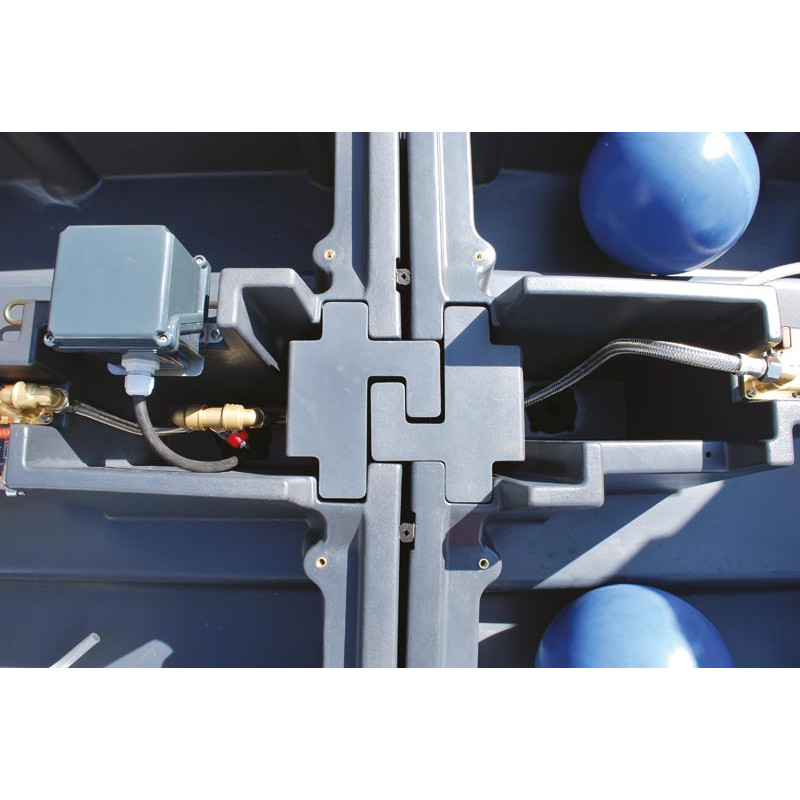

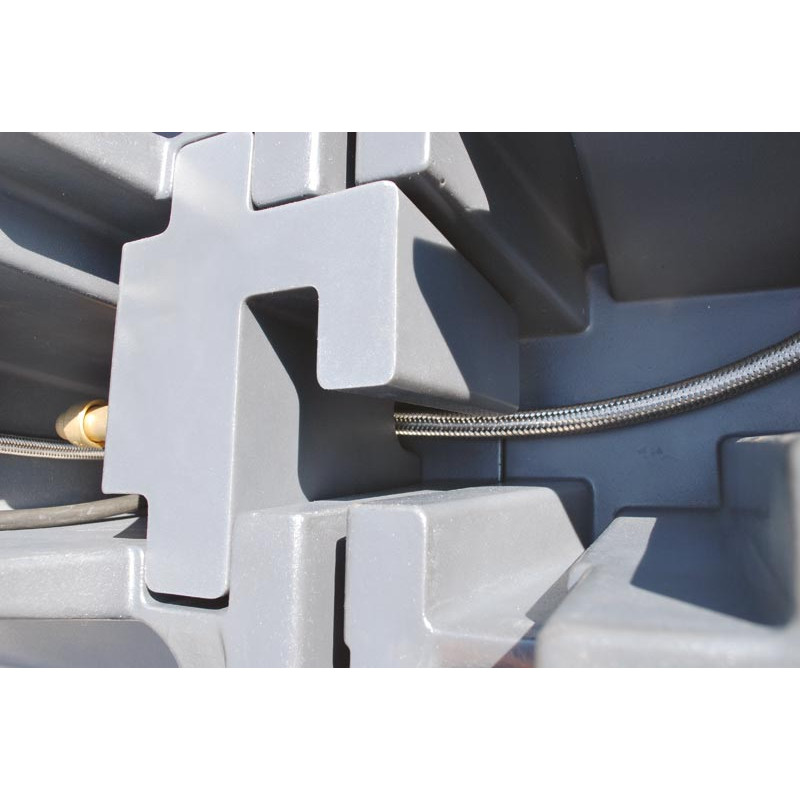

In its factory fitted version, it is effective down to -30°C and lower with the immersion heater option. An internal technical space allows easy water connection and the addition of the heating option and a general shut-off valve. An orientable isothermal locking key allows the passage of networks and the connection and linking of two troughs coupled together, while maintaining thermal performance.

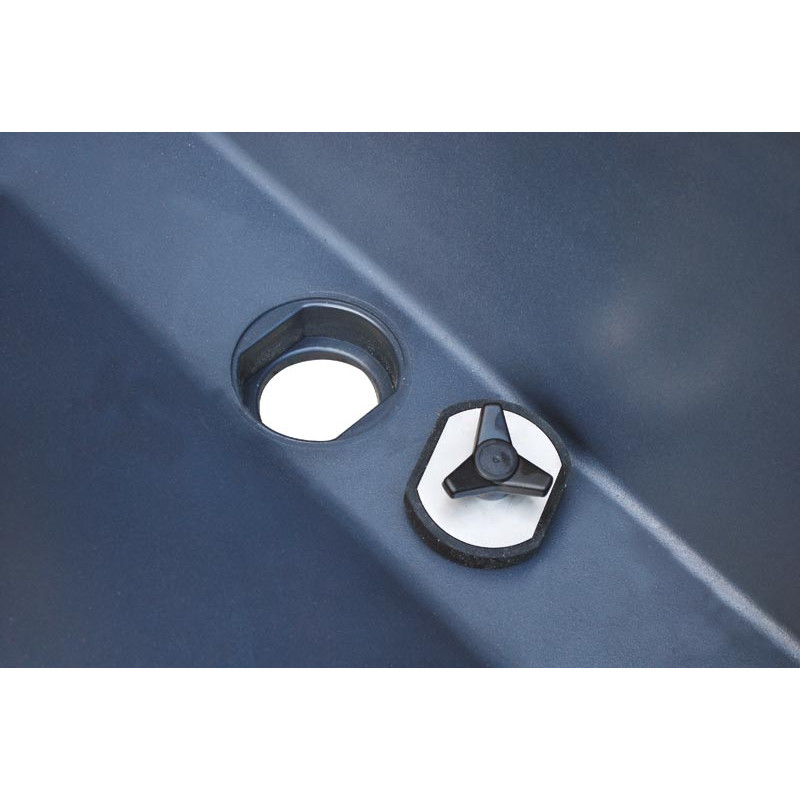

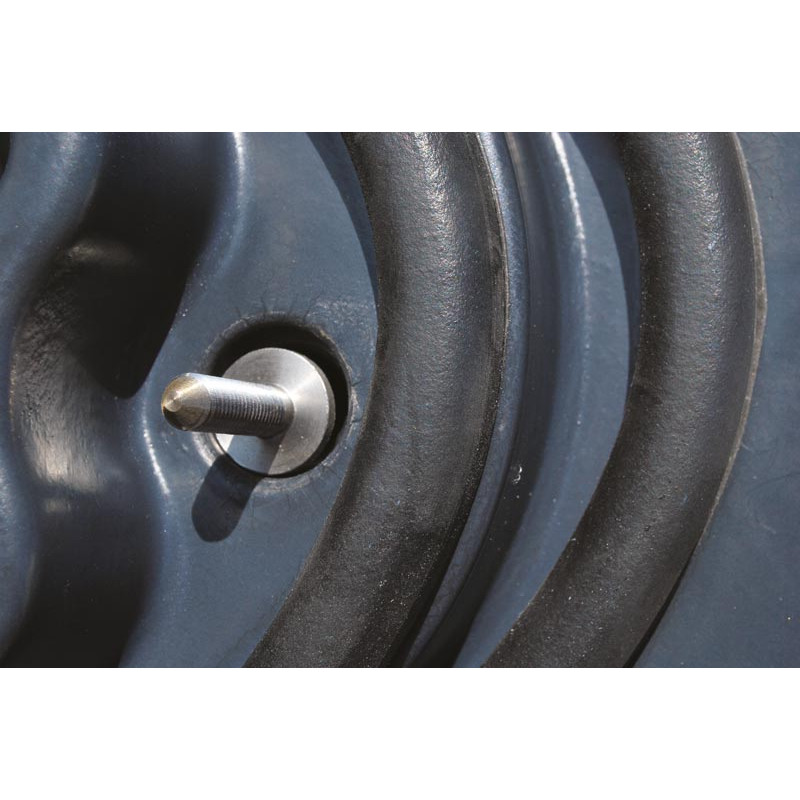

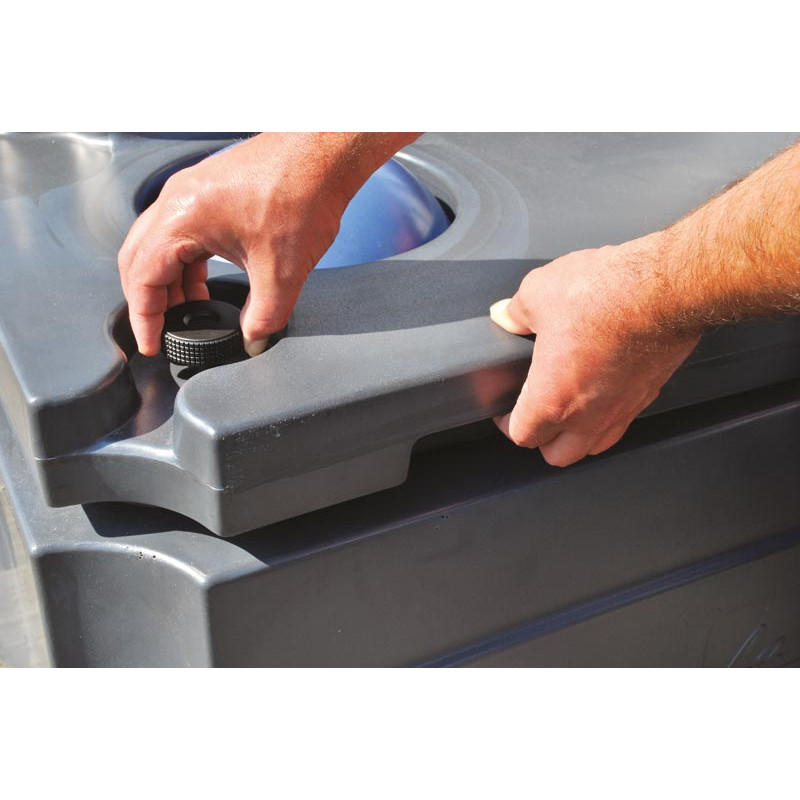

The lid is easy to handle thanks to captive screws and easy to keep open thanks to its rear hinges. The tank is fitted with two side drain bungs and one central drain bung if the support is suitable, for improved efficiency.
Delivered with a ground seal and insulated sleeve to place around the supply pipe.
Fitted with:
1 constant level mechanism
- 1 integrated cleaning system (by water junction on a pipe linked to a brass body fitted with a selection valve)
- 1 drain plug (Ø 90 mm).
It keeps the water at a positive temperature down to - 30°C by absorbing the natural calories in the soil and provides cool water in the event of high temperatures.
The patented opening system is based on the tenon-mortice principle at the rear and captive screws at the front.Water is connected directly under the trough pre-fitted with a hydraulic connection pipe or a stainless steel braided hose (large capacity version) protected by an insulating sleeve (included). The lid can be modified at any time by adding an option to convert a "ball" model to a "bowl" model and vice versa.
The Polytherme large capacity drinker is available in isothermal ball and cast aluminium bowl versions which are interchangeable. It is fitted with a 53 l / mn (5 bars) high flow brass constant level mechanism fitted with three float valves.
In its factory fitted version, it is effective down to -30°C and lower with the immersion heater option. An internal technical space allows easy water connection and the addition of the heating option and a general shut-off valve. An orientable isothermal locking key allows the passage of networks and the connection and linking of two troughs coupled together, while maintaining thermal performance.
The lid is easy to handle thanks to captive screws and easy to keep open thanks to its rear hinges. The tank is fitted with two side drain bungs and one central drain bung if the support is suitable, for improved efficiency.
Delivered with a ground seal and insulated sleeve to place around the supply pipe.
- Material
- rotomolded polyethylene resin

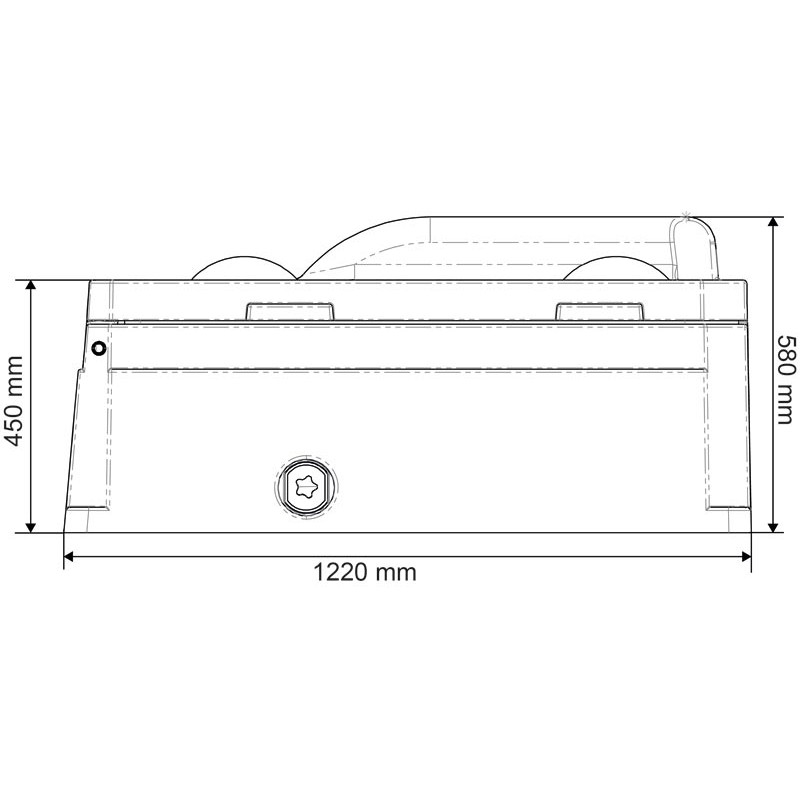

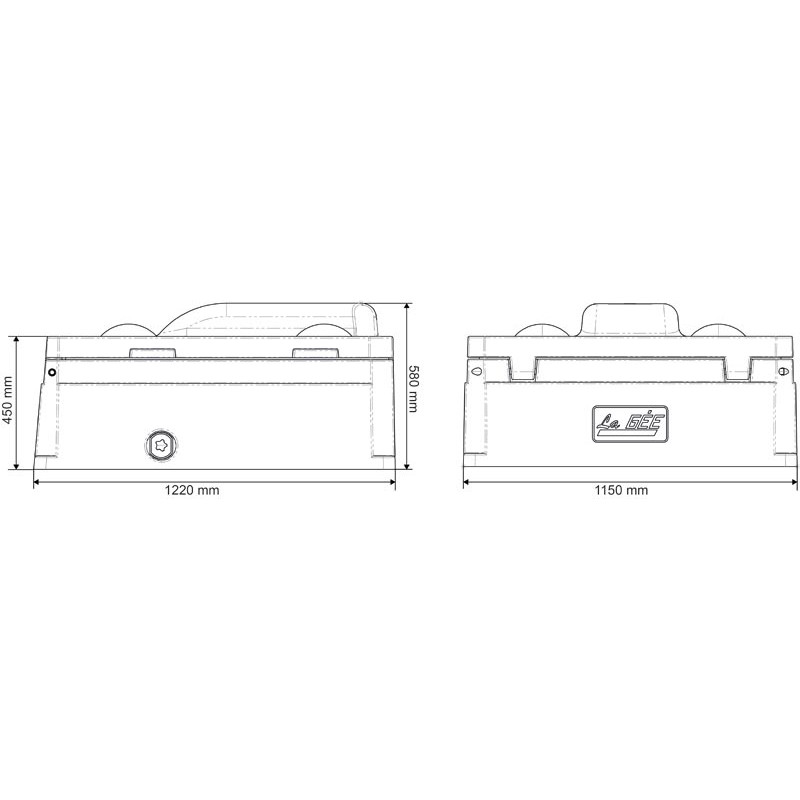

- Length
- 1220 mm

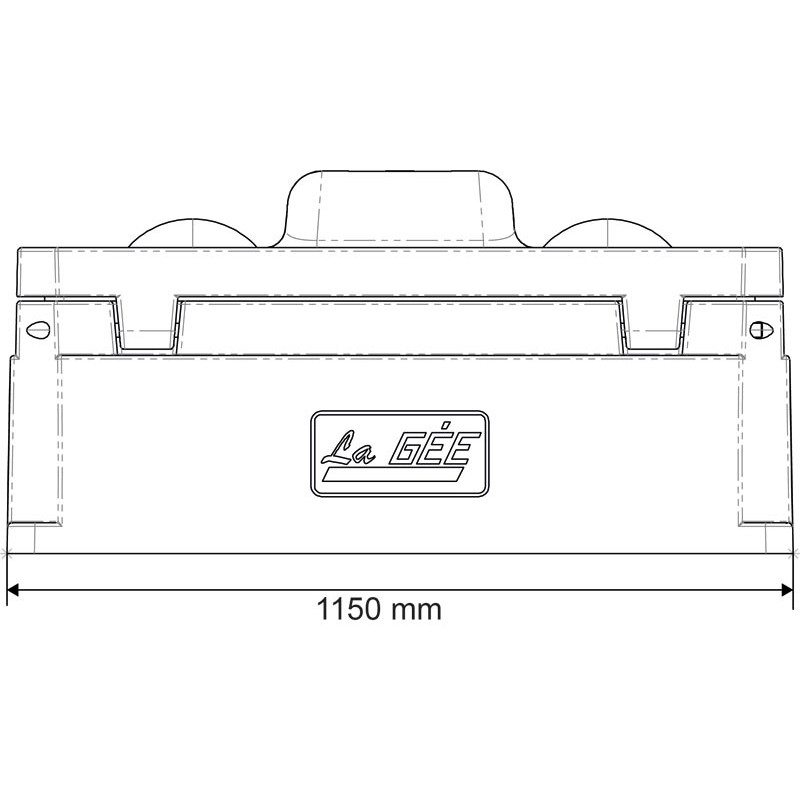

- Width
- 1150 mm
- Height
- 580 mm
- Capacity
- 180 l
- Model
- 4 balls
- Pressure
- network
- Drinker
- Polytherme large capacity
- System
- constant level
- Mechanism
- float valve tap
- Fastening
- ground
- Device
- isotherm
- Connection diameter
- 1/2" (15/21 mm) - female
- Packaging
- boxed
- Flow rate
- 1 to 53 l/min
- Sales unit
- Unit
- Float valve
- Pressure network en laiton (P1138341)
