Feet for POLYFLOW drinker
POLYFLOW 300 drinker
Fitted with a "Quick and Safe Drain system"
Allows the drinker to be emptied by a simple action without the need for tools.
Ideal for dairy herds in stall corridors. Large capacity stainless steel one-piece trough.
Designed with a slight slope towards the drain bung (Ø 100 mm) for easy, complete, and quick cleaning.
Drain bung fitted with a ‘quick and safe’ system for emptying without having to put your hands into the soiled water.
Factory fitted with a wall mount.
Possible to connect the "Quick and Safe" drain bung to a ø 125mm PVC pipe.
Fitted with :
- 1 42 l/min high flow float valve.
- 1 housing, easy-to remove without tools for float valve access.
Protective housing of float removable with maintenance position.
- 1 ‘Quick and Safe Drain’ system
Options: heating housing, anti-freeze or heating supply kit, thermostat, transformer, and feet for mounting on the ground.
- Material
- stainless steel

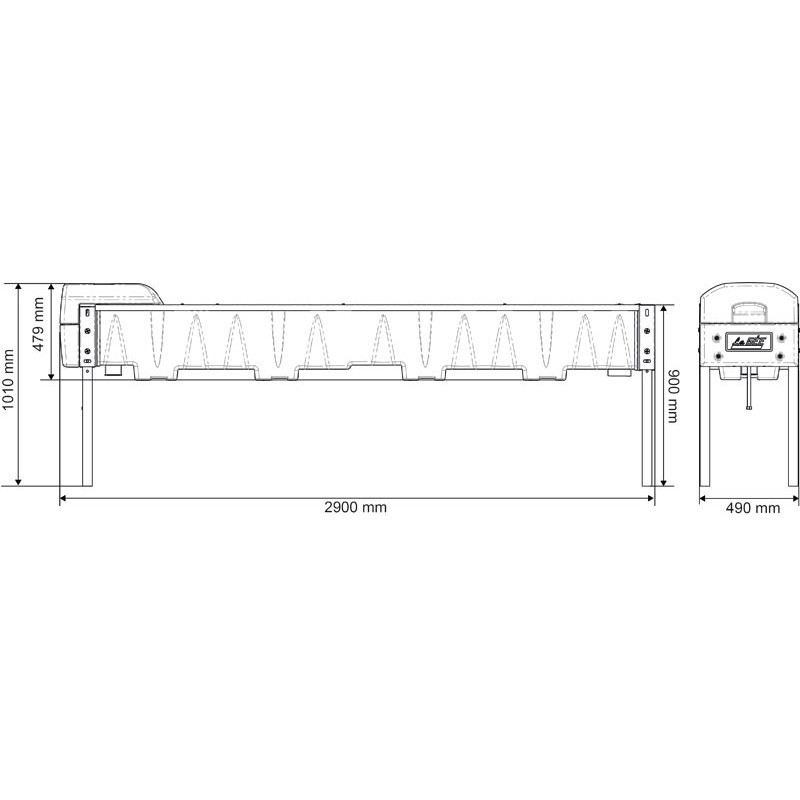

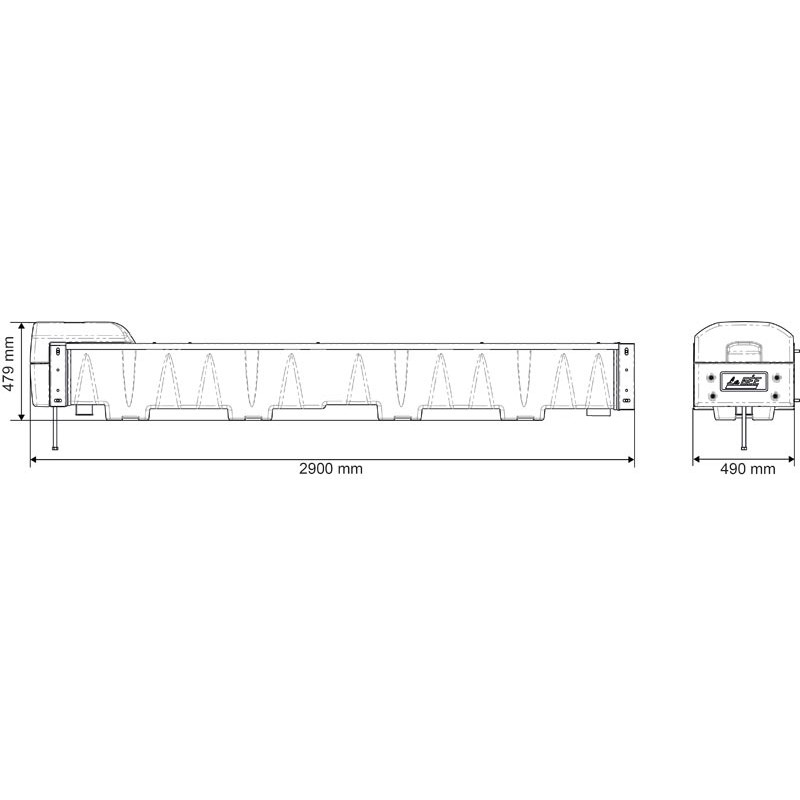

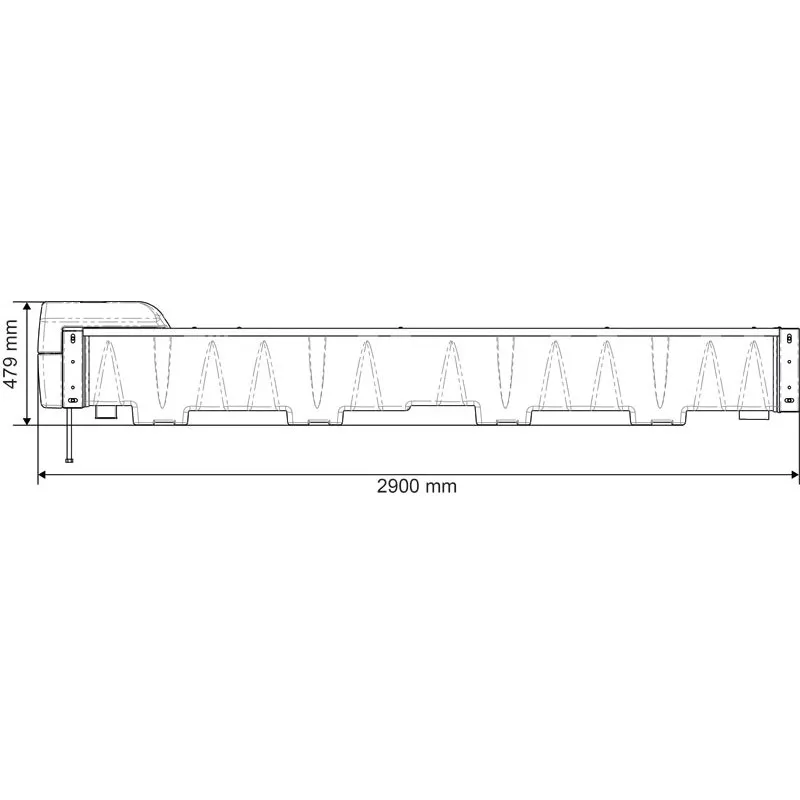

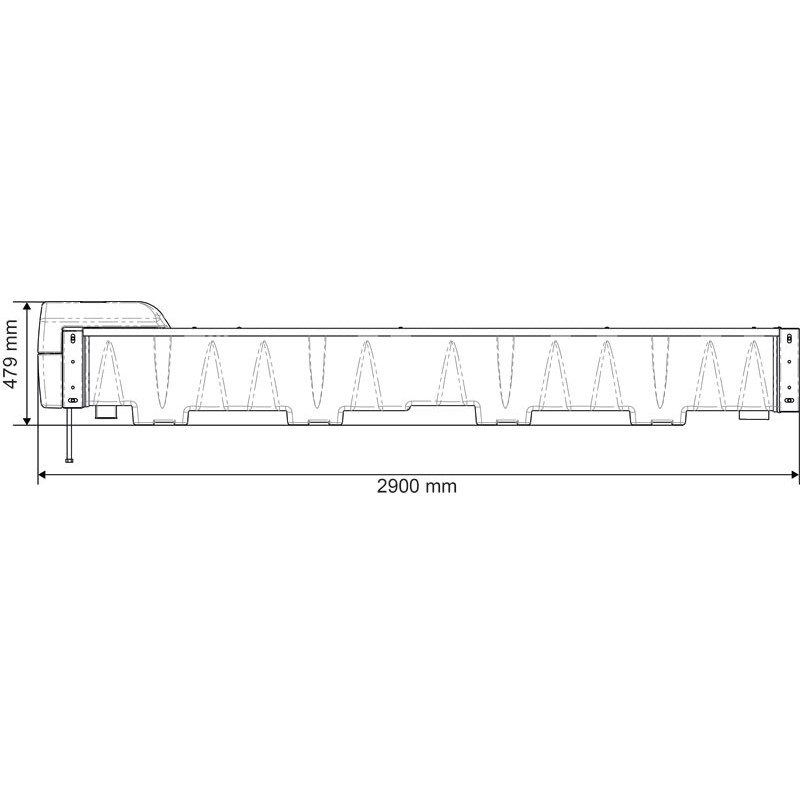

- Length
- 2953 mm

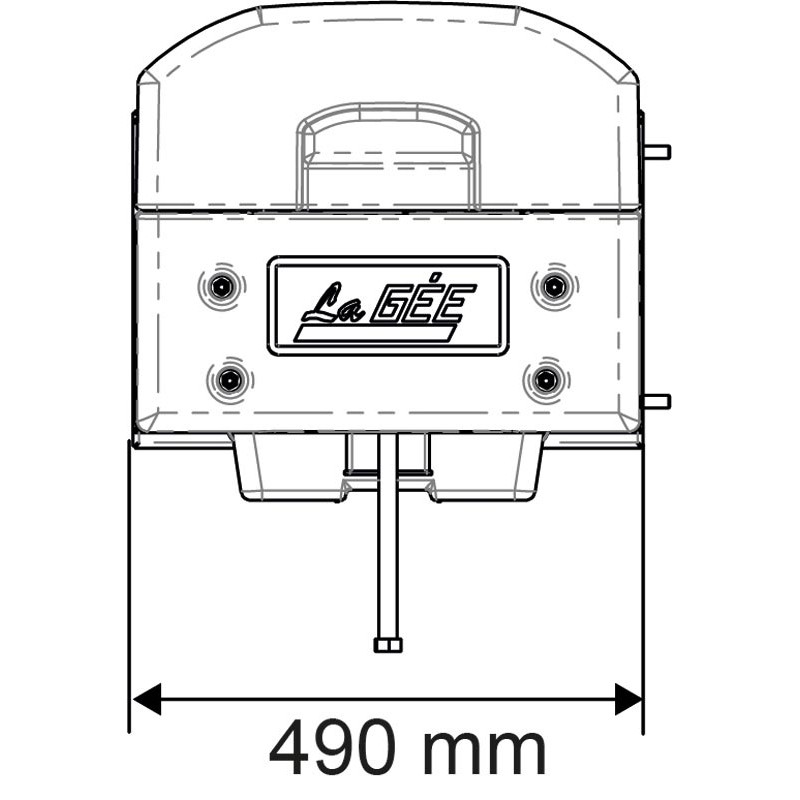

- Width
- 490 mm
- Height
- 479 mm
- Capacity
- 190 l
- Model
- 300
- Pressure
- network
- Number of places
- 6
- Drinker
- Polyflow
- System
- constant level
- Mechanism
- float valve tap
- Fastening
- wall
- Device
- heating with option
- Flow rate
- 1 to 42 l/min
- ø connection
- 3/4" (20/27 mm) - male
- Sales unit
- Unit
- Float valve
- Pressure network en laiton (P1138341)
Accessories and options
