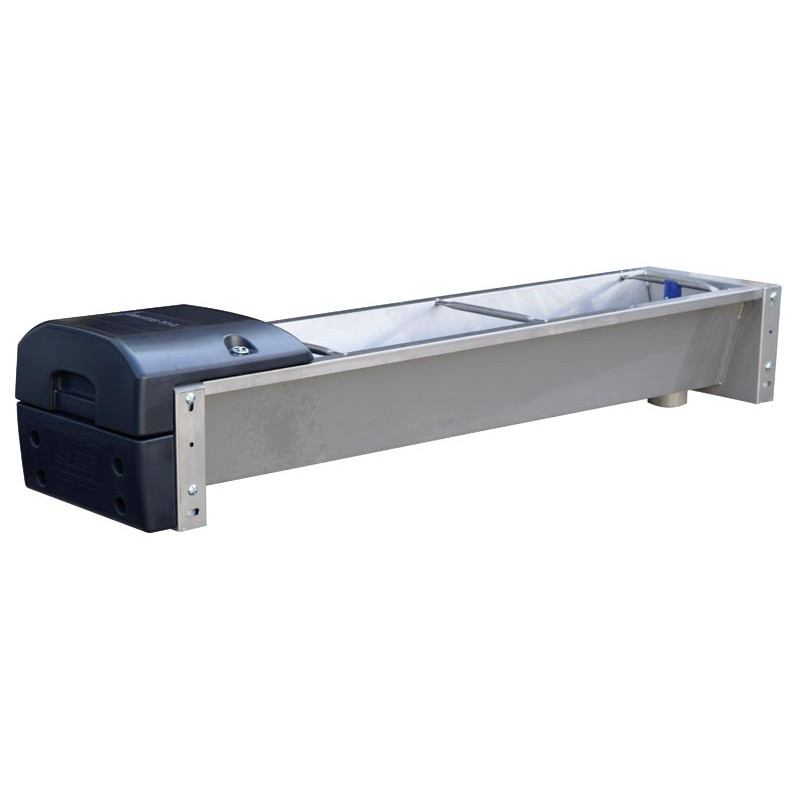

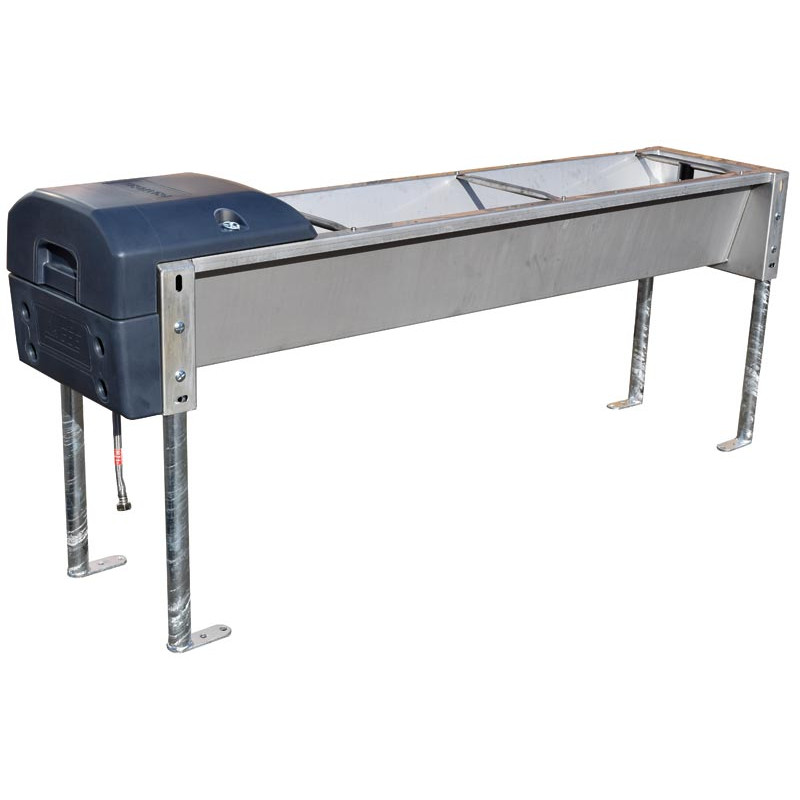

POLYFLOW 230 drinker
Fitted with a "Quick and Safe Drain system"
Allows the drinker to be emptied by a simple action without the need for tools.

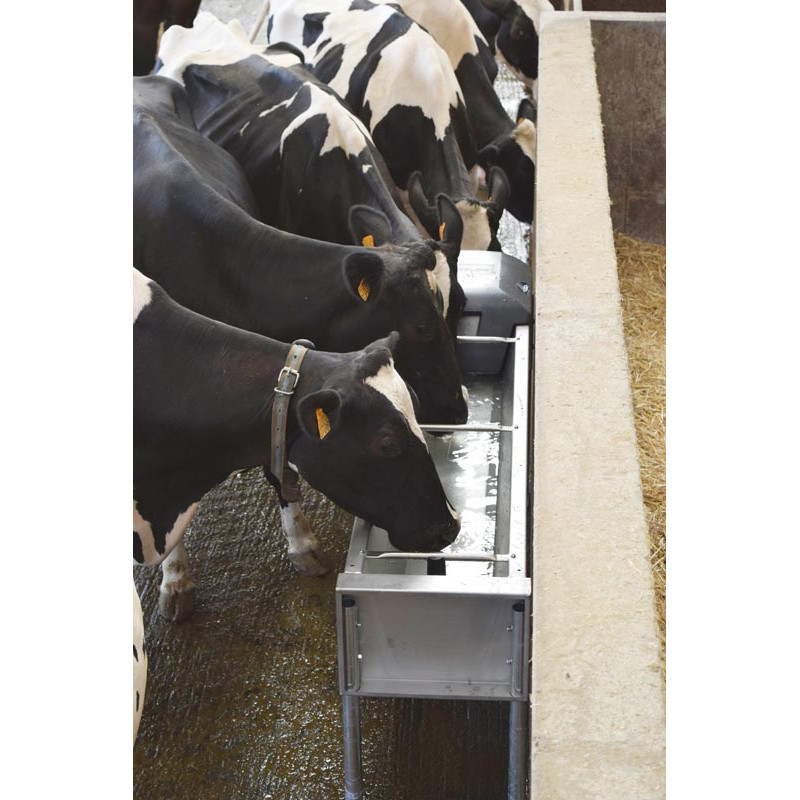

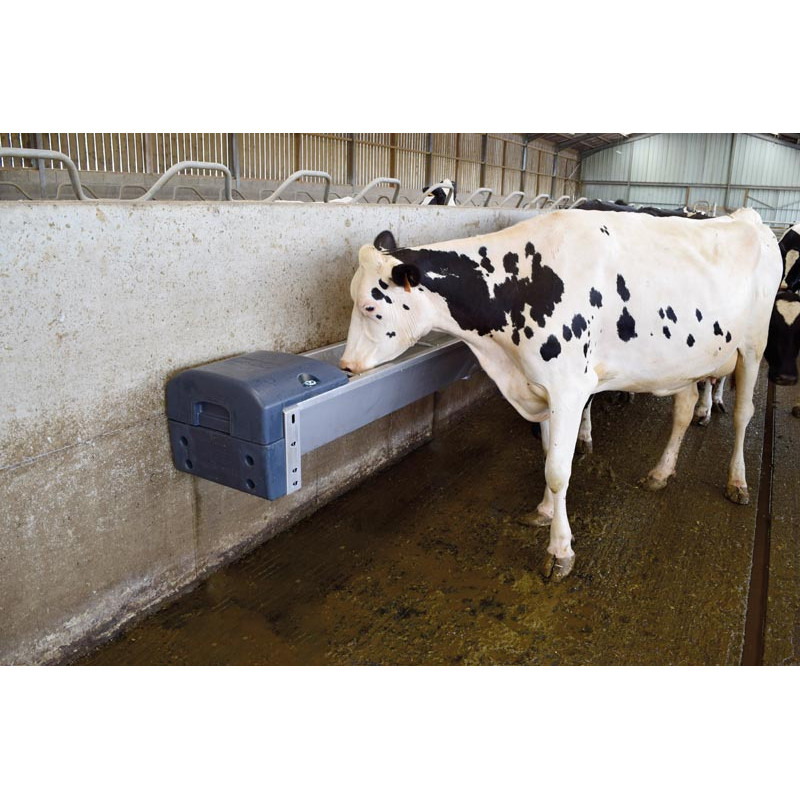

Ideal for dairy herds in stall corridors. Large capacity stainless steel one-piece trough.

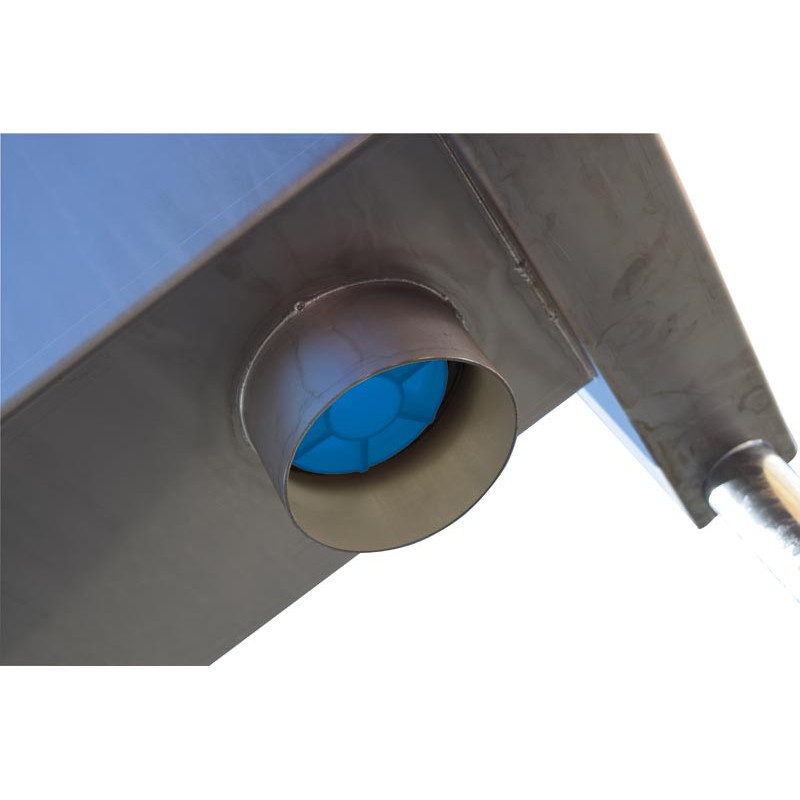

Designed with a slight slope towards the drain bung Ø 100 mm for easy, complete, and quick cleaning.

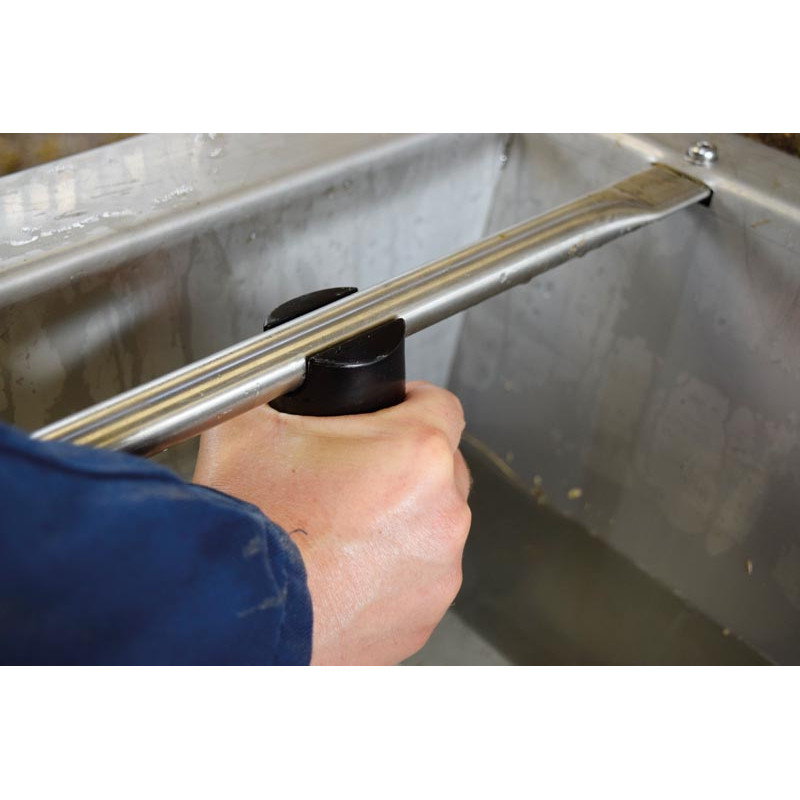

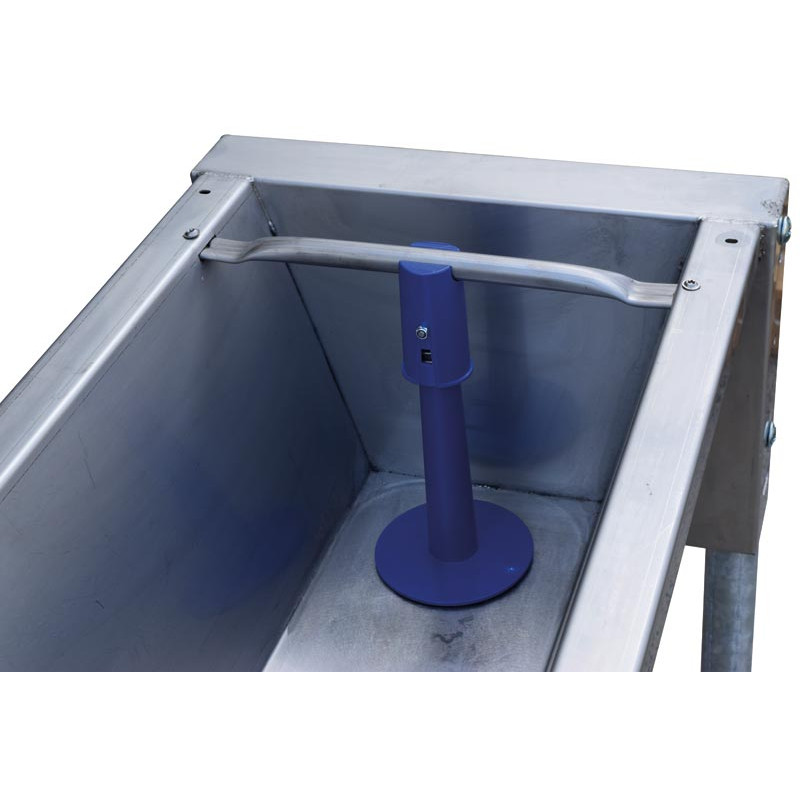

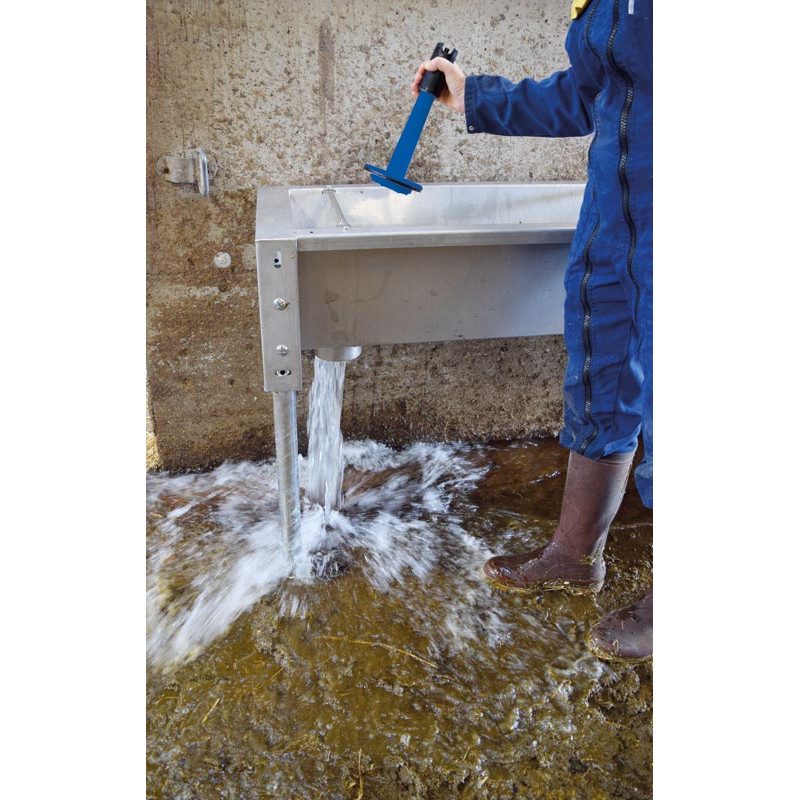

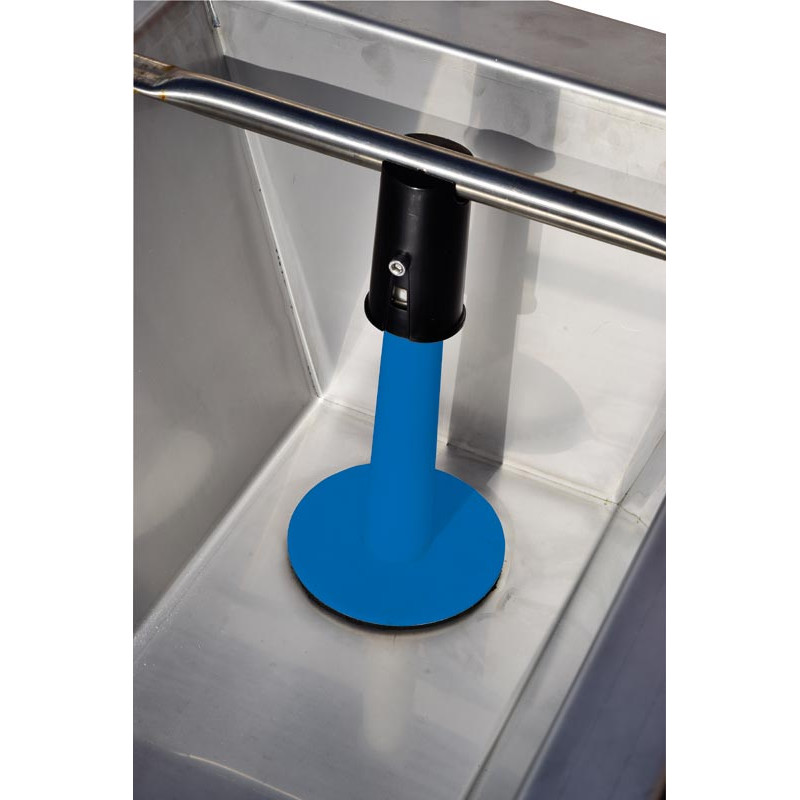

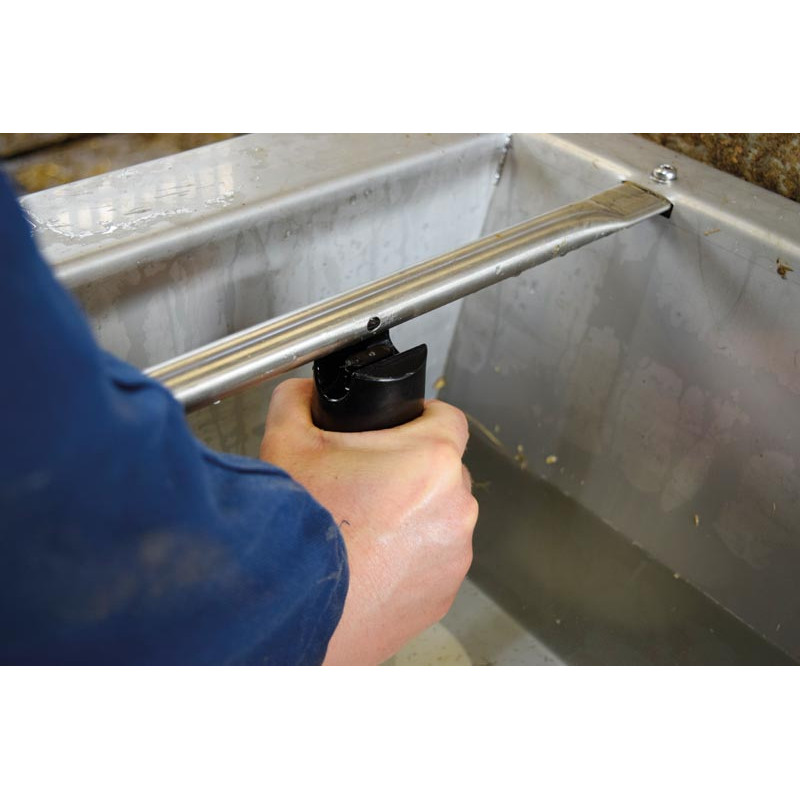

Drain bung fitted with a ‘quick and safe’ system for emptying without having to put your hands into the soiled water.

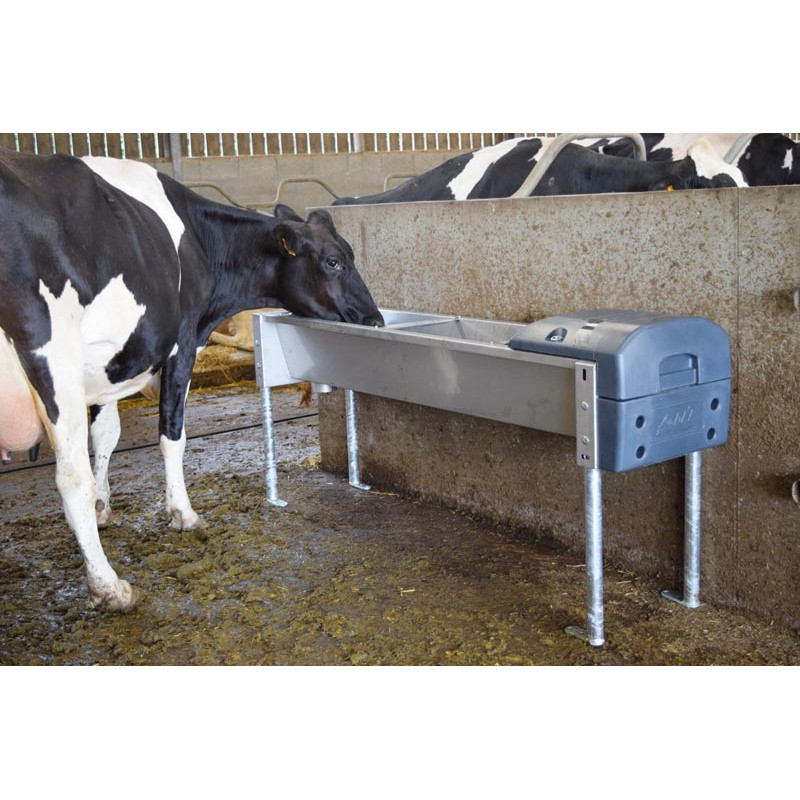

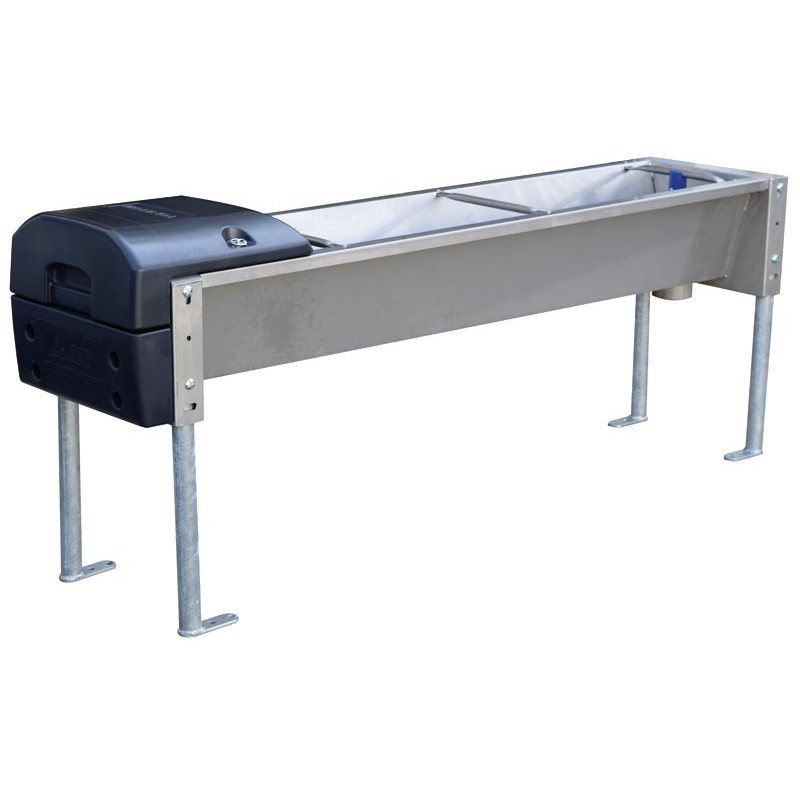

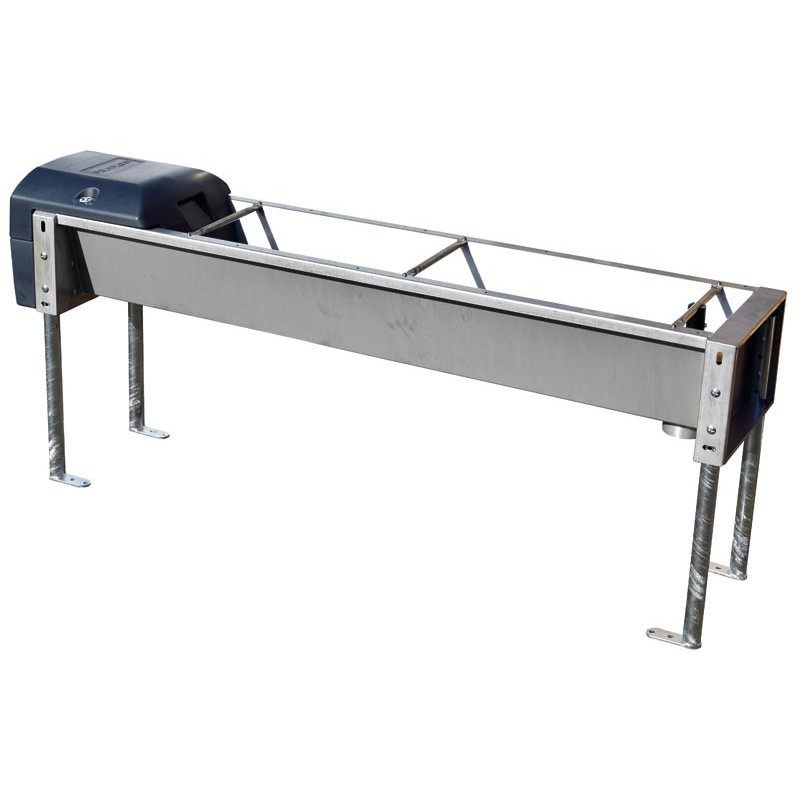

Factory fitted with a wall mount. Optional : 4 feet for ground fastening.
Fitted with :
- 1 42 l/min high flow float valve.

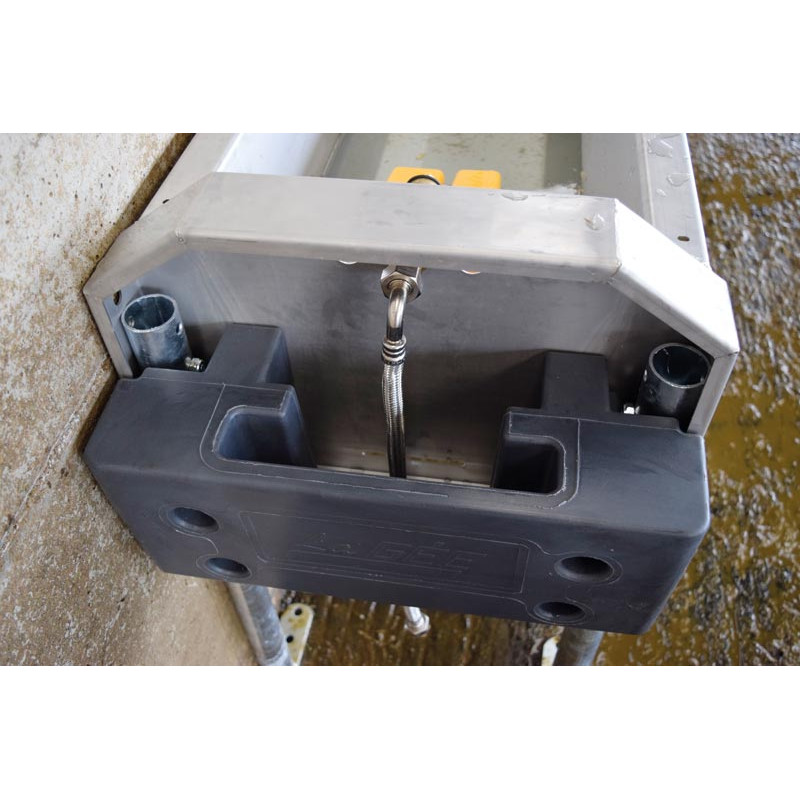

- 1 housing, easy-to remove without tools for float valve access.

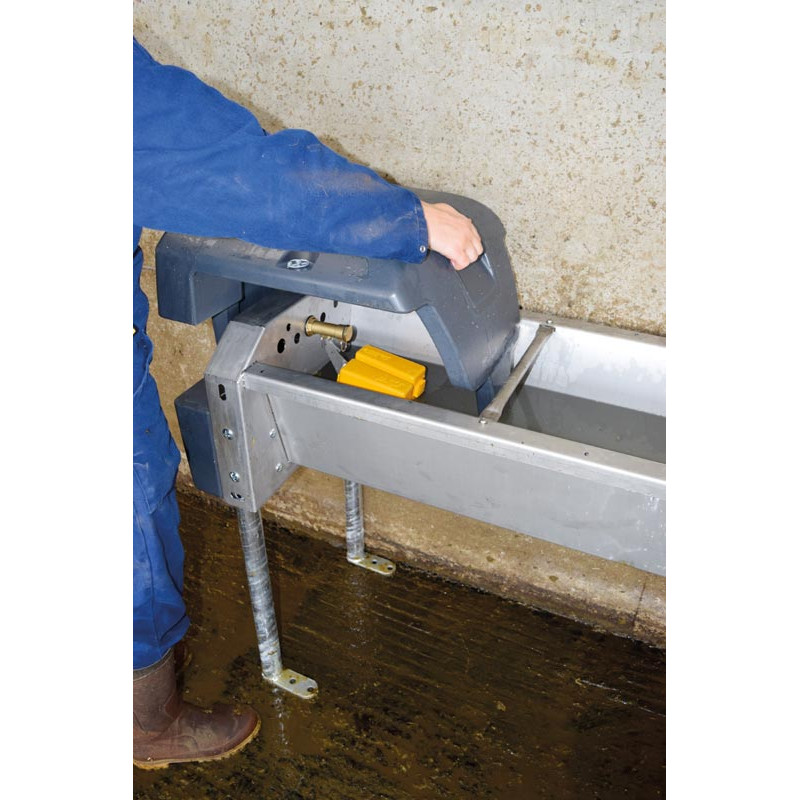

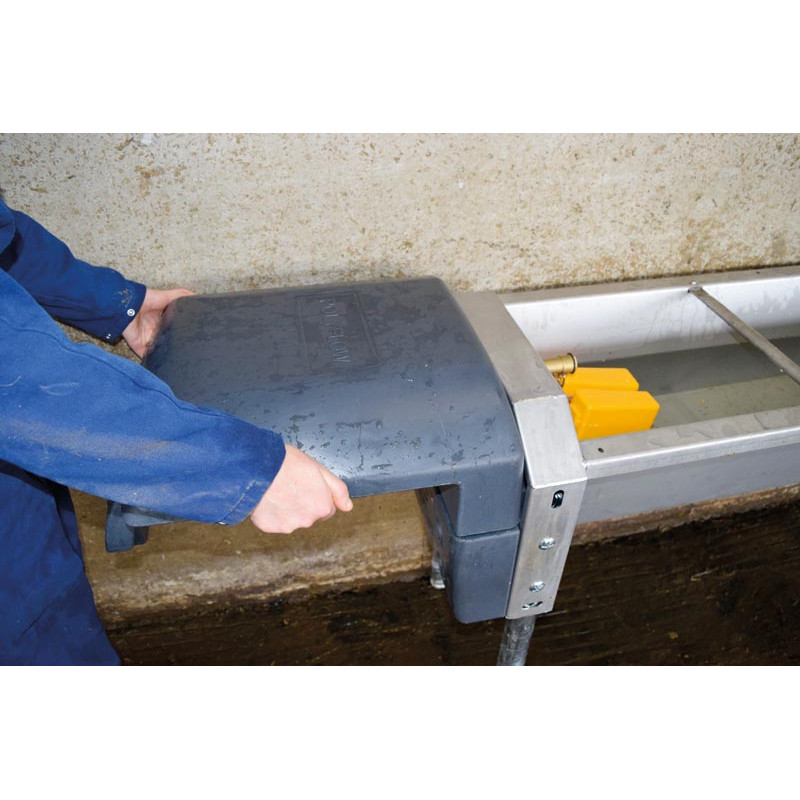

Protective housing of float removable with maintenance position.
- 1 ‘Quick and Safe Drain’ system
Options: heating housing, anti-freeze or heating supply kit, thermostat, transformer, and feet for mounting on the ground.
- Material
- stainless steel

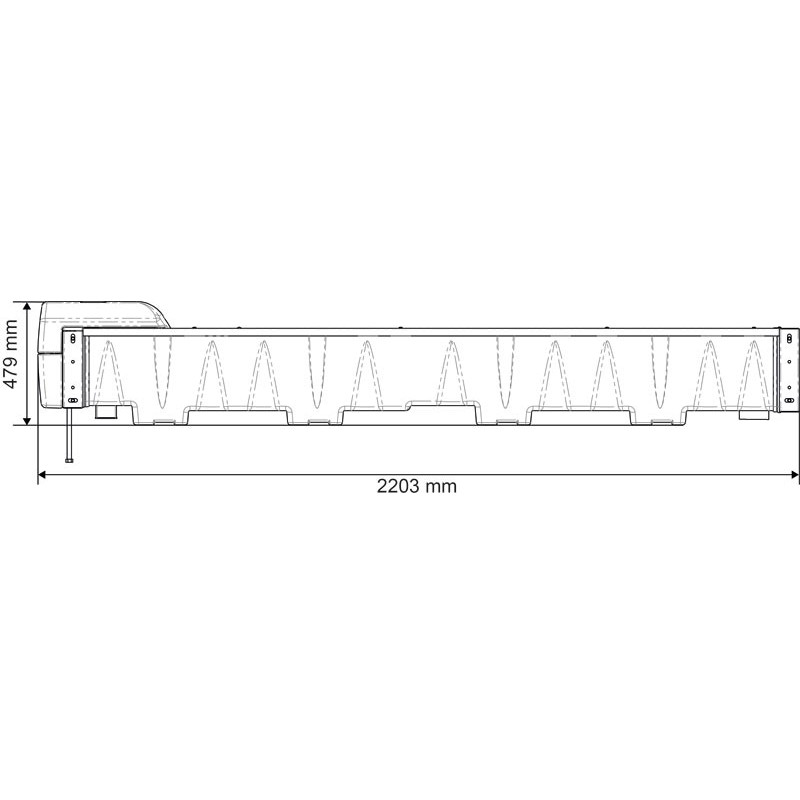

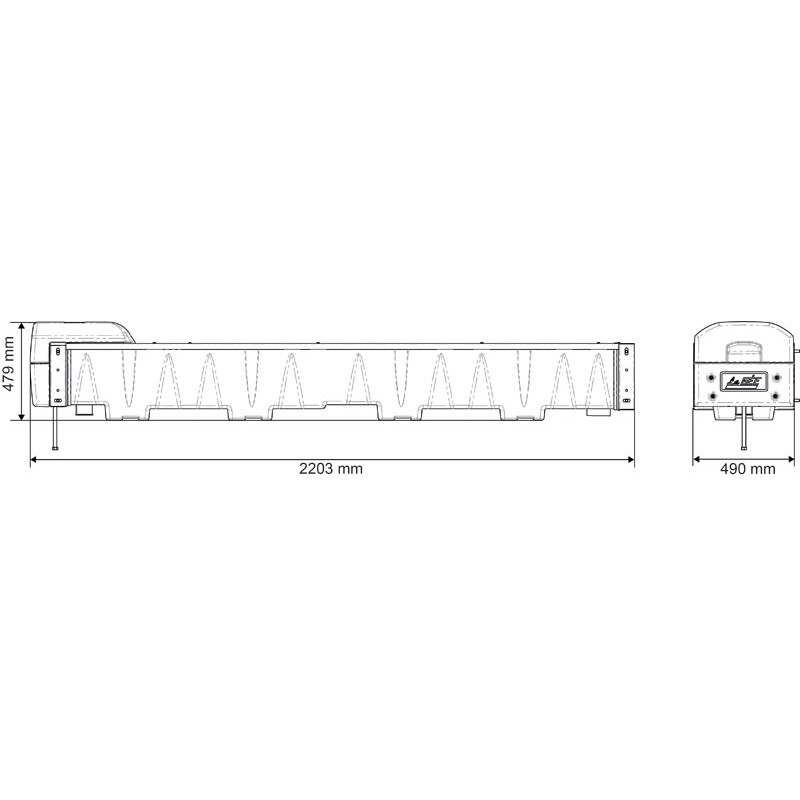

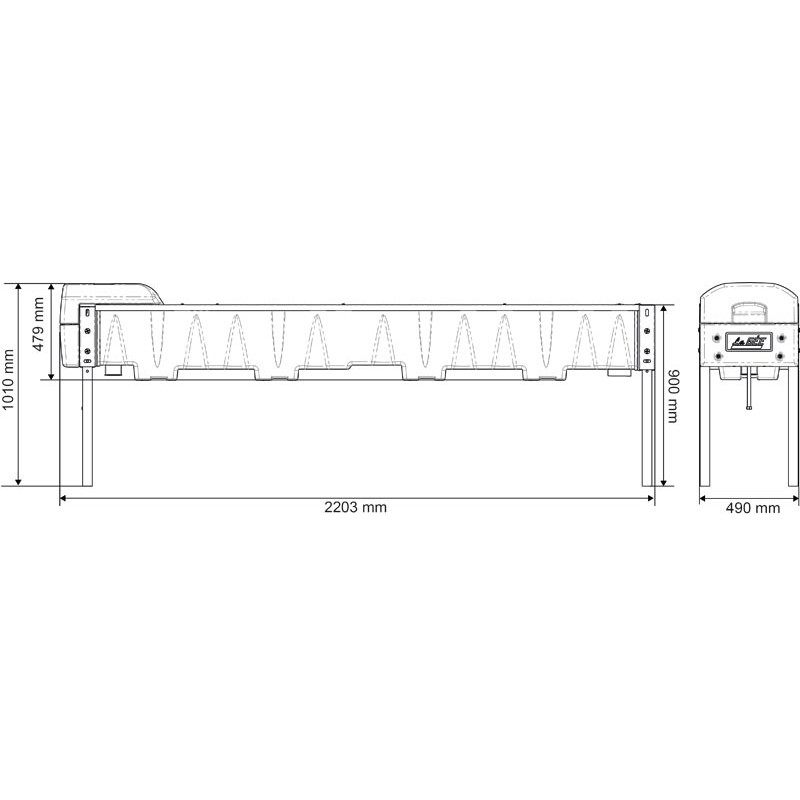

- Length
- 2203 mm

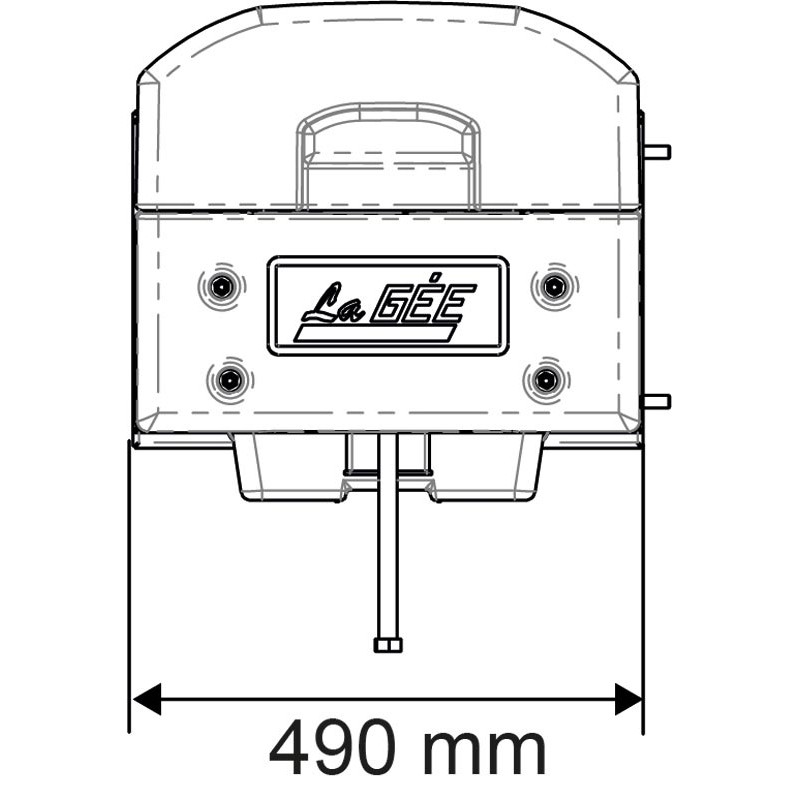

- Width
- 490 mm
- Height
- 479 mm
- Capacity
- 140 l
- Model
- 230
- Pressure
- network
- Number of places
- 5
- Drinker
- Polyflow
- System
- constant level
- Mechanism
- float valve tap
- Fastening
- wall
- Device
- heating with option
- Flow rate
- 1 to 42 l/min
- ø connection
- hose stainless steel - 3/4" (20/27 mm) - female
- Sales unit
- Unit
- Float valve
- Pressure network in brass (P1138341)
- Drain Plug
- drain system QSD - Ø 100 mm
