Network pressure float valve tap (15 l/min)
Non-heating tilting POLYNOX M 255

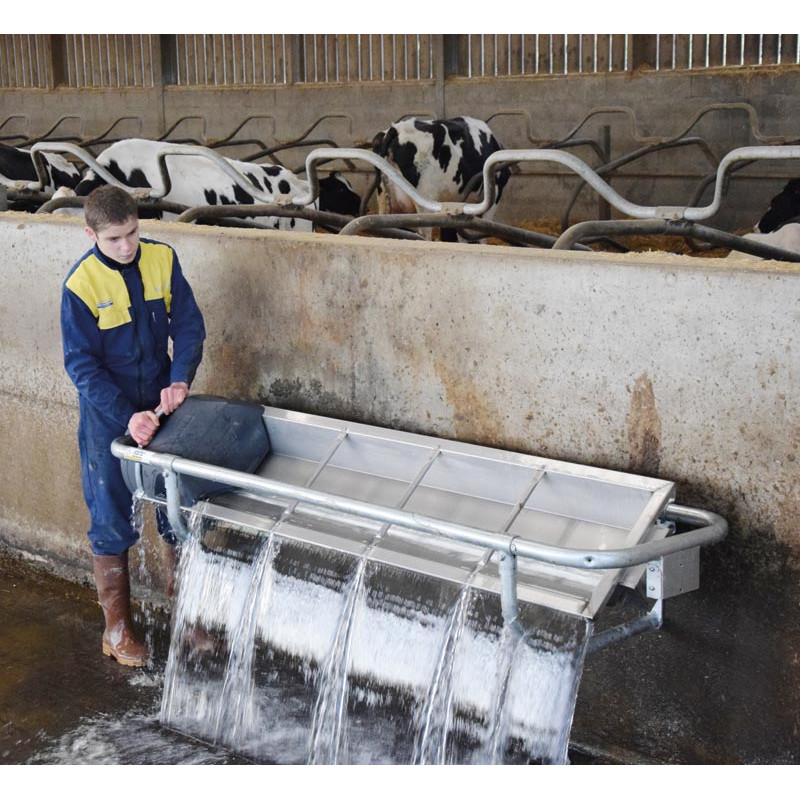

These tip-over drinkers are designed with a shallow, narrow, and heavy-duty stainless steel sheet trough. A removable rotomolded polyethylene housing protects the supply systemfitted with three La Gée level float valves and the tilting mechanism. Easy to handle, a rounded handed allows you to accompany the tilting movement of the trough. The locking bolt is automatically indexed by quarter turn preventing inappropriate return of the trough. The wide tilting mechanism is fitted with 80 mm diameter Ertalon flanges for great comfort of use and long-term silence during handling. Non-heating models can be fitted with a heating element as an option to convert them into a heating model, at any time.

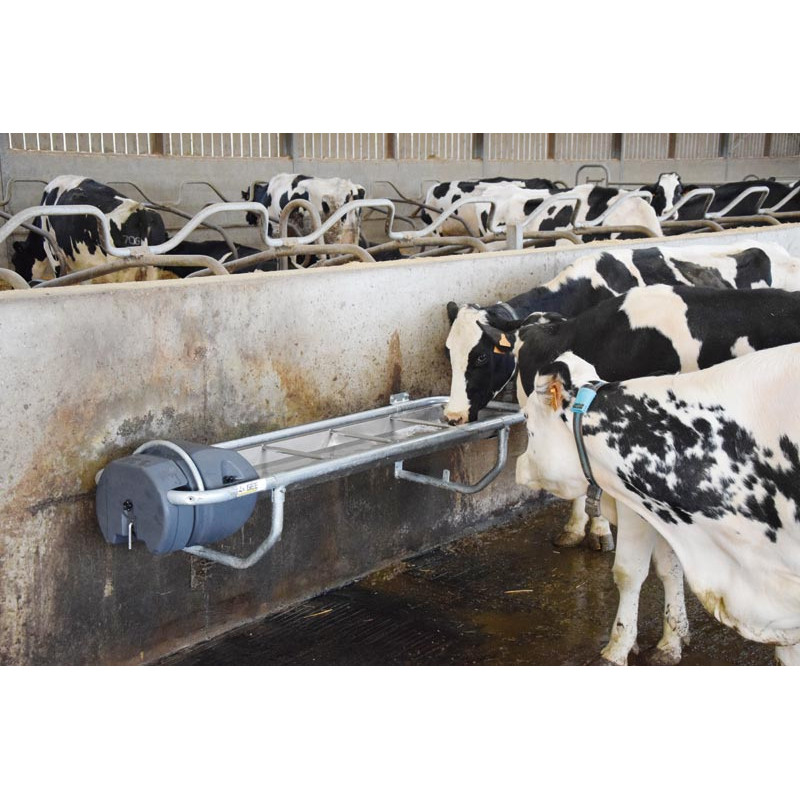

The Polynox M drinker is designed to be mounted on a wall in a watering corridor.Option: 24 V 80 W heating polyresistance - 3 A.
- Material
- stainless steel

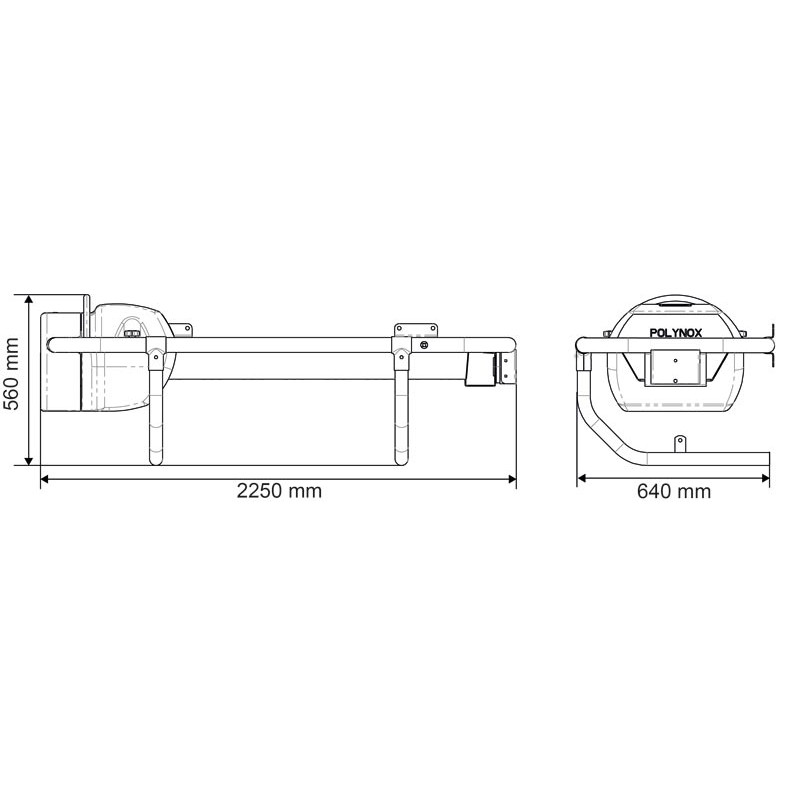

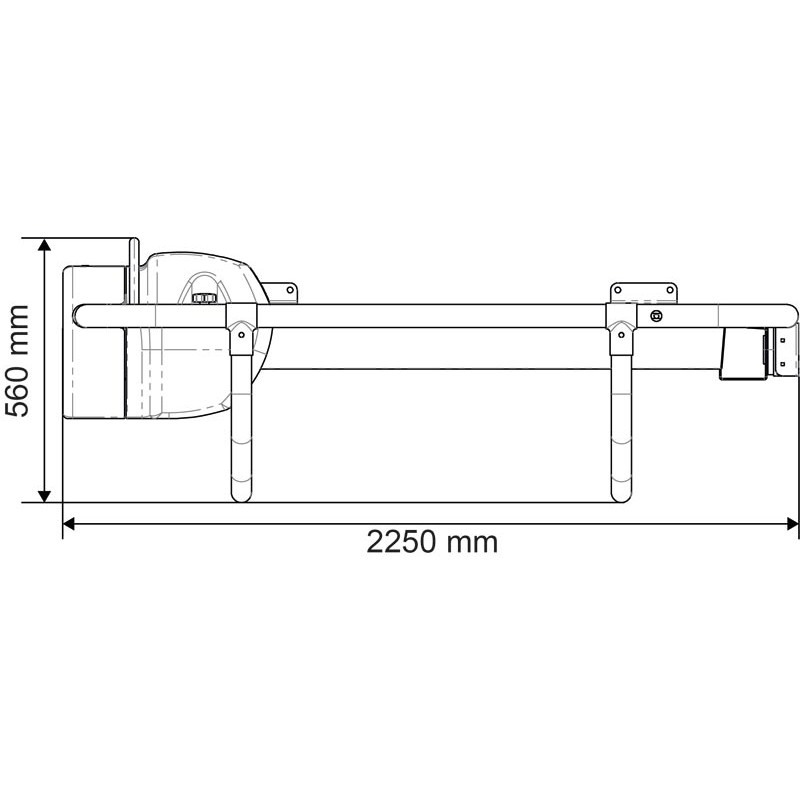

- Length
- 2.25 m

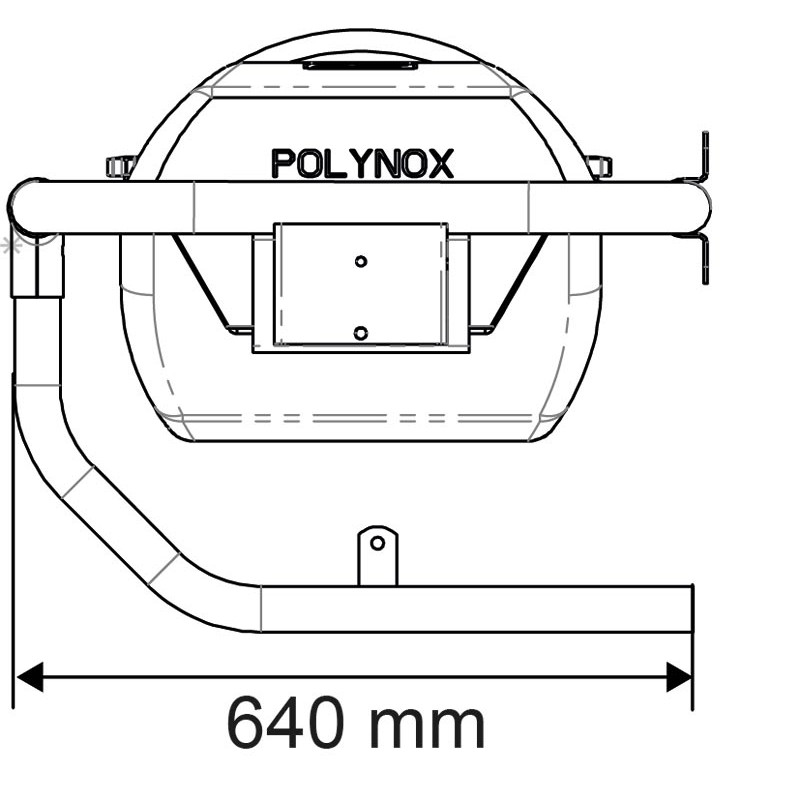

- Width
- 0.64 m
- Height
- 0.56 m
- Capacity
- 45 l
- Model
- 225
- Pressure
- network
- Drinker
- Non-heating tilting Polynox M
- System
- constant level
- Mechanism
- float valve tap
- Fastening
- wall
- Device
- non-heating
- Connection diameter
- 1/2" (15/21 mm) - female
- Packaging
- No packaging
- Flow rate
- 1 to 15 L/min
- Sales unit
- Unit
- Float valve
- Pressure network in polyamide green (P1138309)
