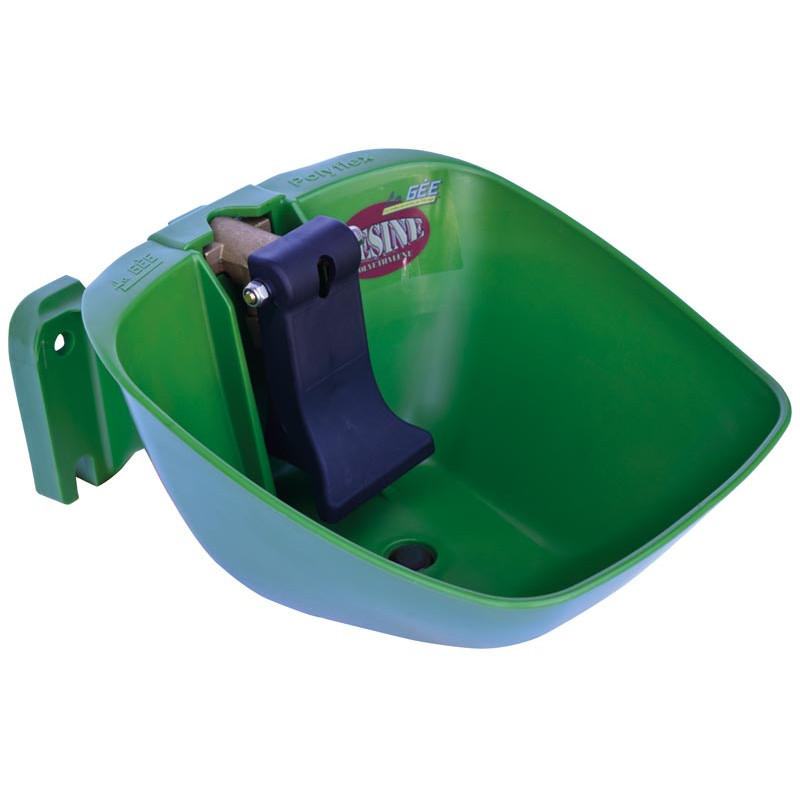

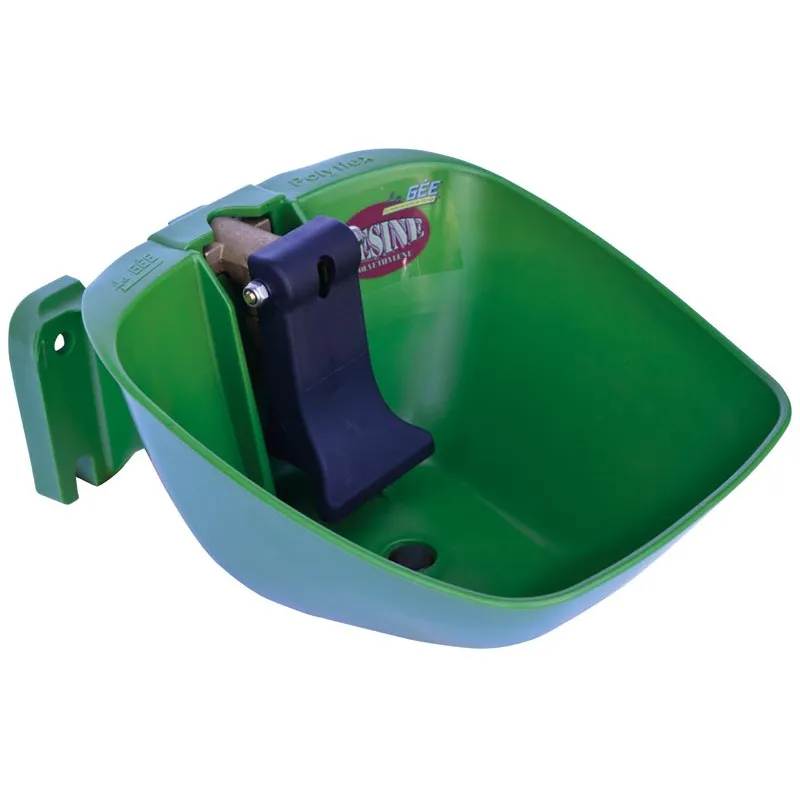

POLYFLEX vertical paddle drinker
Fitted with:

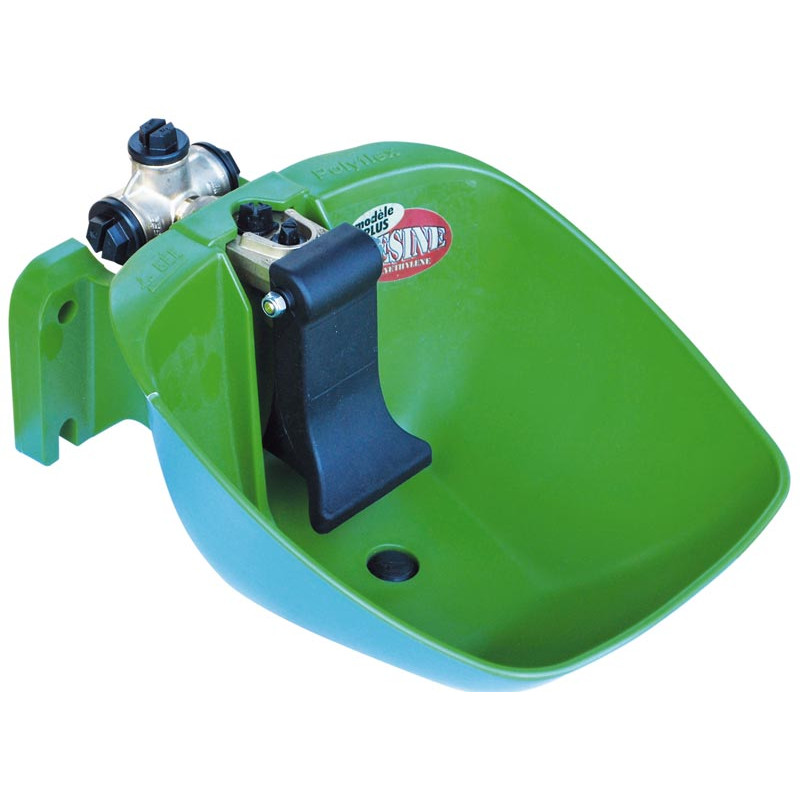

- 1 pilot valve with a 1/2 male supply outlet protected at the rear.
Filter cleaning and flow adjustment at the front without disassembling the mechanism;
- 1 Pusher of your choice and interchangeable: tube, horizontal paddle, or vertical paddle
- 1 mounting plate with two openings at the bottom for easy mounting;
- 1 flexible drain plug (Ø 24 mm);
Note. It is possible to cut the ties between the fastening supports to mount or remove the drinker from the wall with supply from below without undoing the Polycroix.
- Material
- injected polythene resin

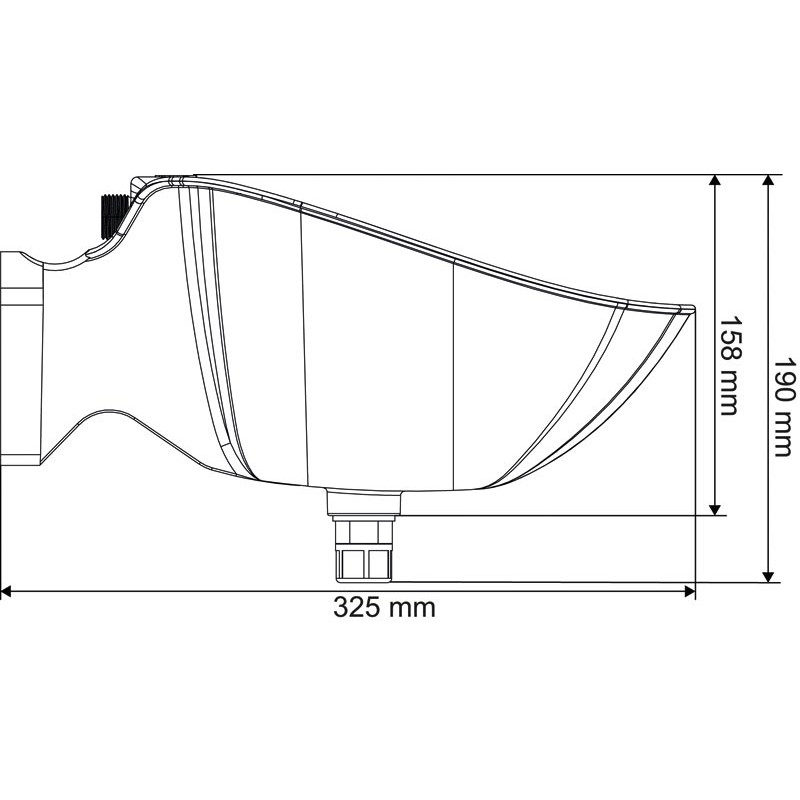

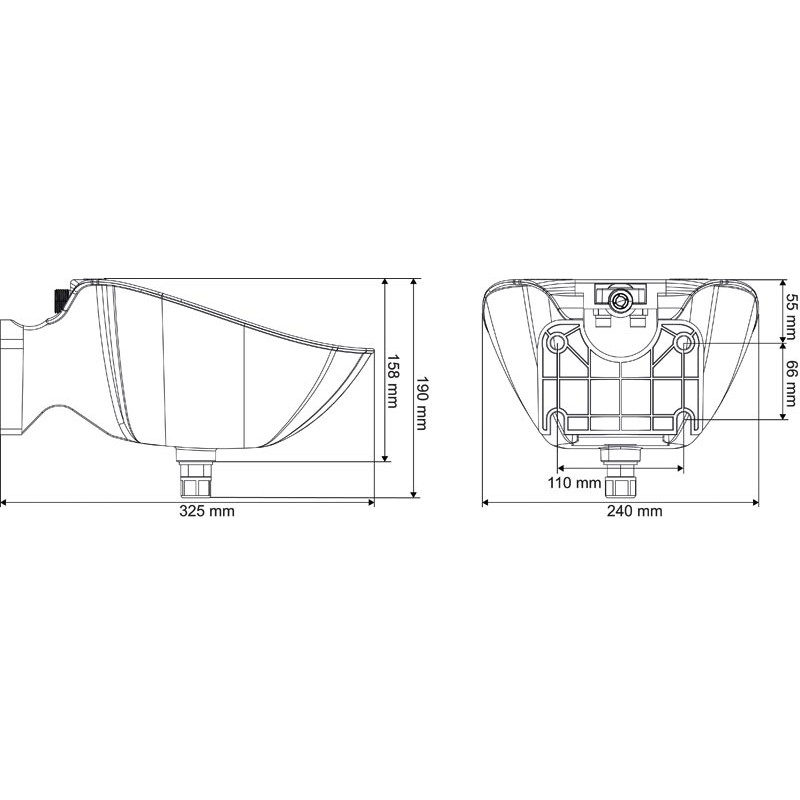

- Length
- 325 mm

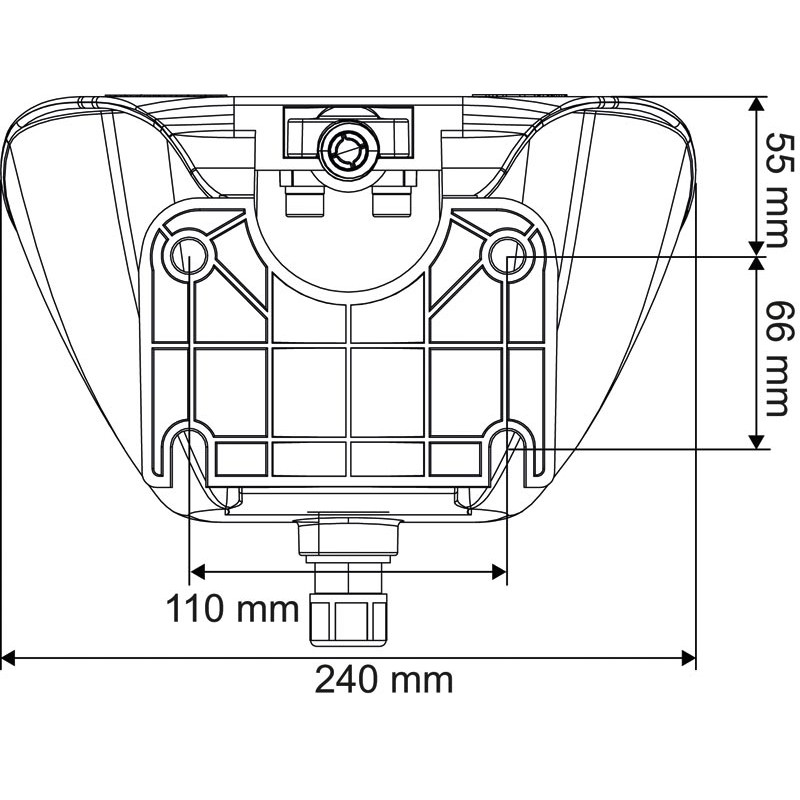

- Width
- 240 mm
- Height
- 190 mm
- Pressure
- network
- Drinker
- Polyflex
- System
- push-type
- Mechanism
- horizontal pilot valve
- Fastening
- wall
- Device
- heating as an option
- Flowrate
- 1 à 18 l/min
- Connection diameter
- arrière 1/2" (15/21 mm) - male
- Packaging
- boxed
- Pusher
- Vertical paddle
- Valve
- brass
- Sales unit
- Unit
- Sales packaging unit
- Boxed.
- Drain plug diameter
- 24 mm
