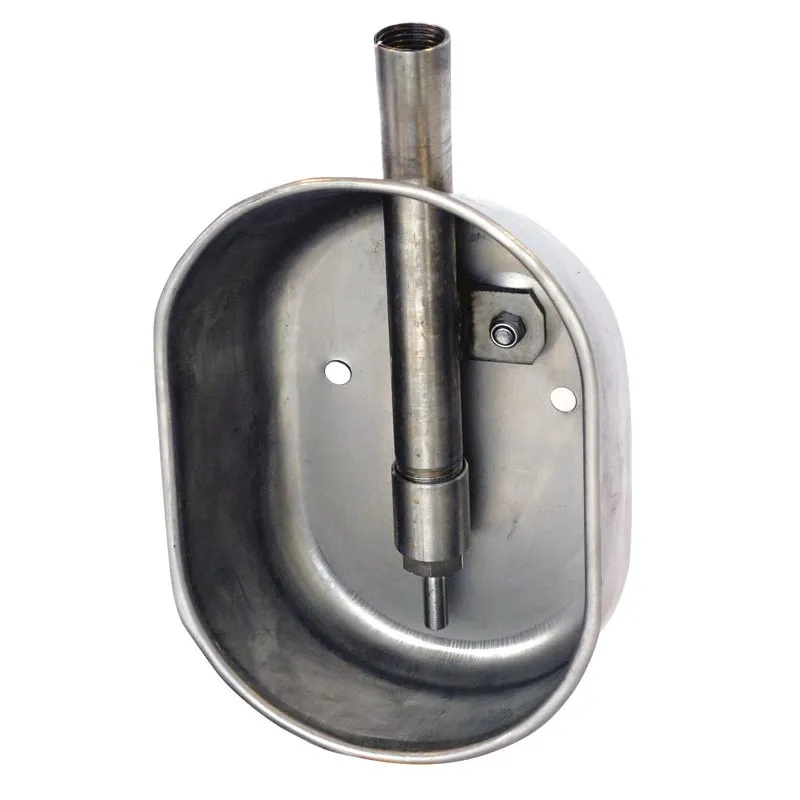

POLYPORC drinker "Piglet"
The POLYPORC drinker is made with a shallow bowl with a small water reserve promoting water consumption and daily average gains.
There are three POLYPORC drinker models:
- POLYPORC Piglet.
- POLYPORC Post-weaning.
- POLYPORC Finishers, /sows /boars.
They are factory fitted with an adjustable push mechanism made out of heavy-duty stainless steel.
Their 1/2 female mechanism on the top makes it easy to connect the drinker directly to 3/4 1/2 male threaded stainless steel tubes, avoiding additional costs associated with female threaded stainless steel tubing or other standard adapters.
The Polyporc drinker and nipples are made out of high-quality 304 stainless steel. The size and shapes are suited to swine morphology according to age. Connection by stainless steel tube provides a heavy duty supply system and protects it from damage by the animals.
The stainless steel tube can be connected to the existing water supply hose (generally 3/4) using our anchoring bracket and adaptor specially designed for this. The various corner and omega brackets can be used to attach the stainless steel tube to the wall. The flow rate can be adjusted by adding a 1/2 stainless steel male/female connection with a flow regulator.
There are three POLYPORC drinker models:
- POLYPORC Piglet.
- POLYPORC Post-weaning.
- POLYPORC Finishers, /sows /boars.
They are factory fitted with an adjustable push mechanism made out of heavy-duty stainless steel.
Their 1/2 female mechanism on the top makes it easy to connect the drinker directly to 3/4 1/2 male threaded stainless steel tubes, avoiding additional costs associated with female threaded stainless steel tubing or other standard adapters.
The Polyporc drinker and nipples are made out of high-quality 304 stainless steel. The size and shapes are suited to swine morphology according to age. Connection by stainless steel tube provides a heavy duty supply system and protects it from damage by the animals.
The stainless steel tube can be connected to the existing water supply hose (generally 3/4) using our anchoring bracket and adaptor specially designed for this. The various corner and omega brackets can be used to attach the stainless steel tube to the wall. The flow rate can be adjusted by adding a 1/2 stainless steel male/female connection with a flow regulator.
- Material
- stainless steel

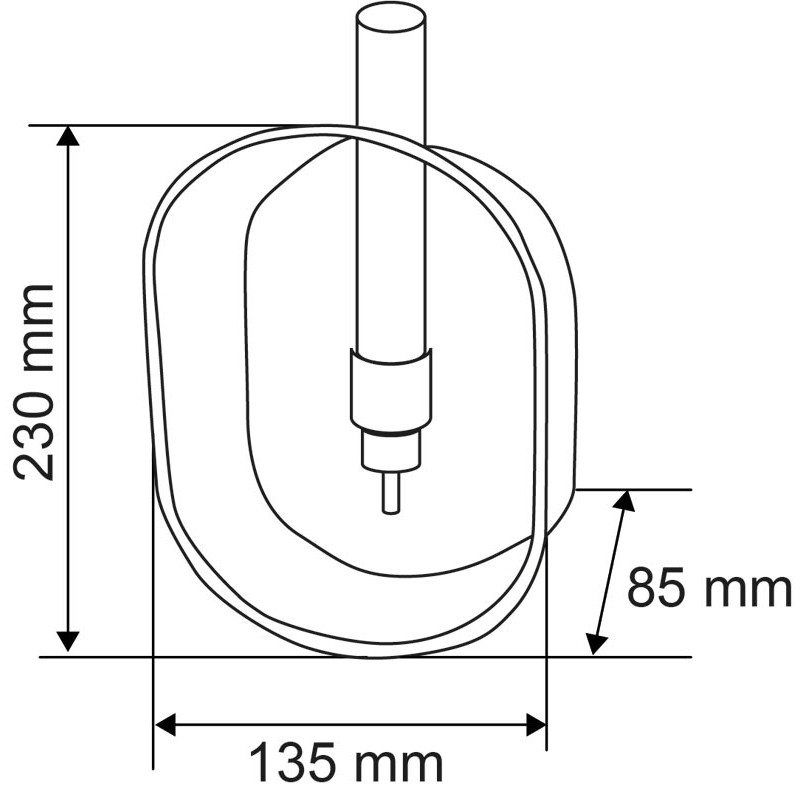

- Length
- 230 mm
- Width
- 135 mm
- Model
- piglet
- Pressure
- network
- Depth
- 85 mm
- Drinker
- Polyporc
- System
- push-type
- Mechanism
- nipple

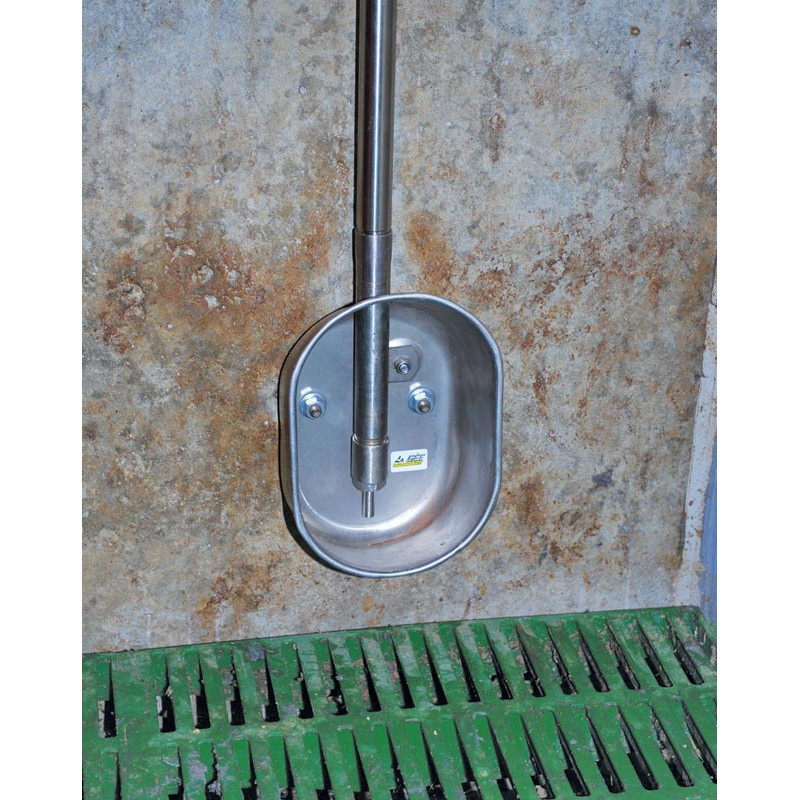

- Fastening
- wall
- Device
- non-heating
- Packaging
- boxed
- Sales unit
- Unit
- Sales packaging unit
- Box of 5 drinkers
Accessories and options
