Cover diam. 600 mm for cylindrical tanks

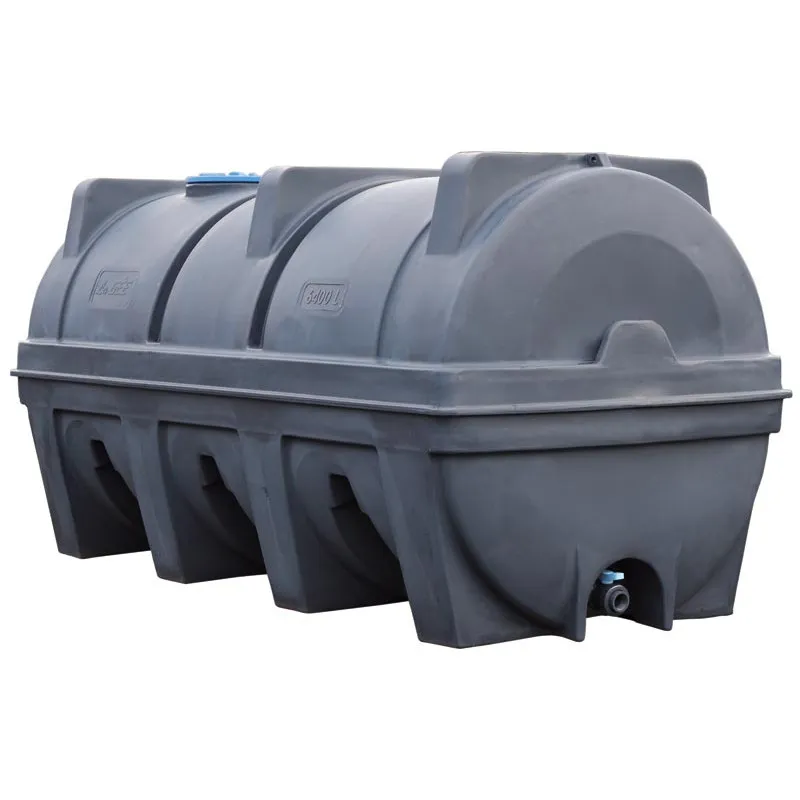

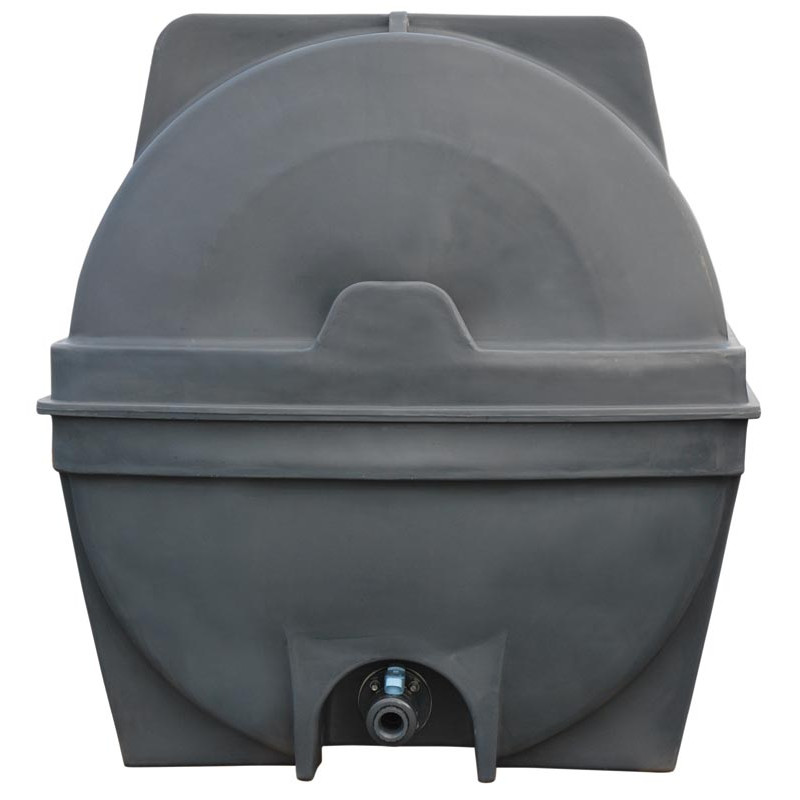

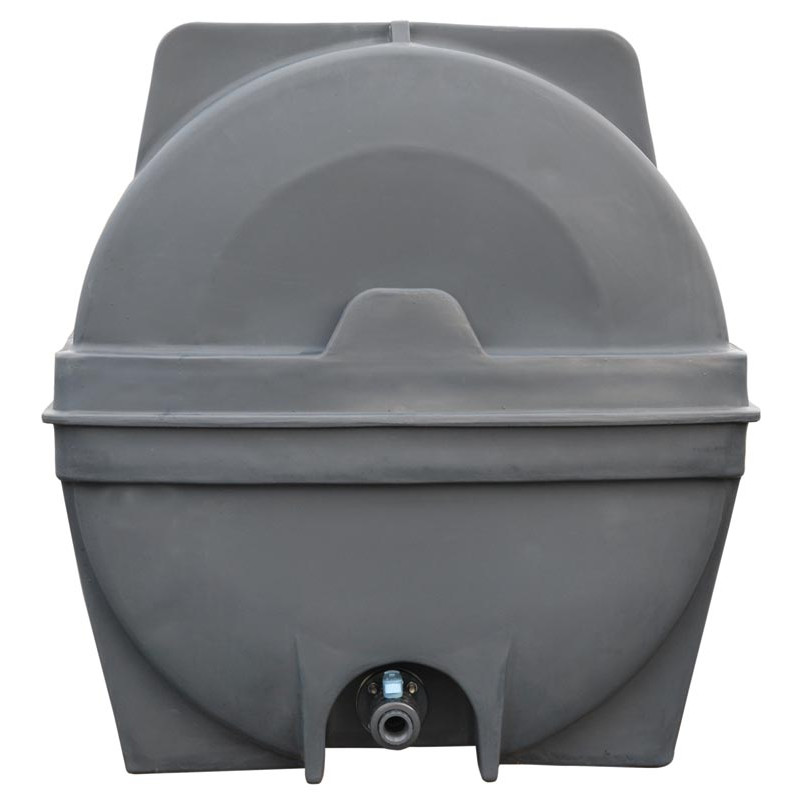

6,400 l cylindrical monoblock tank
Feature-Benefits :
Large capacity up to 8,500 litres.
Integrated baffles.
Stackable empty.
Integrated baffles.
Stackable empty.
Fitted with:
- lifting rings moulded in the body at each extremity (empty tank),
- a wide Ø 600 mm rotomoulded cover with a Ø 120 mm vent plug in its centre a manhole of Ø 500 mm ensures easy cleaning and maintenance,
- a moulded holder on the valve end stores a secondary hose for washing or filling small containers,
- the number of integrated moulded baffles varies according to capacity and avoids water movement during transport,
- the shape of upper tank allows stacking to optimise space in the storage yard,
- wide feet, the number of which varies according to capacity, ensure high-stability,
- a moulded holder on the valve end stores a secondary hose (practical for washing, or filling small containers),
- a recess in the top allows a float valve to be installed at any time for automatic filling,
- graduated marks,
- 2 retaining strap recesses moulded into the body,
- a complete 50/60 (2") female/male valve on threaded flange.
Density 1.2 cylindrical monoblock tanks are manufactured in polyethylene resin which is rot proof, UV stabilised, and frost resistant. They resist detergents, disinfectants, and can be high pressure cleaned.
Their shape limits the deforming of their walls by liquid pressure.
Options: a filling float valve, a 20/27 (3/4") female/female valve, and a 20/27 (3/4") through wall designed to be fastened next to the main valve in the protected recess.
- lifting rings moulded in the body at each extremity (empty tank),
- a wide Ø 600 mm rotomoulded cover with a Ø 120 mm vent plug in its centre a manhole of Ø 500 mm ensures easy cleaning and maintenance,
- a moulded holder on the valve end stores a secondary hose for washing or filling small containers,
- the number of integrated moulded baffles varies according to capacity and avoids water movement during transport,
- the shape of upper tank allows stacking to optimise space in the storage yard,
- wide feet, the number of which varies according to capacity, ensure high-stability,
- a moulded holder on the valve end stores a secondary hose (practical for washing, or filling small containers),
- a recess in the top allows a float valve to be installed at any time for automatic filling,
- graduated marks,
- 2 retaining strap recesses moulded into the body,
- a complete 50/60 (2") female/male valve on threaded flange.
Density 1.2 cylindrical monoblock tanks are manufactured in polyethylene resin which is rot proof, UV stabilised, and frost resistant. They resist detergents, disinfectants, and can be high pressure cleaned.
Their shape limits the deforming of their walls by liquid pressure.
Options: a filling float valve, a 20/27 (3/4") female/female valve, and a 20/27 (3/4") through wall designed to be fastened next to the main valve in the protected recess.
- Material
- polyethylene resin
- Length
- 3.71 m
- Width
- 1.62 m
- Height
- 1.73 m
- Capacity
- 6,400 l
- Type
- monoblock
- Shape
- cylindrical
- Valve diameter
- 50/60 flange mm
- Cover diameter
- 500 mm
- Density
- 1.2
- Manhole diameter
- 500 mm
- Number of feet
- 4
- Packaging
- No packaging
- Sales unit
- Unit
