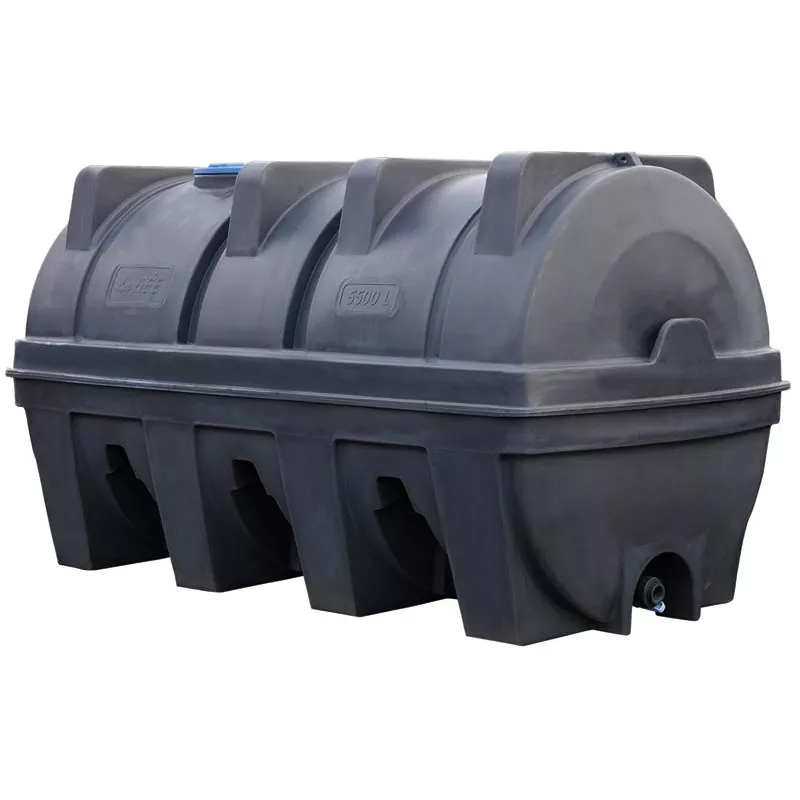

5500 l cylindrical monoblock tank

Feature-Benefits :

Robust.
Integrated baffles.
Stackable empty.

430_PRODUIT_COUR-P1.svg
> More details

Fitted with:
- Has lifting rings moulded into body at each end (when moving the tank empty).
- a wide Ø 600 mm rotomoulded cover with a Ø 120 mm vent plug in its centre, a Ø 500 mm manhole ensures easy access, easy cleaning and maintenance.
- baffles integrated in moulding, vary according to capacity, avoids liquid movement during transport. Number of baffles depends on the water tank’s size.
- Shape on upper part allows stacked storage in order to gain place in storage yard. Stackable empty.
- wide feet, the number of which varies according to capacity, ensure high-stability,
- a moulded holder on the valve end stores a secondary hose (practical for washing, or filling small containers),
- Graduated markings and recess in the top allows a float valve to be installed at any time for automatic filling.
- 2 retaining strap recesses moulded into the body,
- a complete 50/60 (2") female/male valve on threaded flange.



Density 1.2 cylindrical monoblock tanks are manufactured in polyethylene resin which is rot proof, UV stabilised, and frost resistant. They resist detergents, disinfectants, and can be high pressure cleaned. Their shape limits the deforming of their walls by liquid pressure.
They must rest on a flat surface evenly bearing the weight of the base. Tanks fitted with Ø  2‘‘ valves 50/60 with flange.



Options: a filling float valve, a 20/27 (3/4") female/ female valve Ø 3/4" 20/27 mm or a Ø 3/4" 20/27 mm through wall designed to be fastened next to the main valve in the protected recess.
Material
polyethylene
Length
3.16 m
Width
1.62 m
Height
1.73 m
Capacity
5500 l
Type
monoblock
Shape
cylindrical
Cover diameter
600 mm
Density
1.2
Manhole diameter
500 mm
Number of feet
4
Packaging
No packaging
Valve
Ø 2" (50/60 mm) - female - with flange
Sales unit
Unit
