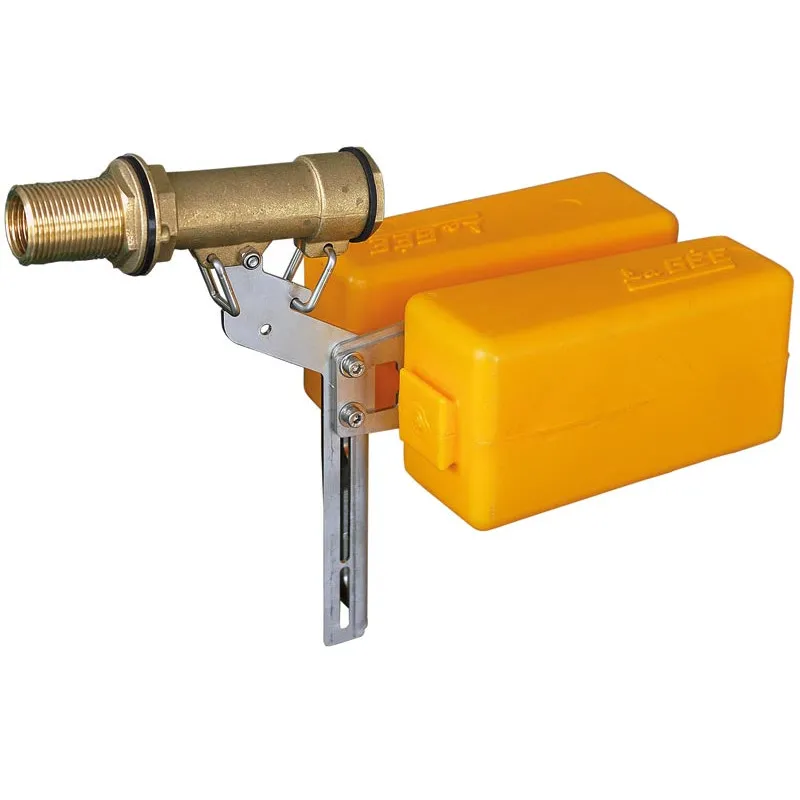

High flow float valve tap

Can be used in low pressure configuration.

The float valve tap, adjustable in height and length, adapts to the force needed to shut off the flow depending on the water pressure and desired water height.
Network pressure and low pressure mechanisms fitted with an indexer, anti-splash, and water stop to halt the flow in the system at any time.
- 15 liters/minute flow rate with green polypropylene float valve.
- 32 liters/min flow rate, white translucent polypropylene float valve.
- 32 liters/min flow rate, white polypropylene float valve with height/flow adjuster screw.
Ideal for height regulation in small containers.
- Low pressure flow rate, black polypropylene float valve.

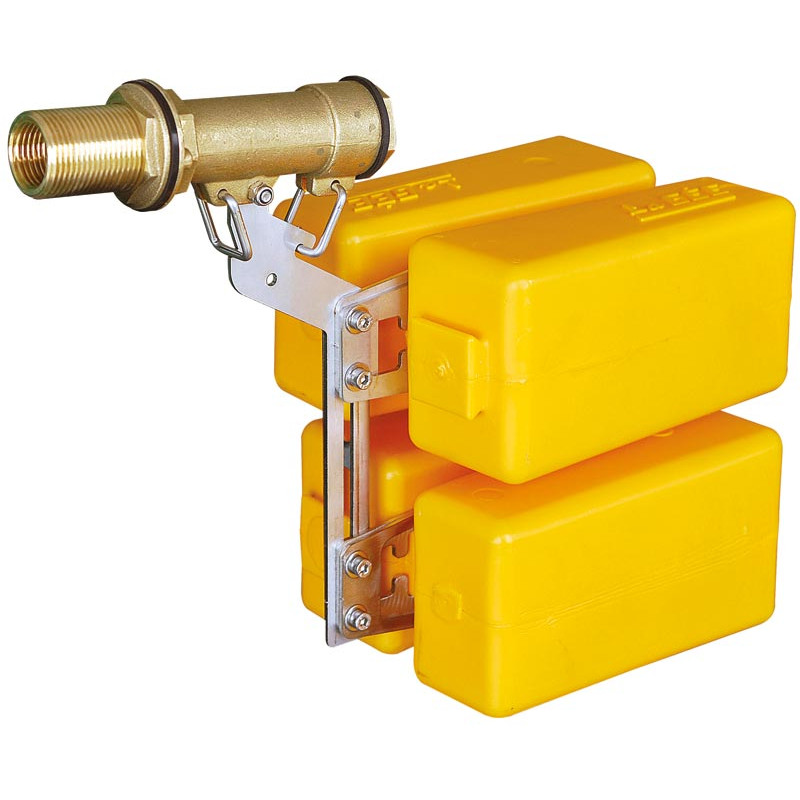

- High 42 liters/minute flow, brass body float valve with two factory fitted float valves.

Brass body operates on pressure
ranges of:
- 4 bars for 42 l/min (with nominal flow rate of 75 l/
min) with its two factory fitted float valves
- 5 bars for 53 l/min (with nominal flow rate of 100 l/min) with its two factory
fitted float valves and an optional additional float valve. Height adjustment by
sliding the float valve along its large cross section stainless steel bar.
Is fitted with:
- a locking mechanism to shut off the water supply.
- 20/27 mm (3/4") external male thread
- 15/21 mm (1/2") internal female thread
- locknut with seal.

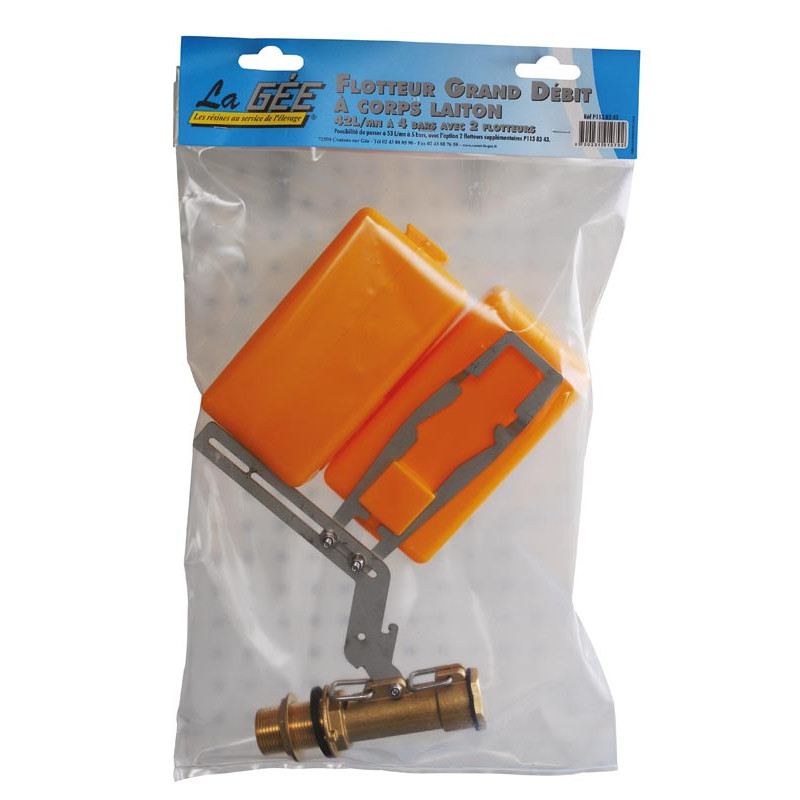

Delivered as standard with 2 yellow float valves.

Compatible with Polytherme large capacity, Polyclean, Polyherd and Polyflow.
