High flow float valve tap

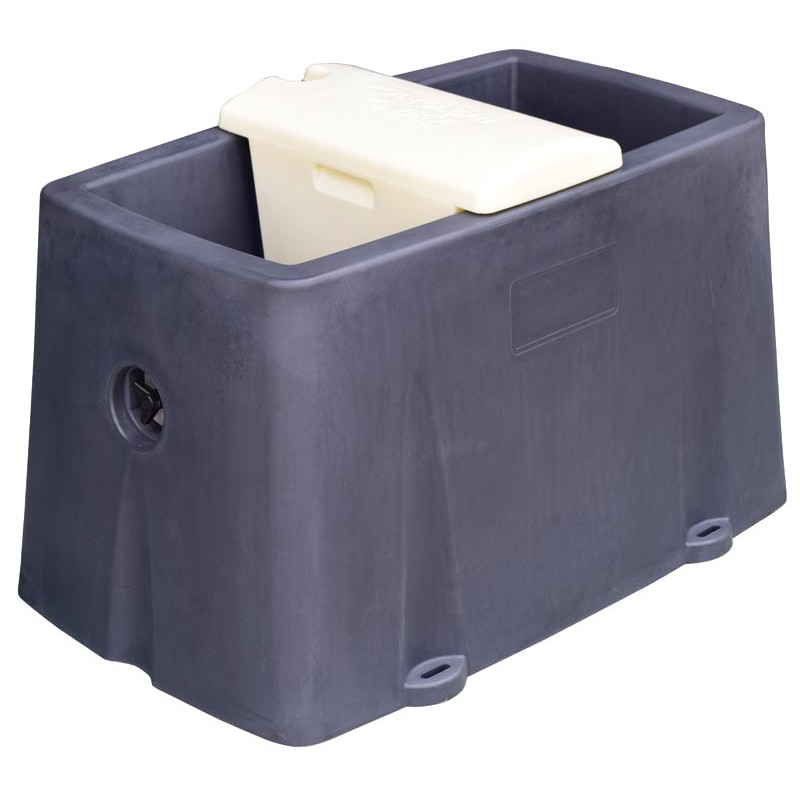

Constant level polyethylene resin drinker.

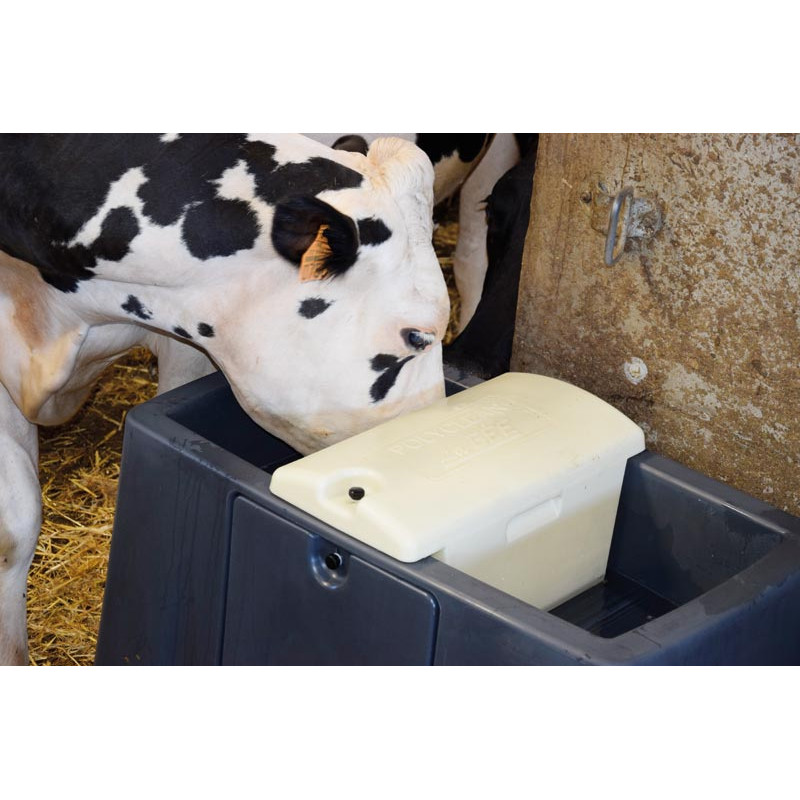

Monobloc trough with slope for easy draining. Float valve is protected by a rotomolded double wall housing right in the middle to create 2 different drinking trough spaces.
Fitted with :

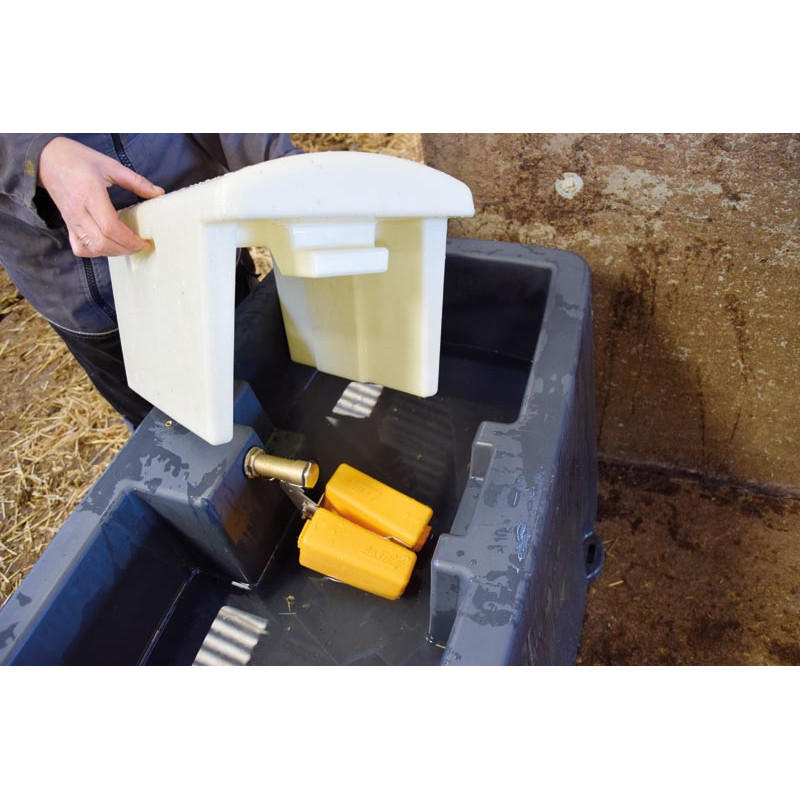

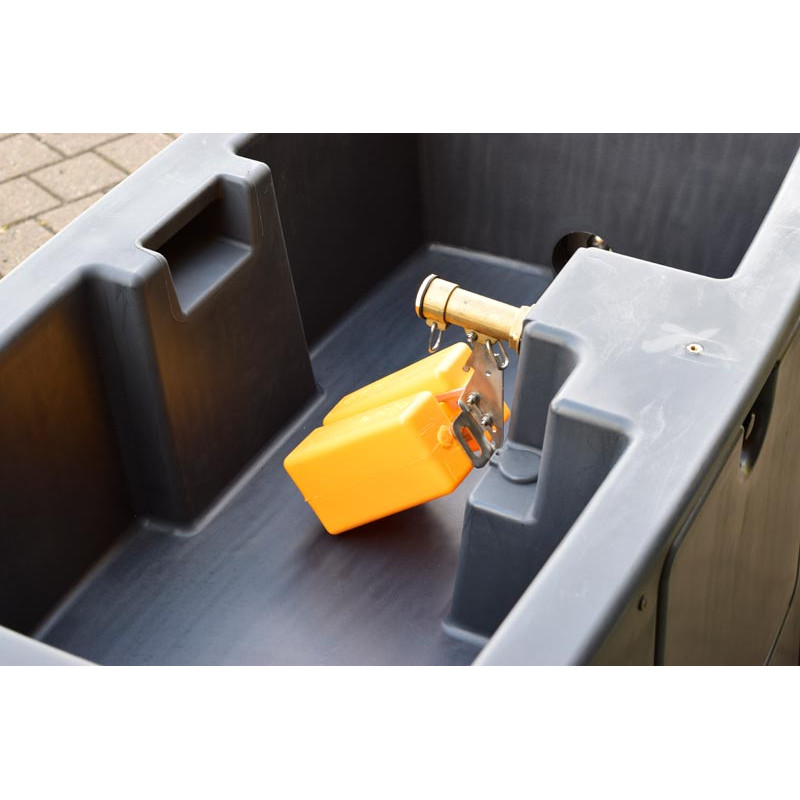

- 1 float valve 42 l/min, 3/4" connection located under the drinking trough

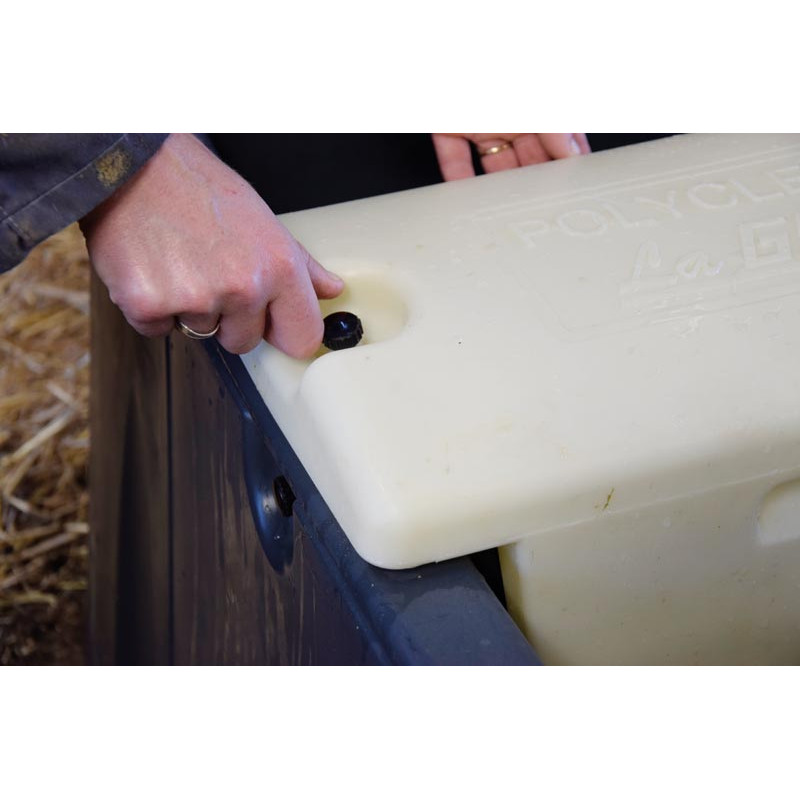

- 1 float valve’s housing, removable without any tools
- 1 stainless steel water supply braided hose.

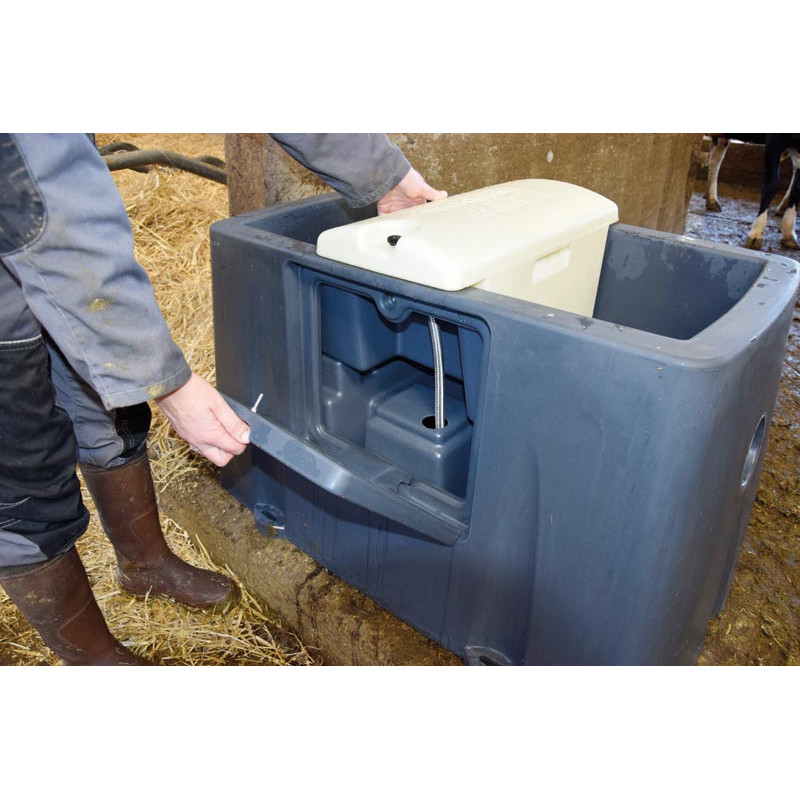

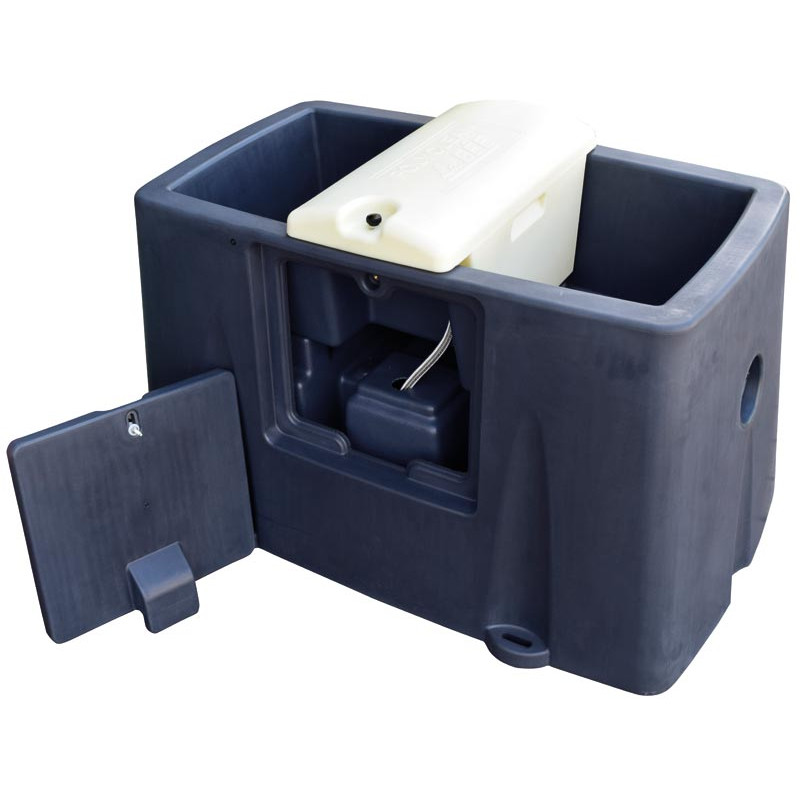

- 1 technical box at the back of the drinker, protected by a large hatch that can be removed without any tools.

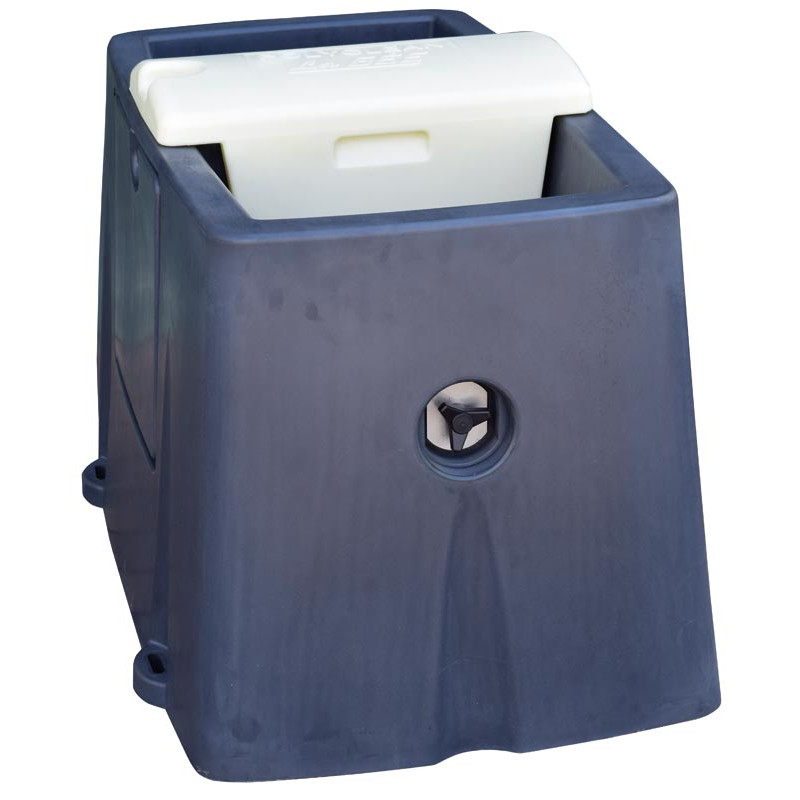

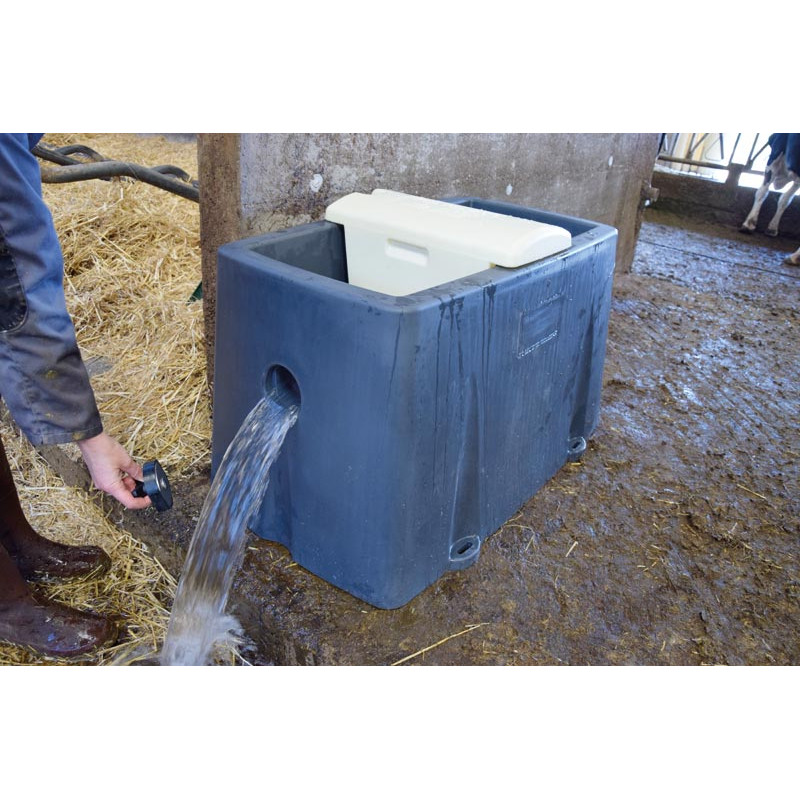

- 1 high flow drain plug (Ø 90 mm) on the side for quick emptying.

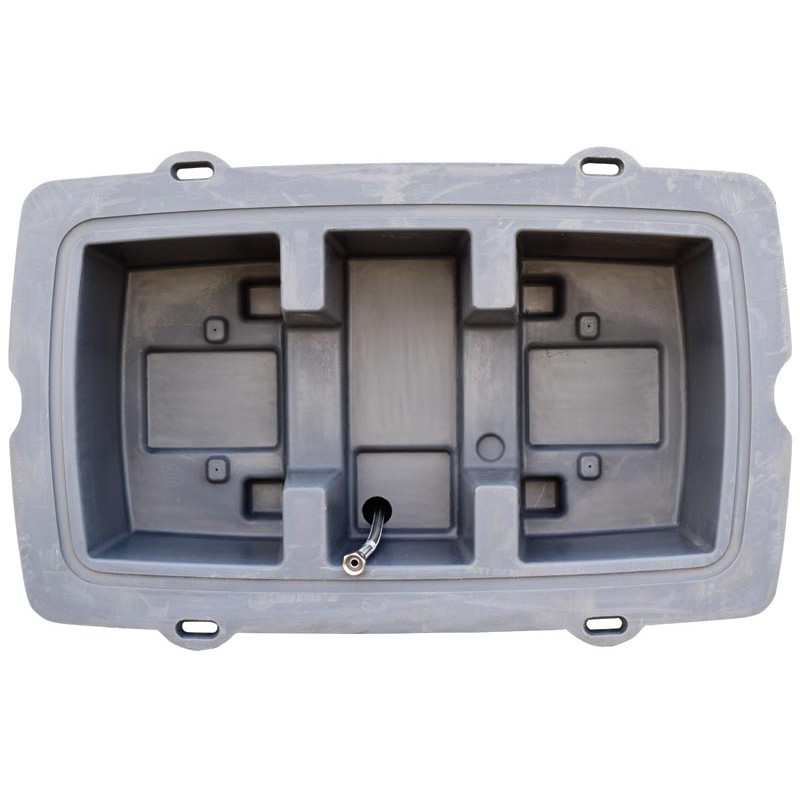

- 4 ground anchoring points in the resin base.
- Material
- rotomolded polyethylene resin

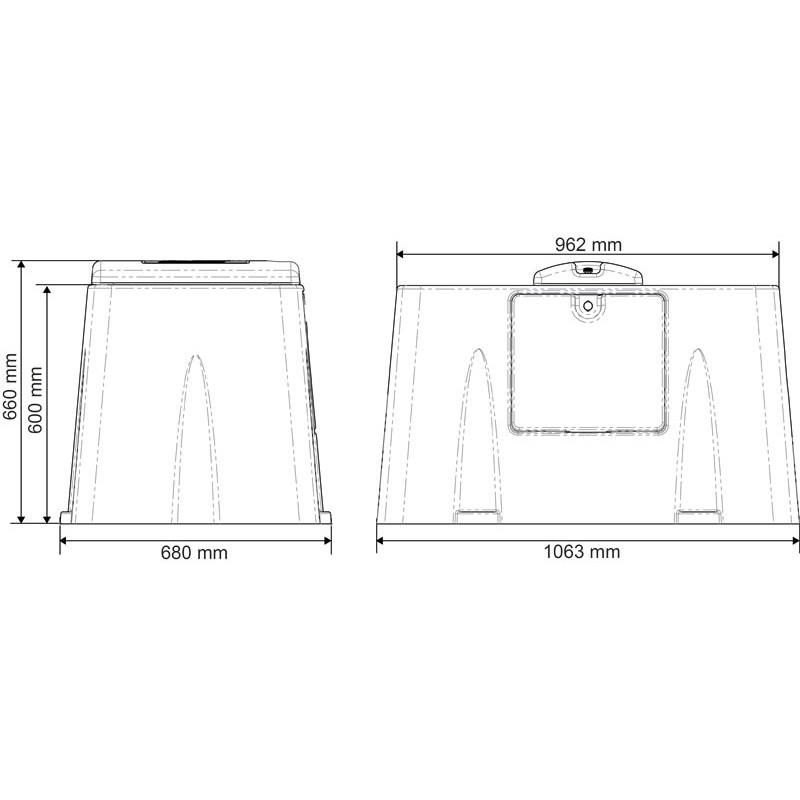

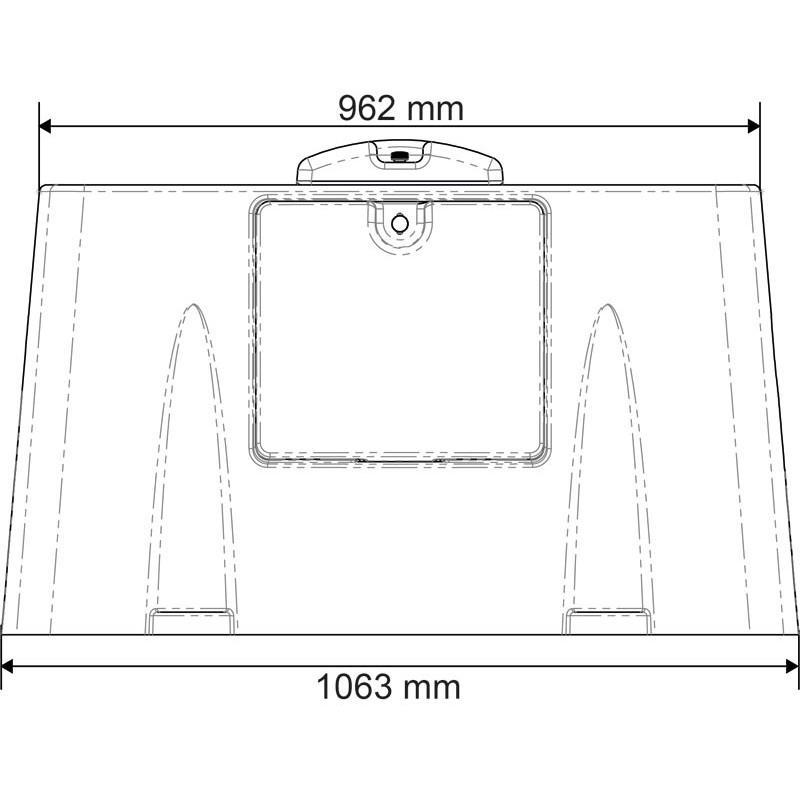

- Length
- 1063 mm

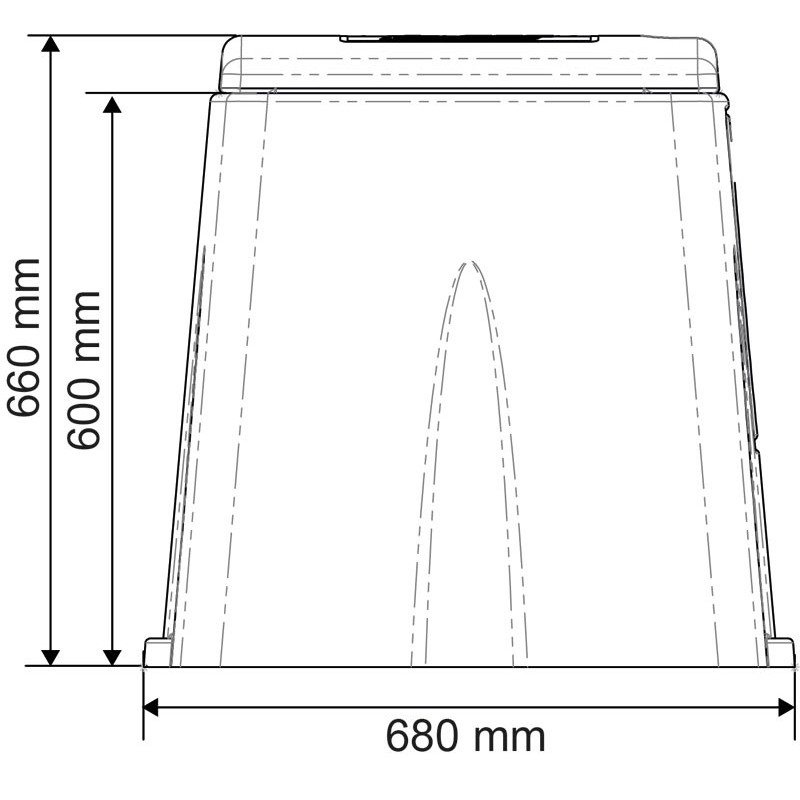

- Width
- 680 mm
- Height
- 660 mm
- Capacity
- 50 l
- Pressure
- network
- Drinker
- Non-heating POLYMAX
- System
- constant level
- Mechanism
- float valve tap
- Fastening
- ground
- Device
- non-heating
- Connection diameter
- 3/4" (20/27 mm) - female
- Packaging
- Paddle
- Flow rate
- 42 l/min
- Sales unit
- Unit
- Float valve
- large flow rate in brass (P1138341)
- Drain plug
- Ø 90 mm
