High flow float valve tap

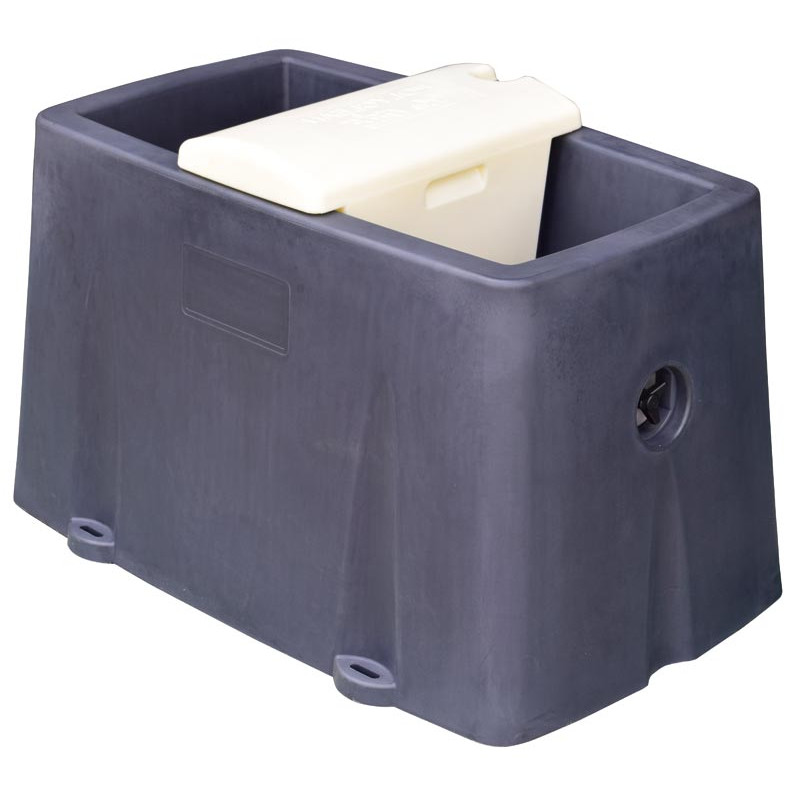

Heating POLYCLEAN NORDIC drinker
Feature-Benefits :
Suited to various herd sizes.
Trough and supply protected from intense cold.
Constant level polyethylene resin drinker.
Monobloc trough with slope for easy draining. Float valve is protected by a rotomolded double wall housing right in the middle to create 2 different drinking trough spaces.
Fitted with :

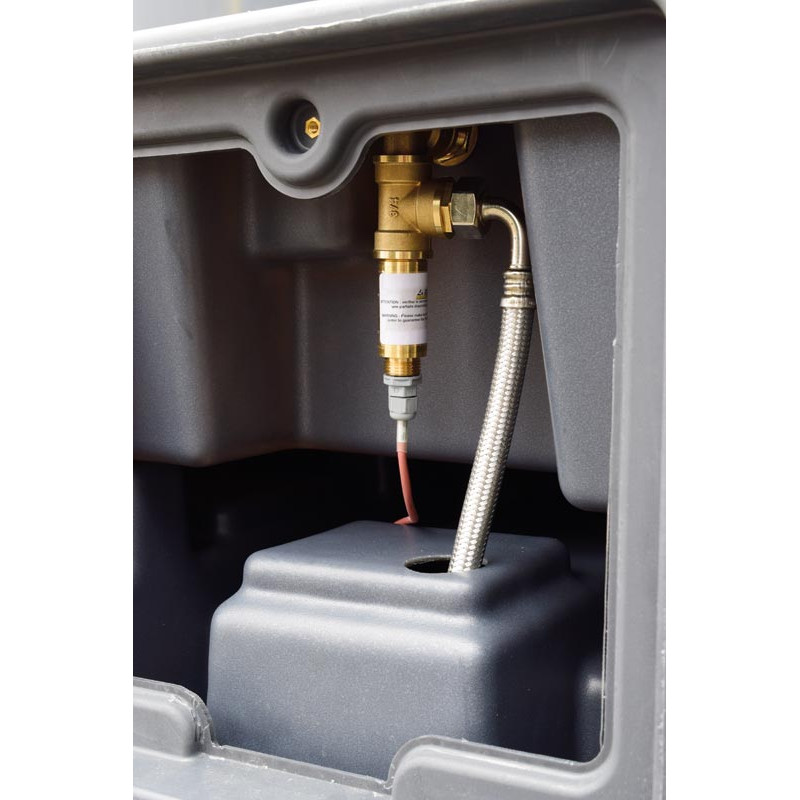

- 1 float valve 42 l/min, 3/4" connection located under the drinking trough
- 1 float valve’s housing, removable without any tools
- 1 stainless steel water supply braided hose.
- 1 technical box at the back of the drinker, protected by a large hatch that can be removed without any tools.
- 1 high flow drain plug (Ø 90 mm) on the side for quick emptying.

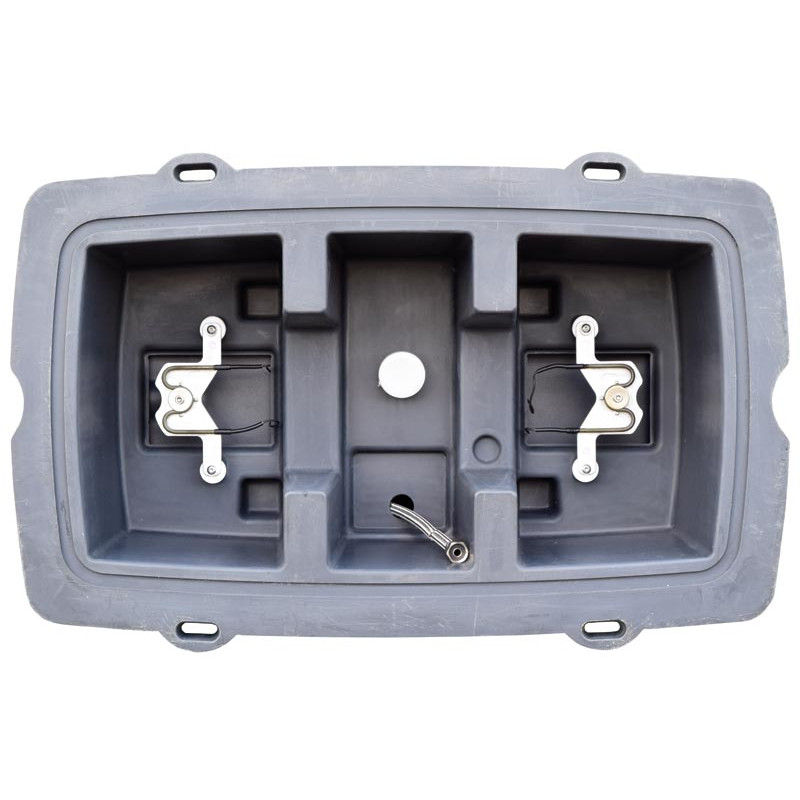

- 4 ground anchoring points in the resin base.
Fitted with:
- 2x180 W – 24 V heating units, ideally located in the base for proper heating of the trays and the water inlet during cold periods.
- 1 heating Polysonde 12 W – 24 V connected on the float valve mechanism for full protection of the water supply.
-1 Thermostat directly pre-mounted in the technical box.
Caution : it is recommended to order the thermostat and the right transformer suitable for your facility and the number of heated drinkers.
- Material
- rotomolded polyethylene resin

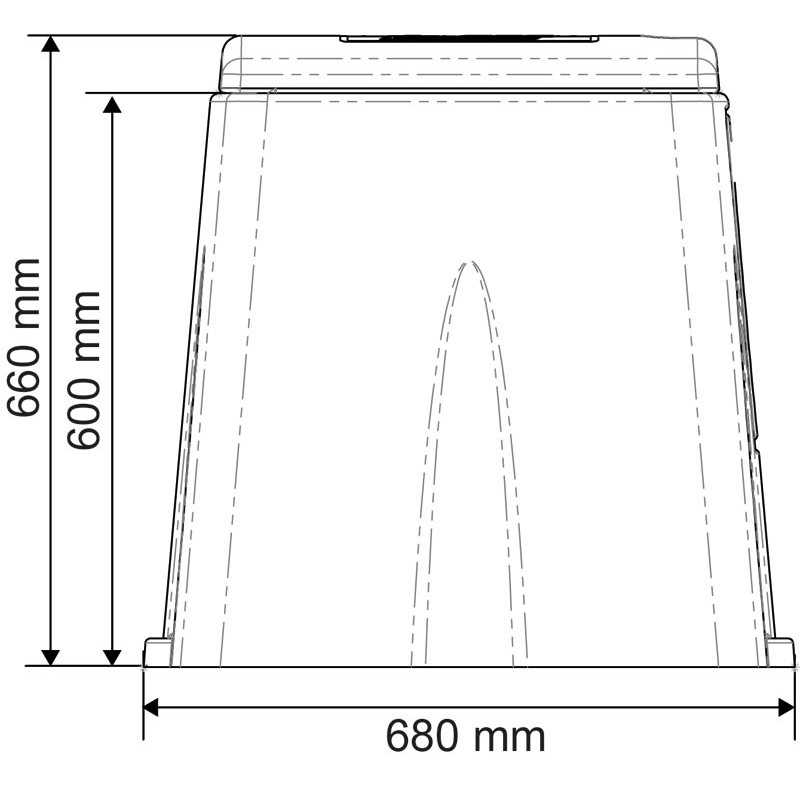

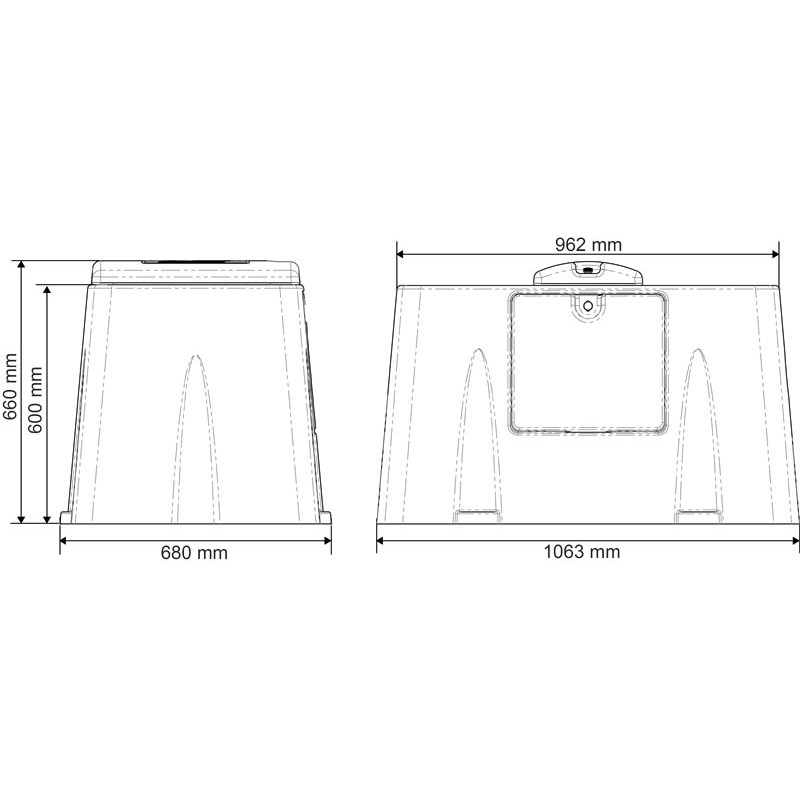

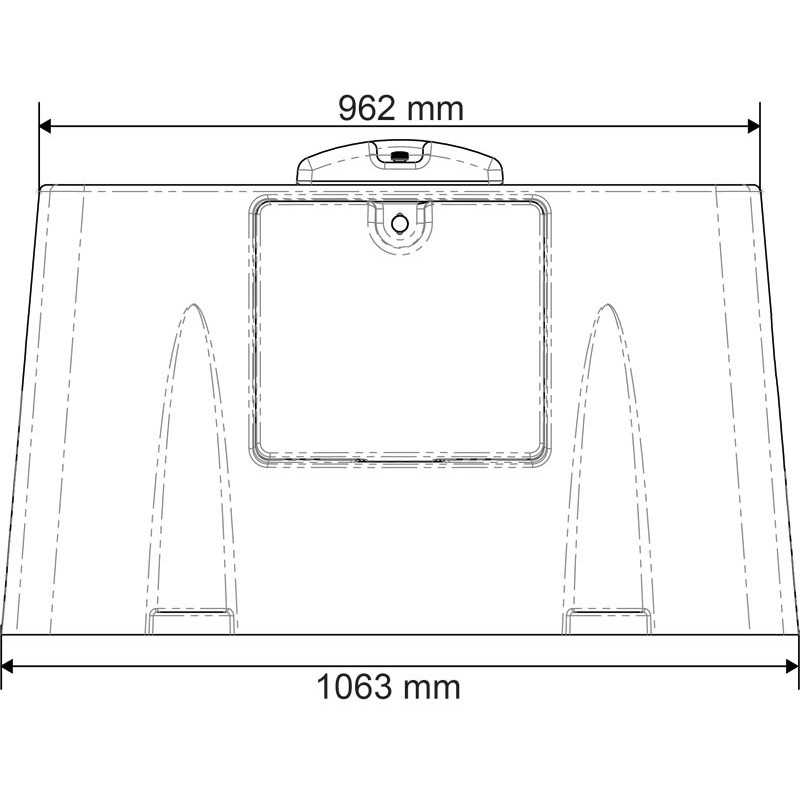

- Length
- 1063 mm
- Width
- 680 mm
- Height
- 660 mm
- Capacity
- 50 l
- Model
- NORDIC - 180 W
- Pressure
- network
- Drinker
- heating Polyclean Nordique
- System
- constant level
- Mechanism
- float valve tap
- Fastening
- ground
- Device
- heating
- Connection diameter
- 3/4" (20/27 mm) -female
- Packaging
- Paddle
- Flow rate
- 42 l/min
- Sales unit
- Unit
- Float valve
- large flow rate in brass (P1138341)
- Drain plug
- Ø 90 mm
