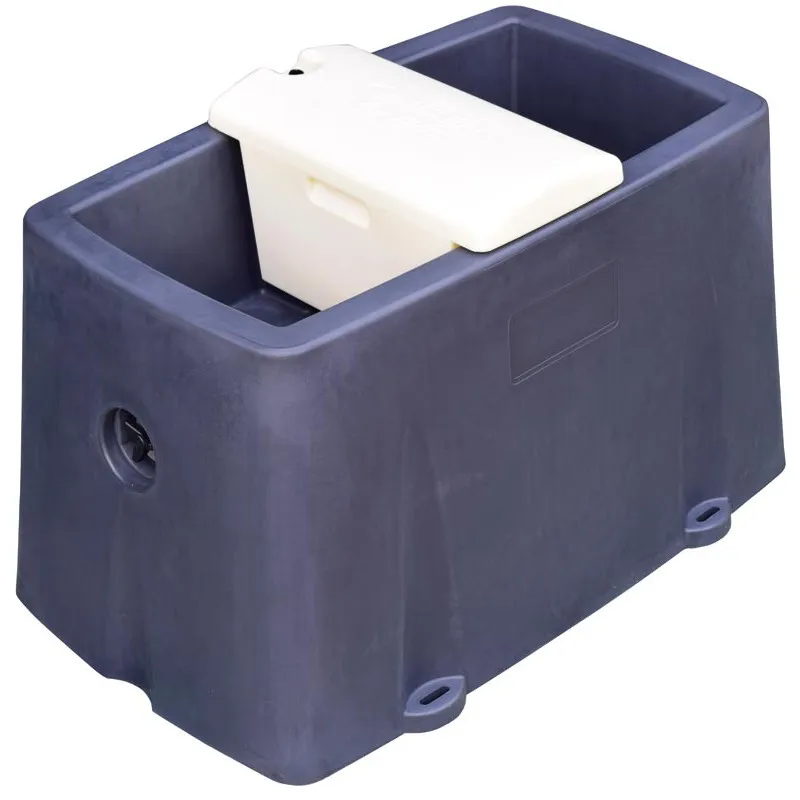

High flow float valve tap
Constant level polyethylene resin drinker.
Fitted with:
- 1 3/4" connection 42 l/min float valve protected by a PE cover which can be removed without the need for tools thanks to a tenon and mortice system.
- 1 stainless steel water supply braided hose.

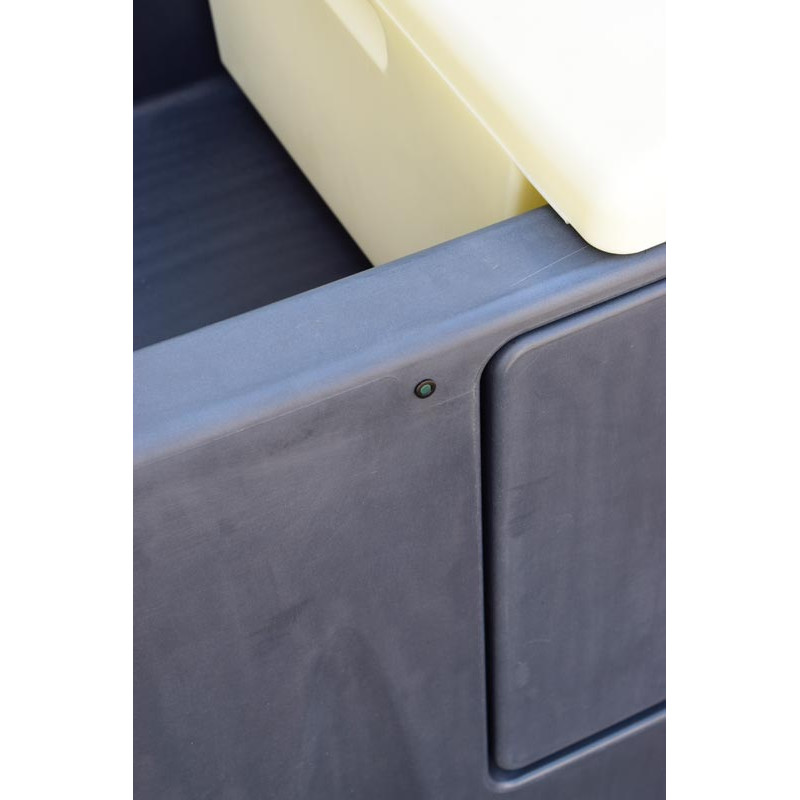

- 1 technical box at the back of the drinker, protected by a large hatch that can be removed without any tool.
- 1 double trough with a slight inclination.
- 1 high flow drain plug (Ø 90 mm) on the side for quick emptying.
- 4 ground anchoring points in the resin base.
Fitted with:

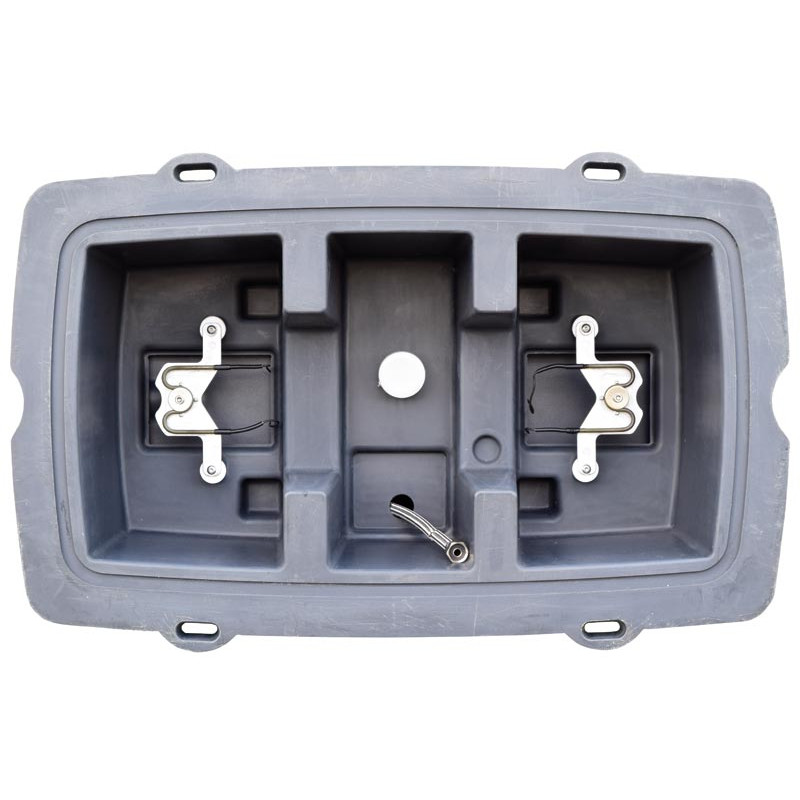

- 2 80 W – 24 V polyresistances
Ideally located in the base for proper heating of the troughs and the water inlet during cold periods.
- Material
- rotomolded polyethylene resin

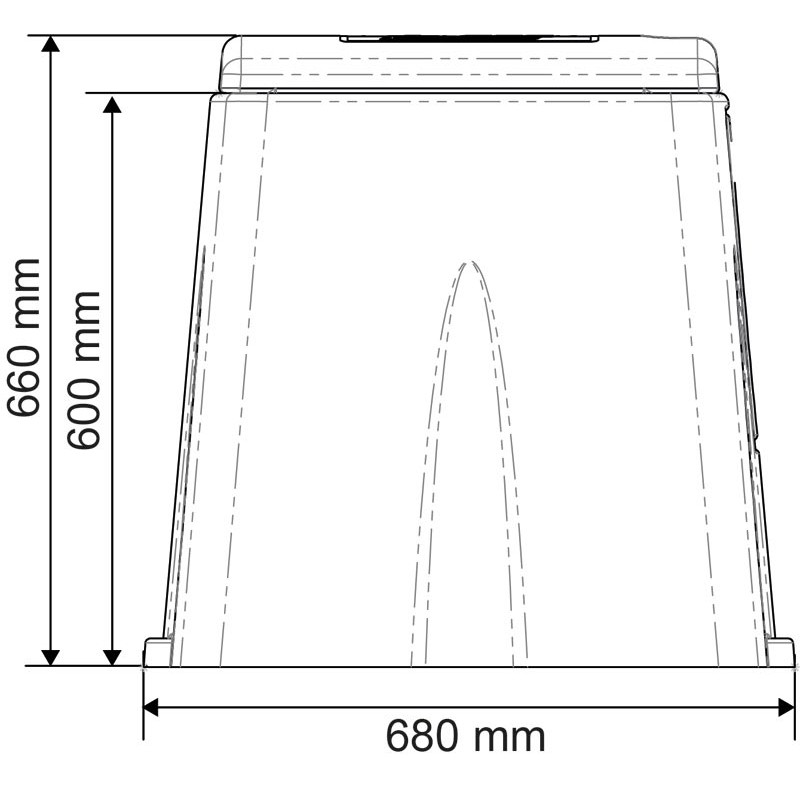

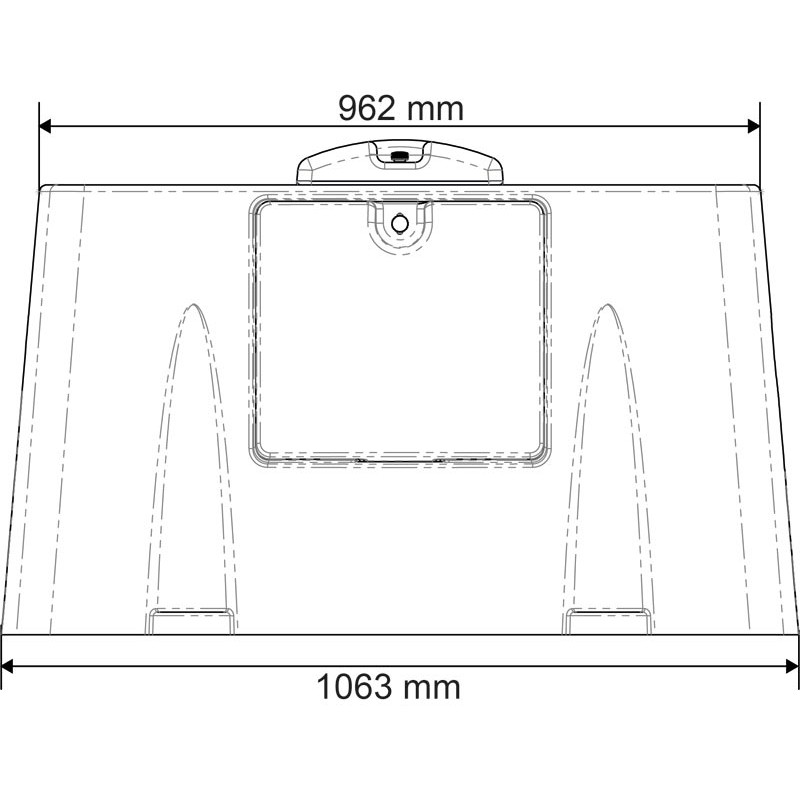

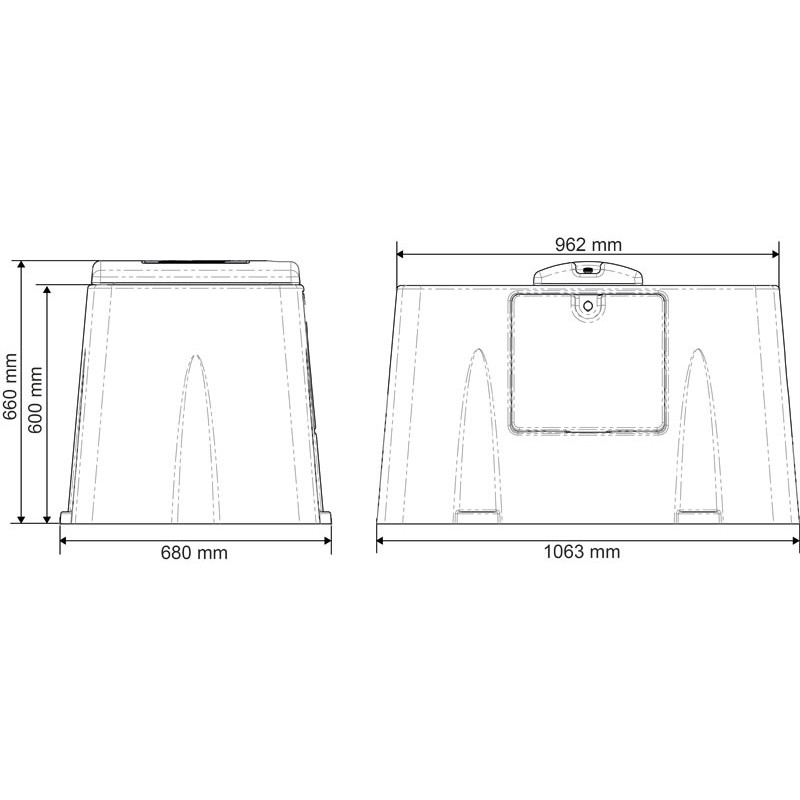

- Length
- 1063 mm
- Width
- 680 mm
- Height
- 660 mm
- Capacity
- 50 l
- Model
- 80 W
- Pressure
- network
- Drinker
- Heating Polyclean
- System
- constant level
- Mechanism
- float valve tap
- Fastening
- ground
- Device
- heating
- Connection diameter
- 3/4" (20/27 mm) - female
- Packaging
- Paddle
- Flow rate
- 42 l/min
- Sales unit
- Unit
- Float valve
- grand débit en laiton (P1138341)
Accessories and options
