Heating POLYMAX drinker

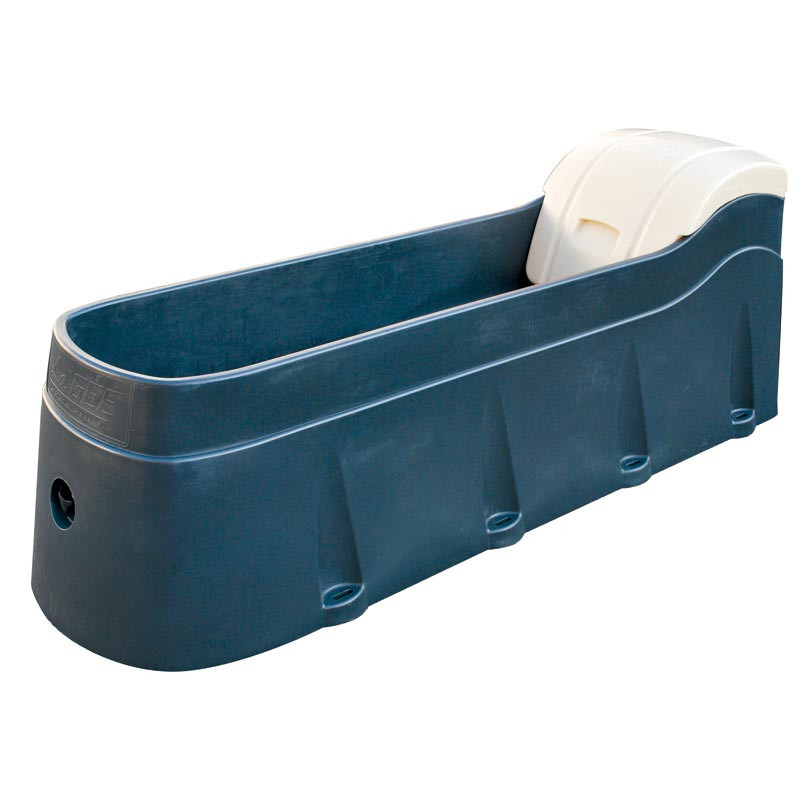

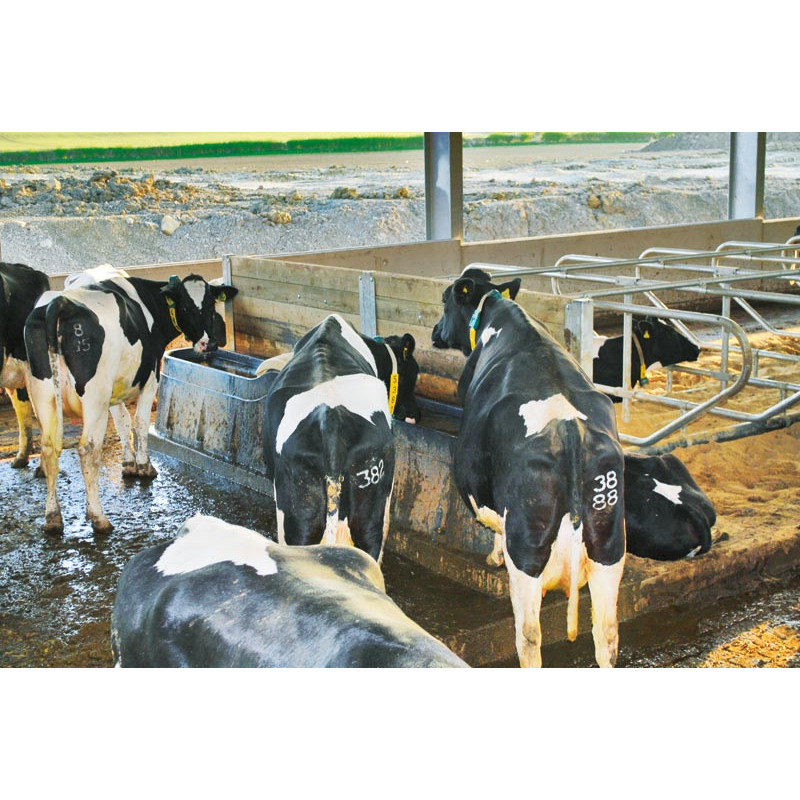

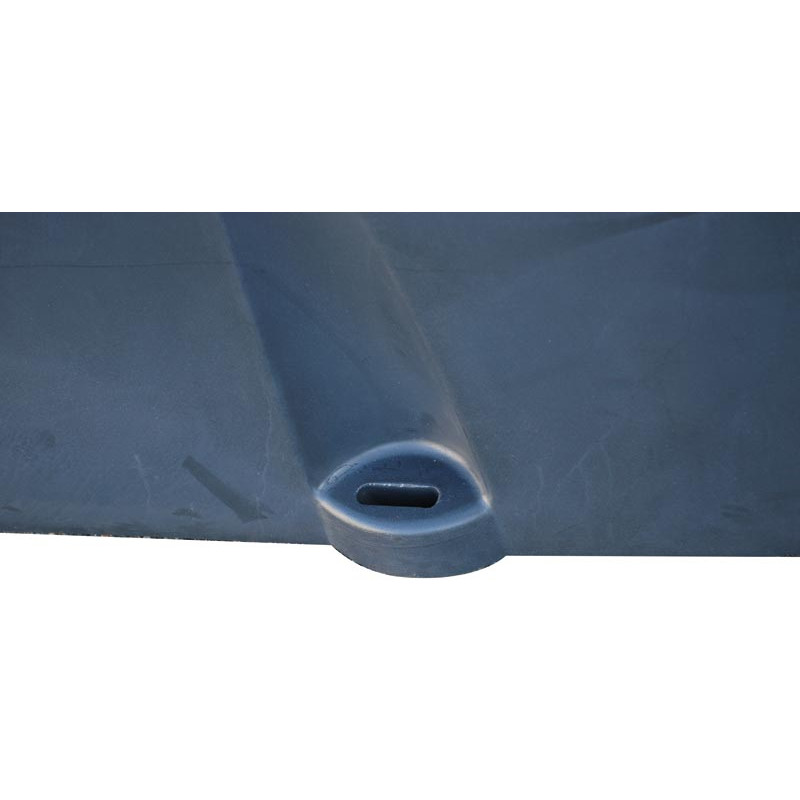

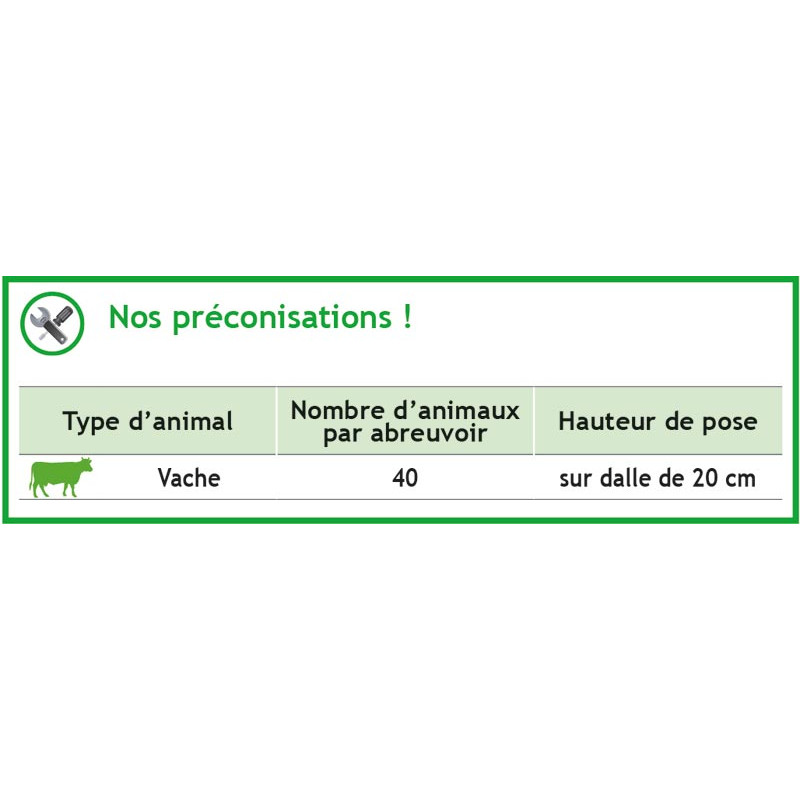

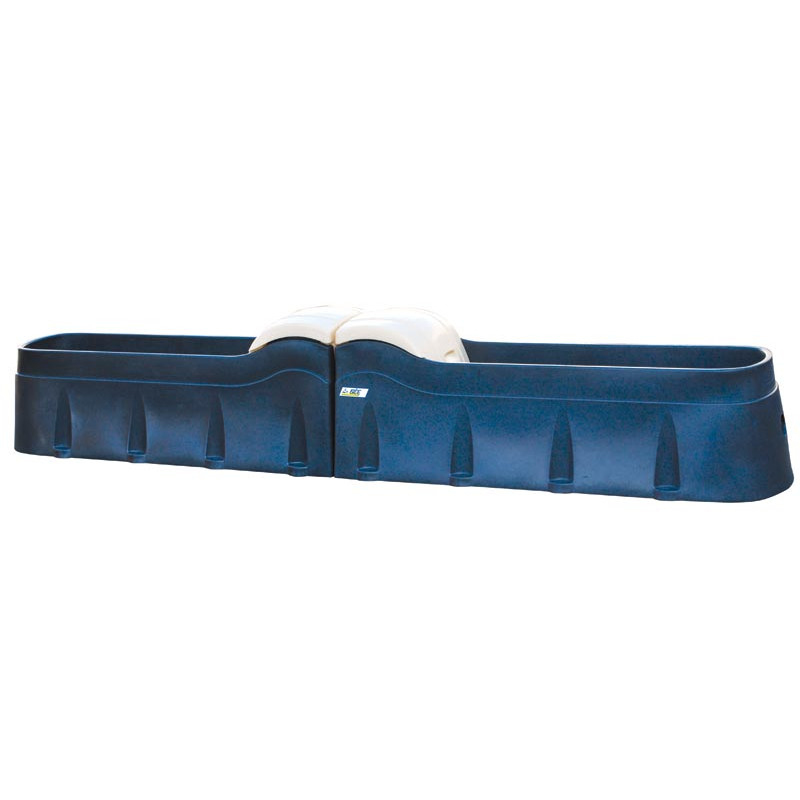

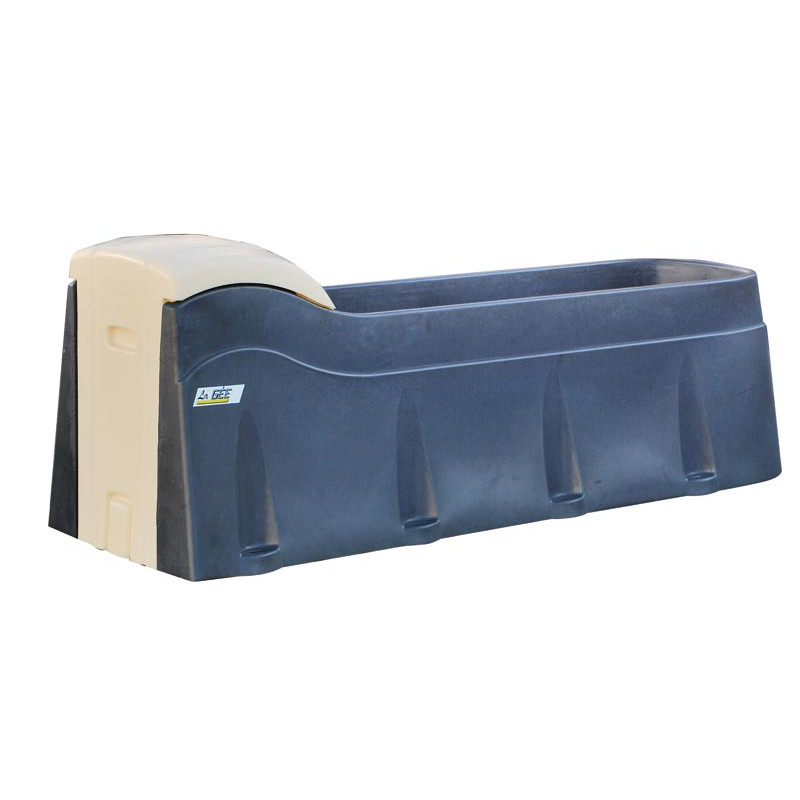

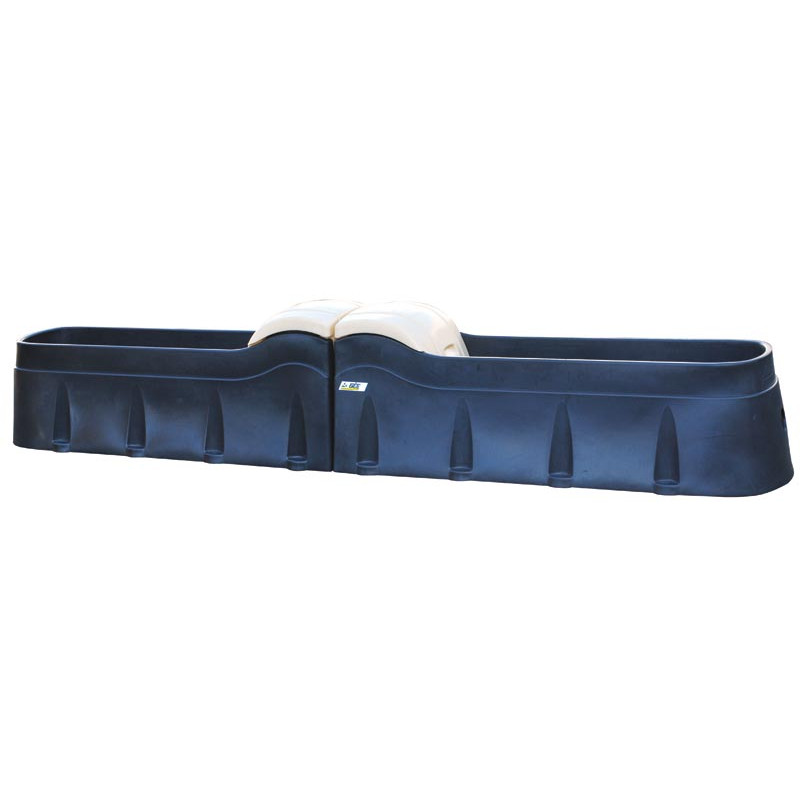

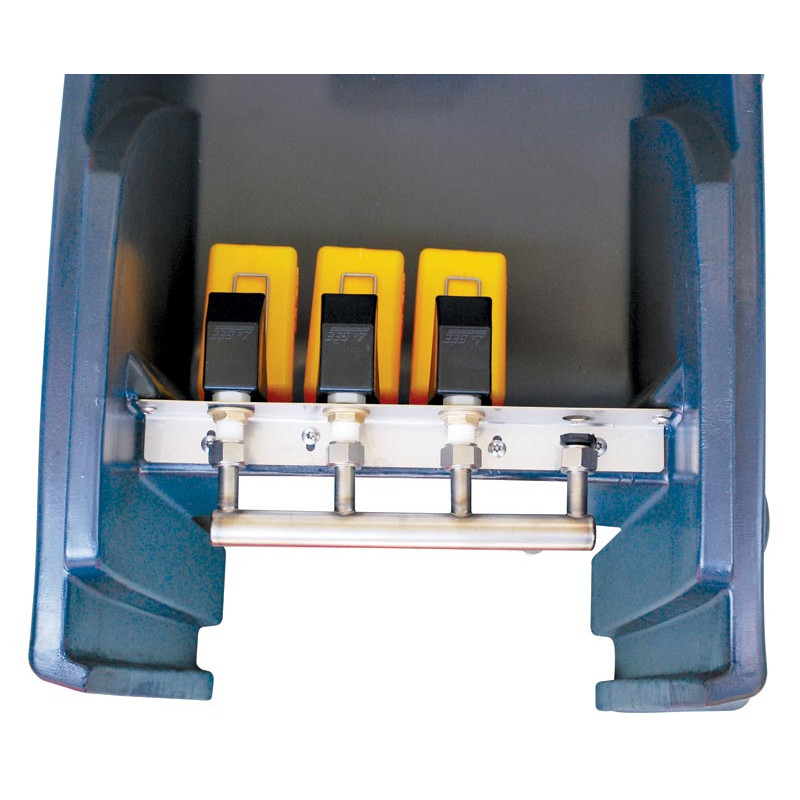

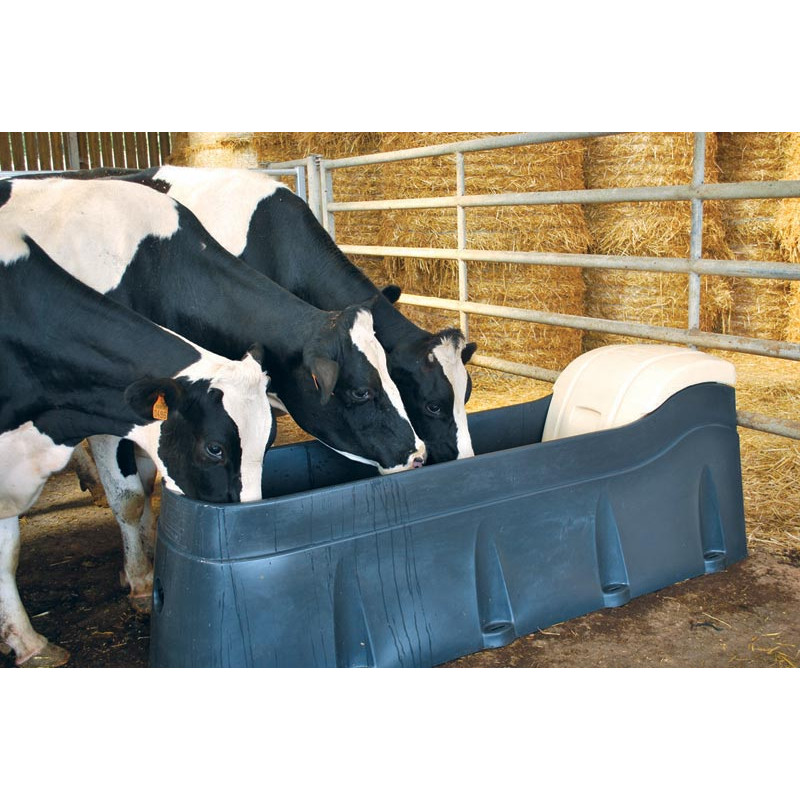

Thanks to its shallow design and size, it is ideally used in stalls, between stall corridors or in watering areas. It is estimated that a dairy cow can drink up to 40% of her daily water intake after milking. As such, it is essential that the troughs are set in this area and have an adequate flow rate, such as the Polymax. This 200 l capacity rotomolded polyethylene resin drinker is very robust and rotproof. It is fitted with a 3/4" connection with three La Gée 32 l / mn float valves, a fourth can be added as an option for a greater supply of fresh water. It can also be connected to an optional loop heating power supply system or to our Caloporteur heat-carrying system cabinet.  The water inlet is protected in a technical space created by the rotomolded housing which can be removed without tools. The drinker is fastened to the ground, ideally on a raised 20 cm slab, by eight wide reinforced holes integrated into the lower part of the double wall tank and can be put back-to-back and linked to a single water inlet.  It has a wide drain for quick cleaning.
Drain plug large diameter 90 mm.

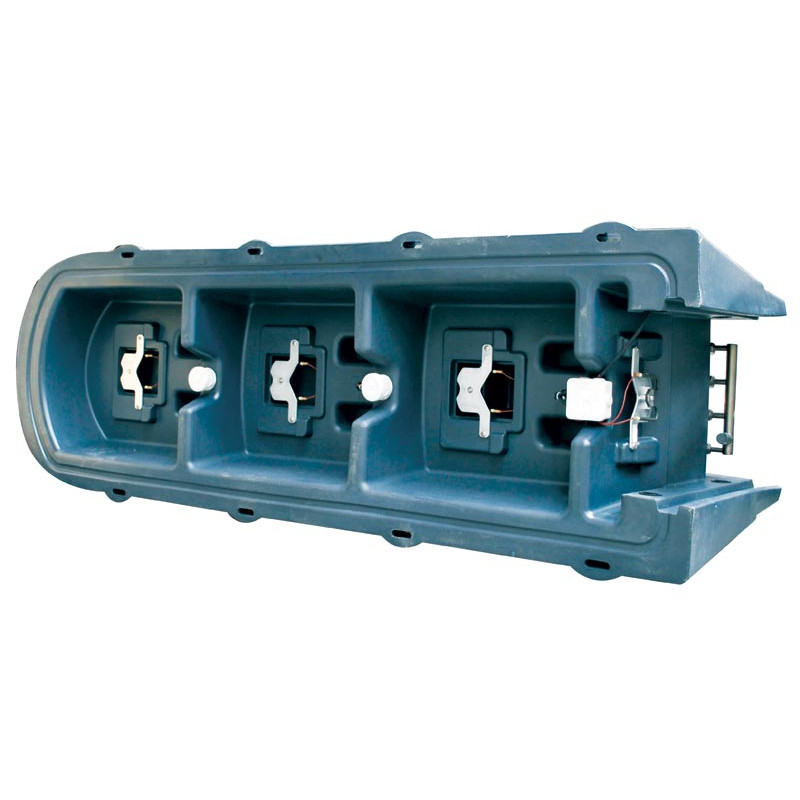

Pre-fitted with four 24 V – 80 W Polyresistances, three are under the drinking trough and one in the technical space to protect the water inlet.
Caution : it is recommended to order the thermostat and the right transformer suited to your facility and the number of heated drinkers.
