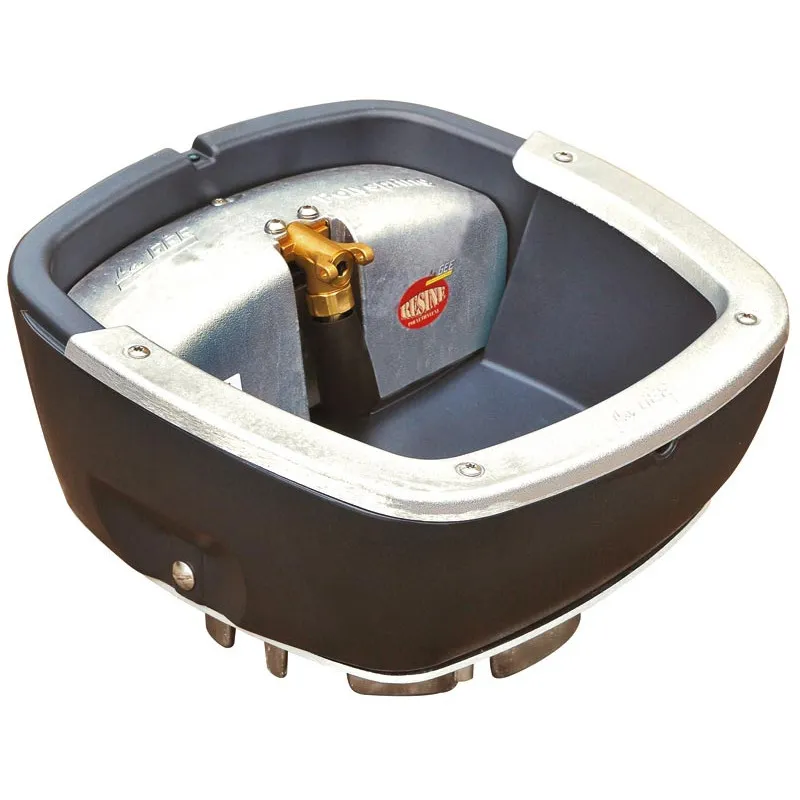

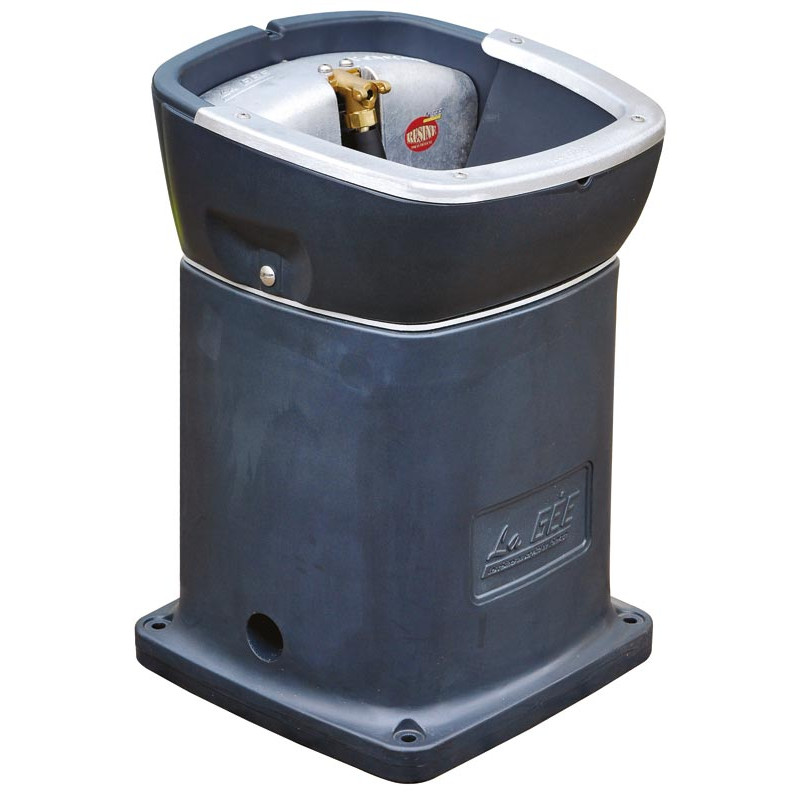

Non-heating POLYSPRING II push-type drinker/waterer
Feature-Benefits :

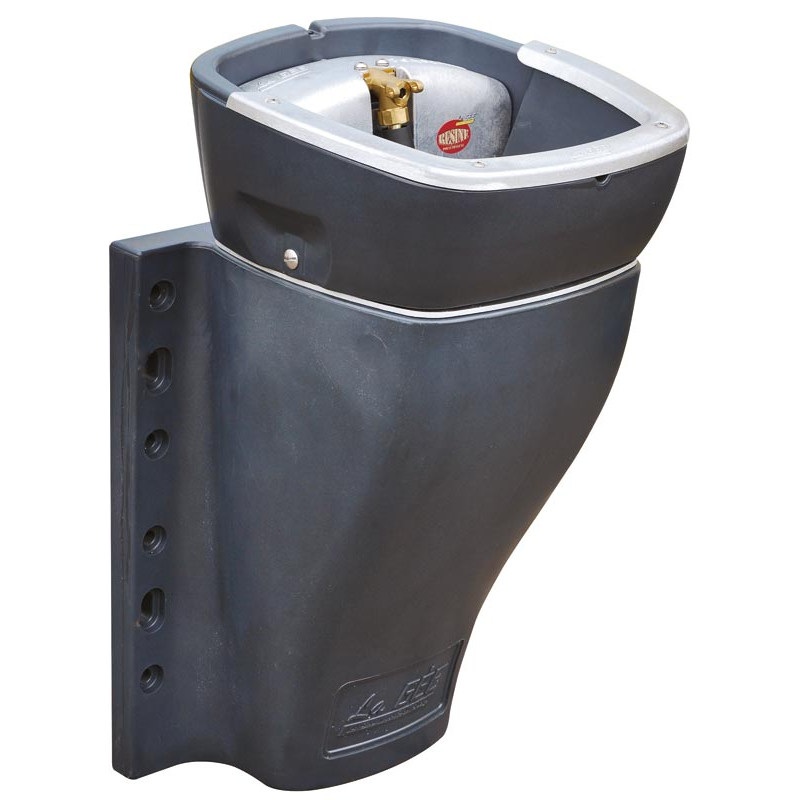

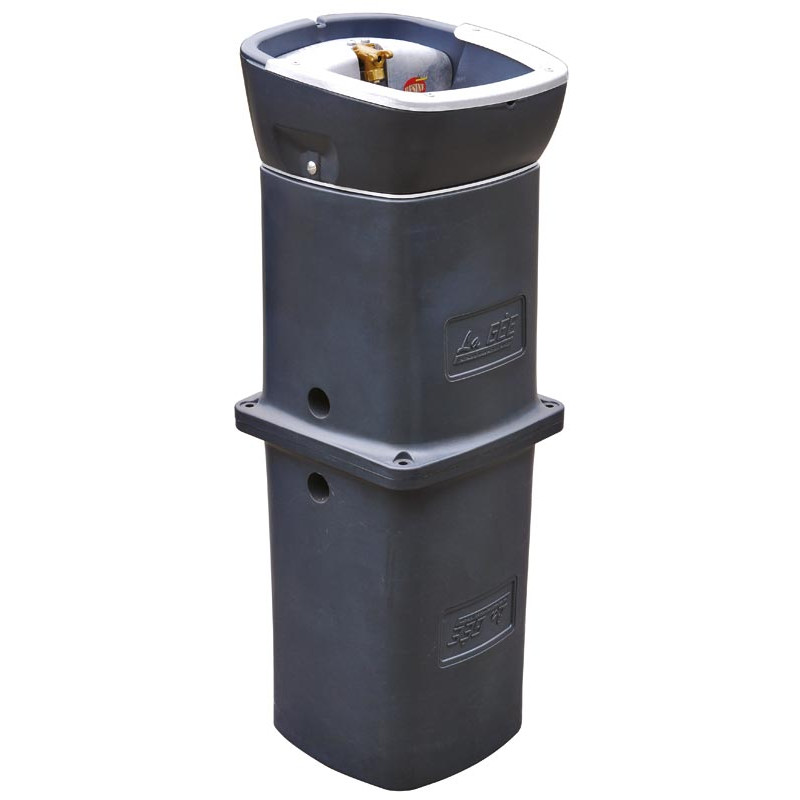

Designed to be set on PE Columns to protect from freezing.

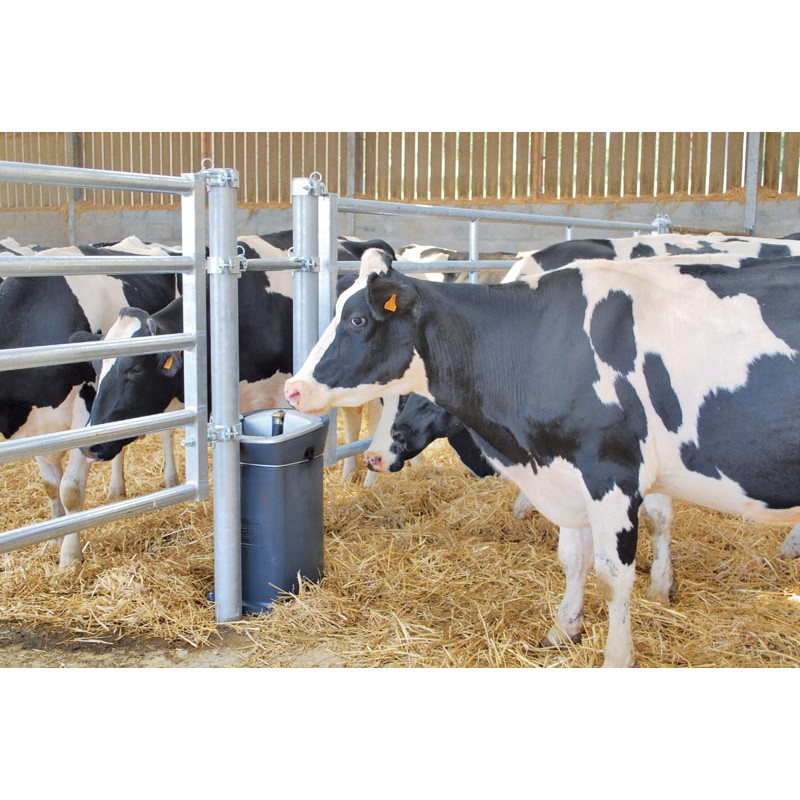

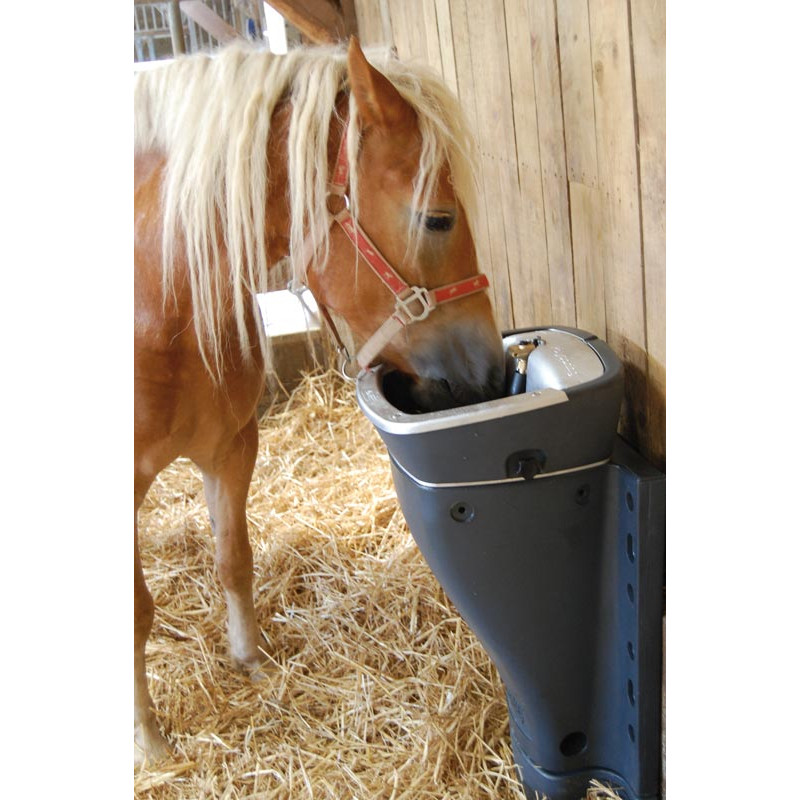

Suitable between two pens.

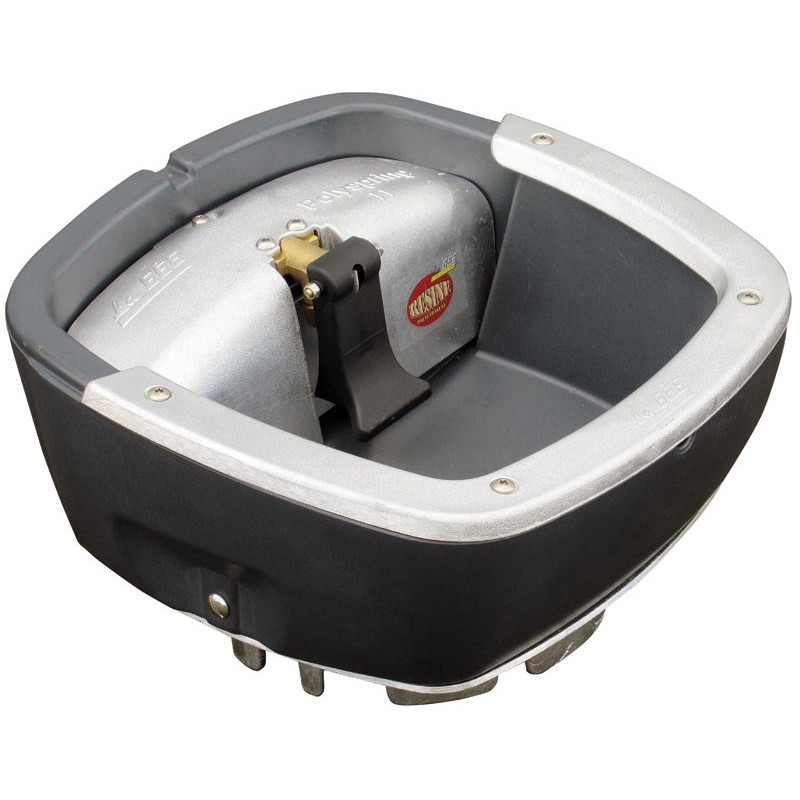

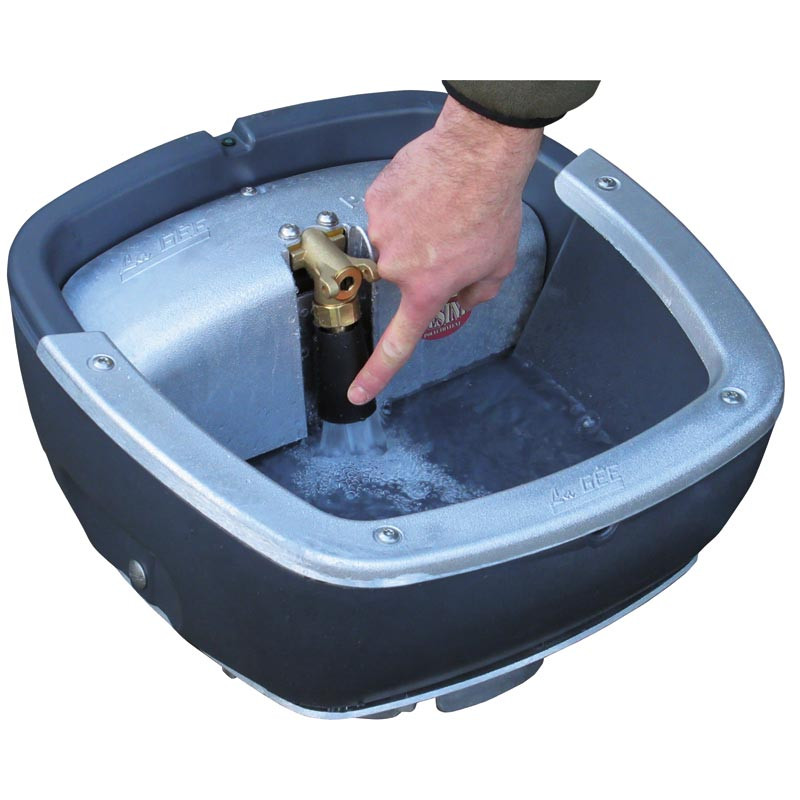

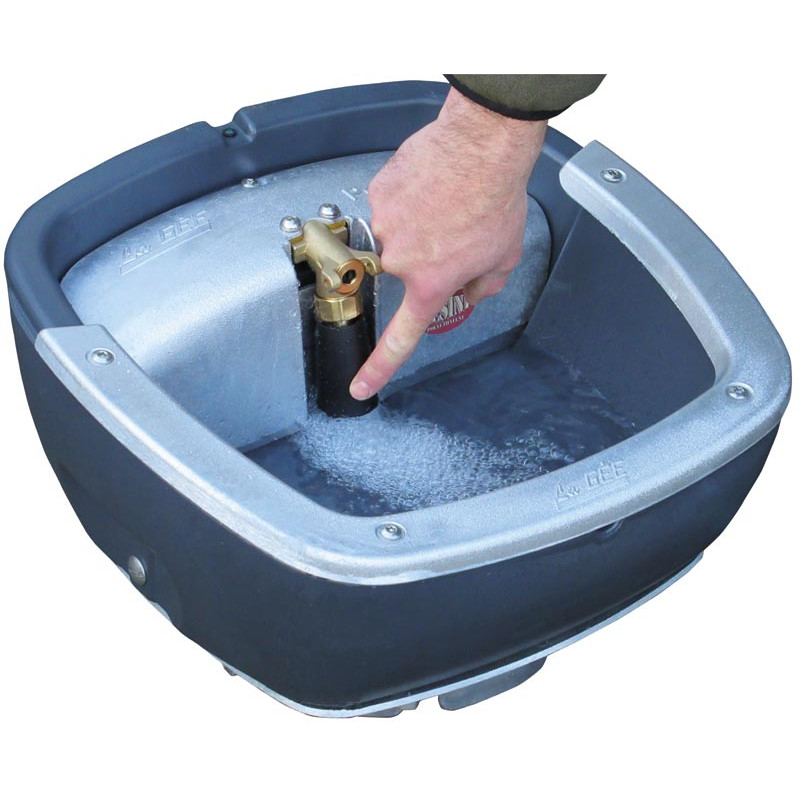

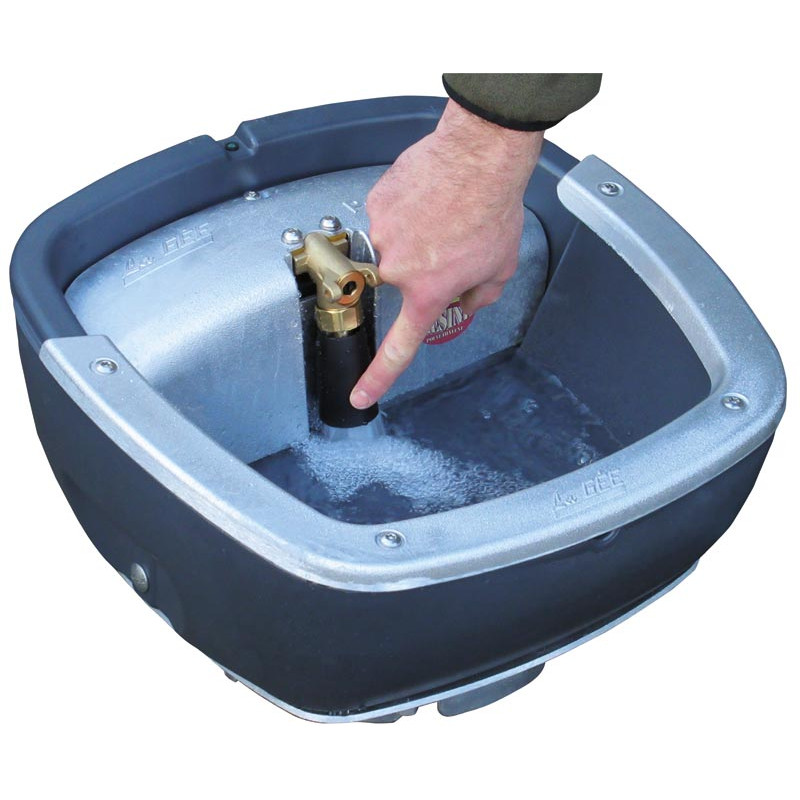

Fitted with a pusher tube. Possibility to switch the tube by a horizontal or vertical paddle.
Can be upgraded with heating unit Polyresistance 80W-3A.
POLYSPRING drinkers are designed to be used in numerous configurations.

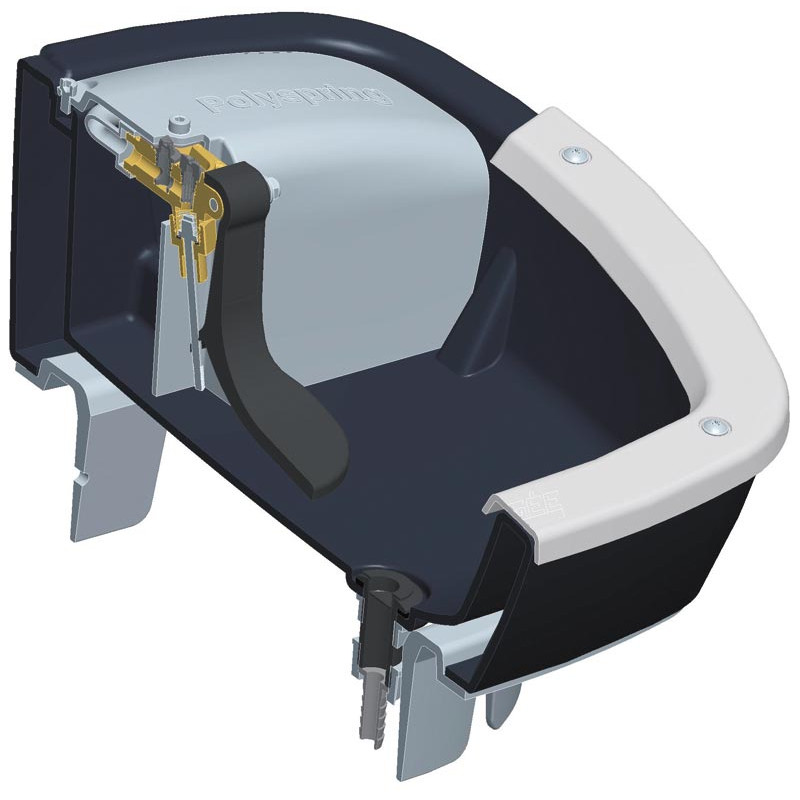

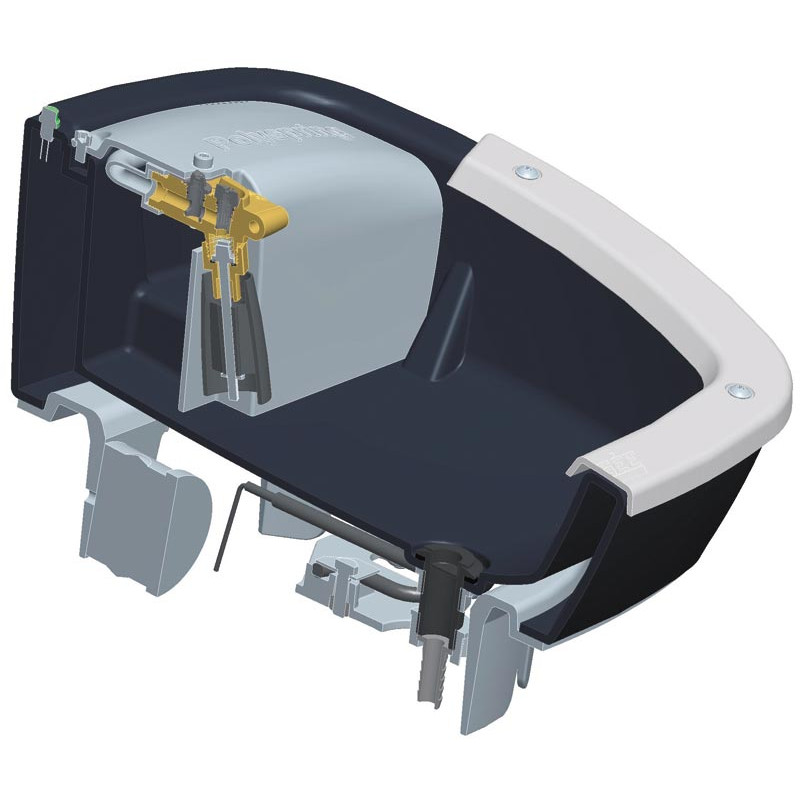

Fitted with a pilot valve, they feature a wide heavy-duty double walled,rotomolded polyethylene bowl.

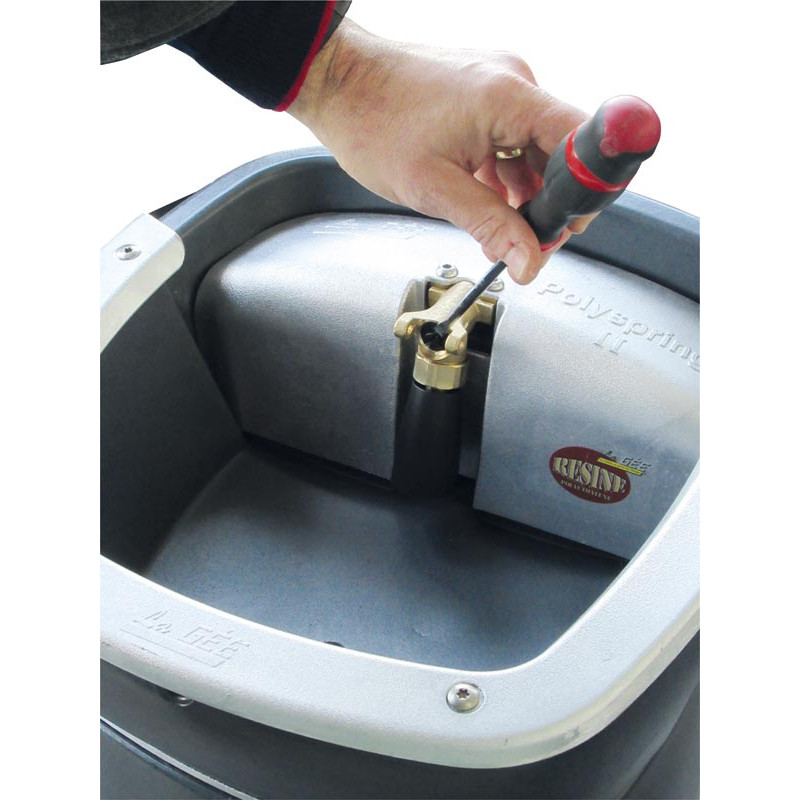

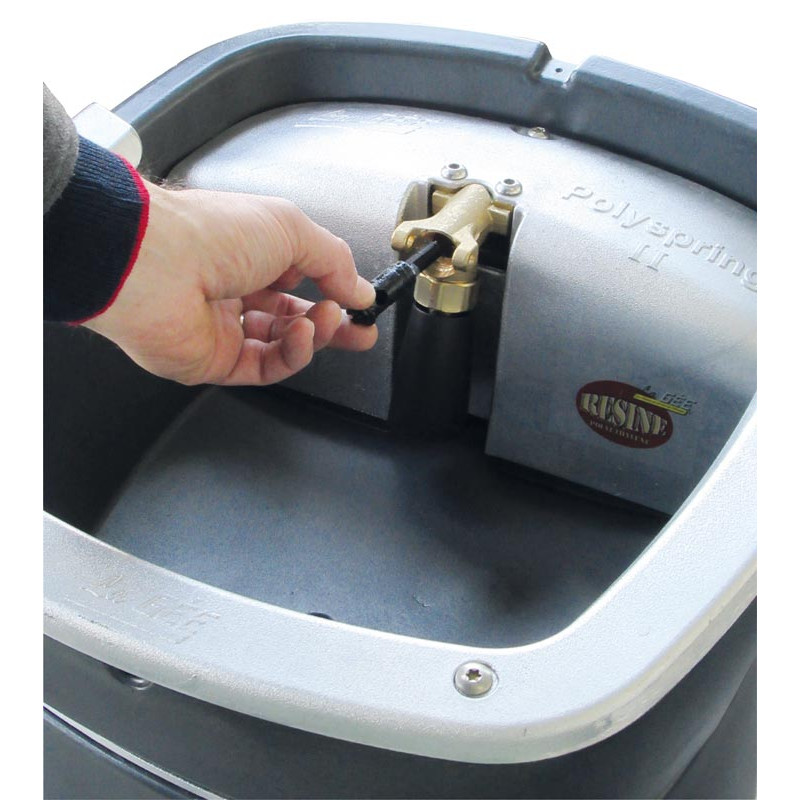

Their flow rate is adjustable from 0 to 18 liters/minute depending on the network pressure.
They are fitted with :

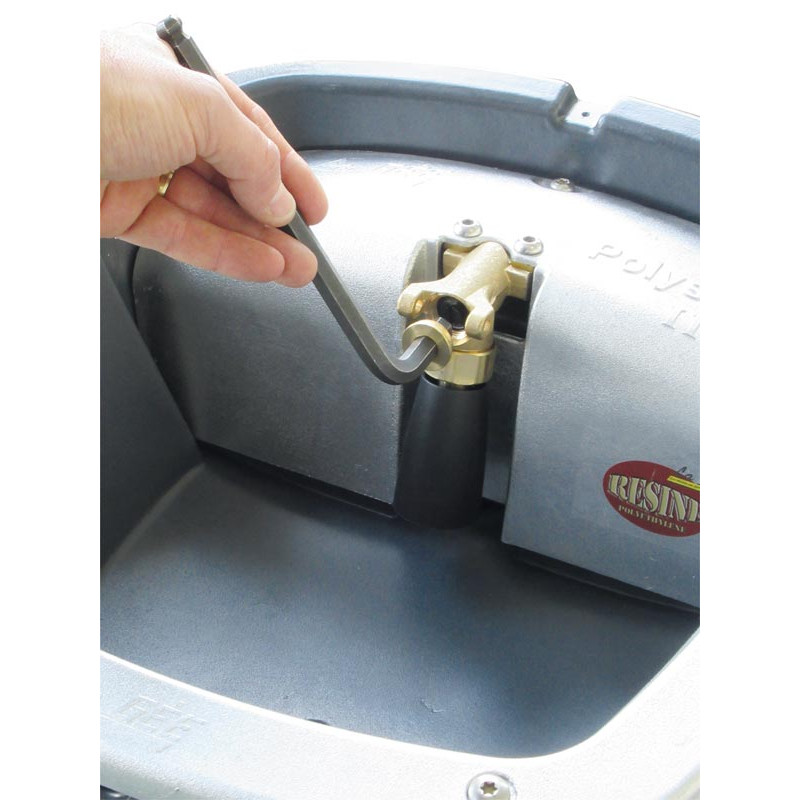

- Horizontal pilot valve,

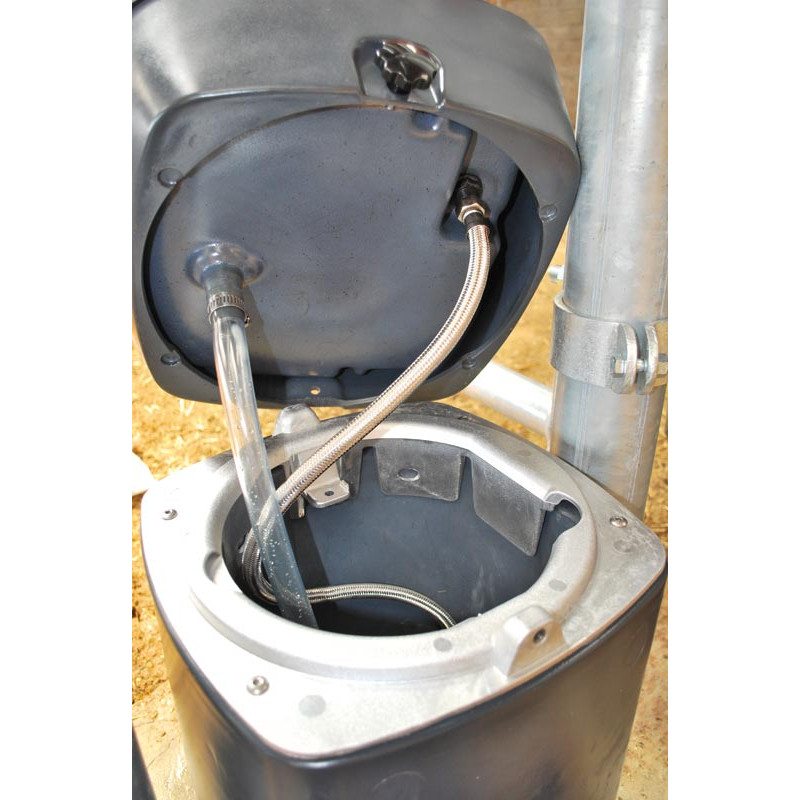

- A reinforced cast aluminium mounting plate which can be directly fastened above the column,
- An antispill rim in cast aluminium.
Delivered without column.

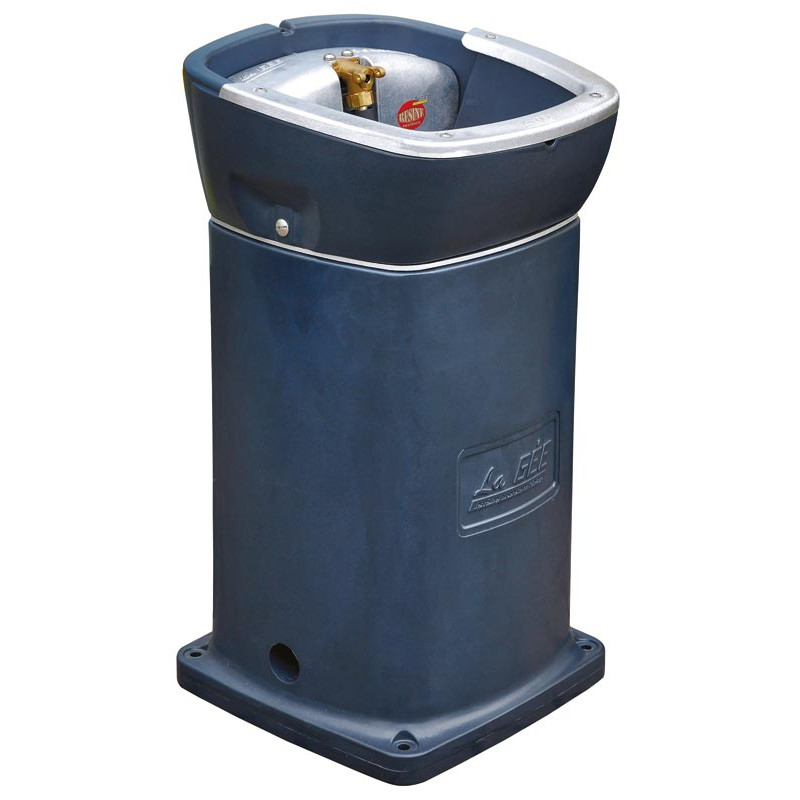

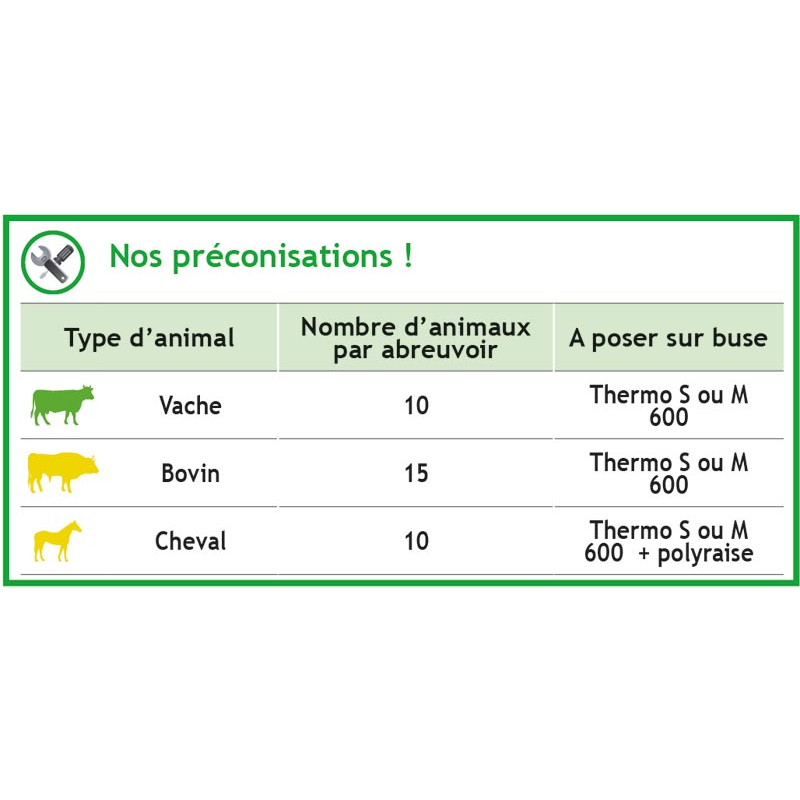

Compatible with Thermo S600, S400, M and S PLUS columns.
- Material
- resin and cast aluminium

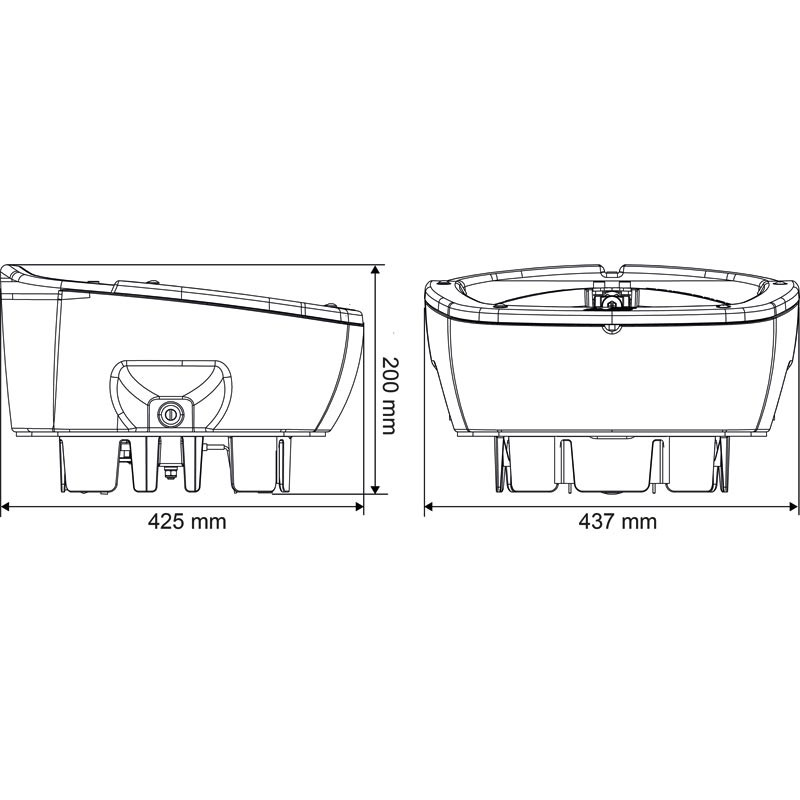

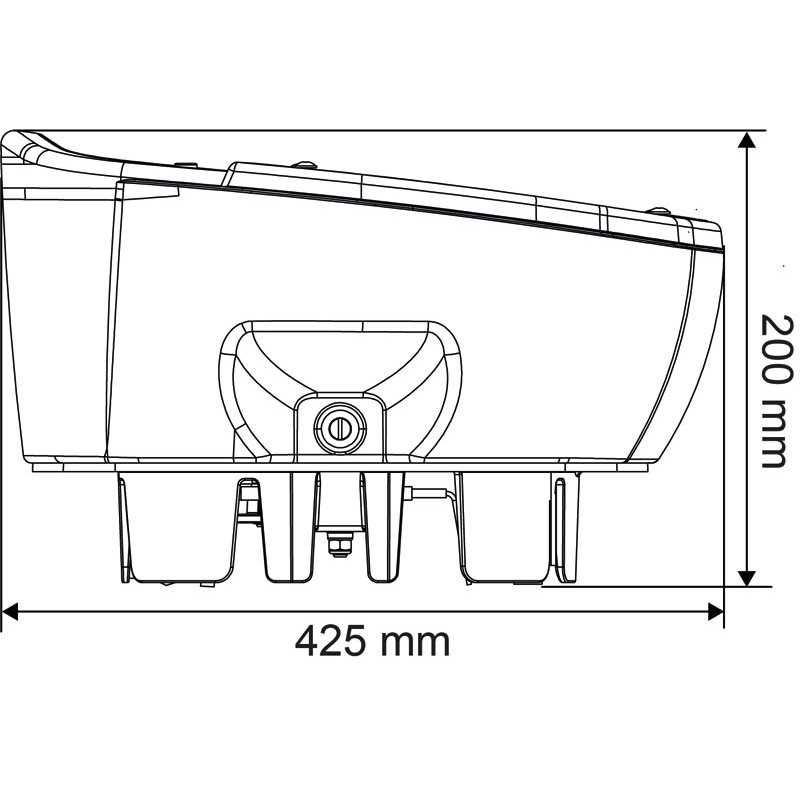

- Length
- 425 mm

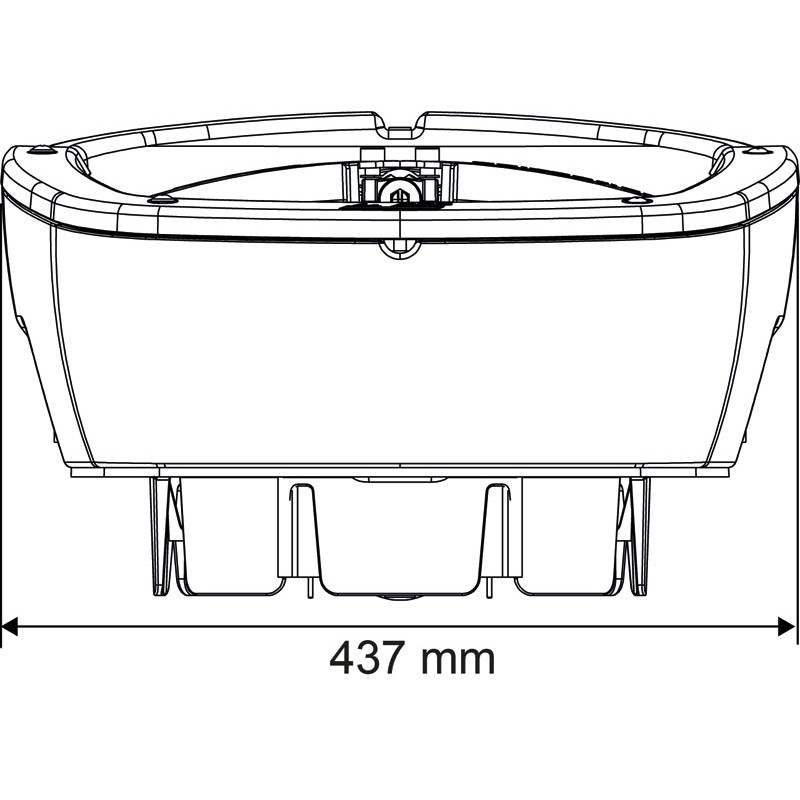

- Width
- 437 mm
- Height
- 200 mm
- Pressure
- network
- Drinker
- Polyspring II
- System
- push-type
- Mechanism
- horizontal pilot valve
- Fastening
- column
- Device
- non heating
- Flowrate
- 1 à 18 l/min
- Connection diameter
- braided hose 1/2'' (15/21 mm) – female
- Packaging
- boxed
- Pusher
- tube
- Valve
- brass
- Sales unit
- Unit
- Sales packaging unit
- Boxed.

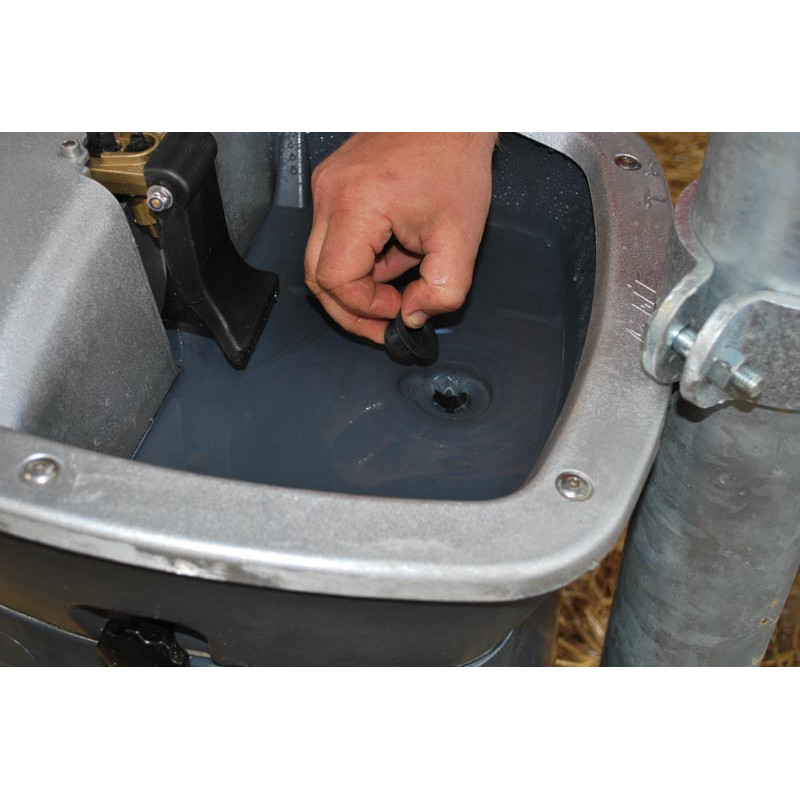

- Drain plug
- flexible - Ø 25 mm
