Feature-Benefits :

Designed to be set on PE Columns. Suitable between two pens.

110_DEBIT_18_L-P1.svg 440_PRODUIT_MAG-P1.svg
> More details

Caution : it is recommended to order the thermostat and the right transformer suited to your facility and the number of heated drinkers.



POLYSPRING drinkers are designed to be used in numerous configurations.
Fitted with a pilot valve, they feature a wide heavy-duty double walled,rotomolded polyethylene bowl.
Their flow rate is adjustable from 0 to 18 liters/minute depending on the network pressure.

They are fitted with :

  • Horizontal pilot valve,
  • A reinforced cast aluminium mounting plate which can be directly fastened above the column,
  • An antispill rim in cast aluminium.

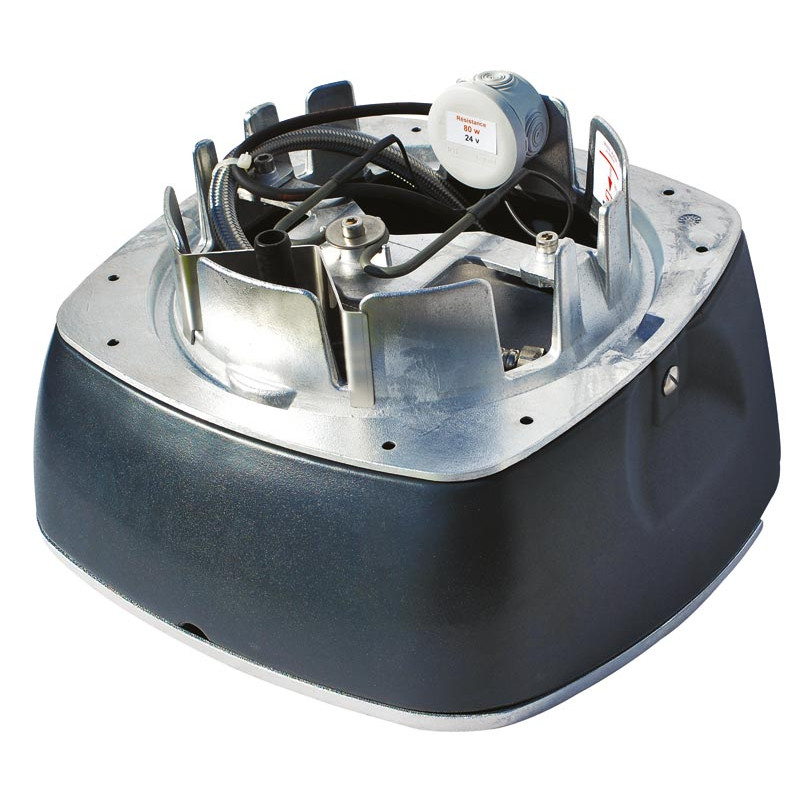

The heating Polyspring push-type drinker/waterer features:
- 1 polyresistance 24V – 80W,
- 1 LED indicator to show that the power is on.





Delivered without column.

Compatible with Thermo S600, S400, M and S PLUS columns.
Material
resin and cast aluminium

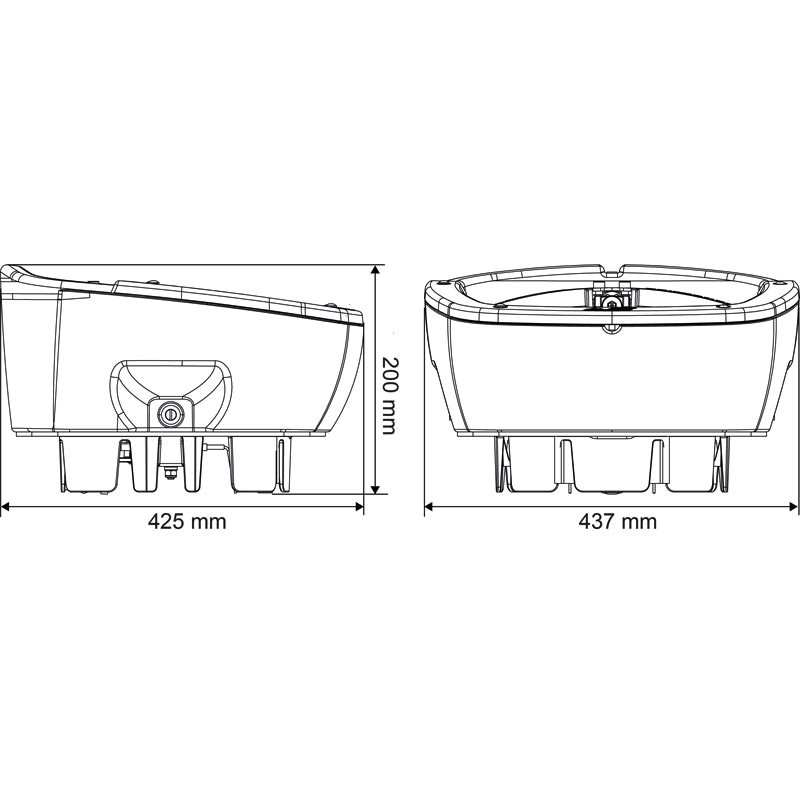

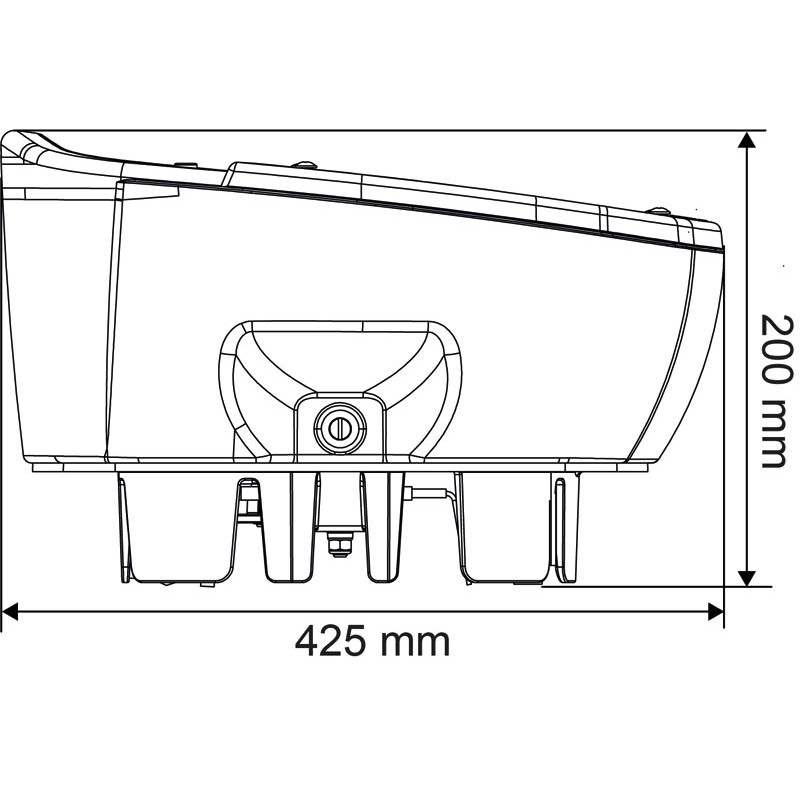

Length
425 mm

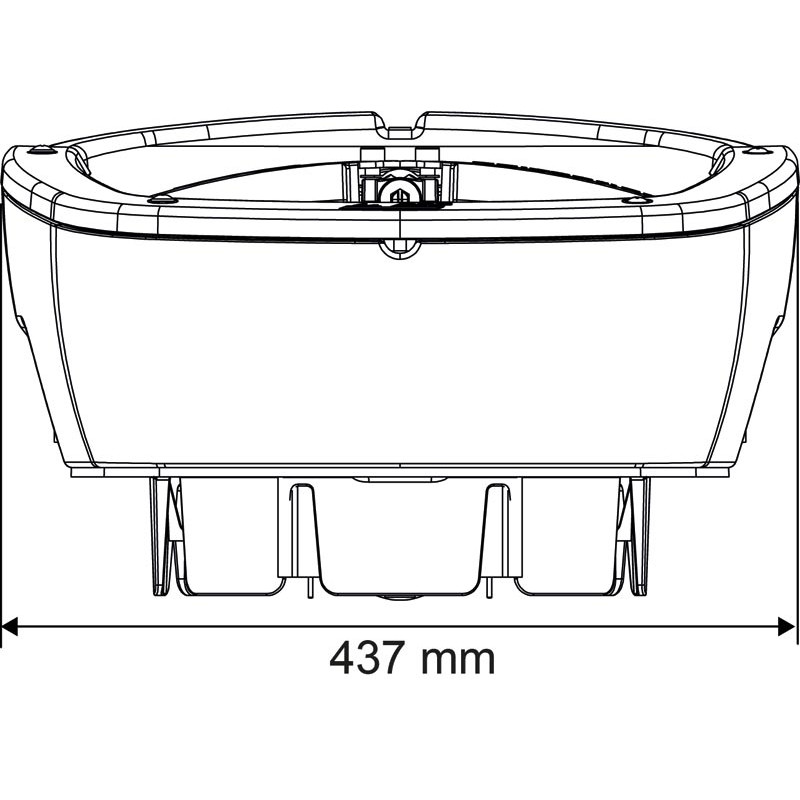

Width
437 mm
Height
200 mm
Pressure
network
Drinker
Polyspring II
System
push-type
Mechanism
horizontal pilot valve
Fastening
column
Device
heating
Connection diameter
braided hose 1/2'' (15/21 mm) – female
Packaging
boxed
Pusher
tube
Valve
brass
Voltage
24 V
Rating
80 W
Flow rate
1 to 18 l/min
Sales unit
Unit
Sales packaging unit
Boxed.
Drain plug
flexible - Ø 25 mm
