The non-heating POLYSPRING II constant level drinker is upgradeable via an optional heater kit.
Delivered without column.

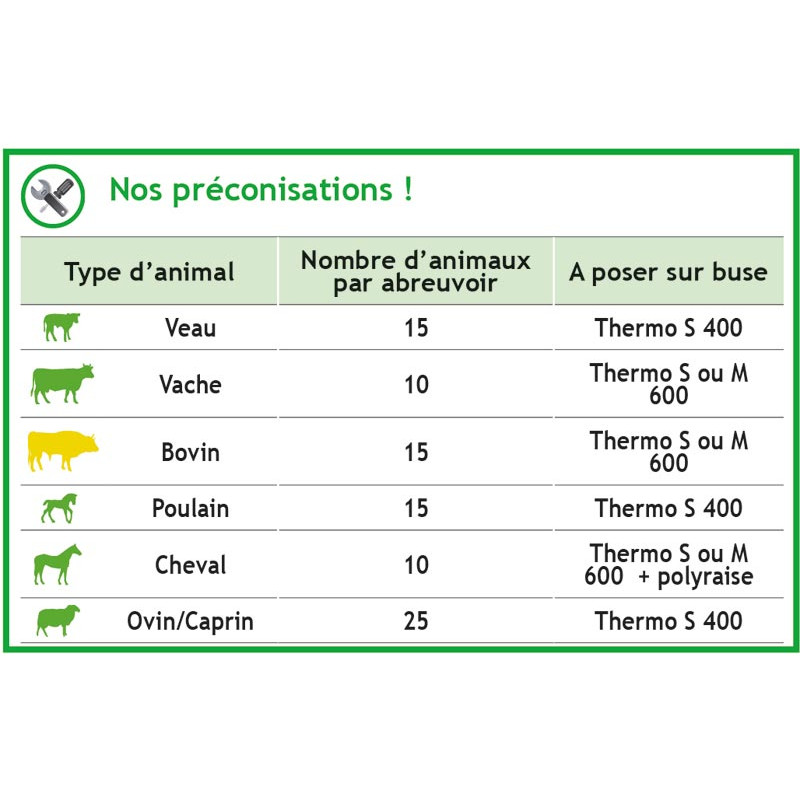

Compatible with Thermo S600, S400, M and S PLUS columns.
POLYSPRING drinkers are designed to be used in numerous configurations.

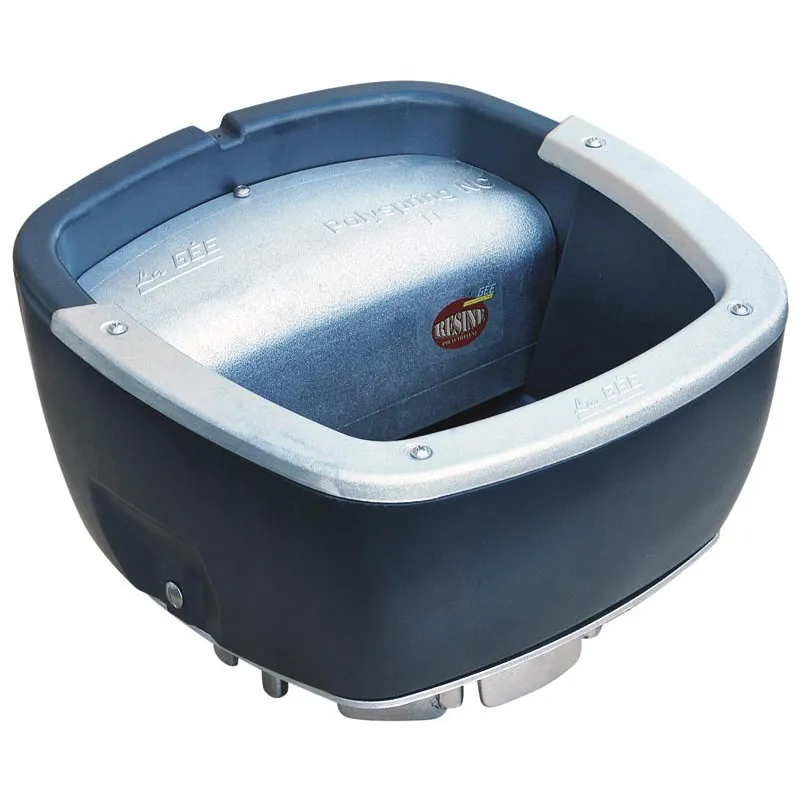

Fitted with a constant level mechanism, they are designed with a wide double-walled, rotomolded polyethylene bowl. The heavy-duty bowl is suited to animal morphology.

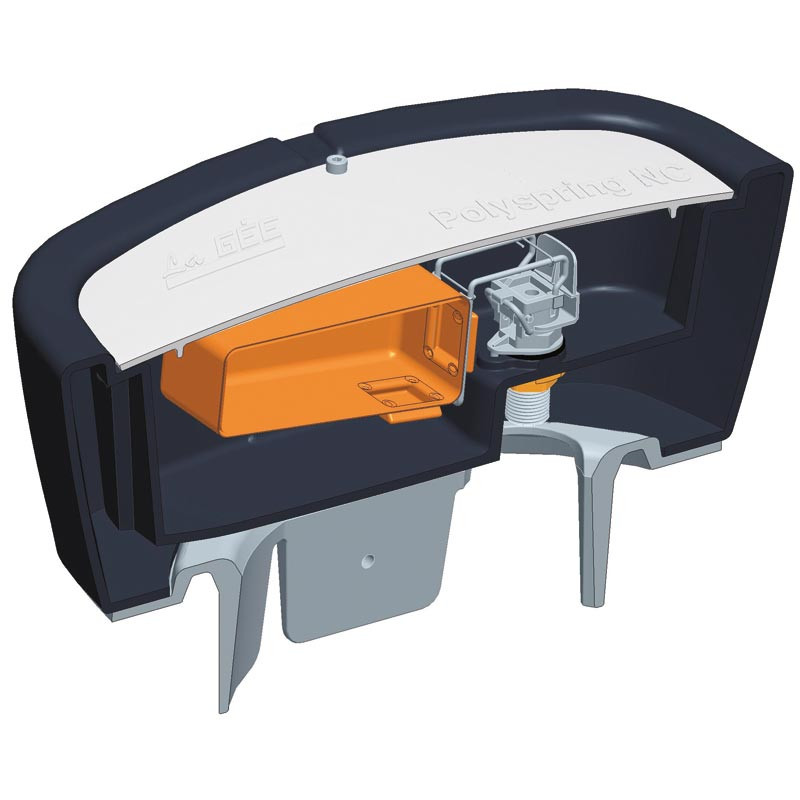

Their mechanism is protected by a high-quality cast aluminium housing. The mechanism is 15 liters/minute depending on the pressure.
The constant level model works ideally with pressure of 3 to 4 bars maximum.
The water supply connection fits direct in the THERMO COLUMN M and S since the 1/2" connection is under the bowl.
They are fitted with:

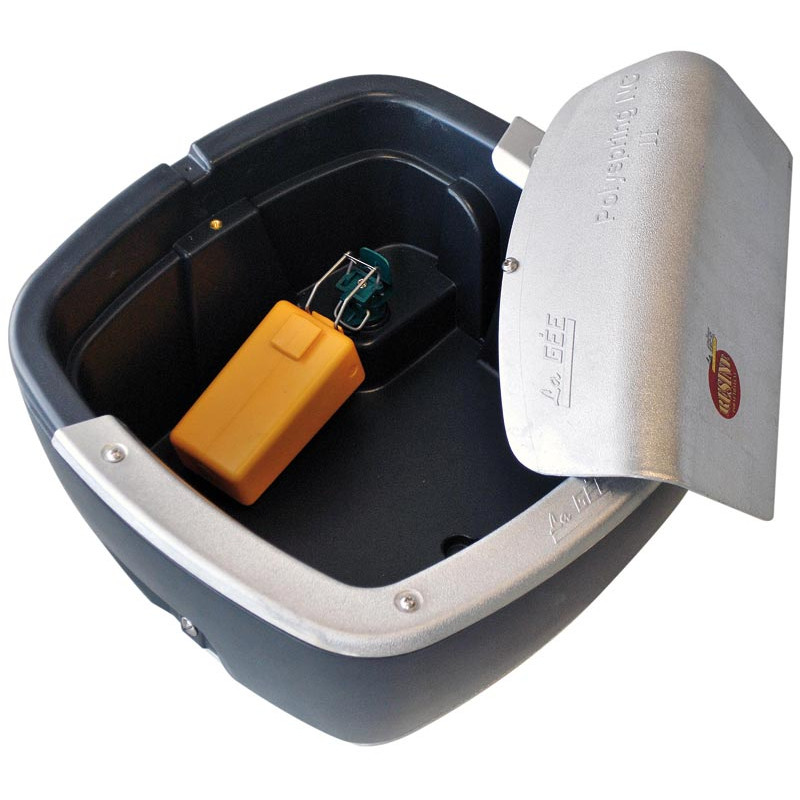

• 1 LA GEE 15 litres/minute green float valve tap with adjustment screw,
• 1 water stop system;

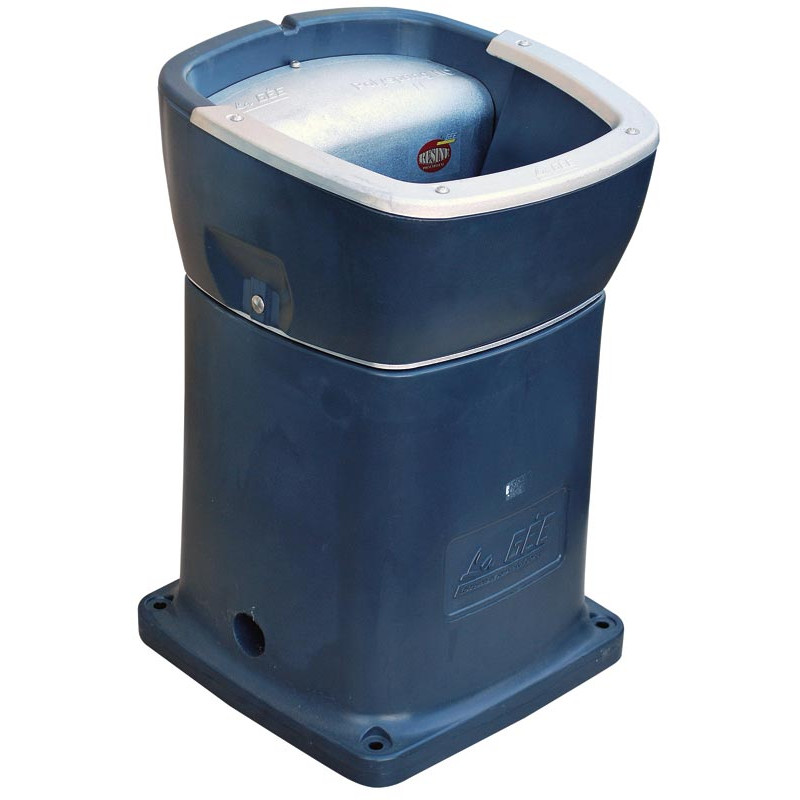

They feature a reinforced cast aluminium mounting plate that can be directly fastened above the column.
The Polyspring bowl is factory fitted with a heavy-duty anti-spill cast aluminium rim for optimal use without spillage, thus keeping bedding material clean.

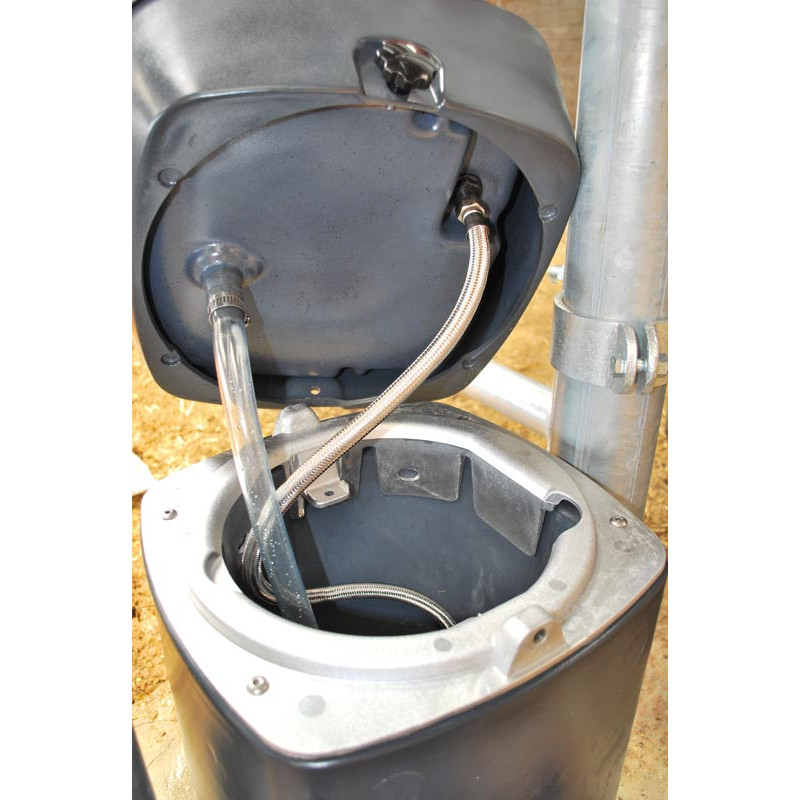

For cleaning, it is fitted with a flexible 25 mm diameter drain plug, linked, via a pipe, to the bottom of the column.
Delivered without column.
Compatible with Thermo S600, S400, M and S PLUS columns.
- Material
- resin and cast aluminium

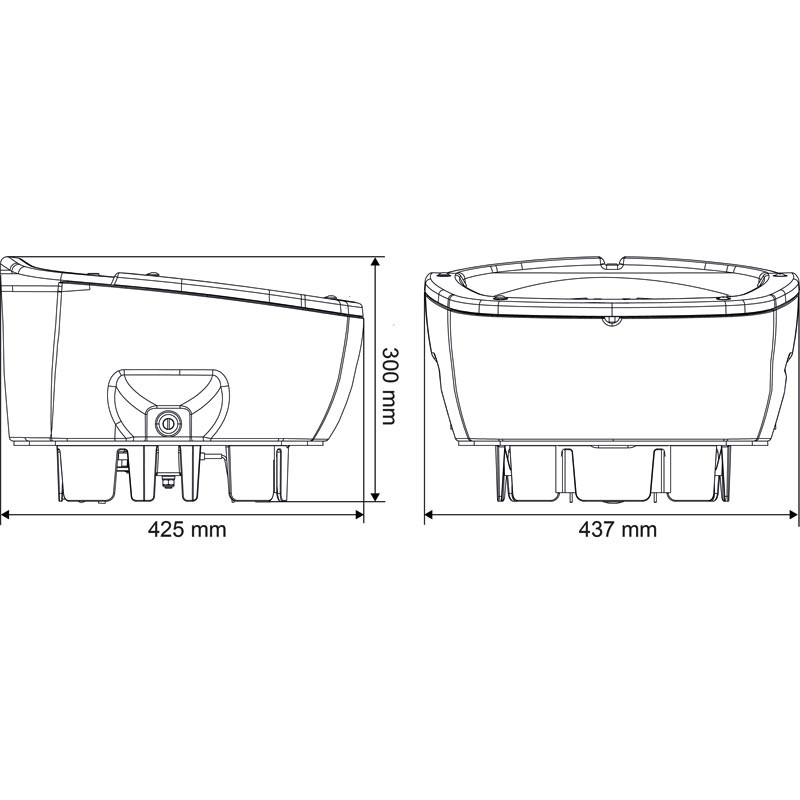

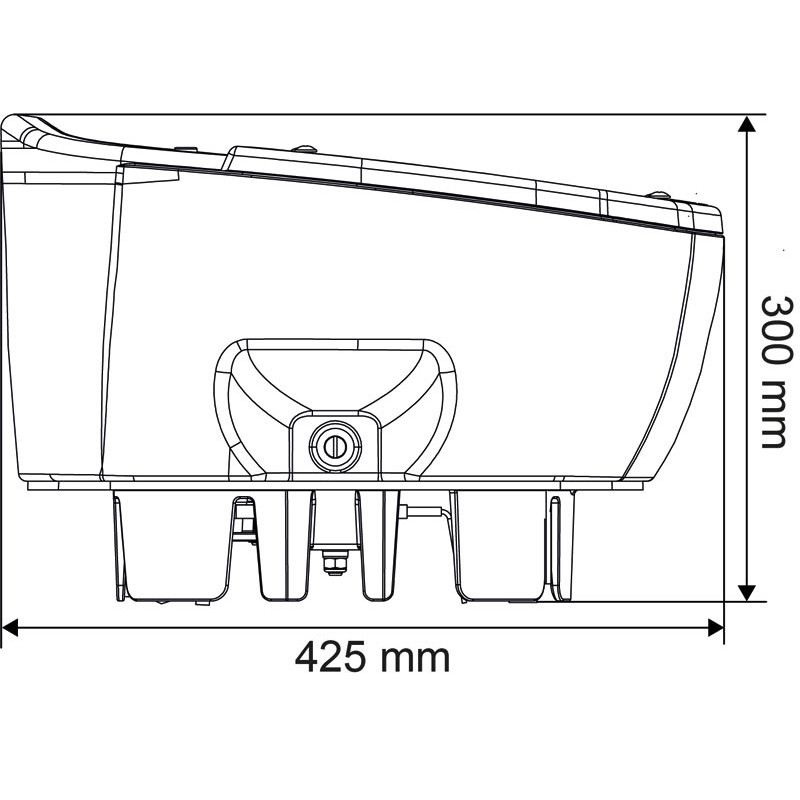

- Length
- 425 mm

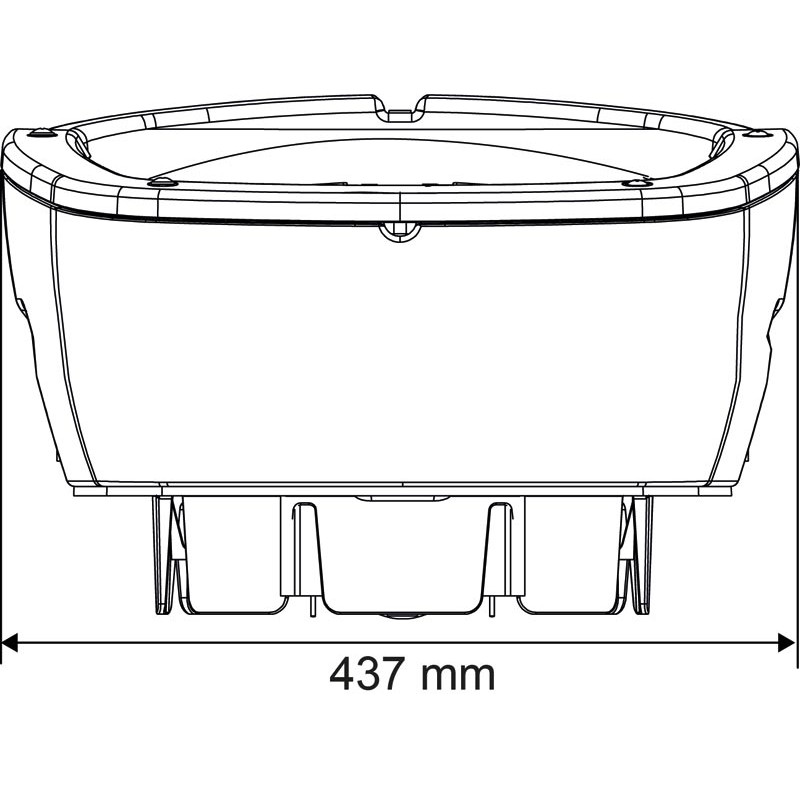

- Width
- 437 mm
- Height
- 235 mm
- Pressure
- network
- Drinker
- Polyspring II NC
- System
- constant level
- Mechanism
- float valve tap
- Fastening
- column
- Device
- non-heating
- Flowrate
- 1 à 18 l/min
- Connection diameter
- 1/2" (15/21 mm) - female
- Packaging
- boxed
- Sales unit
- Unit
- Sales packaging unit
- Boxed.
- Float valve
- Pressure network en polyamide vert (P1138315)
- Drain plug diameter
- 25 mm (relié en bas des buses)
