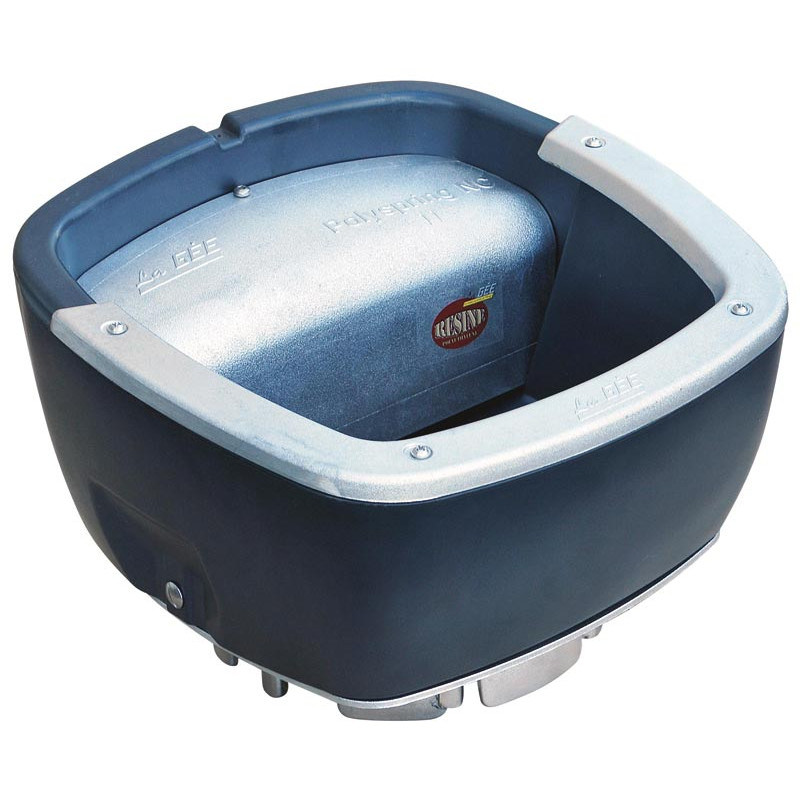

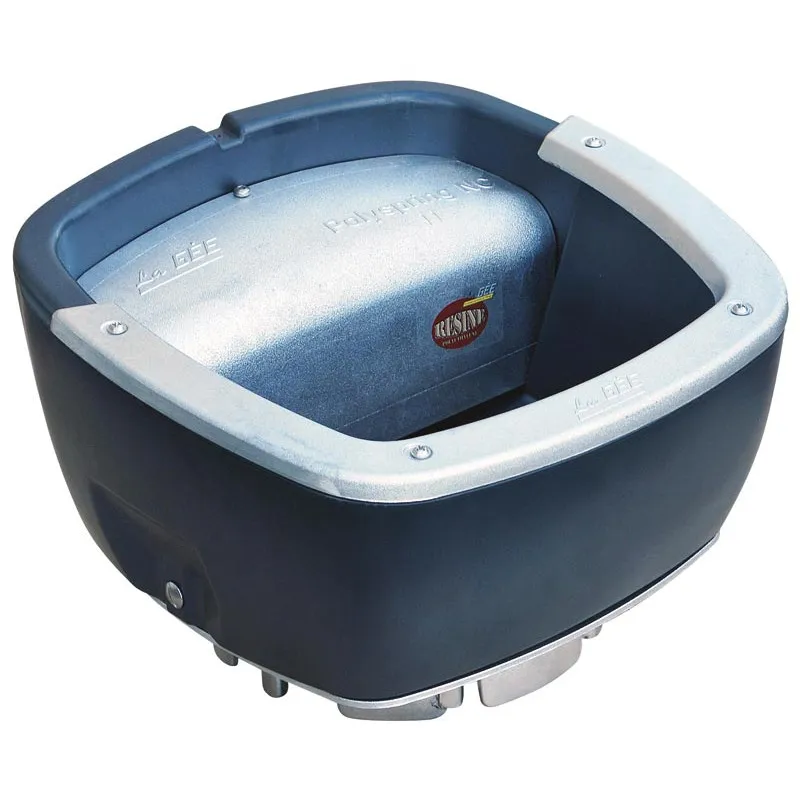

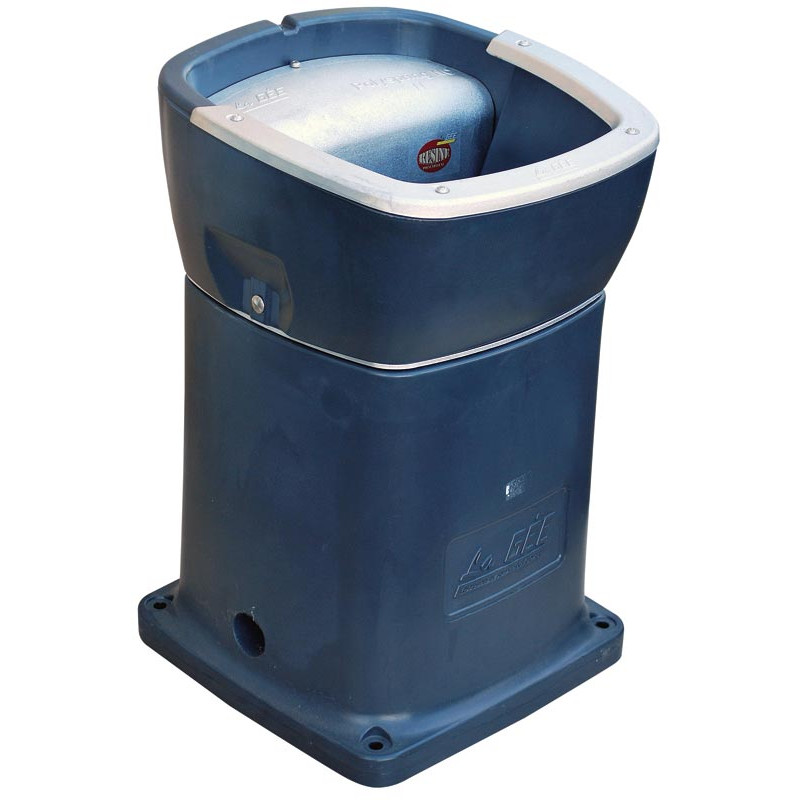

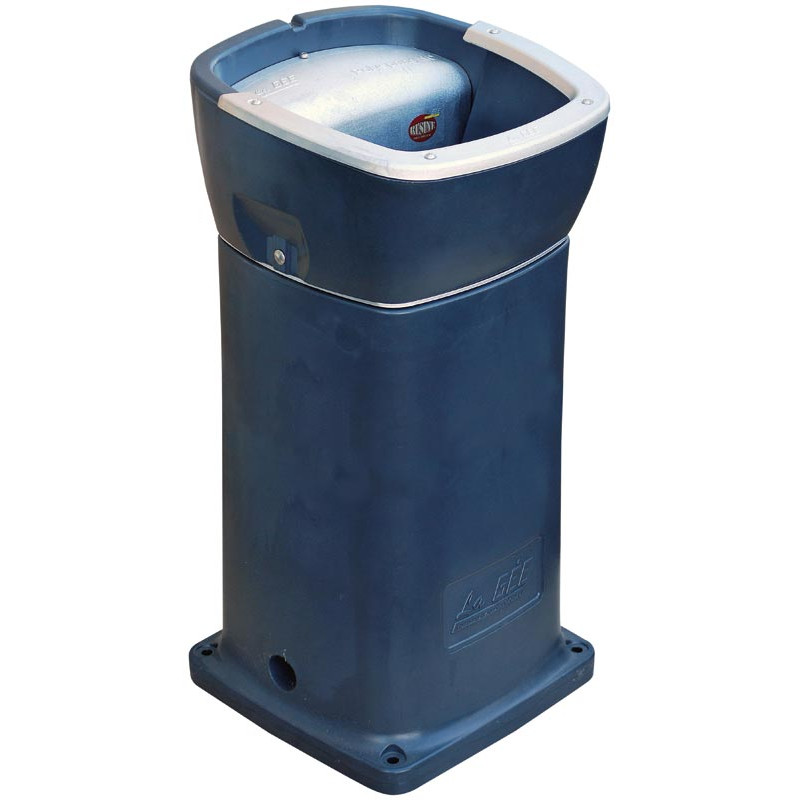

POLYSPRING II heating constant level drinker

The heating system provides calories to both the bowl and the water inlet.
The 180 W model is recommended for Nordic countries and is pre-fitted with a thermostat adjustable from 4 to 40°C.
Note. Order the thermostat and transformer suited to your facility.

POLYSPRING drinkers are designed to be used in numerous configurations.

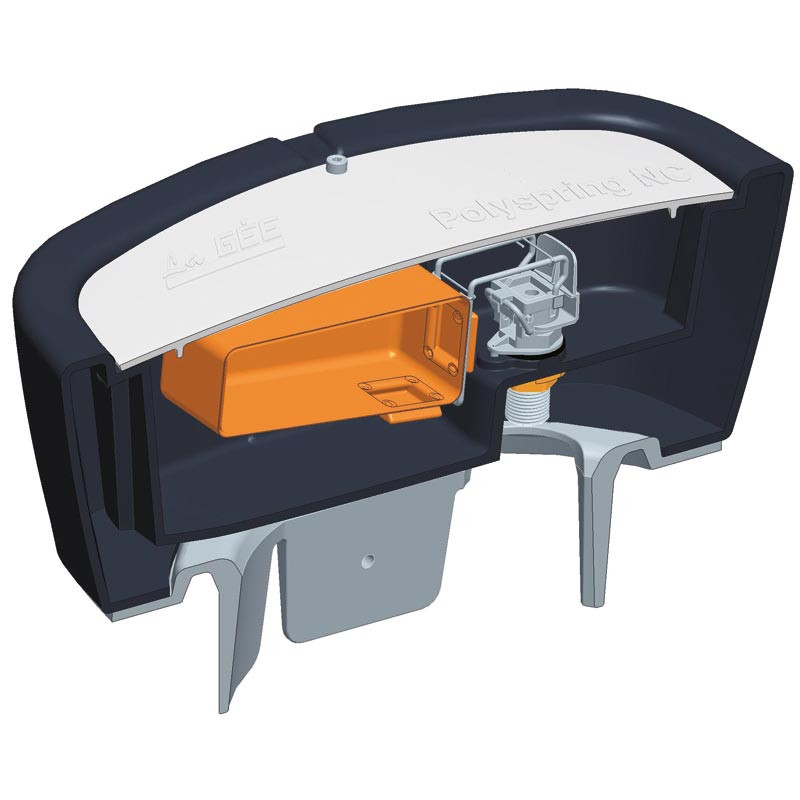

Fitted with a constant level mechanism, they are designed with a wide double-walled, rotomolded polyethylene bowl. The heavy-duty bowl is suited to animal morphology.
Their mechanism is protected by a high-quality cast aluminium housing. The mechanism is 15 liters/minute depending on the pressure.
The constant level model works ideally with pressure of 3 to 4 bars maximum.

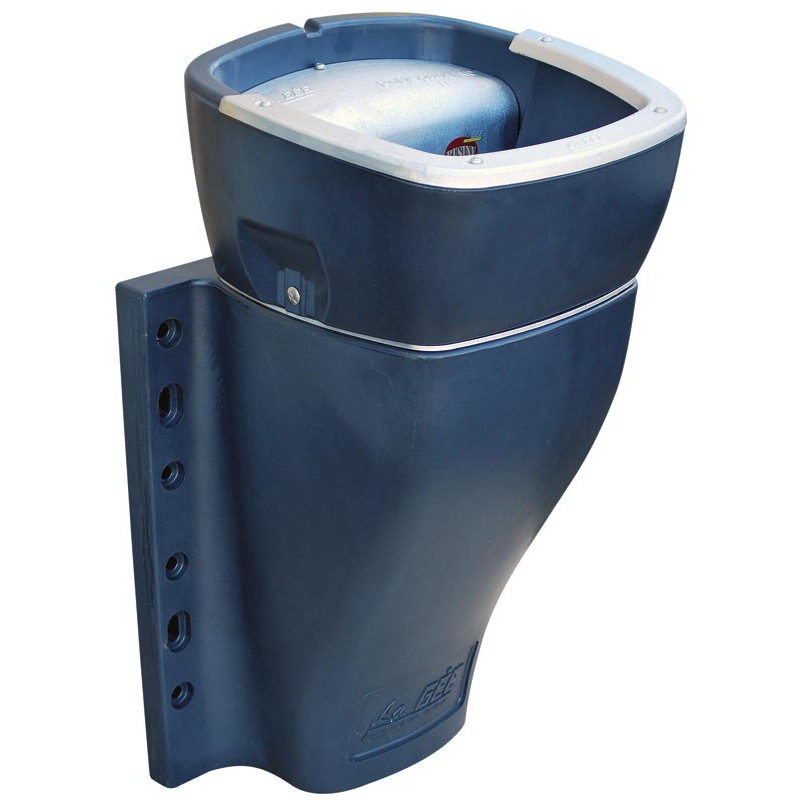

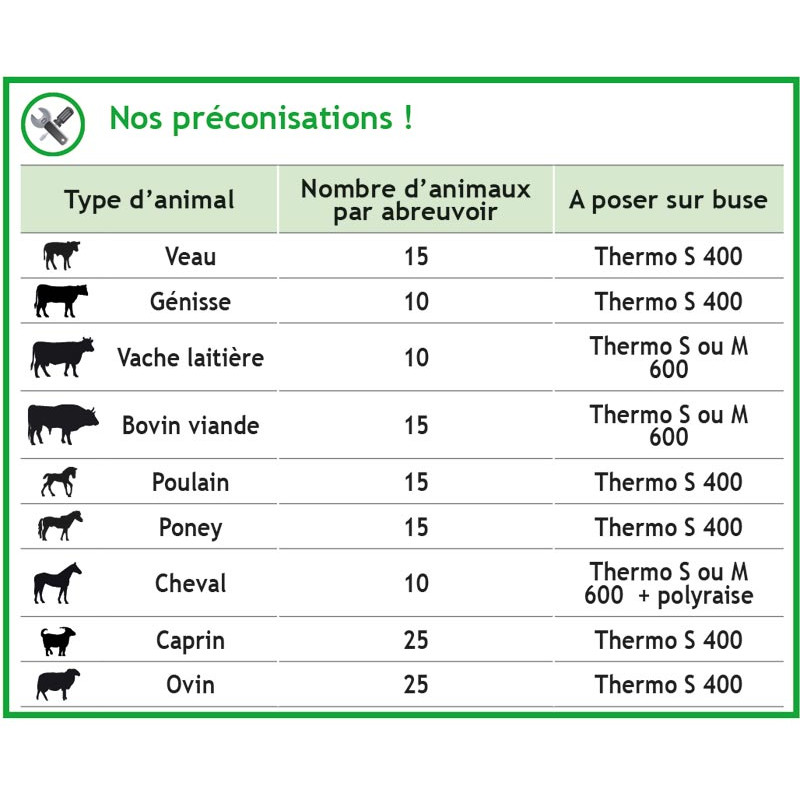

The water supply connection fits direct in the THERMO COLUMN M and S since the 1/2" connection is under the bowl.
They are fitted with:

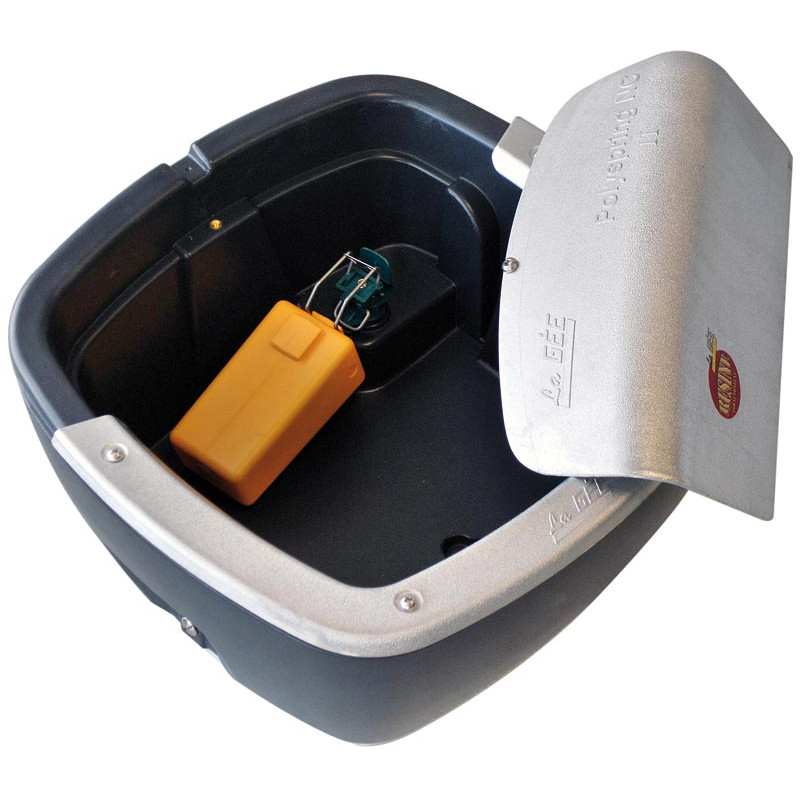

• 1 LA GEE 15 litres/minute green float valve tap with adjustment screw,
• 1 water stop system;
They feature a reinforced cast aluminium mounting plate that can be directly fastened above the column.

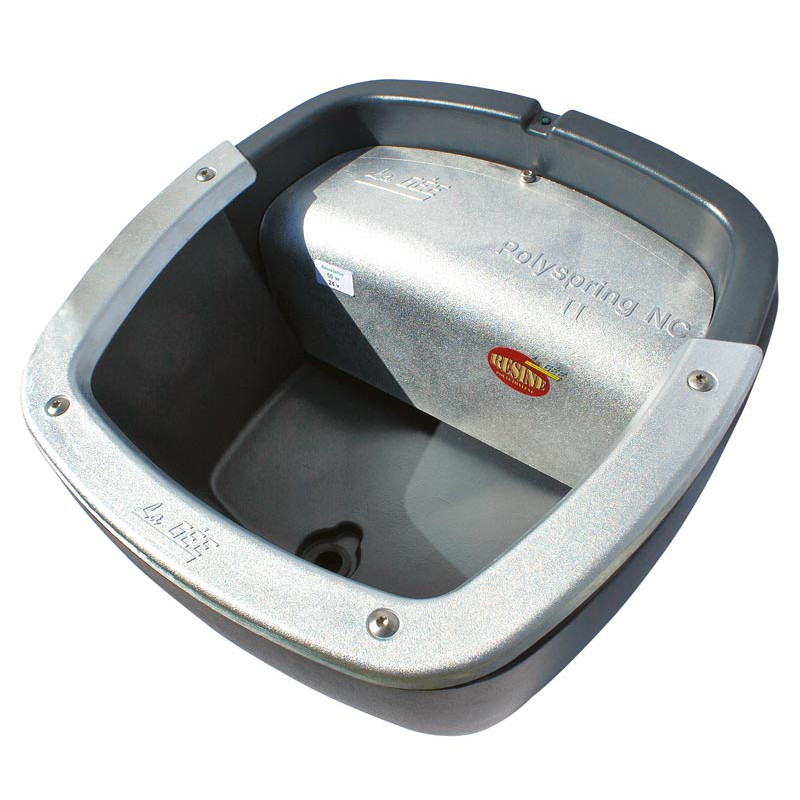

The Polyspring bowl is factory fitted with a heavy-duty anti-spill cast aluminium rim for optimal use without spillage, thus keeping bedding material clean.

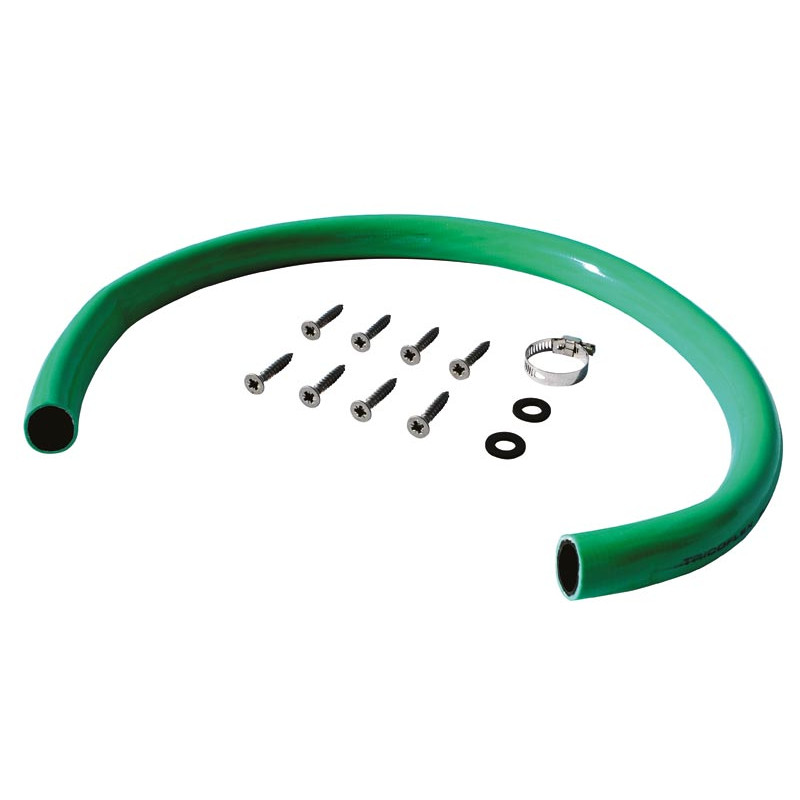

For cleaning, it is fitted with a flexible 25 mm diameter drain plug, linked, via a pipe, to the bottom of the column.

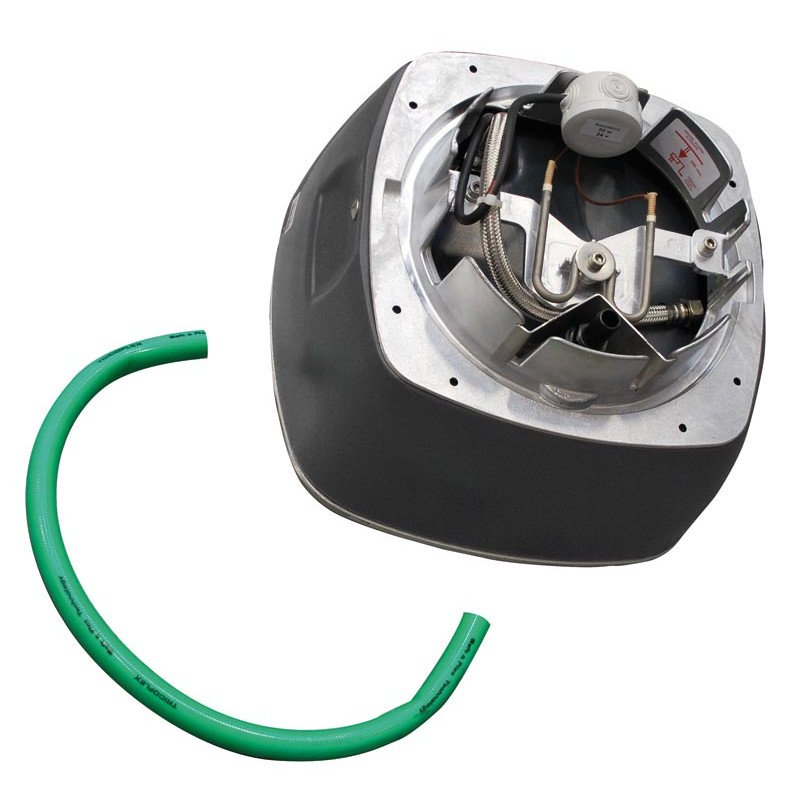

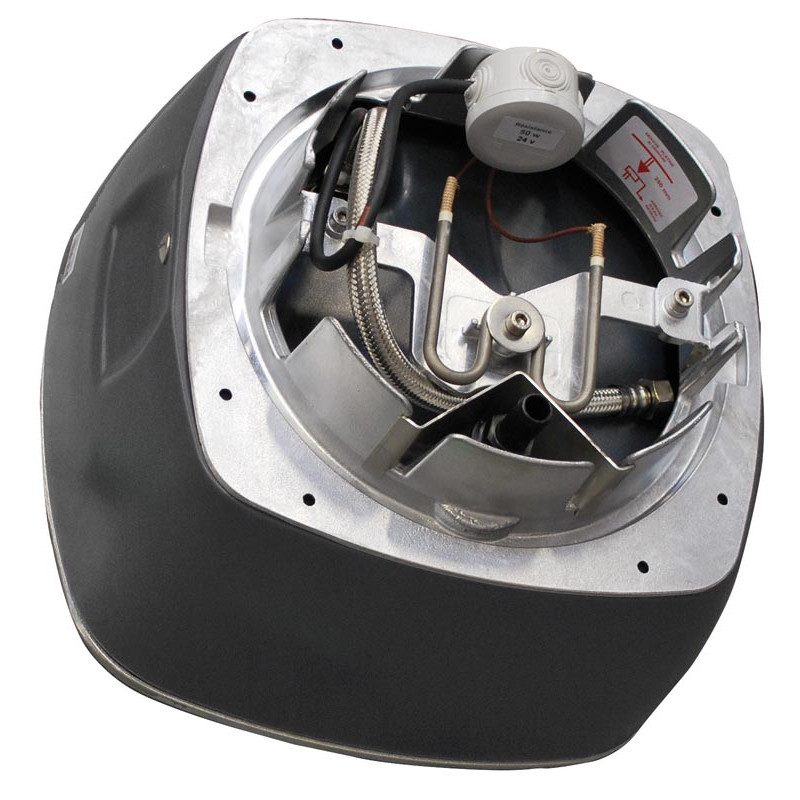

The heating Polyspring features:
- 1 24 V (80 or 180 W) polyresistance
- 1 integrated thermostat adjustable from 4 to 40°C for the 180 W model.
- 1 LED indicator to show that the power is on.
Don't forget to order the thermostat and transformer suited to your facility.
