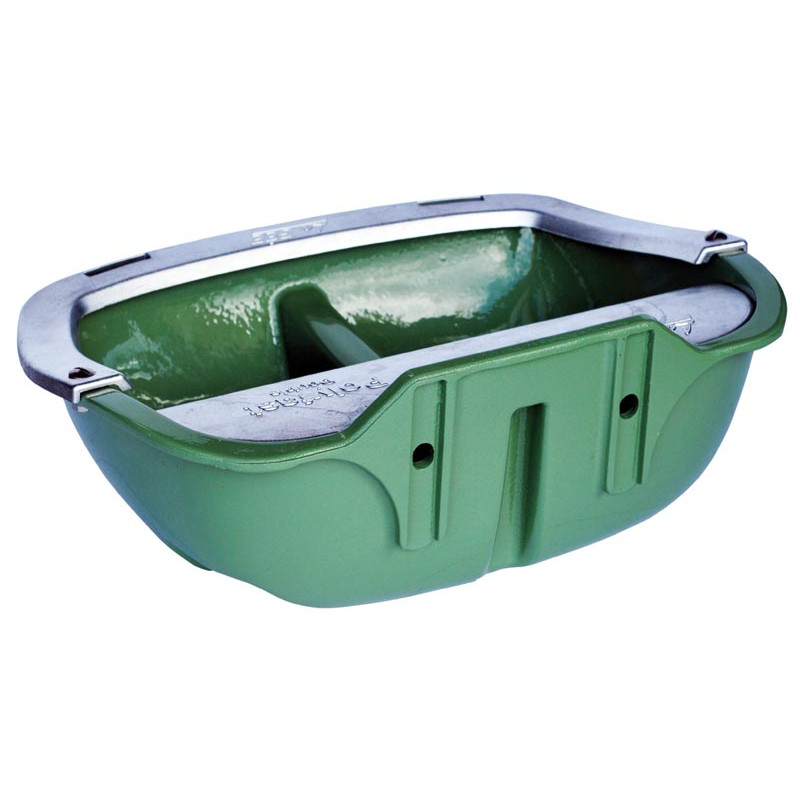

POLYFAST NC PF6 drinker
Feature-Benefits :

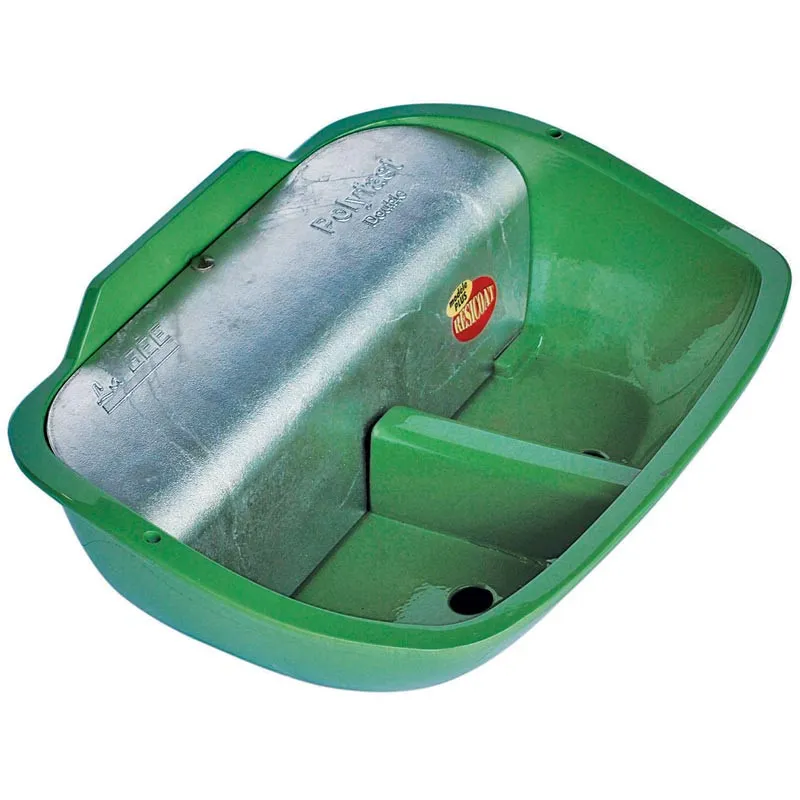

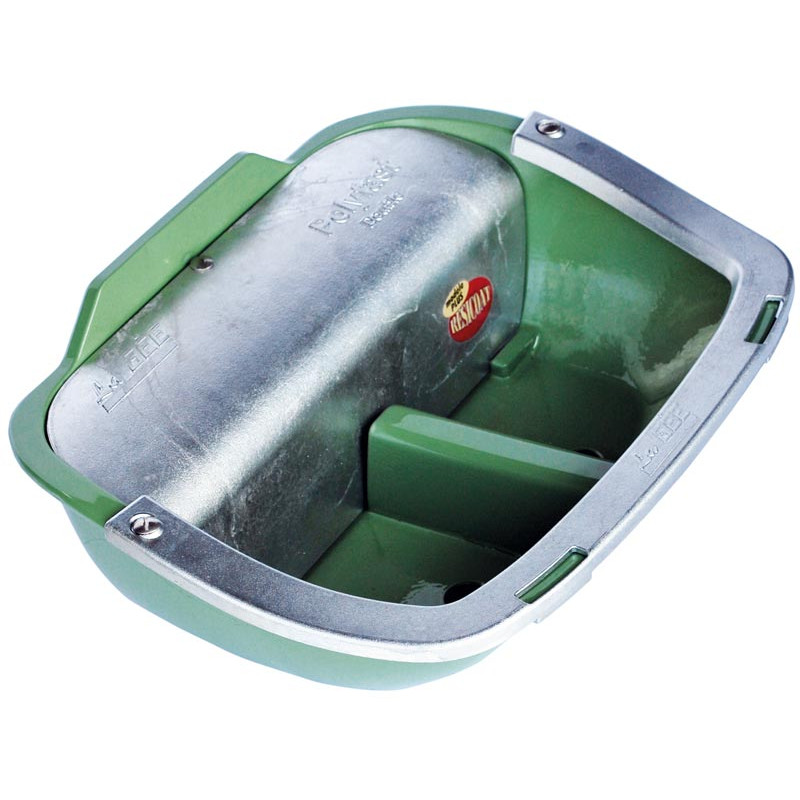

Constant level drinker with a wide cast iron bowl.
Ideal for draught horses.
Ideal for draught horses.
Fitted with a robust mounting plate with two oblong fastenings for easy mounting, they are available in two bowl finishes. Resicoat paint or enamelled for the single model (PF5) and resicoat for the double model (PF6).

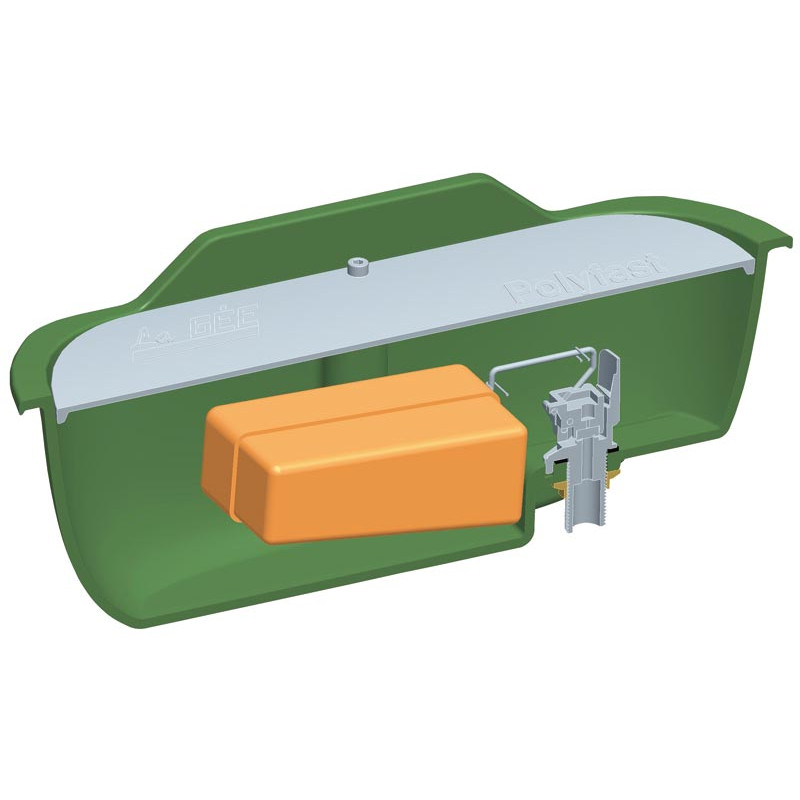

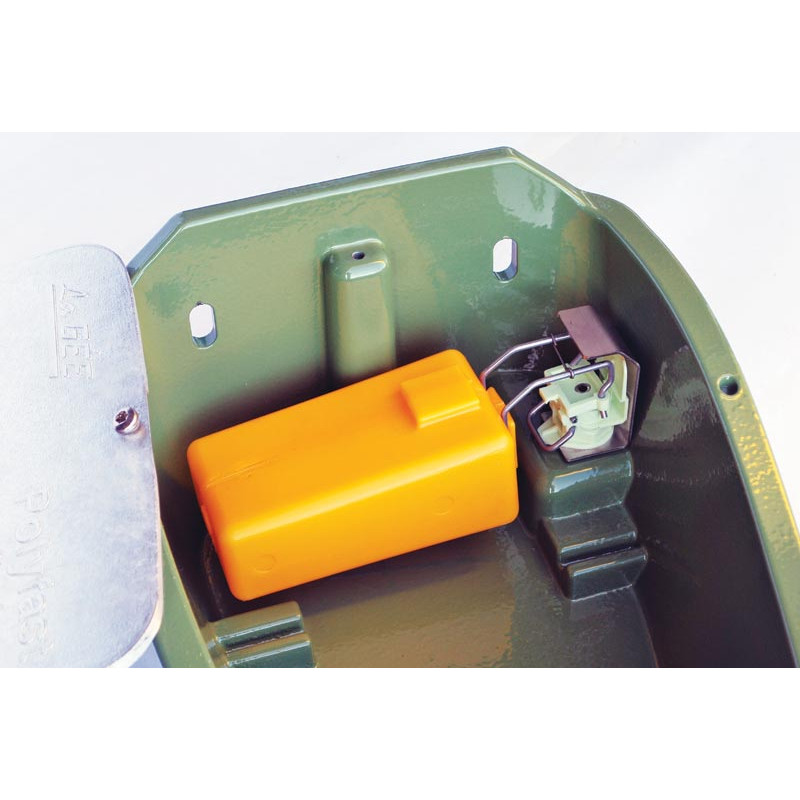

Their constant level system is protected by a high-quality cast aluminium housing. They employ the La Gée 15 litres/minute green float valve with a water height adjuster screw.
The system includes a water stop system (1/2" male) beneath the bowl. Ideal for a maximum pressure of 3 to 4 bars. The through wall plug (Ø 15/21 mm).
It can be directly supplied by 3/4" tube with an anchoring bracket.
In case of use on a network with higher pressure a pressure limiter and filters will need to be installed upstream.
- Material
- cast iron

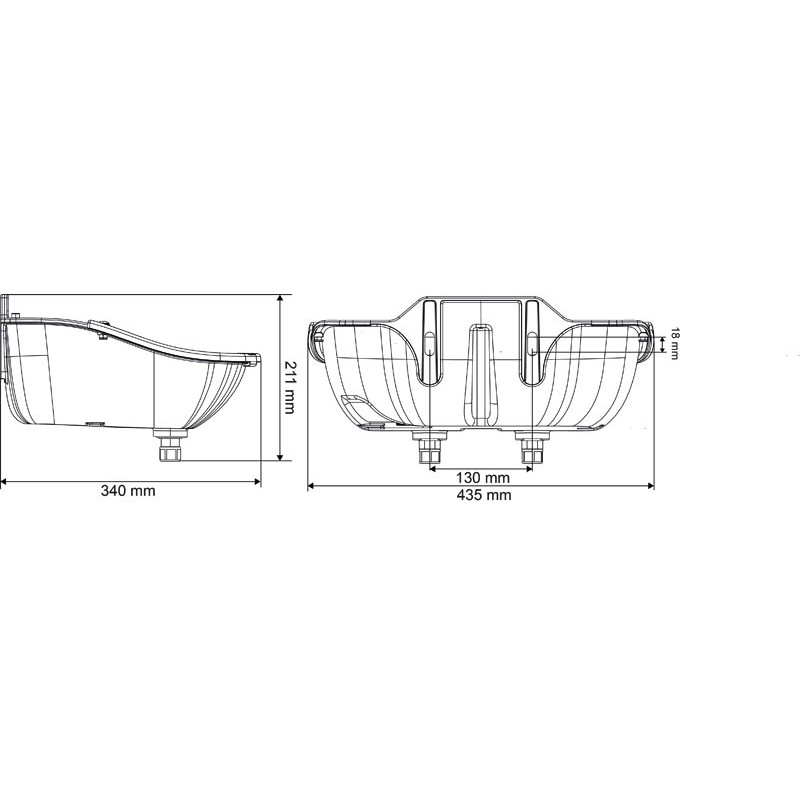

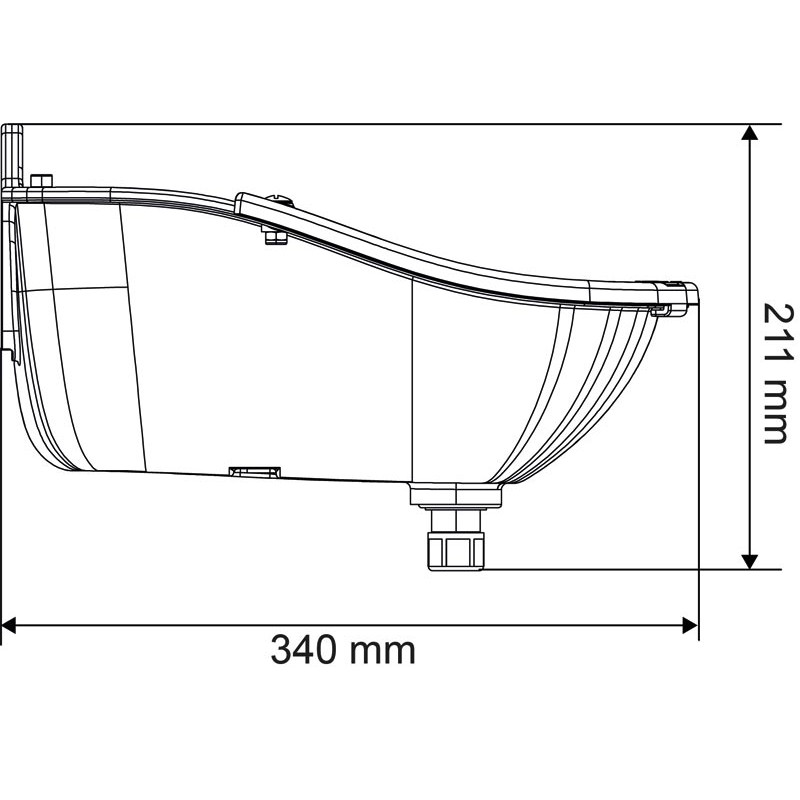

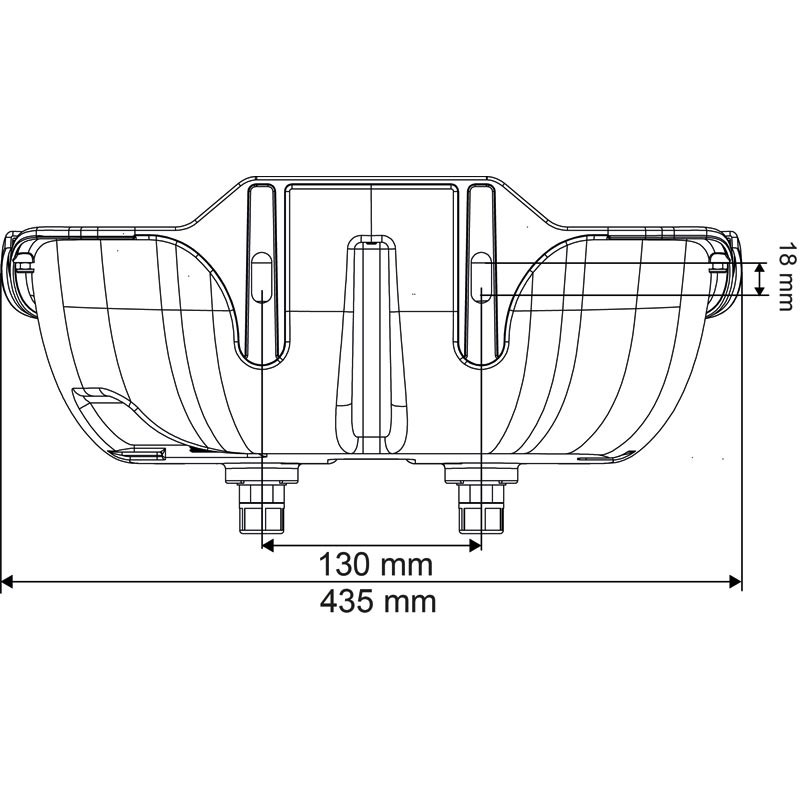

- Length
- 435 mm
- Width
- 340 mm
- Height
- 160 mm
- Model
- PF6
- Pressure
- network
- Drinker
- Polyfast
- System
- constant level
- Mechanism
- float valve tap
- Fastening
- wall
- Device
- non heating
- Flowrate
- 1 à 15 l/min
- Connection diameter
- 1/2" (15/21 mm) - male
- Packaging
- bag
- Finish
- Resicoat
- Sales unit
- Unit
- Sales packaging unit
- Boxed.
- Float valve
- pressure network en polyamide vert (P1138309)
- Drain plug diameter
- 15/21 mm
